Why Does a 4×4 Make Clunk After Switching from 4H to 2H?

Quick Answer

A single clunk after shifting from 4H to 2H is often drivetrain wind-up releasing, especially after pavement, tight turns, snow patches, or mixed traction. Repeated popping, grinding, vibration, leaks, or a stuck 4WD light point to worn parts or failed disengagement and need inspection before trail use.

A 4×4 makes clunk after switching from 4H to 2H most often because stored driveline load releases after the transfer case or front axle disconnects. A 4×4 clunk after switching from 4H to 2H is usually normal if it is one mild thud followed by smooth driving. Common causes include drivetrain wind-up, tire scrub on high-traction surfaces, delayed actuator release, or automatic hub movement. Grinding, repeated popping, vibration, leaks, or a 4WD light that keeps flashing means the vehicle should be inspected before more road miles.

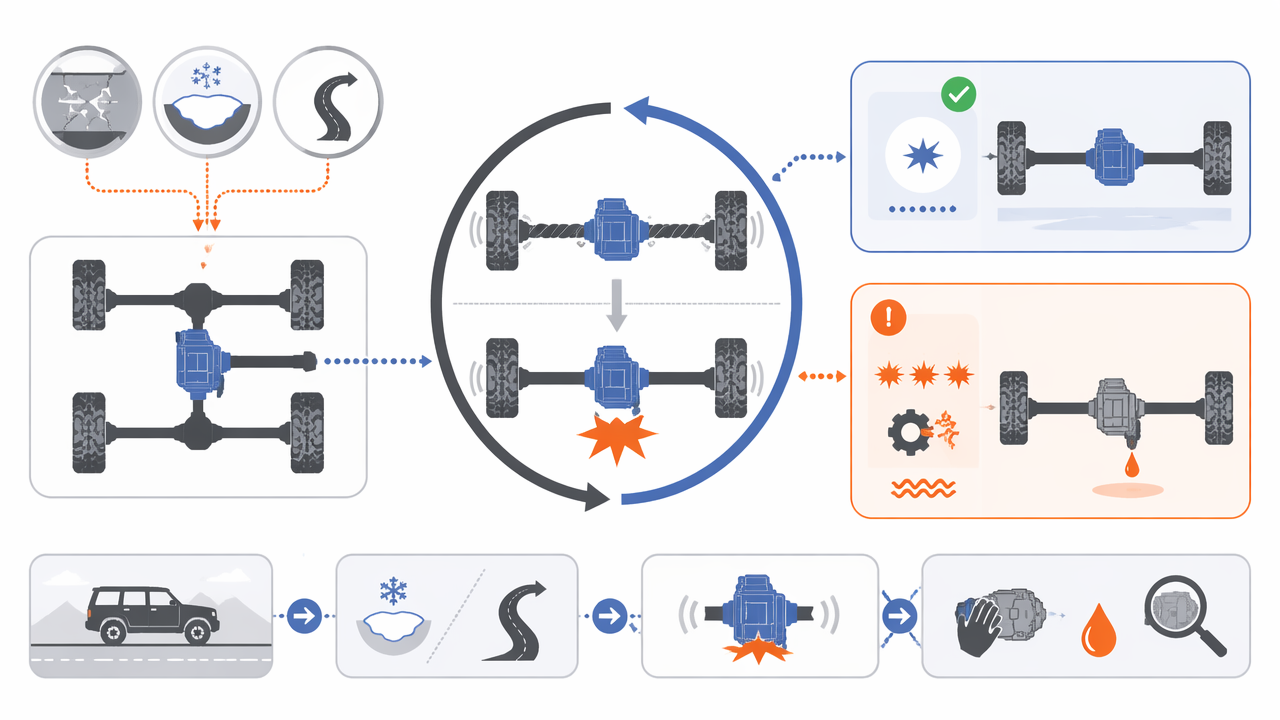

Drivetrain wind-up: Stored tension in a part-time 4WD system caused when the front and rear axles cannot rotate at different speeds on high-traction ground.

Why does a 4×4 make a clunk after switching from 4H to 2H?

A 4×4 makes a clunk after shifting to 2H when drivetrain load releases, a front axle disconnect moves, hubs unlock, or worn driveline parts take up slack. The sound is more common in part-time 4WD systems because 4H locks front and rear output speed together.

Part-time 4WD is meant for loose surfaces such as dirt, snow, mud, gravel, or sand. When the tires grip hard pavement, the driveline cannot easily relieve the small speed difference between the front and rear axles. That tension may release as a single clunk once 2H engages.

Toyota, Jeep, Ford, Chevrolet, GMC, Nissan, and older manual-hub trucks can all do this, though the hardware differs. A Jeep Wrangler or Gladiator often uses a transfer-case lever feel, while many Toyota Tacoma and 4Runner models rely on electric actuators and front axle disconnects.

A single clunk is a symptom, not a diagnosis; the pattern after the clunk matters more than the sound by itself.

Common clunk sources by component

Component	What may be happening	Typical feel
Transfer case	Load releases as 4H disengages	One thud, then normal driving
Front axle disconnect	Sleeve or fork releases after load drops	Delayed pop after a few feet
Automatic locking hubs	Hub mechanism unlocks	Click or clunk near front wheels
U-joints or CV axles	Worn joint takes up slack	Repeated clunking or vibration
Tires	Different rolling diameter loads driveline	Bind on turns, slow release
Transfer case chain	Chain has wear or stretch	Clunk plus rattle under load

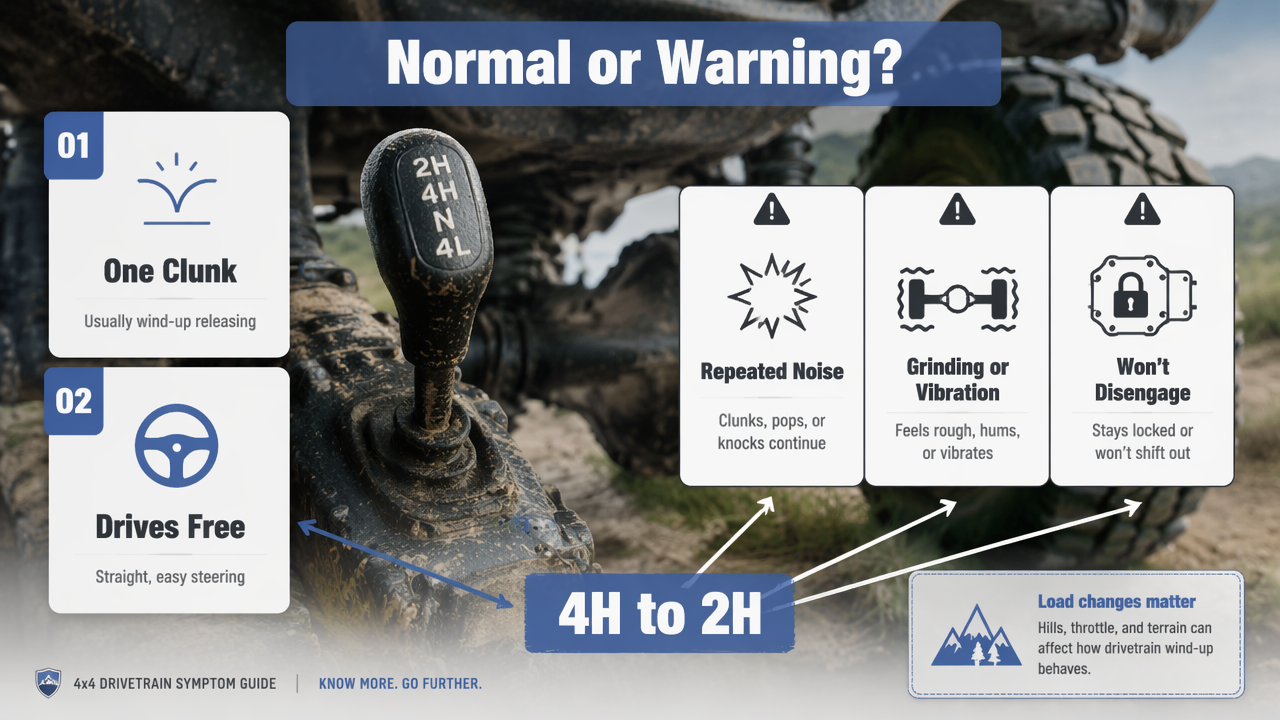

Normal symptoms vs warning symptoms

A mild one-time clunk is usually acceptable, but repeated noise, binding, grinding, vibration, or failure to disengage changes the diagnosis. The key is whether the vehicle drives freely in a straight line after the shift.

Owner forum threads show why this question is hard to search. Drivers describe the same event as a “clunk,” “pop,” “stuck in 4WD,” “tight steering,” or “won’t disengage.” A TacomaWorld discussion about a loud clunk when shifting from 4H to 2H reflects the common advice: reduce driveline load before shifting.

For Jeep owners, related drivability symptoms can overlap with transmission, axle, or transfer-case issues. If the vehicle also refuses to move normally after gear selection, the checklist in why a Jeep Grand Cherokee won’t move in gear is a more direct next read.

Symptom decision table

Symptom after shifting to 2H	Likely seriousness	Best next action
One soft clunk, no vibration	Low	Drive straight and monitor
Delayed pop after several feet	Low to medium	Unload driveline, then recheck
Steering feels tight on pavement	Medium	Stop tight turns, confirm 2H release
Repeated popping	Medium to high	Inspect CVs, U-joints, hubs, actuator
Grinding from transfer case	High	Stop driving and check fluid, linkage, codes
4WD light keeps flashing	Medium to high	Scan for actuator or transfer-case faults
Violent bang or driveline shake	High	Tow or inspect before road use
Fluid leak under transfer case	High	Do not continue trail driving

Why does it happen more after pavement, snow patches, and tight turns?

The clunk is more likely after mixed traction because the driveline loads up on high-grip sections, then releases when a tire finally slips or 4WD disengages. Snow-to-asphalt transitions are classic because the driver may still be in 4H after the road becomes mostly dry.

Tight turns make the problem worse. The front tires travel a wider arc than the rear tires, so a locked part-time 4WD system fights the turn when the ground does not allow tire slip. The driver feels this as hopping, steering resistance, or a sudden pop.

Tire size also matters. A new tire paired with three worn tires, mismatched brands, uneven pressure, or different load ratings can create different rolling diameters. That small difference acts like constant traction conflict inside the driveline.

Trail prep reduces false alarms. The Off-Road Tire Pressure Guide for Different Terrain in 2026 explains why pressure should match terrain, but all four tires still need a balanced setup before shifting between 4H and 2H.

Field examples that trigger the clunk

• Snow commute: 4H stays engaged after plowed pavement appears, then a clunk happens when 2H finally releases.
• Gravel road to gas station: front tires scrub during a tight paved turn, then the transfer case unloads.
• Mud trail exit: packed mud changes tire diameter until the tires clean out.
• Rocky trail with aired-down tires: uneven pressure or bead seating differences increase rolling mismatch.
• Older manual hubs: hubs may stay locked after the transfer case returns to 2H, causing extra front driveline rotation.

Helpful video: proper 4WD use

What should be done immediately after the clunk?

The safest response is to unload the driveline, confirm 2H engagement, and stop driving if harsh symptoms remain. A calm, straight-line reset often clears normal wind-up without forcing the transfer case.

Do not keep making tight circles on dry pavement to “test” the system. That adds more bind. A better test is a straight, low-speed roll with the steering wheel centered, followed by a short reverse if the system still feels loaded.

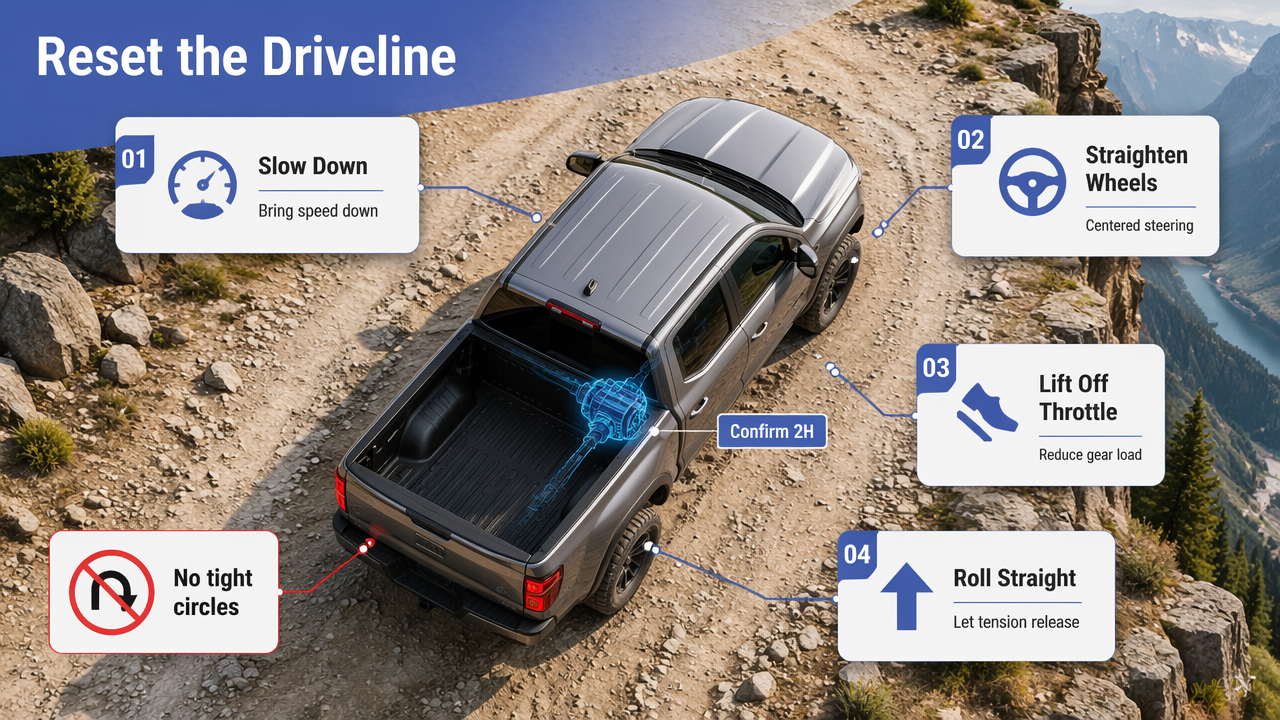

Safe reset sequence

1. Slow down and straighten the steering wheel. A straight driveline releases tension more easily.
2. Lift off the throttle briefly. Coasting reduces load on gears, chains, sleeves, and hubs.
3. Shift to 2H using the vehicle’s normal procedure. Some systems allow shift-on-the-fly, while others prefer low speed or neutral.
4. Roll forward 20 to 50 feet. Listen for one release clunk, then check for smooth steering.
5. Reverse 5 to 10 feet if still bound. Older hubs and some axle disconnects release more easily after a short reverse.
6. Stop if grinding, burning smell, or vibration remains. Continued driving can turn a simple release issue into a repair.

If the steering frees up and the 4WD indicator stops flashing, the system likely released. If symptoms continue, the vehicle is no longer in the “normal clunk” category.

Checks before the next trail day

• Match all four tire sizes, tread depths, and pressures.
• Inspect front driveshaft U-joints for rust powder, looseness, or binding.
• Check CV boots for tears, grease loss, or clicking on turns.
• Confirm transfer-case fluid level and service history.
• Look for actuator wiring damage after mud, rocks, or snow pack.
• Scan for 4WD control module codes on electronically shifted systems.
• Verify manual hubs fully lock and unlock.

A wider pre-run inspection helps prevent repeat issues. The guide on how to prepare a Jeep for off-road trails in 2026 pairs well with this checklist, especially for beginner drivers moving between dirt, snow, and pavement.

Vehicle-specific notes and FAQs

Different 4×4 systems release load differently, so the same clunk can be normal on one vehicle and suspicious on another. Jeep Wrangler, Gladiator, Grand Cherokee, Toyota 4Runner, Tacoma, Ford F-150, Bronco, and GM trucks all deserve model-specific attention.

Wrangler and Gladiator owners should confirm that the lever or selector has fully returned to 2H. Grand Cherokee owners with full-time or automatic 4WD systems should not assume the same rules as a part-time Wrangler. Toyota trucks with ADD systems may make a delayed release noise as the sleeve disconnects the front axle.

Ford, Bronco, Chevy, and GMC trucks with automatic hubs or electronic actuators may show a flashing light if the module did not confirm position. Older trucks with manual hubs can still spin the front axle parts even after the transfer case is in 2H if the hubs remain locked.

Beginners building a Wrangler or Gladiator for mild trails should focus on tires, recovery points, protection, and education before harder routes. Offroadhandbook covers that staged approach in best Jeep mods for beginners off-road in 2026.

Can shifting from 4H to 2H while moving cause a clunk?

Many modern 4x4s allow shifting from 4H to 2H while moving, but the vehicle manual decides the safe speed and procedure. A light clunk can happen during shift-on-the-fly because load leaves the transfer case. Harsh throttle, tight turns, or dry pavement make the release louder.

Can drivetrain wind-up damage a transfer case?

Drivetrain wind-up can damage parts if the vehicle keeps driving on high-traction surfaces in part-time 4WD. The risk rises with tight turns, mismatched tires, high speed, and repeated binding. One release clunk usually is not proof of damage, but grinding or repeated banging needs inspection.

Why does the 4WD light keep flashing after shifting to 2H?

A flashing 4WD light usually means the control system has not confirmed the requested position. Causes include actuator delay, axle disconnect load, damaged wiring, weak vacuum supply on older designs, or a sensor fault. A straight roll and short reverse may help; persistent flashing needs diagnostics.

Should a clunk be ignored if the truck still drives fine?

A single mild clunk followed by normal steering can be monitored, but it should not be ignored if it becomes repeatable. Tire mismatch, loose U-joints, dry slip yokes, worn CVs, and transfer-case fluid neglect often start as small noises before they become trail-stopping failures.

Conclusion

A 4×4 makes clunk after switching from 4H to 2H most commonly because drivetrain tension finally releases, especially after pavement, tight turns, snow patches, or mismatched tire behavior. The practical line is simple: one mild clunk with smooth steering is usually normal; repeated popping, grinding, vibration, leaks, or a stuck 4WD indicator needs inspection.
