ATV Clicks After Mud Ride But Won’t Start: What to Check First

Quick Answer

An ATV that clicks after mud or washing usually has a weak battery under load, dirty terminals, a bad ground, a wet relay, or a stuck starter. Start with low-risk electrical checks, then rule out water in the airbox or engine before repeated cranking.

An ATV clicks after mud ride but won’t start because the starting circuit is losing power under load, usually from a weak battery, loose terminals, corroded ground, wet starter relay, faulty solenoid, stuck starter, or water inside a connector. If the problem appeared after mud, water, or pressure washing, inspect cables, grounds, switches, the airbox, and oil before pressing the starter again.

What does the click mean after a mud ride?

The click identifies where the starting circuit is trying to work and where it may be failing. A rapid click usually means voltage collapses under load, while one solid click often points to a relay, solenoid, starter, cable, or ground issue. A heavy clunk can mean the starter gear engages but cannot turn the engine.

Mud changes the diagnosis because wet grit can bridge terminals, pack around the starter, or hide corrosion under a cable boot. A battery may show decent voltage at rest but fail when the starter asks for high current.

Post-mud click diagnosis table

Sound or symptom	Likely cause	First check	Urgency
Rapid clicking	Weak battery, loose terminals, poor ground	Load-test battery and tighten cables	Medium
One sharp click	Solenoid clicks but starter gets no usable current	Test solenoid output and starter cable	Medium
Relay click near fuse box	Wet relay, safety switch, starter button circuit	Dry connectors and inspect relay socket	Medium
Heavy clunk	Starter gear engaged, engine or starter may be stuck	Stop and rotate engine by hand if possible	High
Lights dim hard	Shorted starter, seized starter, bad cable	Check cable heat and smell	High

Key insight: A click proves the start command reached at least part of the circuit; it does not prove the battery, solenoid, starter, or ground is good.

For riders who also maintain side-by-sides, owner-reported electrical and starting patterns overlap with problems covered in common Tracker 800 SX fixes. The machines differ, but mud, relays, and ground paths cause similar troubleshooting traps.

How should an ATV be tested after mud?

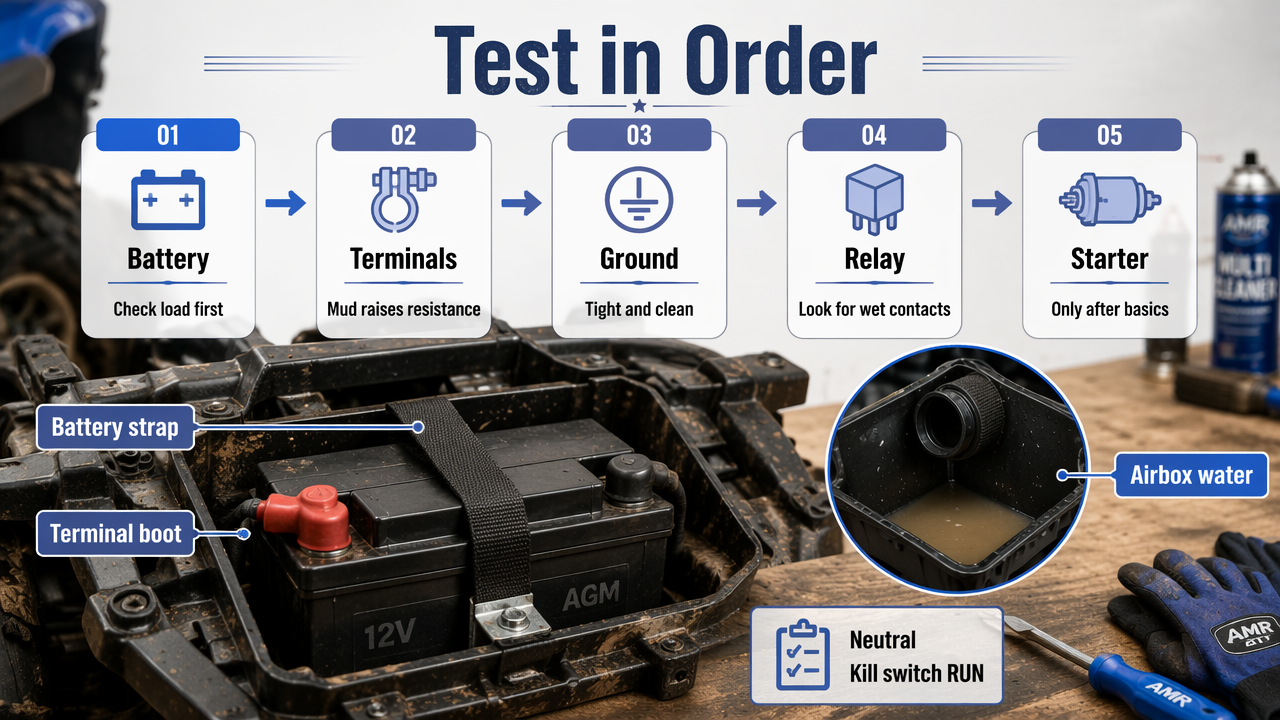

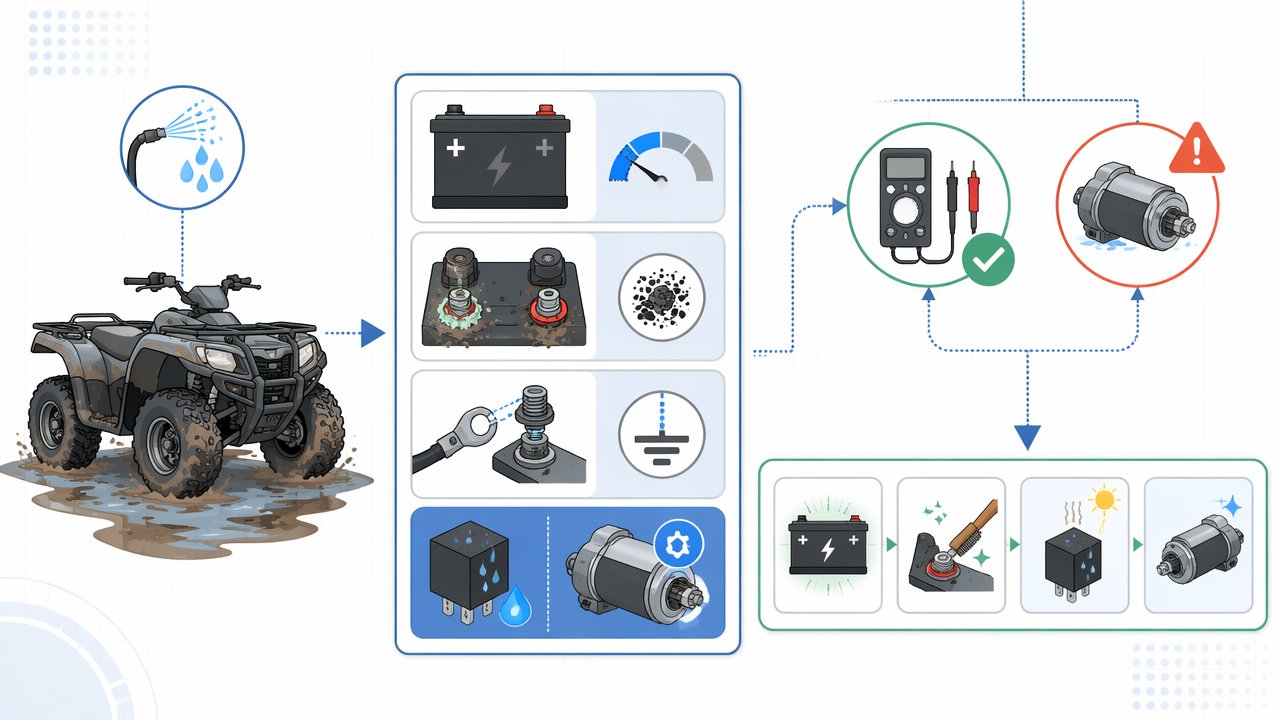

An ATV should be tested after mud in a low-risk order: battery, terminals, ground, relay, solenoid, starter, switches, and engine water checks. The safest sequence avoids parts swapping and prevents a hydrolocked engine from being forced by repeated starter hits.

A digital multimeter helps, but visual checks matter first. Mud under a battery strap or terminal boot can create enough resistance to make a starter click without turning.

Garage test order before buying parts

1. Put the transmission in neutral and confirm the kill switch is in run.
2. Inspect the airbox for standing water, wet foam, or mud trails.
3. Check oil for a milky look or rising level before more cranking.
4. Clean and tighten battery posts, cable ends, and frame ground.
5. Measure battery voltage at rest, then while pressing the starter.
6. Listen for relay location: battery box, fuse area, or starter side.
7. Tap the starter body lightly, then try one short crank attempt.
8. Test solenoid output before replacing the starter.

A healthy-looking battery can still fail under load. Resting voltage alone is not enough because a sulfated or discharged battery may read acceptable until the starter demands current.

The same safety-first logic applies to trail prep on four-wheel drives. The Offroadhandbook guide to preparing a Jeep for off-road trails recommends pre-ride checks because electrical and fluid problems are easier to prevent than recover from.

Related maintenance video

This CFMOTO maintenance video is useful background for powersports owners because modern ATVs and UTVs rely on connectors, sensors, relays, and service habits as much as mechanical strength. Model-specific service manuals still come first.

Which mud and water faults cause clicking?

Mud and water cause clicking by increasing resistance, blocking moving starter parts, wetting switch contacts, or contaminating connectors. The most common faults are not dramatic failures; they are dirty grounds, loose terminals, wet relay sockets, and safety switches that no longer pass a clean signal.

Pressure washing can make the issue worse. A narrow spray can push water past connector seals, into switch housings, and behind rubber boots that appear sealed from outside.

High-probability fault zones

• Battery terminals: Mud vibration loosens clamps, and wet corrosion raises resistance.
• Frame ground: A dirty frame lug can stop starter current even when lights work.
• Starter relay socket: Water inside the socket can make the relay click without sending full current.
• Starter solenoid: Burned contacts may click but fail to pass battery power.
• Starter motor: Muddy water can stick brushes, corrode internals, or jam the drive.
• Kill switch and starter button: Wet handlebar controls can interrupt the start command.
• Brake and neutral switches: Some ATVs require a clean safety-switch signal before cranking.

For comparison, Jeep and SUV electrical issues often follow the same pattern: power appears present, but one wet connector or weak ground breaks the system under load. Related electrical troubleshooting appears in the guide to a Jeep touchscreen not working, where connector and power-supply checks come before replacing expensive parts.

Offroadhandbook uses the same practical maintenance logic across ATVs, UTVs, Jeeps, and trail vehicles: confirm power, ground, signal, and mechanical freedom before blaming the most expensive component.

When should cranking stop immediately?

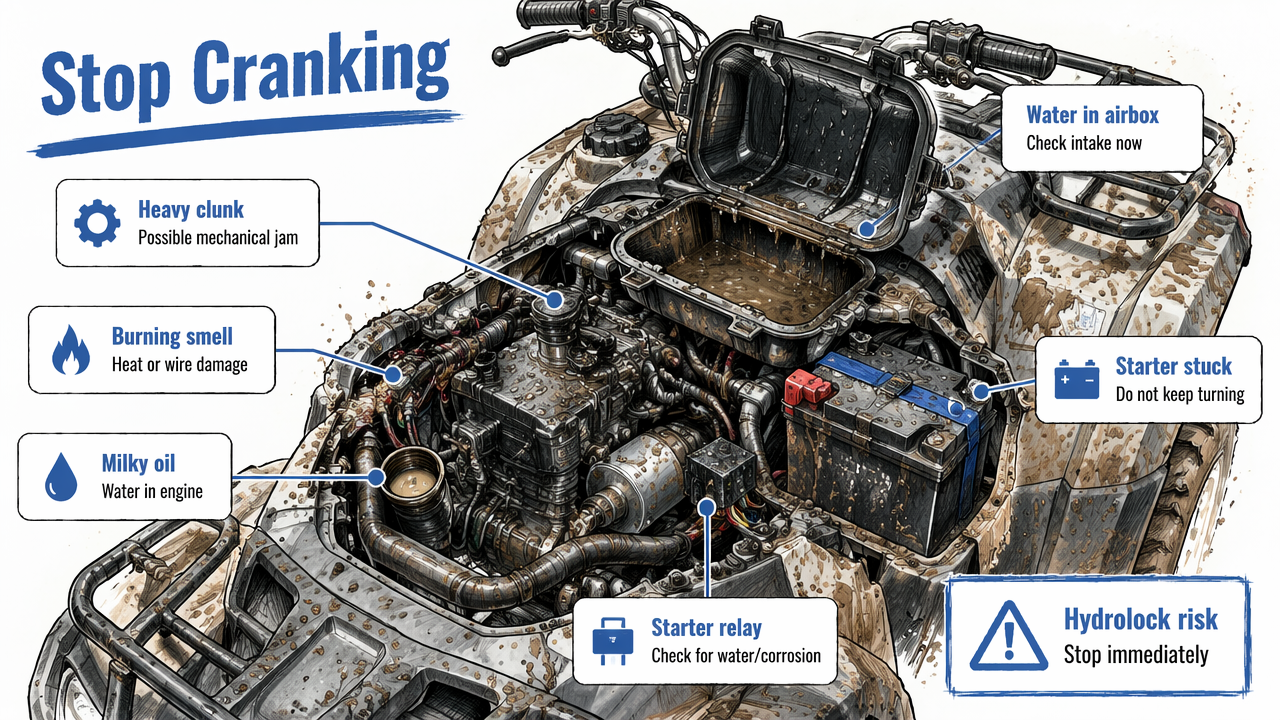

Cranking should stop immediately when there is a heavy clunk, burning smell, hot cables, smoke, water in the airbox, milky oil, or a starter that stays engaged. Those signs raise the risk from a simple no-start to wire damage, starter failure, or engine damage.

Hydrolock is the major post-water fear. If water entered the intake and reached the cylinder, the piston may try to compress liquid, which can bend engine parts. That risk is why repeated starter attempts are a bad diagnostic shortcut.

Stop-sign checklist before the next start attempt

• Remove the seat and side panels if needed to see the battery, relay, and airbox.
• Open the airbox and inspect the filter, drain, and intake tract.
• Check oil color and level before assuming the fault is electrical.
• Feel battery cables after a short attempt; heat means high resistance or excessive current.
• Smell around the starter and solenoid for burnt insulation.
• If equipped with a pull starter, stop if the engine will not rotate normally.

Trail rule: A clicking starter after water exposure deserves inspection, not repeated button presses.

Used buyers should be especially careful with listings that say an ATV “just needs a battery” after a mud ride. That phrase may be true, but it can also hide a weak starter, corroded harness, wet relay box, or water-damaged switches. A clean battery replacement does not prove the charging system, solenoid, ground path, and starter survived.

FAQs: ATV clicking after mud or washing

The most useful ATV no-start answers separate electrical clicking from mechanical lockup and water contamination. These short answers cover the questions riders usually ask after a muddy ride, washdown, or overnight parking.

Why does an ATV click but not crank?

An ATV clicks but does not crank when the start command reaches the relay or solenoid, but the starter motor does not receive enough usable current or cannot turn. Common causes include a weak battery under load, loose terminals, corroded frame ground, failed solenoid contacts, stuck starter brushes, or a locked engine.

Can mud ruin an ATV starter?

Mud can damage an ATV starter when dirty water enters the housing, sticks the brushes, corrodes internal contacts, or jams the drive area. External mud can also trap heat and moisture around the starter. A starter that clicks, smells hot, or turns only after tapping needs testing before more ride time.

Can pressure washing cause an ATV no-start?

Pressure washing can cause a no-start by forcing water into switch housings, relay sockets, fuse boxes, battery boots, and connectors. The ATV may run before washing, then click later after water settles into the starting circuit. Low-pressure rinsing, connector drying, and dielectric grease on clean terminals reduce repeat issues.

How can battery failure be separated from solenoid failure?

Battery failure usually shows rapid clicking, dimming lights, or voltage dropping hard during a start attempt. Solenoid failure often gives one firm click while battery voltage remains stronger. Testing voltage at the battery, then at the starter side of the solenoid during a start attempt separates supply problems from switching problems.

What should a rider carry after muddy trail rides?

A practical post-mud kit includes a compact multimeter, 10 mm wrench, small wire brush, contact cleaner, spare fuses, dielectric grease, microfiber cloth, and a tow strap. Tire and recovery basics also matter; the Offroadhandbook guide to off-road tire pressure for terrain helps reduce avoidable trail strain.

Conclusion

An ATV clicks after mud ride but won’t start most often because water and vibration exposed a weak link in the starting circuit. The right next step is not a random battery, relay, or starter purchase; it is a controlled check of battery load, terminal tightness, frame ground, relay output, starter response, switch condition, and engine water signs.
