ATV Runs Fine Cold But Bogs After Warming Up: Heat-Related Diagnosis

Quick Answer

An ATV that runs well cold but bogs warm usually has a heat-triggered fuel, carburetor, ignition, valve, cooling, or CVT problem. Start with simple checks: fuel cap vent, air filter, plug color, overheating signs, and fuel flow before replacing expensive electrical parts.

An ATV runs fine cold but bogs after warming up when heat exposes a weak fuel supply, dirty carburetor circuit, failing ignition part, tight valve clearance, cooling problem, or hot CVT belt. The most common checks are tank venting, main jet flow, choke position, spark strength, valve clearance, coolant fan operation, and belt condition. Stop riding if coolant boils, knocking starts, smoke appears, or throttle response disappears under load.

Warm bog: a power loss, sputter, stall, or refusal to accelerate that appears after the engine, fuel system, ignition, or drivetrain reaches operating temperature.

Why does an ATV bog only after warming up?

An ATV bogs only after warming up because heat changes fuel vaporization, electrical resistance, metal clearances, cooling load, and belt friction. A cold engine often runs richer, so a slightly clogged jet, intake leak, or weak fuel pump may not show until the mixture leans out and load increases.

A carbureted machine may run well for 10 to 20 minutes, then flatten out as the choke/enricher closes and the main jet must carry the load. Fuel-injected ATVs can show a similar pattern from a weak pump, heat-soaked sensor, restricted tank vent, or failing ignition component.

Key insight: A warm bog is not one problem. It is a timing clue. The fault is tied to heat, fuel demand, airflow, spark stability, compression, or drivetrain load.

Cold-running clues versus warm-running clues

The first split is whether the engine itself loses rpm or the ATV stops pulling while rpm rises. Engine bog points toward fuel, carb, spark, valves, or heat. High rpm with poor movement points toward clutch, belt, or driveline slip, similar in logic to vehicle movement faults covered in why a Jeep Grand Cherokee will not move in gear.

• Bog with sputter: fuel delivery, rich/lean carb condition, plug, coil, CDI, or stator.
• Bog with backfire: lean intake leak, ignition breakup, valve issue, or timing-related fault.
• Bog with hard hot restart: tight valves, low compression, vapor lock, weak spark, or flooding.
• Bog with burnt smell: CVT belt heat, slipping clutch, dragging brake, or overheated oil.
• Bog after mud riding: packed radiator, blocked fan, wet air filter, or contaminated connector.

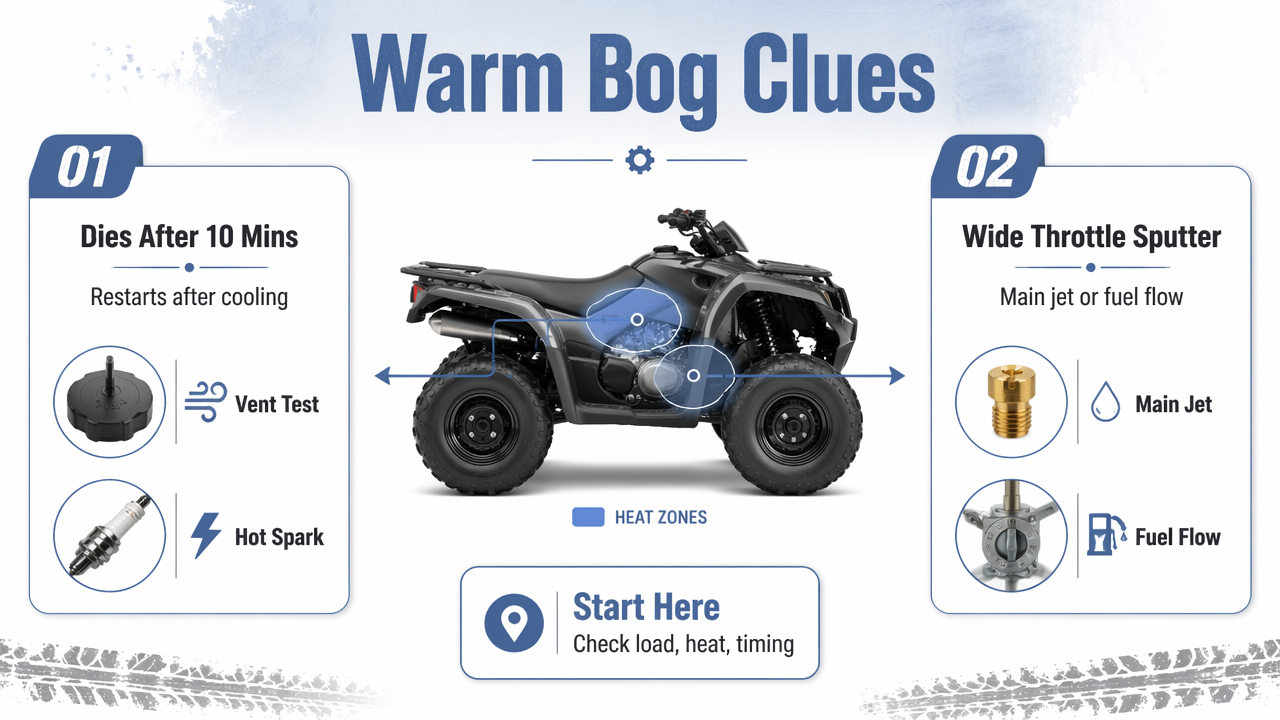

Which warm-bog symptom points to which cause?

The fastest diagnosis comes from matching the warm symptom to the system that changes most with heat. Random carb cleaning or electrical replacement wastes time when the real clue is when, how, and under what load the bog appears.

Warm-bog diagnostic table

Warm symptom	Likely cause	First check	Repair urgency
Dies after 10 to 20 minutes, restarts after cooling	Blocked fuel cap vent, weak pump, failing coil or CDI	Loosen fuel cap briefly, check spark hot	Medium to high
Pulls clean cold, sputters at wide throttle warm	Clogged main jet, restricted petcock, weak fuel flow	Drain bowl, inspect main jet, test flow	Medium
Idles rough warm, smells rich	Choke/enricher stuck, float too high, dirty air filter	Confirm choke closes, check plug color	Medium
Backfires or hangs idle warm	Lean pilot circuit, intake leak, tight valve	Spray-test intake boot, inspect valve clearance	High
Loses power in slow mud or climbs	Overheating, fan fault, packed radiator	Check fan, coolant, radiator fins	High
Engine revs but ATV barely moves	CVT belt slip, clutch heat, dragging brake	Inspect belt dust, sheaves, brake heat	Medium

A short cold test ride may miss every one of these faults. Used ATV buyers should insist on a fully warm ride under moderate load, especially on older carbureted machines and utility ATVs used for towing, plowing, or mud work.

How should fuel and carburetor causes be checked first?

Fuel and carburetor checks should come first because they are common, low-cost, and often heat-sensitive on older ATVs. Old fuel, a clogged main jet, weak petcock flow, a sticky float, or a blocked tank vent can all let the engine idle cold but starve under warm load.

Start with the fuel cap test. If loosening the cap for a short, controlled check improves running, the tank vent may be creating vacuum lock. That does not prove the cap is the only issue, but it is a strong clue.

Carbureted ATVs need special attention to the choke or enricher. A choke stuck partly on can make a cold start look perfect, then create a rich bog once the engine is hot. A lean main jet does the opposite: decent cold behavior, then flat power as the engine needs more fuel at throttle.

Fuel and carb checks in order

1. Confirm fresh fuel and no water or varnish in the tank.
2. Check that the air filter is clean, dry, and oiled correctly.
3. Loosen the fuel cap briefly during the symptom to test venting.
4. Verify petcock, filter, and fuel line flow into a container.
5. Remove the float bowl and clean the pilot jet, main jet, and emulsion tube.
6. Confirm float height and that the needle valve is not sticking.
7. Check intake boots for cracks after the engine is warm.

The air/fuel ratio explanation in Finntrail’s bogging guide correctly separates rich and lean behavior, but warm-only bogging needs an added heat lens: the same carb circuit may behave differently once the choke closes and fuel vaporizes faster.

Helpful carburetor tuning video

Needle and main-jet behavior matter most when the ATV bogs under throttle rather than at idle. For machines that idle poorly after warming, Rolling Wrench’s carburetor idle troubleshooting video is also useful: Carburetor Idle Issues SOLVED.

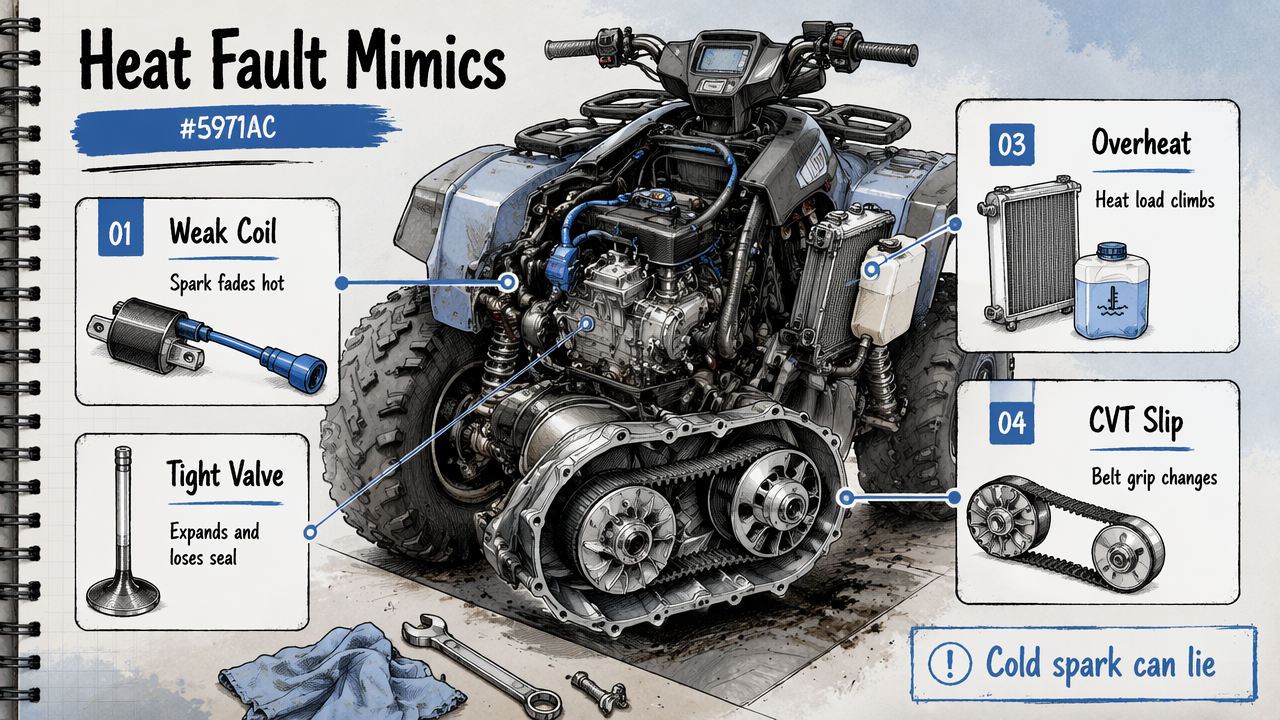

What hot ignition, valve, cooling, and CVT faults mimic fuel bogging?

Hot ignition, valve, cooling, and CVT faults can feel exactly like fuel starvation, so diagnosis should not stop at the carb. Electrical resistance rises with heat, metal parts expand, coolant load climbs, and belt grip changes after repeated throttle use.

A weak ignition coil, plug cap, CDI, stator winding, or corroded connector may spark cleanly cold and break down hot. The best field clue is a strong cold spark that becomes weak, orange, or inconsistent immediately after the bog appears.

Tight valve clearance is another classic warm-running trap. As parts expand, a tight valve may fail to seal fully, causing low hot compression, hard hot restart, poor idle, and power loss under load. Valve checks belong early on machines with unknown maintenance history.

“Without data you’re just another person with an opinion.”, W. Edwards Deming, The W. Edwards Deming Institute

Liquid-cooled ATVs add fan, thermostat, coolant, and radiator-fin checks. Mud-packed radiators are common after slow trail riding. Similar heat-management logic applies across off-road vehicles, including UTV fault patterns noted in common Tracker 800 SX problems.

Heat-related non-fuel checks

• Spark plug: inspect color, gap, fouling, and heat damage.
• Coil and plug cap: test resistance cold and hot when service data is available.
• CDI and stator: suspect them when spark disappears only after heat soak.
• Valve clearance: check if hot starts are difficult or compression feels weak.
• Cooling system: inspect fan function, coolant level, radiator blockage, and warning lights.
• CVT belt: look for glazing, dust, burnt smell, cracked rubber, or slipping under load.

A CVT issue often fools riders because the engine noise may sound like bogging. If rpm rises while ground speed does not, the drivetrain deserves attention before more carb work.

What trail test sequence prevents unnecessary parts replacement?

A safe trail test should recreate the warm bog while gathering evidence, not push the ATV until damage occurs. The goal is to separate fuel restriction, spark loss, overheating, compression loss, and belt slip with simple observations.

Follow this order after basic oil, coolant, and air-filter checks:

1. Warm the ATV gently for the same time it usually takes to fail.
2. Note whether bogging happens at idle, mid-throttle, wide throttle, or under load only.
3. Check for overheating signs: fan off, steam, coolant smell, warning light, or hot radiator packed with mud.
4. Perform the fuel cap vent test briefly in a safe area.
5. Shut down immediately after the bog and check spark while hot.
6. Compare engine rpm to vehicle speed to rule in or rule out belt slip.
7. Schedule compression and valve-clearance checks if hard hot restart appears.

A buyer should avoid judging an ATV from a two-minute cold loop around a driveway. A proper pre-purchase inspection includes a warm ride, restart test, fan check, throttle roll-on, and look under the CVT cover when permitted. Model-specific reliability research, such as Kawasaki Brute Force 750 problem patterns, helps set expectations before inspection.

For trail planning, tire pressure and load also affect heat. Low pressure can improve traction, but excessive drag can raise drivetrain load. Offroadhandbook’s off-road tire pressure guide for different terrain gives terrain-based pressure logic that applies to broader off-road setup decisions.

Stop-riding warning signs

Stop the ATV and tow it back if knocking, heavy smoke, boiling coolant, a burnt belt smell, repeated stalling in traffic, or no throttle response appears. Continuing to ride can turn a clogged jet or fan fault into piston scoring, head-gasket damage, belt failure, or a long walk out.

The Offroadhandbook platform treats warm bogging as a safety issue, not just a tuning annoyance. For more trail-prep checklists and maintenance logic, head to offroadhandbook.com before the next ride.

FAQs:

Why does an ATV run fine cold but stall when hot?

An ATV that stalls hot often has fuel tank vacuum lock, weak fuel flow, a failing ignition coil or CDI, tight valves, or overheating. The fastest split is checking whether spark disappears hot, fuel flow slows, or compression drops after warm-up.

Can a bad fuel cap cause warm bogging?

A bad or blocked fuel cap vent can cause warm bogging by creating vacuum in the tank as fuel is used. Loosening the cap briefly during a safe test may restore flow. If performance improves, inspect or replace the vented cap rather than drilling unsafe holes.

Is warm bogging more likely carburetor or spark?

Warm bogging is often carburetor-related on older ATVs, especially with dirty jets, stuck choke parts, or lean intake leaks. Spark becomes more likely when the ATV runs normally again after cooling or loses spark immediately after the symptom appears.

Can tight valves make an ATV bog after warming up?

Tight valves can make an ATV bog after warming up because expanding metal reduces sealing margin. Common clues include hard hot restart, weak idle, low hot compression, and power loss under load. Valve clearance should be checked before repeated carb rebuilds on neglected machines.

Conclusion

An ATV runs fine cold but bogs after warming up because heat reveals faults that a cold start can hide. The practical next step is not guessing parts. Start with fuel cap venting, fuel flow, air filter condition, carb circuits, hot spark, cooling function, valve clearance, and CVT belt evidence in that order.
