Jeep ABS Light After Off Road: Causes, Checks, and Safe Fixes

Quick Answer

If your Jeep ABS light comes on after a trail ride, start with wheel-speed sensors, wiring, mud-packed tone rings, and low voltage before replacing parts. Scan the ABS module, inspect each hub area, and avoid hard trail driving until braking and stability systems are confirmed working.

A jeep abs light after off road usually means mud, water, rocks, or vibration disturbed a wheel-speed sensor, ABS wire, hub tone ring, battery voltage, or related stability-control signal. ABS, traction control, ESC, brake, or Service 4WD lights may appear together. Scan the ABS module first, then inspect the wheel hubs and wiring before driving fast or returning to steep trails.

ABS: Anti-lock Braking System, the brake-control system that helps prevent wheel lockup during hard braking by reading wheel-speed data and modulating brake pressure.

A Jeep that drove home fine from the trail but lights up the dash the next morning is common enough that Wrangler and Grand Cherokee forums are full of similar reports. Haynes’ 2024 Wrangler ABS guide explains that an illuminated ABS light signals a fault in the Anti-lock Braking System, not just a random dash warning, in its Jeep Wrangler ABS light overview.

Why does the Jeep ABS light come on after off road?

The ABS light comes on after off-road driving because the ABS module has detected bad or missing wheel-speed data, low voltage, or a related brake-stability fault.

Mud, creek crossings, sand, and rock hits can affect sensors even when nothing looks broken from a quick glance. On newer Wrangler JL, Gladiator JT, Grand Cherokee, Cherokee, Compass, and Patriot models, one sensor fault can also trigger traction control, ESC, hill-start assist, and Service 4WD messages because these systems share vehicle-speed signals.

Key insight: If ABS, traction control, and brake lights appear together after a trail ride, treat it as a data or sensor fault first, not as proof the whole brake system failed.

I’d avoid guessing here. A basic OBD-II scanner may read engine codes only, while ABS faults often require a scanner that can access the ABS module over the vehicle’s Controller Area Network. Modern vehicle networks are data-heavy enough that 2024 research on CAN intrusion detection datasets treats CAN traffic as a core vehicle-diagnostics layer, not a side feature, in the ROAD dataset paper in PLoS ONE.

Common trail-related causes by symptom

Symptom after trail ride	Most likely cause	First check
ABS and traction lights only	Wheel-speed sensor signal loss	Inspect each hub sensor and harness
ABS, brake, ESC lights	Sensor fault, low fluid, or hydraulic issue	Check brake fluid, leaks, and codes
ABS plus Service 4WD	Shared wheel-speed or transfer-case signal issue	Scan ABS and 4WD modules
Light after water crossing	Wet connector or contaminated sensor	Dry, clean, and inspect connectors
Light after rock hit	Torn wire or cracked sensor	Look behind the struck wheel
Intermittent warning on bumps	Loose connector or damaged harness	Wiggle-test wiring while watching live data

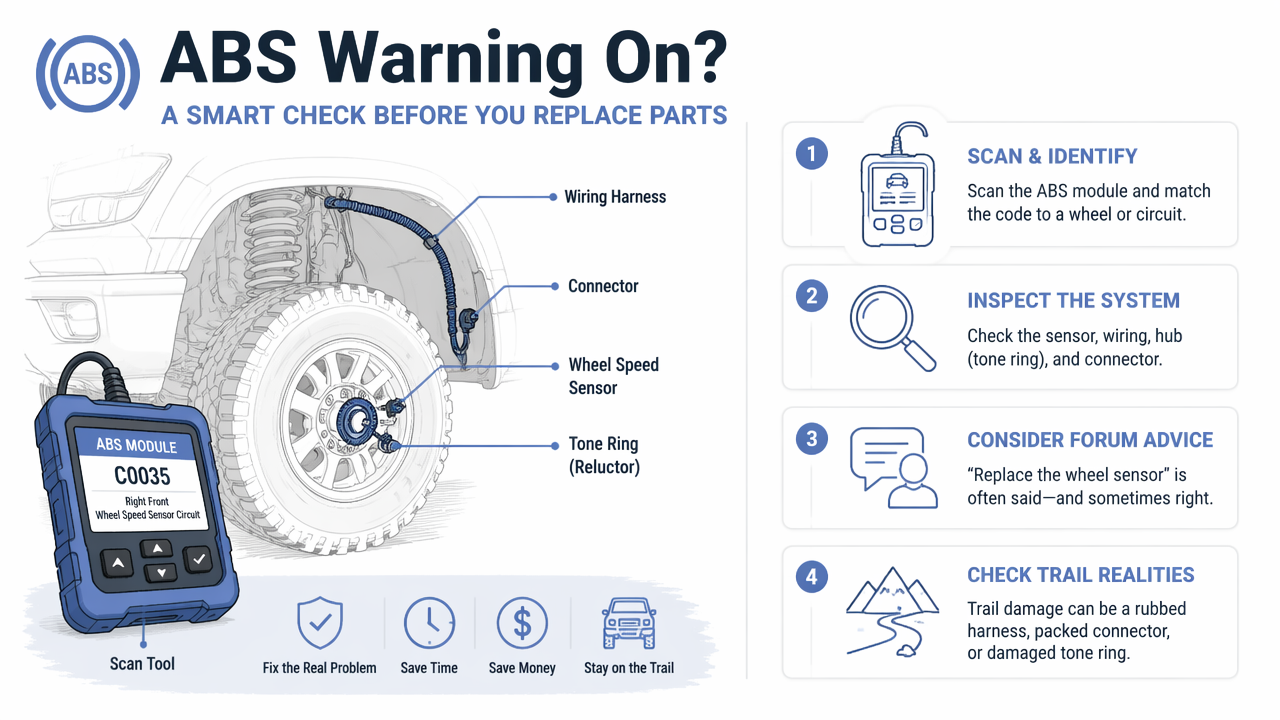

How do you diagnose the warning before replacing parts?

You diagnose the warning by scanning the ABS module, matching the code to a wheel or circuit, then inspecting that sensor, wiring, hub, and connector before clearing codes.

Forum advice often says “replace the wheel sensor,” and sometimes that’s right. Still, trail damage can be a rubbed harness, a connector packed with mud, or a hub bearing with excessive play. Replacing the sensor without checking the harness can waste money and leave the light on.

For related Jeep electrical symptoms, the same inspection logic applies: confirm power, ground, connector condition, and module communication before blaming the most expensive component. That’s the approach I’d also use when reading issues like Jeep Patriot ABS and traction control lights or cabin electronics such as a Jeep touch screen not working.

Step-by-step ABS check after a trail run

1. Check the basics first: brake fluid level, battery terminals, charging voltage, and visible leaks.
2. Scan the ABS module: look for codes naming a wheel, such as left front speed sensor circuit.
3. Inspect the named corner: follow the sensor wire from the hub to the body harness.
4. Clean the sensor area: remove packed mud, grit, grass, or metal debris around the sensor mount.
5. Check connector pins: look for water, corrosion, bent pins, or a loose lock tab.
6. Watch live wheel speed: all four wheels should show similar speed while rolling slowly.
7. Clear codes only after repair: if the same code returns, the fault is still present.

Can you keep driving with the ABS light on?

You can usually drive slowly on pavement with the ABS light on, but you should avoid aggressive braking, steep descents, wet roads, and difficult trails until the fault is diagnosed.

When the ABS warning is active, base hydraulic braking may still work, but anti-lock braking and stability functions may be limited or disabled. That matters off road because loose descents, washboard gravel, wet clay, and loaded roof racks already reduce braking control.

Trail rule: If the brake pedal feels soft, sinks, pulses strangely at low speed, or the red brake light stays on, stop and inspect before continuing.

Suryashankar Dasgupta’s safety-first approach at Offroadhandbook is simple: don’t let a small electrical warning become a recovery situation. In Indian rocky trails and U.S. forest roads alike, slow diagnosis beats limping into a descent with unknown braking behavior.

Drive, limp home, or stop now?

Situation	Risk level	What I’d do
Amber ABS light only, brakes feel normal	Moderate	Drive slowly to scan and inspect
ABS plus traction light after mud	Moderate	Clean hubs and scan before next trail
ABS plus red brake light	High	Stop, check fluid and leaks
Soft pedal or fluid loss	High	Do not drive, tow it
Warning appears only after lift or tire change	Moderate	Check sensor wiring stretch and steering-angle calibration
Service 4WD with ABS lights	Moderate to high	Scan both ABS and drivetrain modules

If your Jeep also refuses to move correctly after a hard trail day, separate the brake warning from drivetrain problems. Start with the checks in why a Jeep Grand Cherokee won’t move in gear so you don’t mix two different faults.

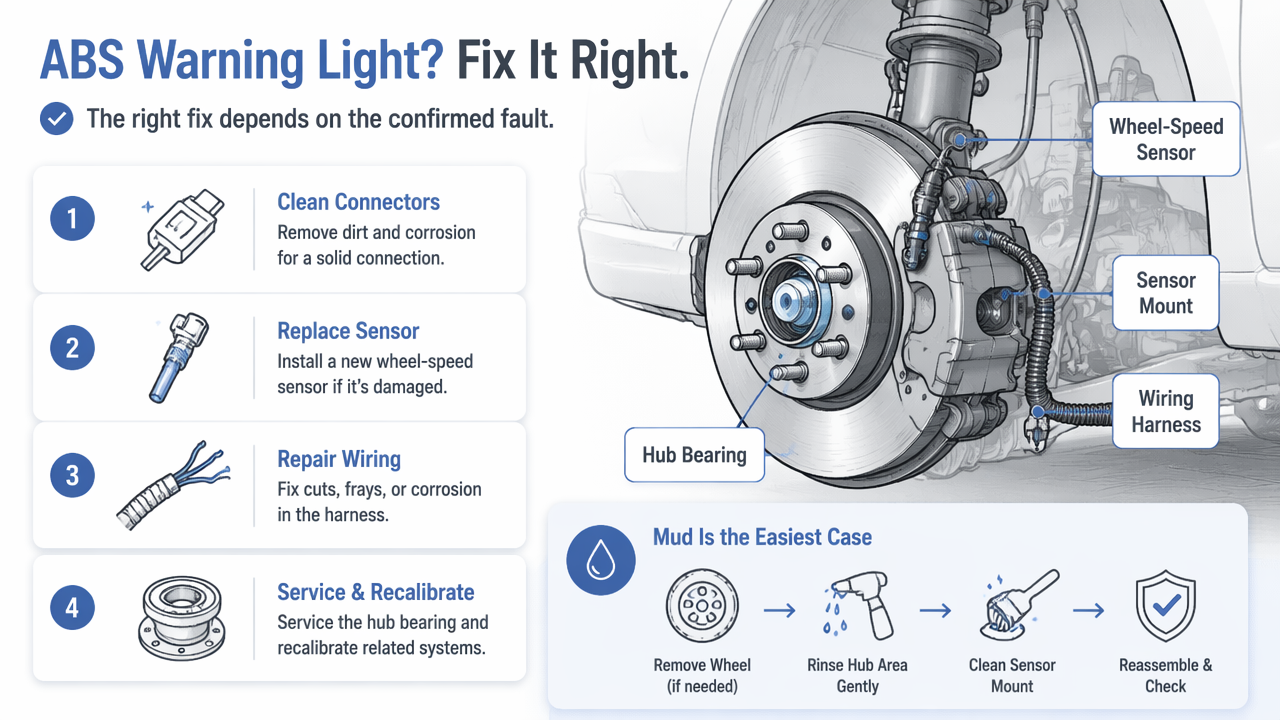

What fixes work after mud, water, rocks, or a lift?

The right fix depends on the confirmed fault, but common repairs include cleaning connectors, replacing a damaged wheel-speed sensor, repairing harness wiring, servicing a hub bearing, or recalibrating related systems.

Mud is the easiest case. Remove the wheel if needed, rinse the hub area gently, clean the sensor mount, and let connectors dry before reseating them. Avoid blasting connectors with high-pressure water because that can push grit deeper into seals.

Rocks and lifts need a closer look. A lifted Jeep can stretch sensor wiring at full droop, especially after sway-bar disconnect use. Oversized tires can also expose weak hub bearings because heavier rotating mass adds stress, so don’t ignore play or grinding near the coded wheel.

Repair checklist before clearing the code

• Wheel-speed sensor: replace if cracked, physically damaged, or dead on live data.
• Harness: repair rubbed insulation, broken clips, and stretched sections near control arms.
• Connector: clean corrosion and confirm the locking tab clicks fully.
• Hub bearing: check for play, noise, or metal debris around the sensor area.
• Brake fluid: top up only with the correct spec after confirming there is no leak.
• Battery health: test voltage because weak batteries can trigger strange module warnings.

Owner-reported repair costs vary by Jeep model, region, and whether the hub assembly is involved, so I won’t give a fake number. The practical money-saving move is to pay for a proper ABS scan before ordering parts. For broader Jeep maintenance context, Offroadhandbook also covers related powertrain issues like Jeep 2.4 engine problems.

FAQs: Jeep ABS light after trail driving

These quick answers cover the most common follow-up questions Jeep owners ask after an ABS warning appears post-trail.

Will disconnecting the battery reset the ABS light?

Disconnecting the battery may temporarily clear some warnings, but it won’t fix a bad wheel-speed sensor, damaged harness, wet connector, or hub issue. If the ABS module sees the same fault again, the light will return. Scan and repair first, then clear codes.

Can mud on the brakes cause an ABS warning?

Mud on the brakes can cause noise, vibration, and poor braking feel, but the warning usually appears because mud affects a sensor, connector, tone ring area, or wiring path. Clean the hub and sensor area carefully, then check live wheel-speed readings if the light remains.

Why did traction control turn off too?

Traction control needs accurate wheel-speed data from the ABS system. If one wheel reports bad data or no data, the Jeep may disable traction control and stability control to avoid making unsafe corrections. That’s why several lights often appear from one sensor fault.

Should I replace all four ABS sensors at once?

No, not unless inspection or scan data supports it. Replace the sensor or harness tied to the stored code, then verify live data. Shotgunning all four sensors costs more and can create new connector or fitment problems if aftermarket parts are poor quality.

When should I take it to a shop?

Use a shop if you have a red brake light, soft pedal, fluid leak, repeated codes after repair, or no ABS-capable scan tool. A good technician can compare live wheel-speed data, test wiring, and confirm whether the fault is a sensor, hub, module, or hydraulic issue.

Conclusion

A jeep abs light after off road is usually solvable, but don’t treat it like a harmless reminder light. Scan the ABS module, inspect the coded wheel, clean mud from the hub area, check wiring at full steering lock and suspension droop, then clear the code only after the cause is fixed.
