Why Does Jeep Clunk When Braking After Off Road?

Quick Answer

A post-trail braking clunk is usually caused by loose brake hardware, trapped debris, suspension movement, steering play, or drivetrain slack exposed by forward weight transfer. The safest path is a slow inspection of brakes, track bar, control arms, sway links, ball joints, skid plates, and driveshaft joints before the next highway drive.

A Jeep clunks when braking after off road driving because braking loads parts that trails just shook, flexed, heated, packed with mud, or struck on rocks. Main suspects include loose caliper hardware, pad shift, rotor shield contact, control arm bushing movement, track bar play, sway bar link looseness, shock mount movement, ball joint wear, skid plate contact, or driveshaft slack.

Any loud repeat knock, steering wander, brake pedal vibration, grinding, or visible wheel movement means the Jeep should be inspected before regular driving.

Why the clunk appears after the trail

A post-trail brake clunk often appears because braking shifts weight forward and forces the axle, brakes, steering, suspension, and driveline to take a sudden load.

During a stop, the front suspension compresses, the rear unloads, and any looseness can move once with a heavy knock. Mud and small stones can also sit quietly until the rotor, backing plate, caliper bracket, or wheel changes position under braking.

Suryashankar Dasgupta founded Off-Road Handbook around practical trail prep, not showroom theory. The same logic behind preparing a Jeep for off-road trails in 2026 applies after the trail: bolts, bushings, tires, brakes, and fluids need a calm check before speed returns.

“An ounce of prevention is worth a pound of cure.”, Benjamin Franklin, Founders Online

Trail forces that make braking noises show up

The most common trail triggers are simple, but easy to miss:

• Mud packing: dirt dries around calipers, pads, backing plates, and ABS wiring.
• Rock strikes: skid plates, control arm brackets, shock mounts, and rotor shields can bend.
• Suspension flex: control arm and track bar bolts can reveal old looseness.
• Water crossings: heat cycling can aggravate rusty brake clips and hardware.
• Bigger tires: added use can make worn ball joints, tie rods, and unit bearings more obvious.

A lifted Jeep deserves extra attention because aftermarket control arms, track bars, and sway links rely on correct torque and bushing preload.

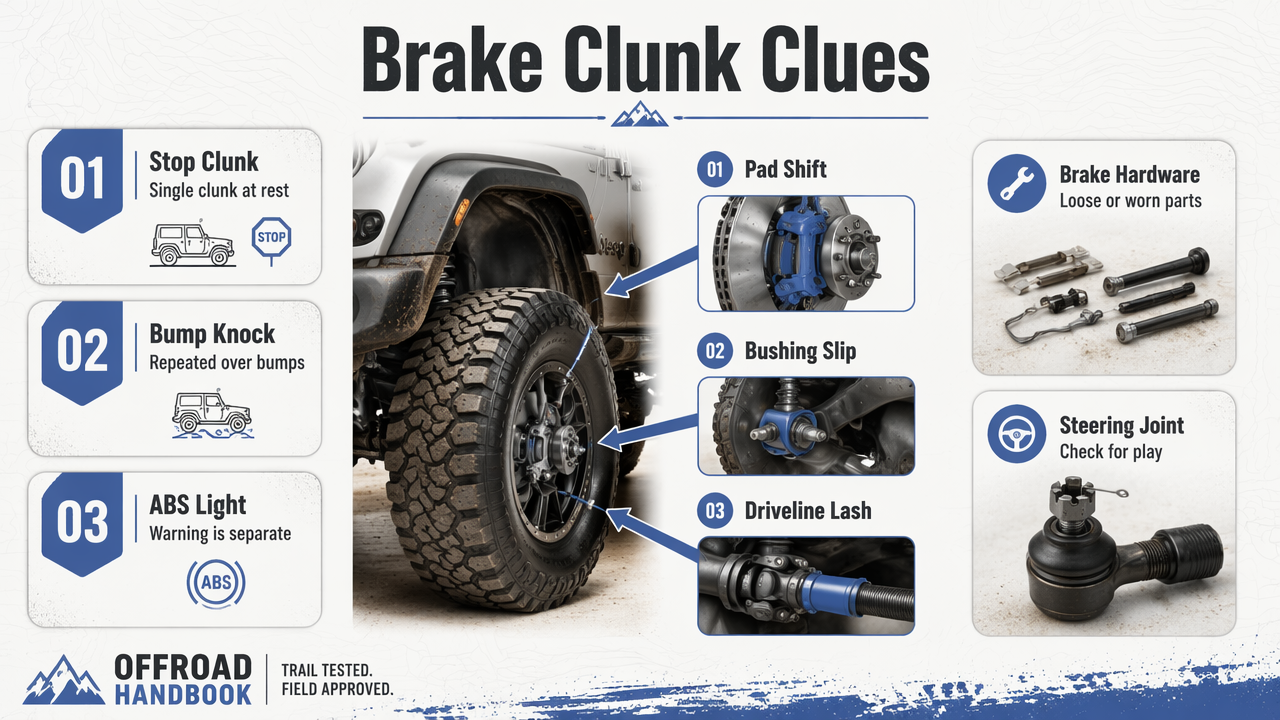

How to tell brake, suspension, steering, and drivetrain clunks apart

The fastest way to narrow the cause is to match the clunk timing, location, and feel to the part that loads at that moment.

A single clunk right as the Jeep stops often points to pad shift, caliper slide movement, control arm bushing slip, or driveline lash. A repeated knock over bumps while braking leans more toward sway links, shock mounts, ball joints, or steering joints.

Owners chasing ABS lights after trail use should separate electrical warning lights from physical knocks. The inspection logic in this Jeep Patriot ABS and traction control light guide is useful because wheel speed sensors, wiring, and hub issues can overlap with brake-area symptoms.

Diagnostic table for post-trail braking clunks

When the clunk happens	Where it feels	Likely cause	First inspection
Once when stopping	Front wheel area	Pad shift, loose caliper bolt, worn pad clip	Caliper bracket bolts, pad clips, slide pins
When braking and turning	Steering wheel or floor	Track bar, tie rod, drag link, ball joint	Dry steer test, joint movement check
Under hard stop only	Axle or frame	Control arm bushing, loose control arm bolt	Arm brackets, bushing sleeves, bolt witness marks
After mud or gravel	Wheel area	Rock in rotor shield, bent dust shield	Rotor clearance, backing plate, debris removal
Clunk changing from drive to reverse	Center or rear	Driveshaft U-joint, differential mount, transfer case mount	U-joints, yokes, skid plate bolts
Over bumps while braking	Corners of vehicle	Sway link, shock mount, coil spring shift	Link bushings, shock bolts, spring seats

Helpful suspension diagnosis video

Video checks are not a replacement for safe jack-stand work, but a front-end movement demonstration helps connect sound, load, and part motion.

What brake and front-end parts should be checked first?

Brake hardware should be checked first because trail debris and loose caliper parts can turn a small clunk into poor stopping or rotor damage.

Start with the wheels removed and the Jeep supported safely. Look for shiny impact marks, missing anti-rattle clips, pads that slide too easily in the bracket, caliper bolts that moved, and rotor shields touching the disc. Rusty clips on Grand Cherokee and Cherokee brake pads can allow a pad to shift with a dull knock.

Then move outward into the front end. Braking loads the track bar, control arms, ball joints, and steering linkage, especially on solid-axle Wrangler and Gladiator models. A loose track bar can clunk during braking because the axle tries to shift side to side while weight transfers forward.

First-pass inspection order

1. Park on level ground, chock the wheels, and let the brakes cool.
2. Check tire pressure and lug nut seating before lifting the Jeep.
3. Inspect caliper bracket bolts, slide pins, pad clips, and rotor shield clearance.
4. Look for rocks wedged between the rotor, dust shield, caliper, and wheel.
5. Check track bar, tie rods, drag link, and steering stabilizer for fresh movement marks.
6. Inspect control arm bushings, shock mounts, sway links, and coil spring seats.
7. Check driveshaft U-joints, transfer case mount, skid plate bolts, and exhaust contact.

The same preparation mindset used for beginner Jeep off-road mods applies here. Tires, lift parts, armor, and recovery gear only help when the base vehicle remains tight.

Lifted Jeep checks that are often missed

Lifted Jeeps add more possible clunk sources because suspension geometry changes. Poor caster, dry spherical joints, loose jam nuts, worn track bar bushings, or control arms tightened while the axle was drooped can all create a knock when braking.

Bigger tires also increase use on ball joints, unit bearings, tie rod ends, and brake components. A mild trail can expose wear that already existed, especially after washboard roads or rock ledges.

When is the Jeep unsafe to keep driving?

A Jeep is unsafe to keep driving when the clunk comes with steering wander, brake pedal vibration, grinding, wheel movement, fluid leakage, or a repeated heavy knock.

Not every noise means an immediate tow. A small stone tapping a dust shield is different from a loose caliper bracket or a shifting track bar. The decision should be based on control, braking feel, repetition, and visible part movement.

“The time to repair the roof is when the sun is shining.”, John F. Kennedy, John F. Kennedy Presidential Library and Museum

Repair urgency table

Symptom	Likely urgency	Action before next drive
Light scrape after muddy trail	Low to medium	Clean brakes, inspect rotor shield and debris
One dull clunk at final stop	Medium	Inspect pads, calipers, control arms, track bar
Clunk plus steering wheel shift	High	Stop highway driving, inspect steering and track bar
Grinding or brake pedal pulse	High	Inspect brakes before further driving
Wheel moves by hand at 12 and 6	High	Check ball joints or unit bearing immediately
Loud repeated knock under braking	High	Tow or perform full underbody inspection

A safe post-trail routine also includes tire pressure correction. The off-road tire pressure guide for different terrain explains why aired-down tires must be reset before pavement speeds.

What to expect from 2026 Jeep troubleshooting

More Jeep owners now use phones, dash cameras, and forum videos to record noises before repair. That helps, but a recording rarely proves torque loss, bushing slip, or caliper movement by itself.

The better 2026 approach is simple: record the sound, note the exact braking condition, inspect the physical parts, then retorque to factory or aftermarket manufacturer specs. Offroadhandbook favors that checklist style because it keeps beginners from guessing based on noise alone.

FAQs: Jeep clunks when braking after off road

A Jeep clunks when braking after off road use because the trail may have loosened, bent, packed, or exposed wear in parts that load during stopping. The questions below cover the most common owner-reported patterns.

Can mud cause a brake clunk?

Yes. Mud can dry around brake pads, caliper brackets, slide pins, rotor shields, and ABS wiring. It can also hide small stones that strike the rotor shield only during braking. Cleaning the brake area and checking pad hardware should happen before assuming the suspension is damaged.

Can a loose track bar clunk when braking?

Yes. A loose or worn track bar can clunk when braking because the axle shifts as weight transfers forward. This is especially common on solid-axle Wrangler and Gladiator setups. Steering wander, a steering wheel twitch, or a knock felt through the floor increases suspicion.

Why does the clunk happen only once when stopping?

A single clunk often means one part moves from one loaded position to another. Common causes include brake pad shift, caliper slide movement, a control arm bushing sleeve moving in its bracket, driveline lash, or a loose skid plate settling under torque change.

Should suspension bolts be retorqued after off-roading?

Yes, suspension and steering hardware should be checked after hard trail use, especially on lifted Jeeps. Control arms, track bars, sway links, shock mounts, skid plates, and aftermarket brackets can show movement marks. Torque values should come from the Jeep service information or the part manufacturer.

Conclusion

A Jeep clunks when braking after off road driving should be treated as a load-transfer clue, not just a brake noise. Start with brake hardware and debris, then inspect the track bar, control arms, steering links, ball joints, shock mounts, skid plates, and driveline joints before returning to highway speed.
