Jeep Driveshaft Vibration After Lift? What Changed Underneath

Quick Answer

If your Jeep was smooth before the lift and now vibrates under throttle, decel, or highway speed, start with driveline angles before blaming tire balance. Check U-joints, CV joints, pinion angle, control arms, and transfer case clearance before buying parts.

A Jeep can get driveshaft vibration after a lift because the lift changes driveshaft angle, pinion angle, U-joint operating angle, CV joint stress, and control arm geometry. If the shake started right after the lift and changes with throttle or deceleration, inspect the driveline before blaming tire balance. Stop driving if you hear clunking, grinding, or see driveshaft wobble.

A jeep driveshaft vibration after lift usually means something underneath changed enough to expose a weak joint or create a bad operating angle.

Why does a Jeep vibrate after a lift?

A lifted Jeep vibrates because the suspension lift moves the axle farther from the transfer case, steepening the driveshaft and changing the angle where the shaft meets the pinion yoke. That angle change affects Wrangler TJ, JK, JL, Gladiator JT, Cherokee XJ, and Grand Cherokee models differently, but the pattern is the same: smooth before, lifted, then vibration.

The Jeep Cherokee XJ, defined by Wikipedia) as a single-generation SUV marketed by Jeep from 1983 through 2001, is especially sensitive because many are old enough to have worn joints before the lift begins.

Key insight: if the vibration changes when you get on or off the throttle, think driveline load first, not tire balance.

A tire balance issue usually follows road speed. A driveshaft-angle issue often changes with torque, gear load, 4WD engagement, or suspension droop.

The first clues from the driver seat

• Under acceleration: suspect rear pinion angle, rear U-joints, or double-cardan stress.
• On deceleration: inspect pinion angle mismatch, loose joints, and axle wrap.
• At steady highway speed: compare tire balance, shaft balance, and driveline angle.
• Only in 4H or 4L: inspect the front driveshaft, front pinion angle, and front CV joint.
• After a hard trail hit: check mounts, skid plates, yokes, and shaft dents.

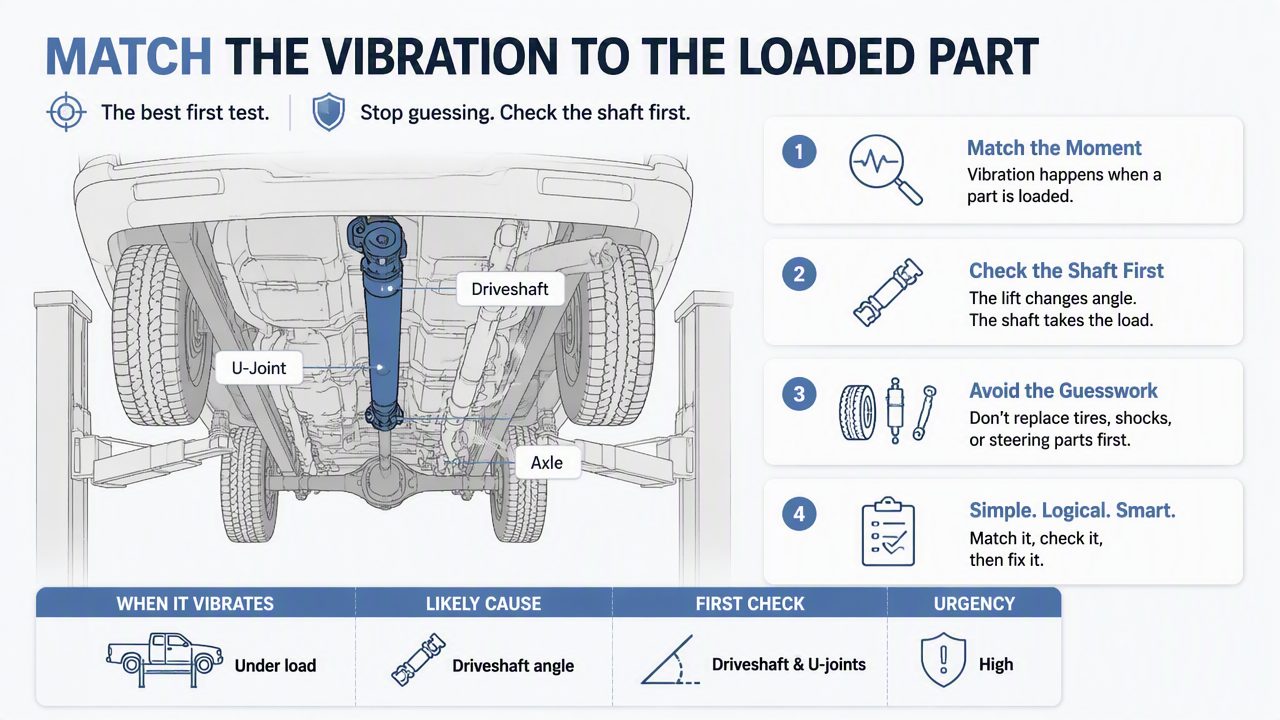

How do symptoms point to the likely cause?

The best first test is to match when the vibration happens with the part that is loaded at that moment. I like this method because it stops owners from replacing tires, shocks, and steering parts before checking the shaft that changed angle during the lift.

Diagnostic table for lifted Jeep vibration

When it vibrates	Likely cause	First check	Urgency
Acceleration from a stop	Rear U-joint or rear pinion angle	Look for U-joint play and measure pinion angle	Medium to high
Deceleration or coasting	Pinion angle mismatch	Compare transfer case output and pinion angle	Medium
45 to 65 mph cruise	Tire balance, shaft balance, or angle	Rotate tires, inspect shaft runout	Medium
Only in 4WD	Front driveshaft or front CV joint	Inspect front shaft and boot	High if clunking
After 3.5 inch or 4 inch lift	Control arm geometry and shaft angle	Check adjustable arms and caster	High
Clunk plus vibration	Failed U-joint, loose yoke, mount issue	Do not keep driving hard	High

A 2 inch lift may only expose a weak joint. A 2.5 inch lift often starts to show rear angle issues on older Wranglers. At 3.5 inches and above, adjustable control arms, corrected pinion angle, and sometimes an upgraded driveshaft become more realistic than optional.

A helpful inspection video

Use videos as a visual aid, not a replacement for hands-on checks. A shaft can look fine at rest and still bind when suspension droops on a rutted trail.

What changed in the driveshaft angle?

A lift changes the working relationship between the transfer case, driveshaft, axle pinion, U-joints, CV joints, and control arms. The driveshaft now runs at a steeper angle, so each joint has to speed up and slow down more during rotation.

That is why a small installation error can feel huge at road speed. A Jeep with bigger tires, extra armor, and trail gear adds even more load to parts that were already near their limit. For broader build planning, pair this fix with how to prepare your Jeep for off-road trails instead of treating vibration as a single isolated issue.

Pinion angle, caster, and control arm compromise

Rear pinion angle matters because the pinion yoke must line up correctly for the type of shaft installed. A standard single-cardan shaft and a double-cardan CV-style shaft do not want the same angle.

Front pinion angle is trickier on solid-axle Wranglers because rotating the axle for pinion angle also changes caster. Too little caster can make steering wander, while too much pinion angle correction can hurt driveline smoothness. If your Jeep also feels vague after tire or lift changes, read the related guidance on safe beginner Jeep mods before stacking more parts.

U-joints and CV joints after a lift

A worn U-joint can stay quiet at stock height and complain after a lift changes its operating angle. Look for rust dust around the caps, dry movement, clicking, looseness, or binding when the shaft is removed.

CV joints and double-cardan assemblies need special attention. Torn boots, dry centering balls, and sharp operating angles can create a fine buzz at speed or a rough shake under load.

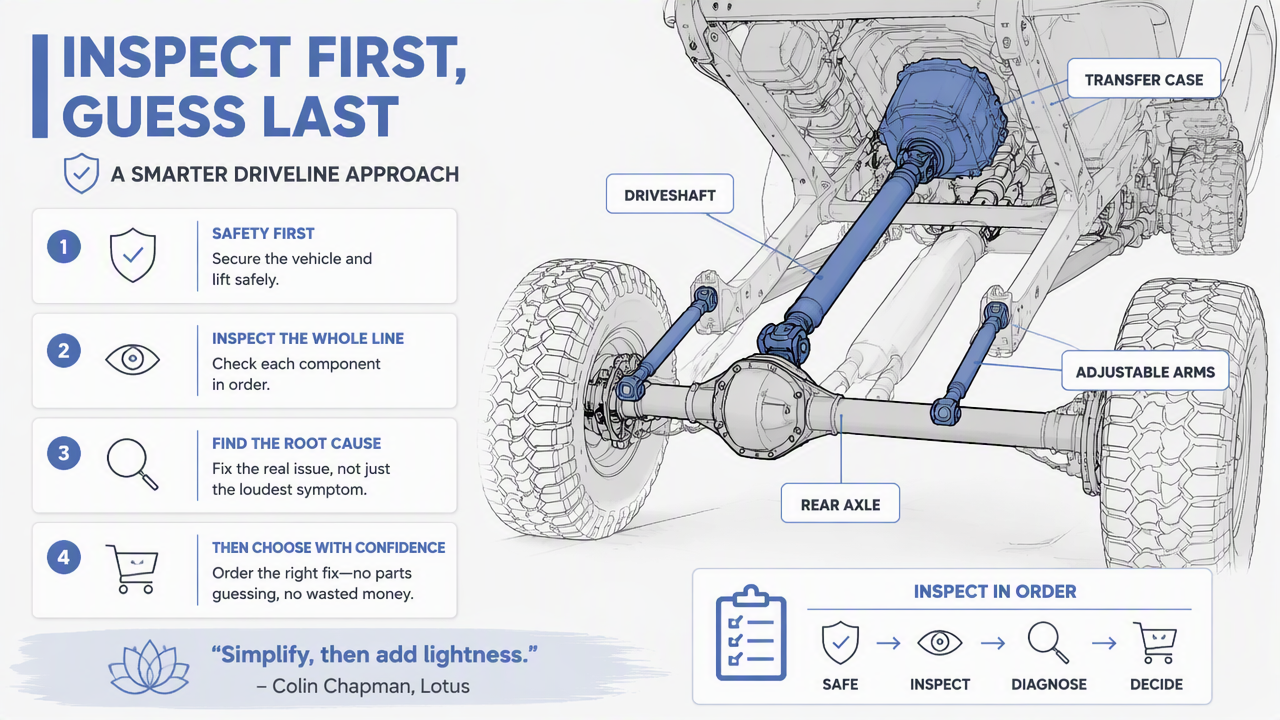

How should you inspect before buying parts?

You should inspect the whole driveline in a safe order before ordering a transfer case drop, adjustable arms, or a new shaft. Parts guessing gets expensive, and I have seen beginner builds become worse because the owner fixed the loudest symptom, not the root cause.

“Simplify, then add lightness.”, Colin Chapman, Lotus Cars

That quote fits Jeep diagnostics well: remove assumptions first, then add the right correction.

Step-by-step driveway check

1. Confirm the timing: note speed, gear, throttle position, and 2H, 4H, or 4L use.
2. Inspect tires first: check balance weights, mud packed in wheels, lug torque, and uneven wear.
3. Check U-joints: hold the shaft and yoke, then feel for play, clicking, or binding.
4. Inspect CV boots: look for grease spray, cracks, or torn rubber.
5. Measure pinion angle: compare the shaft angle and yoke angle with an angle finder.
6. Check control arms: confirm axle centering, bushing condition, and arm length.
7. Look at the skid plate: verify the shaft is not contacting a belly skid, exhaust, or crossmember.
8. Road test carefully: start slow and stop if vibration grows.

Transfer case drops can reduce rear shaft angle on some older setups, but they also lower belly clearance. For trail rigs, that tradeoff matters. If you are tuning tire pressure and suspension behavior together, use the off-road tire pressure guide so road shake is not confused with aired-down trail feel.

When to stop driving

• Loud clunk when shifting from drive to reverse
• Grinding near the transfer case or axle yoke
• Torn CV boot with grease loss
• Visible driveshaft wobble
• Vibration getting worse each drive
• Leaking transfer case seal near the output
• Fresh metal marks on the skid plate or exhaust

If your Grand Cherokee will not move correctly in gear, that is a different severity level than mild vibration; compare symptoms with Grand Cherokee gear movement troubleshooting before driving farther.

FAQs: Lifted Jeep driveline fixes

These answers cover the questions I see most often from owners who lifted a Jeep and felt a new shake from underneath. For more practical trail-prep checks, visit offroadhandbook.com and keep your inspection notes organized by symptom, not by guess.

Can a lift kit cause driveshaft vibration?

Yes. A lift kit can cause vibration by increasing driveshaft angle, changing pinion angle, and placing U-joints or CV joints outside their smooth operating range. The lift may also reveal joints that were already worn but quiet at stock height.

Do I need adjustable control arms after a lift?

You may need adjustable control arms if the lift changed axle position, caster, or pinion angle enough to cause vibration or poor steering. They are more common on 3.5 inch and taller lifts, but some 2.5 inch setups need them depending on model and shaft type.

Will a transfer case drop fix the vibration?

A transfer case drop can reduce rear driveline angle on some older Jeeps, especially budget TJ or YJ lifts. It is not a universal fix because it lowers clearance and may not correct front shaft, caster, or worn joint problems.

Can bad U-joints appear only after a lift?

Yes. A weak U-joint can seem fine before the lift, then vibrate once the shaft runs at a steeper angle. Rust dust, looseness, clicking, dry caps, or binding during hand movement are signs the joint needs attention.

Conclusion

A jeep driveshaft vibration after lift is not something to ignore or mask with random parts. Start by separating tire shake from torque-related driveline vibration, then inspect U-joints, CV joints, pinion angle, control arms, and transfer case clearance in that order.

For a clean next step, write down when the vibration happens, take angle measurements, photograph the joints, and compare the setup against your lift height.
