Jeep Grand Cherokee Air Suspension Drops After Off Road: Causes, Checks, and Fixes

Quick Answer

If your Grand Cherokee drops after trail use, suspect a leak, ride-height sensor issue, compressor overwork, or off-road mode fault before replacing expensive parts. Start with a safe height check, scan for suspension codes, inspect air springs and lines, then decide whether repair, recalibration, or conversion makes sense.

A jeep grand cherokee air suspension drops after off road driving when the Quadra-Lift system can’t hold air pressure or can’t confirm ride height correctly. The usual causes are air spring leaks, damaged air lines, weak compressor output, height sensor faults, or calibration errors after rough terrain. Park it level, avoid highway speed if it is sitting low, and diagnose before forcing another lift cycle.

Quadra-Lift air suspension: Jeep’s height-adjustable air suspension system on some Grand Cherokee trims, using air springs, a compressor, valves, sensors, and control logic to raise or lower the SUV.

The Jeep Grand Cherokee is a mid-size SUV line from Jeep, described by Wikipedia as moving away from the body-on-frame layout common when it launched. That matters here because Quadra-Lift gives comfort and clearance, but it also adds leak points after rocks, ruts, mud, and washboard trails.

What does it mean when the suspension drops after a trail?

A Grand Cherokee that lowers after off-road use is usually losing pneumatic pressure, misreading ride height, or protecting the compressor from damage.

In practical terms, the system raised the Jeep for clearance, worked harder over uneven terrain, then failed to maintain the commanded height once parked or driven back to pavement. A front-only drop points toward front air struts, front lines, or a front height sensor. A rear-only drop points toward rear bags, fittings, or rear sensor links.

Key insight: If one corner drops, think leak or sensor first. If the whole Jeep drops, think compressor, valve block, calibration, or system-level fault.

Forum threads often bury the useful clues under “Brands in our community,” “Top Contributors This Month,” and “Recommended Communities” blocks. I’d ignore the page clutter and focus on owner-reported patterns: drops overnight, drops in cold weather, drops after a bag replacement, or drops only after off-road height mode.

Fast symptom map

Symptom	Most likely area	What to check first
Front end drops when parked	Front air struts or lines	Soapy-water leak test at full height
Rear drops overnight	Rear air springs or fittings	Rear bag folds, line connections, valve block
Drops after bumps	Height sensor linkage	Broken arm, loose bracket, bent connector
“Service Air Suspension” message	Stored fault code	Scan before replacing parts
Won’t rise after several attempts	Compressor protection or failure	Stop cycling, let it cool, scan codes

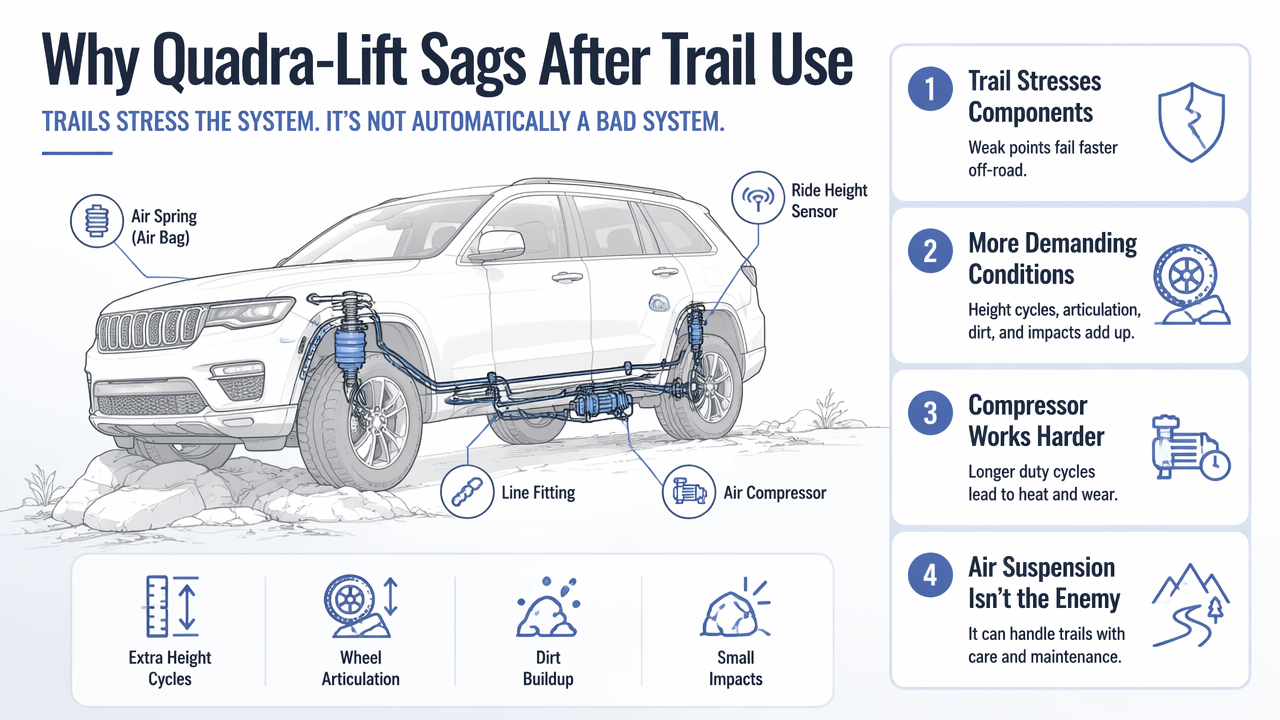

Why does Quadra-Lift sag after rocks, ruts, or mud?

Quadra-Lift sags after trail use because off-road driving exposes weak air springs, line fittings, sensors, and compressor duty cycles faster than normal street driving.

UploadRemove

Air suspension is not automatically bad for trails. The issue is that extra height cycles, wheel articulation, dirt buildup, and small impacts can turn an aging seal into a visible failure. On 2011-2021 Grand Cherokee models, age matters too. Rubber air springs harden, folds crack, and fittings become less forgiving.

Before blaming the compressor, remember this practical rule: compressors often die from chasing leaks. If the system leaks overnight, the compressor may run too often the next morning, overheat, and then trigger a warning. Replacing only the compressor can leave the original leak in place.

“Tires are the only parts of your vehicle that have direct contact with the road.”, National Highway Traffic Safety Administration, NHTSA Tire Safety

That quote is about tires, but it applies to this diagnosis because trail impacts start at the contact patch. Wrong tire pressure can increase sharp impacts into suspension parts. For pressure choices by terrain, use the Off-Road Handbook off-road tire pressure guide.

Common trail-related triggers

• Rock strike near a line: A nicked plastic air line may leak only at certain heights.
• Mud around sensor arms: Packed mud can restrict a ride-height sensor linkage.
• Full extension in Off-Road 2: Old air spring folds can open small cracks when stretched.
• Repeated raise and lower commands: Extra compressor cycling exposes weak output.
• Cold overnight parking: Existing leaks often become more obvious as seals contract.

How do you diagnose it before buying parts?

Diagnose a sagging Grand Cherokee air suspension by checking ride height, scanning codes, leak-testing the air springs and fittings, then inspecting height sensors and compressor behavior.

UploadRemove

Start simple. Park on level ground, measure from the wheel center to the fender lip at all four corners, then take the same measurements after one hour and the next morning. This tells you whether the leak is corner-specific or system-wide.

Do not keep pressing the raise button if the compressor sounds strained or the dash shows a suspension warning. I treat repeated cycling like winching with a weak battery: one more try can make the repair more expensive.

Safe driveway test sequence

1. Park on flat ground and set the parking brake.
2. Record all four corner heights with the Jeep in normal ride height.
3. Raise to the highest available setting if the system allows it.
4. Spray soapy water on air spring folds, fittings, and visible lines.
5. Watch for bubbles, especially near crimp rings and line connectors.
6. Scan for air suspension codes before clearing anything.
7. Inspect sensor arms for loose, bent, or disconnected links.
8. Avoid highway driving if one corner is visibly low.

If the Jeep also has drivability symptoms after trail use, read this related guide on why a Jeep Grand Cherokee won’t move in gear so you don’t confuse suspension height with a transmission or transfer-case issue.

Helpful repair reference video

https://www.youtube-nocookie.com/embed/ZLQkMARyk6Y

Use repair videos as visual references, not as proof that your part has failed. A scan tool, leak test, and physical inspection should decide the repair.

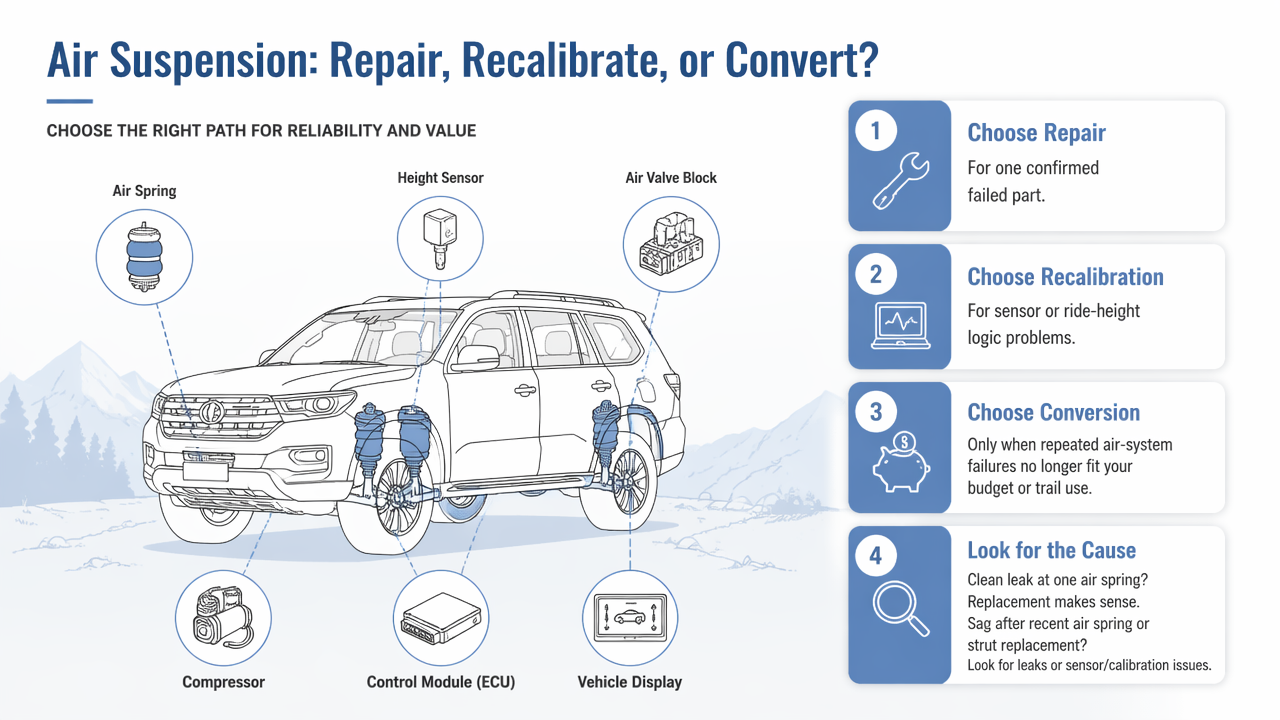

When should you repair, recalibrate, or convert?

Choose repair for one confirmed failed part, recalibration for sensor or ride-height logic problems, and conversion only when repeated air-system failures no longer fit your budget or trail use.

UploadRemove

For a clean leak at one air spring, replacement makes sense. For sag after a recent air spring or strut replacement, look hard at calibration and sensor position. A new part installed correctly can still confuse the module if ride height is not learned correctly.

A coil-spring conversion is tempting, especially if you want fewer trail electronics. Still, it changes how the Grand Cherokee rides, tows, loads, and clears obstacles. I’d only consider it after pricing the full air-system repair and thinking about how you actually use the Jeep.

Decision table for owners

Situation	Best next step	Why
One corner drops overnight	Replace leaking bag or strut after testing	Most direct fault pattern
Drops after sensor work	Recalibrate ride height	Parts may be fine, data may be wrong
Compressor runs often	Find leaks before compressor replacement	New compressor can fail again
Multiple aging bags leak	Replace in pairs or plan larger repair	Similar age parts fail close together
Heavy trail use, repeated faults	Compare air repair vs coil conversion	Reliability may matter more than height modes

Cost-control advice

• Ask the shop for stored codes, not just a verbal diagnosis.
• Request leak-test results by corner.
• Replace damaged sensor links before ordering major parts.
• Do not approve a compressor until leaks are ruled out.
• After any repair, test normal, aero, and off-road heights before leaving.

Electrical gremlins can appear after wet trails too. If your Jeep has unrelated cabin or module issues, this Jeep touch screen troubleshooting guide may help separate suspension faults from general electrical symptoms.

FAQs

A sagging Quadra-Lift system is fixable, but the correct repair depends on whether the Jeep is leaking air, misreading height, or limiting compressor operation.

Can I drive my Grand Cherokee if the air suspension is low?

You can move it slowly to a safe location or repair shop if it is not rubbing tires, bottoming out, or showing unsafe handling. Avoid highway speeds, heavy loads, and more trail driving. A low corner can affect steering, braking balance, headlight aim, and tire clearance.

Will an air suspension reset fix the drop?

A reset may help if the module is confused after battery work, sensor replacement, or calibration loss. It will not fix a leaking air spring, cracked line, weak compressor, or damaged valve block. If the Jeep drops again after a reset, treat that as a real fault.

Why does it drop more in cold weather?

Cold weather can make old rubber seals less flexible, so a small leak becomes easier to notice overnight. Temperature also changes air pressure behavior. If sagging appears after cold trail camping, still perform a leak test instead of assuming it is normal seasonal behavior.

Should I replace both rear air springs together?

If one rear spring failed from age, replacing both can be smart because the other side has seen the same miles, loads, and trail conditions. If damage is clearly from one rock strike or fitting issue, a single-side repair may be enough after inspection.

Conclusion

When a jeep grand cherokee air suspension drops after off road use, don’t start with the most expensive part. Measure the corners, scan the codes, leak-test at height, inspect sensor links, and only then choose repair, recalibration, or conversion.
