Jeep Rubs After Lift Kit on Bumps: Causes, Fixes, and Safe Checks

Quick Answer

A Jeep that rubs after a lift kit usually has a clearance problem caused by tire size, wheel backspacing, bump stop length, axle shift, or fender contact under compression. The safest fix starts with locating the exact rub mark, then correcting bump stops, alignment, track bars, wheel fitment, or trimming before adding more lift.

A Jeep rubbing after a lift kit on bumps usually means the tire is contacting the fender liner, flare, control arm, sway bar, pinch seam, bumper, or inner wheel well under compression. The main causes are oversized tires, wrong wheel offset or backspacing, short bump stops, axle not centered, or poor alignment.

The practical fix is to mark the contact point, inspect at full turn and compression, then correct the limiting part before trail use.

What does it mean when a Jeep rubs after a lift kit on bumps?

A Jeep rubbing after a lift kit means the tire path is still larger than the available wheel-well space during suspension compression. Lift kits raise static ride height, but bumps, dips, trail ledges, and braking forces push the tire upward and backward into areas that looked clear in the driveway.

The first clue is the sound. A plastic scrape usually points to fender liners or flares. A metallic grind can mean sway bar, control arm, bumper bracket, or body seam contact. Rubber smell after a bump is a warning sign, not a normal break-in noise.

“Tires are your vehicle’s only contact with the road.”, National Highway Traffic Safety Administration, NHTSA Tire Safety

A fresh lift can also reveal old wear. Weak control arm bushings, tired shocks, loose track bar bolts, or sagging springs may allow movement that was hidden before larger tires went on. For a broader beginner build sequence, Offroadhandbook’s guide to best Jeep mods for beginners off-road in 2026 explains why tires, recovery gear, and armor should be planned together.

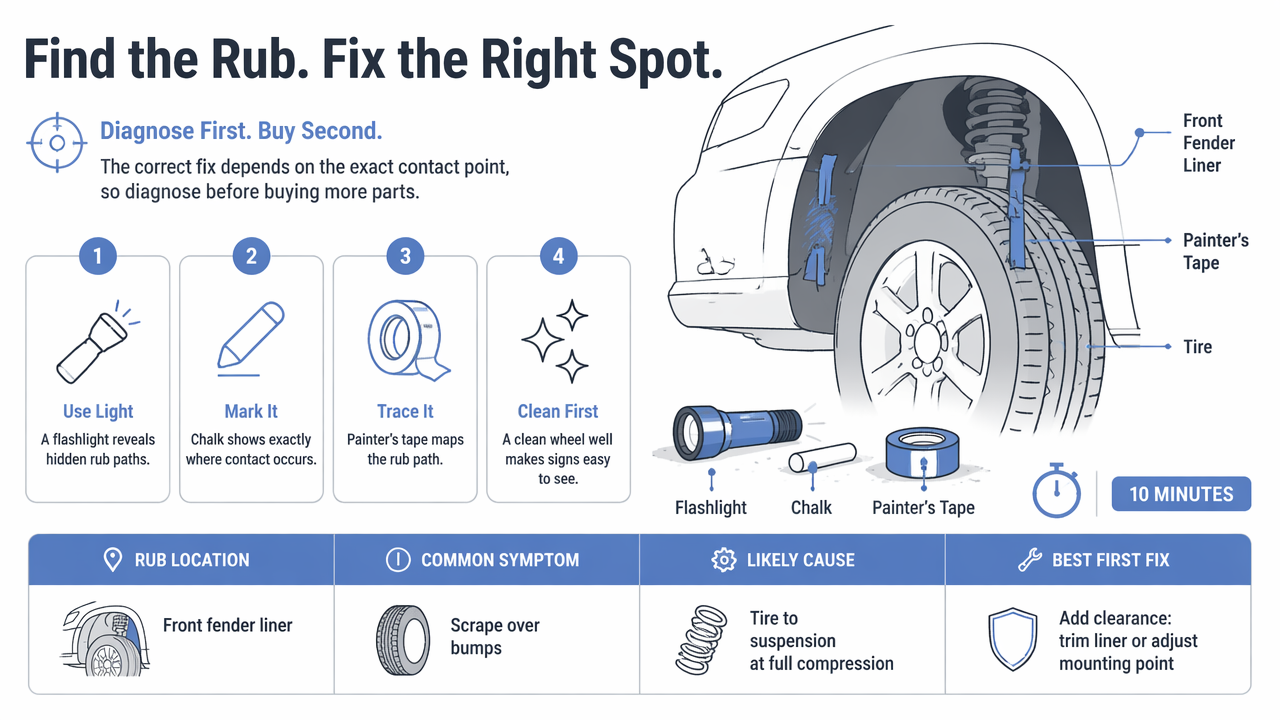

Where is the tire actually rubbing?

The correct fix depends on the exact contact point, so diagnosis should happen before buying more parts. A flashlight, chalk, painter’s tape, and a clean wheel well can expose the rub path in 10 minutes.

Common rub points and likely causes

Rub location	Common symptom	Likely cause	Best first fix
Front fender liner	Scrape over bumps	Tire too tall or bump stop too short	Add bump stop or trim liner
Lower control arm	Rub at full steering lock	Wheel backspacing or tire width	Adjust steering stops or wheel spec
Sway bar link area	Clunk or scrape while turning into dips	Link angle or axle shift	Check track bar and link length
Rear inner fender	Rub with cargo or passengers	Spring compression or short bump stop	Longer bump stop or better springs
Pinch seam	Sharp scrape near rear of front tire	Larger tire diameter	Carefully trim and seal seam
Bumper or air dam	Rub during turns	Tire swing path too wide	Trim bumper plastic or relocate bracket

A driveway check should include full left lock, full right lock, and straight-ahead compression. The mark that appears only during turning usually relates to width, offset, or steering geometry. The mark that appears only over bumps usually relates to bump stop height, shock travel, or tire diameter.

Airing down changes the contact pattern. Lower pressure improves trail grip, but a wider tire footprint can touch fenders sooner during flex. The off-road tire pressure guide for different terrain in 2026 gives practical PSI ranges for sand, rocks, mud, snow, and mixed trails.

Field test video for visual clearance thinking

How to fix tire rub after a lift kit safely

The safest repair sequence starts with the cheapest reversible checks, then moves toward trimming, wheel changes, or suspension parts. Extra lift should not be the first answer because it can worsen driveline angles, steering feel, and center of gravity.

Step-by-step repair order

1. Clean the wheel wells: Dirt hides fresh rub marks, especially on black plastic liners.
2. Mark suspected areas: Use chalk or painter’s tape near liners, flares, brackets, and control arms.
3. Cycle steering: Turn lock-to-lock while parked on level ground and inspect contact.
4. Compress carefully: Use a ramp, curb-like obstacle, or shop lift to check bump travel safely.
5. Measure bump stop gap: Confirm the tire stops before it reaches metal or wiring.
6. Check axle centering: A lifted solid-axle Jeep may need an adjustable track bar.
7. Align the Jeep: Toe and caster affect tire path, steering return, and road stability.
8. Trim last: Cut only the confirmed contact area, then seal exposed metal.

Bump stops are often the cleanest fix for bump-only rubbing. Their job is not to make the ride harsher. Their job is to stop the tire, shock, and suspension from traveling into damaging contact.

Wheel backspacing is the next common issue. Too much positive offset pulls the tire inward toward control arms. Too much poke can shove the tire into flares during compression. A lift kit may clear height while the wheel spec still fails the turn-and-bump test.

“Travel responsibly on land by staying on designated roads, trails, and areas.”, Tread Lightly!, Responsible Recreation Tips

Trail preparation should happen before the first hard flex test. The Offroadhandbook checklist on how to prepare a Jeep for off-road trails in 2026 covers recovery gear, fluids, tires, and pre-trip inspection habits that reduce trail-side surprises.

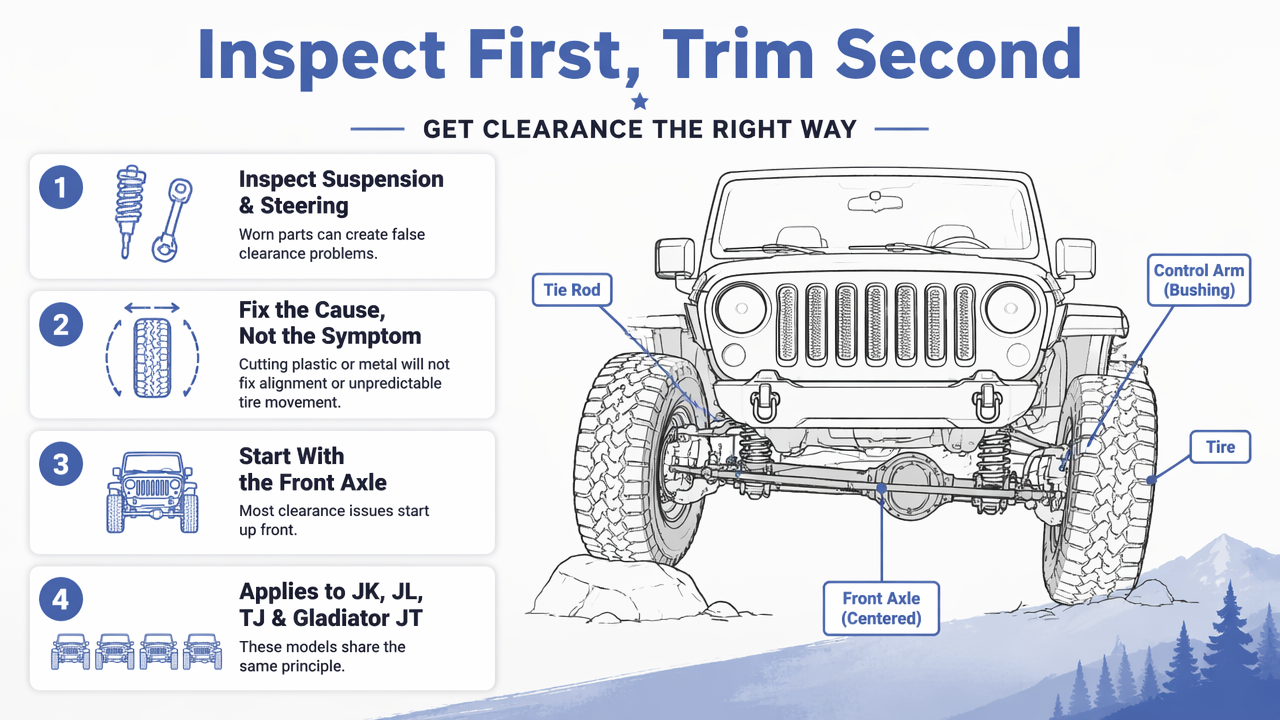

Which parts should be checked before trimming or adding more lift?

Suspension and steering parts should be inspected before trimming because worn parts can create false clearance problems. Cutting plastic or metal will not fix an axle that is off-center or a tire that moves unpredictably under load.

Start with the front axle on Wrangler JK, JL, TJ, and Gladiator JT models because most bump-rub complaints show up while turning into dips. Grand Cherokee and Cherokee owners should also inspect independent suspension components, inner liners, and strut or control arm clearances.

Pre-trim inspection checklist

• Track bar bolts: Loose or factory-length bars can shift the axle after a lift.
• Control arm bushings: Worn bushings allow the tire to move backward on impact.
• Sway bar links: Incorrect link length can bind during articulation.
• Shock length: A shock that allows too much compression may need proper bump stopping.
• Brake and ABS wiring: Rubbing near wiring can create warning lights or intermittent faults.
• Spring seating: A rotated or poorly seated spring can change ride height side to side.
• Alignment numbers: Toe and caster should match the lift, tire size, and road use.

ABS wiring deserves attention because a rubbed harness can mimic unrelated electrical trouble. For owners chasing warning lights after trail work, this related guide on Jeep Patriot ABS and traction control lights shows how sensor and wiring faults can trigger dash alerts.

A common misconception says a 2.5-inch lift automatically clears 35-inch tires or a 3.5-inch lift automatically clears 37-inch tires. Real clearance depends on trim level, axle width, wheel offset, tire brand, fender design, added weight, and bump stop setup. The tire’s labeled size is only part of the story.

Offroadhandbook treats tire rub as a setup problem, not just an annoyance. More on offroadhandbook.com focuses on practical checks that keep beginner Jeep owners from turning a small scrape into trail damage.

FAQ: Jeep rubbing after lift kit on bumps

Is rubbing after a lift kit normal?

Rubbing after a lift kit is common, but it should not be treated as normal operation. Light plastic liner contact may be easy to correct, but metal contact can cut tires, damage wiring, or bend brackets. Any rubbing that happens at speed, under braking, or during steering should be fixed before trail driving.

Will adding more lift stop tire rub?

More lift can reduce some vertical rubbing, but it may not fix contact caused by wheel offset, tire width, axle shift, or steering angle. Extra height also raises the center of gravity and may require more supporting parts. Correct bump stops, track bars, wheel fitment, and trimming usually solve the root cause more cleanly.

Can tire pressure cause rubbing on bumps?

Tire pressure can change how rubbing appears. Lower trail pressure widens the tire footprint and allows more sidewall bulge, which can contact liners or flares during flex. High pressure usually does not create more clearance in a meaningful way, and pressure should never be used as the main fix for poor wheel-well clearance.

Should fenders be trimmed on a daily-driven Jeep?

Fender trimming can work on a daily-driven Jeep when the contact point is confirmed and the cut is clean, sealed, and legal in the vehicle’s state. Trimming should follow inspection, not replace it. Factory liners may protect wiring, washer lines, and body seams, so hidden components must be checked before cutting.

Conclusion

A jeep rubs after lift kit on bumps because static ride height, tire path, bump travel, and wheel fitment are not working together yet. The best next step is simple: identify the exact rub mark, check steering and compression, inspect track bars and bump stops, then choose the smallest safe correction.
