Jeep Skid Plate Rattles After Trail: Safe Diagnosis and Fixes

Quick Answer

If your Jeep skid plate rattles after a trail, inspect it before the next drive: loose bolts, trapped rocks, bent plates, and exhaust contact are the usual suspects. Start with a safe underbody check, confirm the noise source, then retorque or realign parts using the factory service manual.

A jeep skid plate rattles after trail driving because vibration, rock strikes, mud packing, missing hardware, or slight bending lets the plate touch the frame, exhaust, crossmember, or transfer-case area. The risk depends on whether the noise is only a shield rattle or a driveline, exhaust, or mount issue. Park safely, inspect cold parts first, and don’t keep wheeling until loose metal is secured.

Skid plate: A skid plate is an abrasion-resistant shield attached to the underside of a vehicle to protect components when the vehicle contacts the ground, as defined in Wikipedia’s skid plate entry.

A new rattle under a Wrangler, Grand Cherokee, Cherokee, or Gladiator after a rocky trail is not “just Jeep noise” until you prove it. I treat underbody rattles as a safety check, not an annoyance, because the same hit that bends a plate can also loosen exhaust brackets, transmission crossmember bolts, or nearby wiring clips.

What should you check first when a Jeep skid plate rattles after trail driving?

A Jeep skid plate rattle should be checked first at the hardware, trapped debris, contact points, and exhaust clearance because those are the fastest, most common trail-related causes.

Start with the Jeep parked on level ground, the exhaust cool, the parking brake set, and wheel chocks in place. Never crawl under a vehicle supported only by a jack. Use ramps or rated jack stands if you need more room.

First-pass inspection checklist

1. Look for fresh shiny metal: Bright scrape marks usually show where the plate is touching another part.
2. Shake each skid plate by hand: Movement means loose bolts, damaged nutserts, missing spacers, or a bent mounting ear.
3. Check for trapped stones: Pebbles between a skid plate and frame can sound like a failed bearing at low rpm.
4. Inspect exhaust clearance: Aftermarket steel plates and bent factory shields often touch the exhaust under load.
5. Confirm all bolts are present: A missing rear bolt can let the plate buzz at 25 to 35 mph or around 1,500 to 2,000 rpm, a pattern often reported in Jeep forum threads.

Key insight: If the rattle appeared right after a rock hit, treat the skid plate as evidence. The visible scrape is often less useful than the nearby contact mark it created.

Forum results for this search are full of helpful owner clues, but many pages bury the answer under “Is this your car?”, “Got more questions?”, “Top Contributors this Month,” “Recommended Communities,” and sign-up prompts. Offroadhandbook’s goal is to turn those scattered owner-reported fixes into a practical inspection flow you can use in your driveway or at the trailhead.

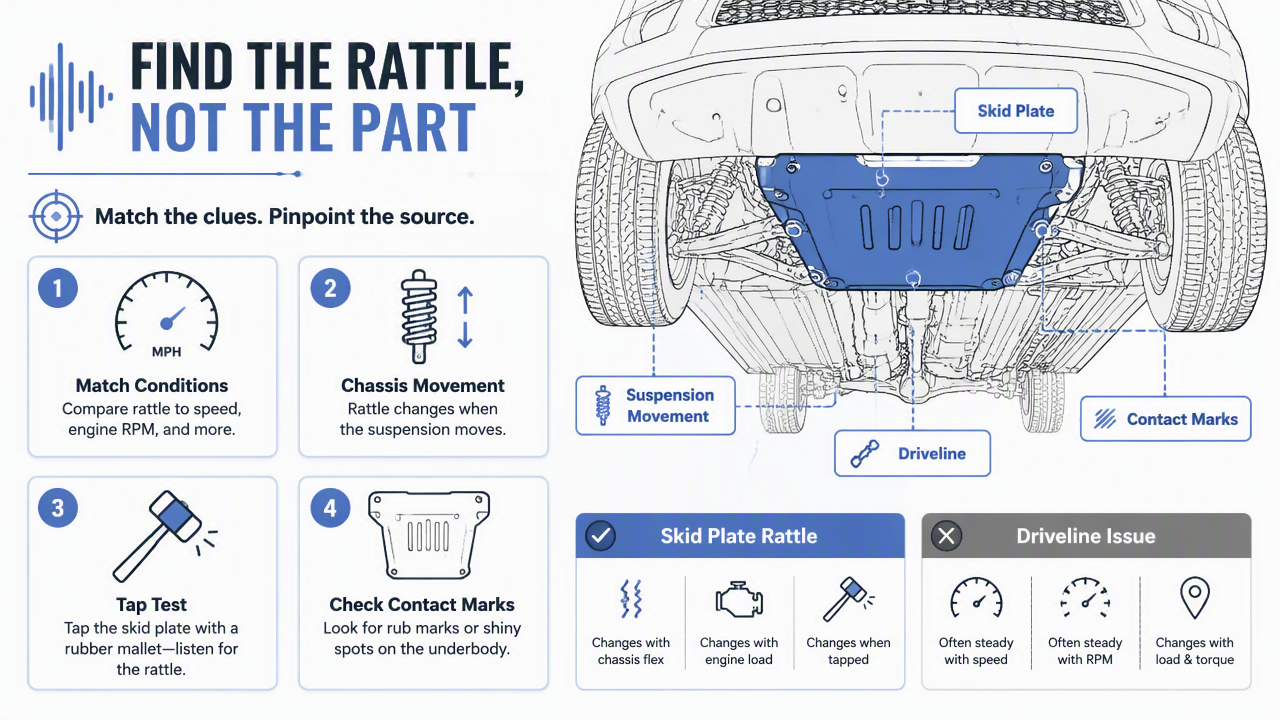

How do you pinpoint skid plate, exhaust, or driveline noise?

You can pinpoint the source by matching the rattle to speed, engine rpm, suspension movement, and underbody contact marks instead of replacing parts blindly.

A true skid plate rattle usually changes when the chassis flexes, when the engine loads, or when a plate is tapped with a rubber mallet. A driveline issue is more likely to follow road speed. An exhaust rattle often appears at a narrow rpm band while the vehicle is stopped or moving slowly.

Rattle pattern decision table

Symptom	Likely source	Quick test	Drive risk
Metallic buzz at idle or 1,500 to 2,000 rpm	Exhaust touching skid plate	Rev lightly in Park while listening from the side	Medium if exhaust is stressed
Clank after bumps or frame twist	Loose skid bolt, spacer, or bent bracket	Shake plate by hand and inspect bolt holes	Medium to high
Scraping or grinding after rock hit	Bent plate contacting drivetrain or exhaust	Look for shiny rub marks and reduced clearance	High until inspected
Rattle only at 25 to 35 mph	Loose shield, crossmember hardware, or resonance	Hold same rpm in another gear if safe	Medium
Vibration plus no movement in gear	Driveline or transmission issue	Stop and inspect, don’t keep testing	High

If you’re also dealing with movement problems after a trail, use our related guide on why a Jeep Grand Cherokee won’t move in gear before assuming the skid plate is the only issue.

Useful video for separating vibration from rattle

The video is not Jeep-skid specific, but it helps beginners separate a speed-related vibration from a loose-metal rattle. That distinction saves time because wheel, tire, and driveline vibration can echo through the skid system.

How do you fix a loose or contact-rubbing skid plate?

Fix a skid plate rattle by cleaning the mounting area, restoring clearance, replacing damaged hardware, and tightening bolts to the Jeep factory service specification.

Do not just over-tighten every bolt. Skid plate mounts can use nutserts, captured nuts, spacers, and crossmember fasteners that may strip or deform. If a bolt spins without tightening, stop and inspect the mounting point.

Practical repair sequence

1. Remove packed mud and stones: Pressure wash gently, then let the underbody dry before inspection.
2. Loosen the plate slightly: If the rattle started after installation or impact, loosen the mounting bolts enough to let the plate settle.
3. Center the plate: Check equal clearance around the exhaust, transfer case, fuel tank, and crossmember.
4. Replace suspect hardware: Use the correct grade, length, washers, and spacers for that skid system.
5. Retorque in stages: Follow the factory service manual or skid-plate manufacturer instructions.
6. Use isolation only where appropriate: Thin rubber washers can quiet a shield, but don’t use soft material where the plate must carry impact load.
7. Road test safely: Start at low speed, then test the rpm range where the noise happened.

“An ounce of prevention is worth a pound of cure.”, Benjamin Franklin, Founders Online

That quote fits Jeep maintenance well. A five-minute bolt check before the next trail can prevent a plate from dropping, bending into the exhaust, or damaging a nearby line.

If you’re adding armor for the first time, compare the tradeoffs in our 2026 guide to beginner-friendly Jeep off-road mods. Steel skids protect well but add weight and can transmit more noise. Aluminum and composite options can be quieter, but they need the right design for repeated rock contact.

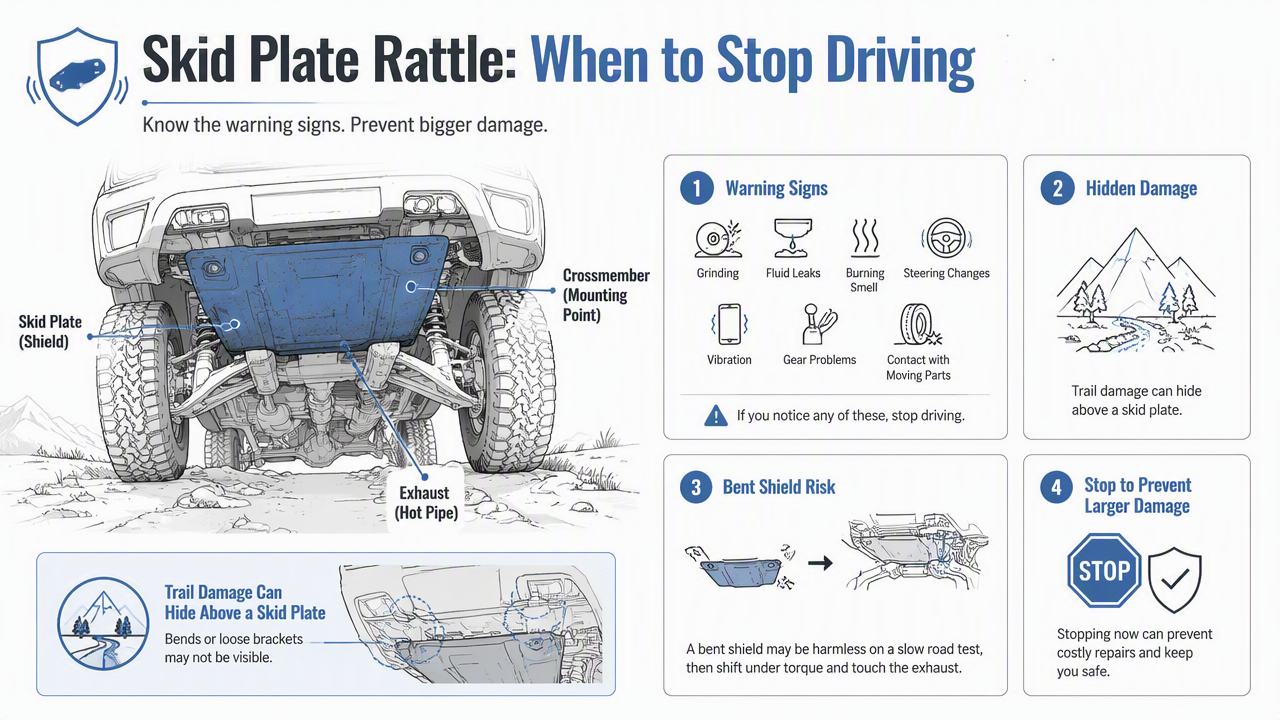

When should you stop driving and get help?

You should stop driving when the rattle is paired with grinding, fluid leaks, burning smell, steering changes, vibration, gear engagement problems, or visible contact with moving parts.

Trail damage can hide above a skid plate. A bent shield may be harmless on a slow road test, then shift under torque and touch the exhaust, driveshaft, transfer case, or wiring. Heat makes the exhaust expand, so a clearance that looks acceptable when cold can disappear after 15 minutes of driving.

Walk-away warning signs

• Fluid dripping near the plate: Could be transmission, transfer case, engine oil, coolant, or differential fluid.
• Burning smell: Exhaust contact with plastic, wiring, or mud-packed debris needs attention.
• Hard clunk when shifting into Drive or Reverse: Check mounts and driveline parts, not just armor.
• Plate touching a driveshaft or exhaust pipe: Do not keep driving until clearance is restored.
• New ABS, traction, or drivability lights: Underbody wiring and sensors may have been hit.

For electrical symptoms after trail use, our guide to Jeep Patriot ABS and traction control lights explains the kind of sensor logic that can also apply to trail-struck underbody wiring.

Good prevention starts before the trail. Suryashankar Dasgupta, founder of Off-Road Handbook, often frames vehicle prep around simple repeatable checks: tires, recovery gear, fluids, underbody clearance, and a plan for getting home. For a broader checklist, read how to prepare your Jeep for off-road trails in 2026.

Tire pressure also matters. Lower pressure can improve traction, but it can reduce belly clearance enough to make skid plates contact rocks more often. Our off-road tire pressure guide for different terrain covers safe PSI ranges by surface.

FAQs: Jeep skid plate rattle after a trail

A post-trail skid plate rattle is usually fixable, but the right answer depends on whether the noise is loose armor, exhaust contact, or hidden drivetrain damage.

Can I drive home if the skid plate is rattling?

You can usually drive slowly to a safe inspection spot if the rattle is light, there are no leaks, and the plate is not touching the driveshaft, exhaust, or tires. Stop immediately if you hear grinding, smell burning, feel vibration, or see loose hanging metal.

Why does the rattle happen only at certain rpm?

A narrow-rpm rattle often means resonance. The engine and exhaust vibrate at that frequency, then a loose shield, skid plate, spacer, or exhaust hanger starts buzzing. Check clearance while the Jeep is cold, then again after a short drive because exhaust heat changes spacing.

Should I add rubber washers to quiet the plate?

Rubber washers can help on light shields, but use caution on structural skid plates. Armor needs firm mounting to spread impact loads. If the manufacturer supplies isolators, use those. If not, fix the alignment, hardware, or bent metal before adding soft material.

Are aftermarket skid plates noisier than factory plates?

Some aftermarket plates can be noisier because thicker steel transfers vibration and may sit closer to the exhaust or crossmember. A good installation should not rattle, though. If noise starts after a trail, inspect for impact movement, missing spacers, and bolt tension.

What tools should I keep in the Jeep for this problem?

Carry a flashlight, gloves, basic metric sockets, a torque wrench if space allows, zip ties for temporary wire control, and a paint marker for bolt witness marks. A small rubber mallet helps locate loose panels without damaging the plate.

Conclusion

A jeep skid plate rattles after trail use for a reason, so don’t mask the sound until you’ve found the contact point. Start with cold visual checks, confirm the noise pattern, clean out debris, restore clearance, and retorque hardware to the proper specification.
