Jeep U Joint Noise After Off Road: Causes, Checks, and Safe Fixes

Quick Answer

If your Jeep starts squeaking, clunking, or popping after a trail ride, inspect the front axle U-joints, driveshaft U-joints, yokes, and nearby wheel bearings before driving at speed. Light squeaks may be early warning, but binding, vibration, or a fresh clunk under throttle means you should park it and inspect the driveline.

Jeep u joint noise after off road is usually caused by a dry, worn, cracked, or mud-contaminated U-joint in the front axle shafts or driveshaft. The most common clues are low-speed squeaks, clunks when shifting from drive to reverse, pops while turning, or vibration under load. Stop driving if the joint binds, throws rust dust, has play, or starts knocking, because a failed joint can damage the yoke, driveshaft, brake lines, or axle ears.

What does Jeep U-joint noise after off road usually sound like?

Jeep U-joint noise after off road usually sounds like a chirp, squeak, clunk, pop, knock, or vibration that changes with wheel speed, throttle, steering angle, or 4WD load.

The sound matters because front axle shaft U-joints, front driveshaft U-joints, rear driveshaft joints, wheel bearings, and brake hardware can mimic each other. I start by separating the noise into three buckets: turning noise, throttle-change noise, and speed-related vibration.

Noise pattern quick diagnosis table

Sound after the trail	Most likely area	Quick check	Drive or park?
Squeak at low speed	Dry U-joint caps	Look for rust dust near bearing caps	Inspect soon
Clunk shifting drive to reverse	Driveshaft U-joint or CV joint	Hold shaft and twist by hand	Avoid hard driving
Pop while turning	Front axle shaft U-joint	Watch joint while steering slowly	Park if binding
Vibration under throttle	Driveshaft angle, joint wear, dented shaft	Check missing weights and dents	Park if severe
Grinding or knocking	Failing joint, bearing, or yoke damage	Lift safely and check play	Do not trail it

Key insight: A squeak is often the early warning. A knock or bind is the “stop and inspect now” warning.

Where the noise often comes from on Jeeps

Wrangler TJ, JK, and JL owners often hear front axle U-joint noise after water, mud, or rock impacts. Gladiator owners can see similar symptoms because of trail load and driveshaft angle changes after lifts. Grand Cherokee models, including the WK2 generation produced from 2010 to 2022, may use different front driveline layouts, so don’t assume every Jeep has the same service points.

If the Jeep also has gear engagement trouble, compare your symptoms with this guide on why a Jeep Grand Cherokee won’t move in gear before blaming only the U-joints.

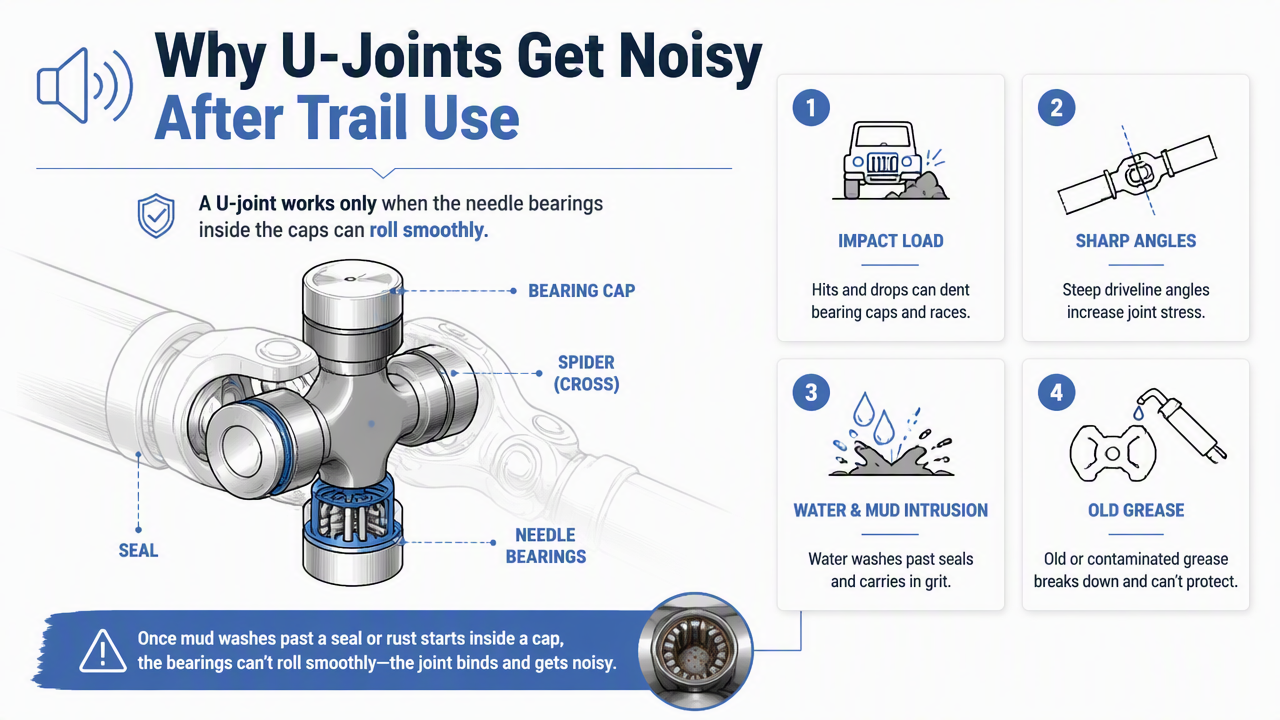

Why do U-joints get noisy after mud, rocks, or water?

U-joints get noisy after trail use because impact load, sharp driveline angles, water intrusion, mud grit, and old grease can damage the bearing caps or make the joint bind.

A universal joint works only when the needle bearings inside the caps can roll smoothly. Once mud washes past a seal or rust starts inside a cap, the joint may still look fine from the outside while squeaking under load.

Most common trail-related causes

• Water crossings: Water can enter worn seals and push grease away from the needle bearings.
• Mud packing: Thick mud dries around the joint, trapping grit and hiding cracked caps.
• Rock hits: A dented driveshaft or struck yoke can create vibration that feels like a bad joint.
• Lifted suspension: More operating angle can shorten joint life if pinion angle is not corrected.
• Locked 4WD on high-traction ground: Binding loads the front axle joints during turns.
• Old non-greasable joints: Sealed joints can last well, but once contaminated, they can’t be refreshed.

Trail prep reduces the odds. Before your next ride, use a simple checklist like how to prepare your Jeep for off-road trails and give the driveline the same attention you give tires and recovery gear.

Why tire pressure and terrain matter

Airing down helps traction and comfort, but it also changes how the Jeep loads the drivetrain. On rocks, a tire can grab suddenly and shock the axle joint. In mud, wheelspin followed by sudden traction can hammer the caps.

For beginner trail planning, pair driveline checks with the off-road tire pressure guide for different terrain. Correct pressure won’t save a worn U-joint, but it can reduce harsh impacts and wheel hop.

How do you inspect a noisy Jeep U-joint safely?

You inspect a noisy Jeep U-joint by cleaning the driveline, checking for rust dust, testing for play, rotating the shaft by hand, and watching for binding while the wheels turn slowly.

Do this on level ground with wheel chocks and proper jack stands. Never crawl under a Jeep supported only by a jack. If you’re not comfortable lifting it, ask a shop to perform a driveline inspection and request that they show you the loose joint.

Step-by-step driveway inspection

1. Wash the area first. Mud hides rust trails, cracked seals, and missing clips.
2. Look for orange rust dust. Powder around the bearing cap often means the cap ran dry.
3. Check retaining clips. A missing clip can let the cap walk out under load.
4. Twist the driveshaft by hand. Any click or lag between shaft and yoke is suspect.
5. Turn the steering slowly. Watch front axle U-joints for bind, snap, or uneven motion.
6. Inspect nearby parts. Brake shields, wheel bearings, and control-arm joints can copy the sound.
7. Road-test gently. Listen at low speed, then under light throttle, not highway speed first.

“Travel responsibly on land by staying on designated roads, trails and areas.”, Tread Lightly, Tread Lightly Tips

That advice also helps your Jeep. Staying on legal, sensible lines reduces deep-water plunges, belly hits, and driveline shock.

Helpful repair video

Use videos as visual support, not as a substitute for the factory service manual. Clips, cap seating, snap-ring grooves, and yoke condition matter. A poorly seated cap can fail fast even if the joint is new.

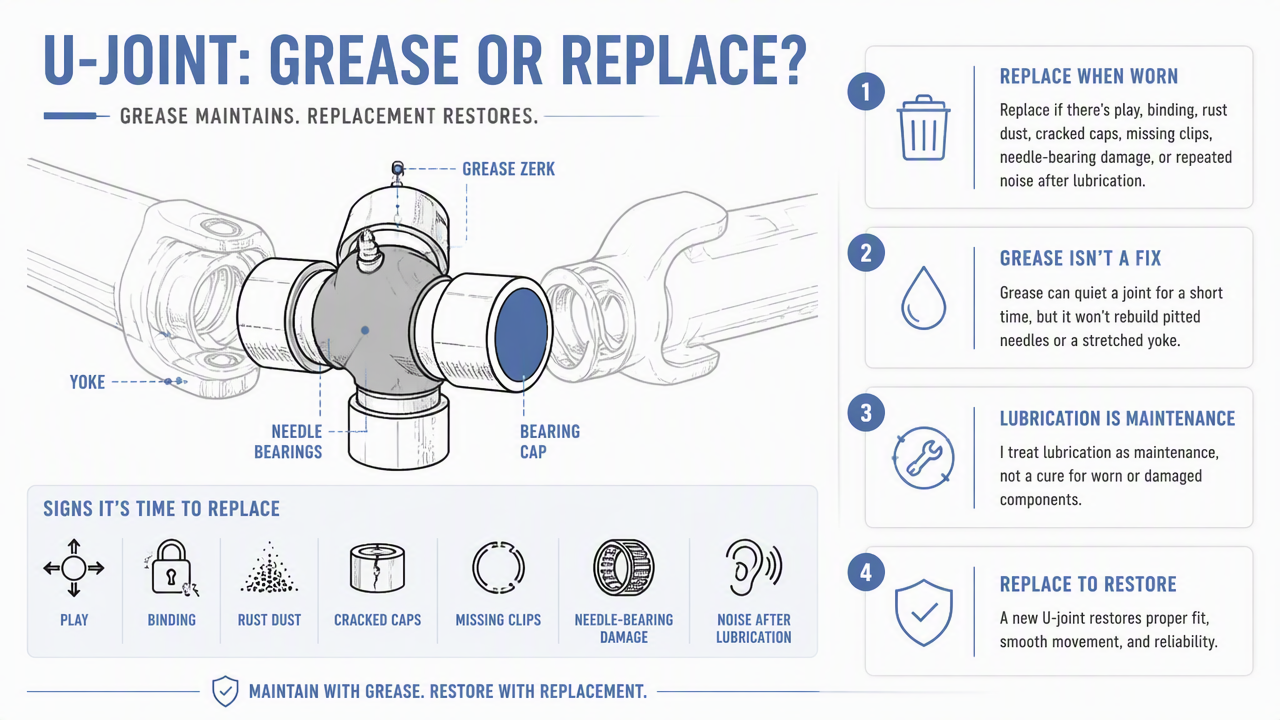

When should you replace the U-joint instead of greasing it?

You should replace the U-joint instead of greasing it when there is play, binding, rust dust, cracked caps, missing clips, needle-bearing damage, or repeated noise after lubrication.

Grease can quiet a joint for a short time, but it won’t rebuild pitted needles or a stretched yoke. I treat lubrication as maintenance, not a cure for a joint that already clicks or knocks.

Replace, grease, or diagnose something else

Finding	Best next move	Why it matters
Dry but tight greasable joint	Grease and monitor	Early maintenance may stop squeak
Rust dust at cap	Replace joint	Bearing surface is likely damaged
Play when twisting shaft	Replace joint now	Torque shock can break parts
Bind while steering	Replace front axle joint	Binding can damage axle ears
Vibration after lift	Check angles and balance	Joint may not be only cause
Noise with no U-joint play	Inspect bearing, brakes, CV, mounts	Misdiagnosis wastes parts

For a beginner build, stronger parts help only after the basics are right. I’d put recovery gear, tires, skid protection, and maintenance first, which matches the approach in best Jeep mods for beginners off-road.

Parts notes for 2026 Jeep owners

Spicer-style serviceable joints remain a common choice for Wrangler owners because they are widely available and proven. Sealed premium joints can also make sense for drivers who avoid deep mud and want less routine greasing. The right answer depends on axle model, driveshaft style, lift height, and trail use.

Ask the parts counter for the correct joint by VIN or axle identification, not only by model name. A Wrangler Sport, Rubicon, Gladiator, and Grand Cherokee can have different driveline hardware. If you use offroadhandbook.com for prep checklists, add your exact axle and tire size to your notes.

FAQs: Jeep U-joint noise after trail driving

Jeep U-joint noise after trail driving should be treated as a driveline warning until inspection proves otherwise.

These short answers cover the questions I see most from new trail drivers and used Jeep buyers.

Can I drive home with a squeaky U-joint?

You may be able to drive home slowly if the joint only squeaks and has no play, binding, vibration, or rust dust, but avoid highway speeds and hard throttle. If the sound changes to a clunk, pop, or knock, park it and arrange a tow or trail recovery. A failed joint can damage more expensive driveline parts.

Why does the noise happen only when turning?

Turning loads the front axle shaft U-joints at a sharper angle, especially in 4H or 4L. A dry or worn cap may bind only when the steering is near lock, so straight-line driving sounds normal. If it pops on turns after a trail, inspect the front axle joints before the next drive.

Is a bad U-joint the same as a bad wheel bearing?

No. A bad U-joint usually changes with torque load, steering angle, or driveshaft rotation, while a wheel bearing often growls with road speed and may change when weight shifts side to side. They can sound similar after off-road use, so check both before ordering parts.

What should I do before the next trail ride?

Clean the underside, inspect every U-joint, check for driveshaft dents, verify clips, grease serviceable joints, and road-test at low speed. Then build a simple pre-trip habit with Offroadhandbook resources and visit offroadhandbook.com when you want practical Jeep maintenance and trail-prep guidance in one place.

Conclusion

A Jeep u joint noise after off road is not a sound to ignore, especially if it appears after mud, rocks, water, or a hard 4WD turn. Start with the safest checks: clean the driveline, look for rust dust, test for play, watch for binding, and separate U-joint symptoms from wheel bearing or brake noise.
