Jeep Wheel Speed Sensor After Mud: ABS, Traction Control, and 4WD Fixes

Quick Answer

If your Jeep shows ABS, traction control, or Service 4WD warnings after mud, clean the wheel speed sensor area first, then scan for wheel-specific codes before replacing parts. Mud, grit, damaged wiring, and weak sensor signals are the usual suspects, but a light that clears once and returns deserves a proper inspection.

A Jeep wheel speed sensor after mud usually fails temporarily because packed mud, water, or grit interferes with wheel rotation readings. Main causes include dirty sensor tips, cracked wiring, damaged tone rings, or a sensor that was already weak before the trail ride. Clean first, scan second, and replace only after confirming the faulty wheel.

What warnings point to a muddy wheel speed sensor?

A muddy or failing wheel speed sensor usually shows up as ABS, traction control, stability control, hill-start assist, or Service 4WD warnings soon after a trail ride. Jeep Wrangler JK, JL, Grand Cherokee, Cherokee, Patriot, Compass, and Gladiator owners report similar warning patterns in forum threads, even though the exact module names vary by generation.

The ABS computer compares wheel speeds. If one corner reports an impossible speed, drops out, or disagrees with the other three wheels, the system may disable driver aids until it trusts the signal again. That’s why one muddy connector can light up several dashboard systems at once.

I treat this as a braking and stability issue, not just an annoying light. If the warning appears after deep mud, avoid fast pavement driving until you know whether ABS and traction control are active.

Symptom-to-cause guide for trail drivers

Symptom after mud	Likely cause	First check
ABS and traction lights together	Dirty or weak wheel speed signal	Rinse sensor area and scan codes
Service 4WD after mud	ABS data missing for drivetrain logic	Check all four wheel speed readings
Light clears after restart	Temporary mud or water interference	Inspect before the next trail
Light returns at low speed	Damaged tone ring, wire, or sensor	Watch live wheel-speed data
Grinding, bearing noise, warning lights	Wheel bearing or hub issue	Inspect hub play immediately

Owners often jump straight to replacement because parts-store scans say “wheel speed sensor.” I prefer cleaning and live-data testing first, especially after mud. If you also own a Jeep Patriot, our related guide on Jeep Patriot ABS and traction control lights gives model-specific context for similar warning behavior.

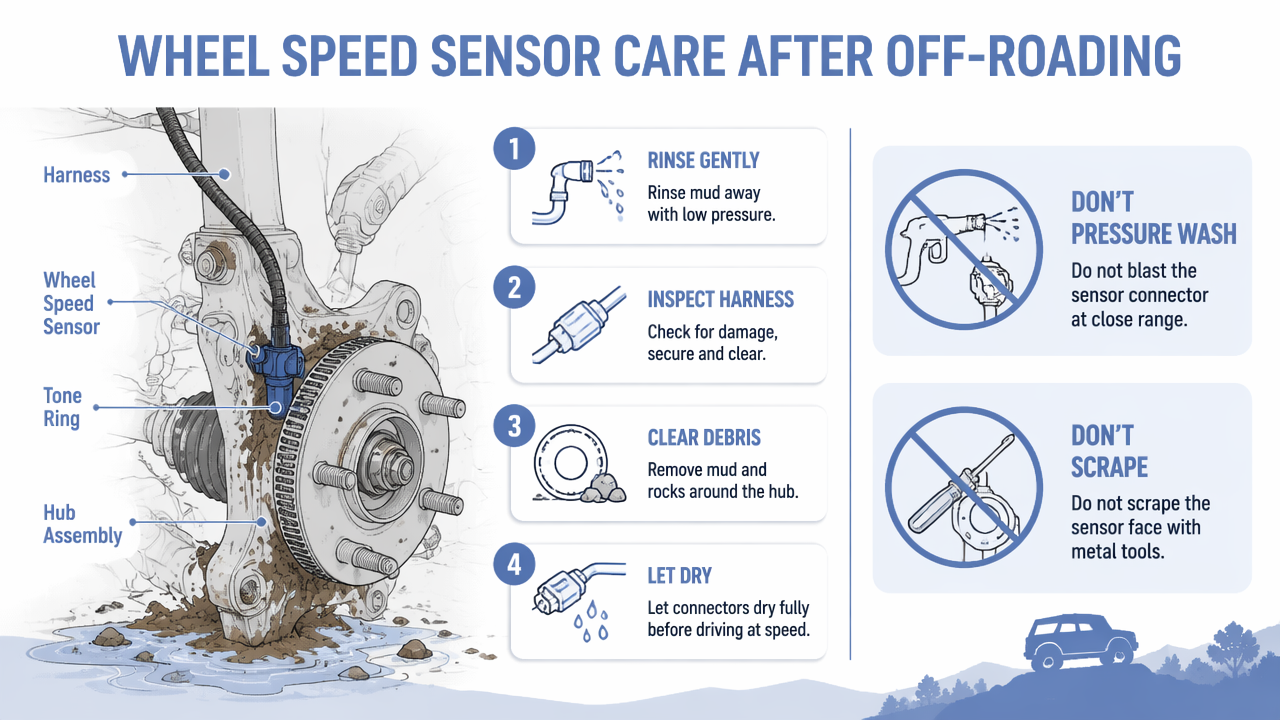

How should you clean a Jeep wheel speed sensor after mud?

Clean the wheel speed sensor area by rinsing mud away gently, inspecting the harness, clearing debris around the hub, and letting connectors dry before driving at speed. Do not blast the sensor connector with a pressure washer at close range, and do not scrape the sensor face with metal tools.

Use this order when the warning appears right after a muddy trail:

1. Park safely, set the brake, and let hot brakes cool.
2. Rinse the wheel wells, brake backing area, hub, and sensor wire route.
3. Look for packed mud behind the rotor, near the hub, and around the axle end.
4. Check that the sensor harness is clipped in place, not stretched or rubbing.
5. Unplug the connector only if you can keep dirt out, then inspect for water or bent pins.
6. Let the area dry, then restart and drive slowly in a safe area.
7. Scan for stored ABS codes even if the dash light clears.

Mud from clay trails can harden like packed cement. On beginner trail days, I’ve seen drivers clean the visible tire and fender but leave the hub area loaded. That’s the exact place the sensor signal matters.

Trail rule: If the dash warning clears after cleaning, don’t assume the problem is gone. A stored code can tell you which corner lost signal and whether the issue is likely to return.

Video: Jeep Wrangler JK front ABS sensor access

For a visual reference on sensor location and replacement access, watch this Jeep Wrangler JK example: Front Wheel ABS Speed Sensor on a Jeep Wrangler JK 3.6L

A video helps you identify the wire path and mounting point, but don’t copy torque specs or part choices blindly across Jeep generations. JK, JL, WK2, KL, and JT platforms can route sensors differently.

If you’re preparing for muddy terrain again, combine this repair check with smart trail setup. Our 2026 guide on how to prepare your Jeep for off-road trails covers the pre-ride checks that prevent small issues from becoming recovery-day problems.

When is the sensor actually bad?

A wheel speed sensor is likely bad when cleaning does not help, the ABS code returns for the same wheel, live data drops out, or the harness shows damage. Mud often exposes a weak sensor rather than causing the whole failure by itself.

A proper scan tool matters here. Generic OBD-II readers may miss ABS codes, while better tools can show individual wheel speed data. Roll slowly in a safe area and compare all four wheel speeds. One wheel reading zero, jumping, or lagging points to that circuit.

Look closely before ordering parts:

• Sensor tip: caked mud, metal debris, cracks, or swelling.
• Wiring: torn insulation, stretched harness, missing clips, tire rub.
• Connector: water intrusion, green corrosion, loose lock tab.
• Tone ring or hub: cracks, rust buildup, damaged teeth, bearing play.
• Recent work: lift kit install, brake job, tire shop visit, axle service.

The owner-reported pattern from Jeep forums is clear: many post-mud warning lights clear after cleaning, while repeat warnings usually trace back to the same sensor or wire. Forum pages also contain “top contributors,” “recommended communities,” and brand blocks, but the useful diagnostic thread is the same: identify the corner, inspect the harness, then decide.

Offroadhandbook’s approach is practical off-road maintenance logic, not parts cannon advice. Suryashankar Dasgupta founded the site around beginner-safe diagnosis because trail problems often look dramatic on the dash but start with simple dirt, wiring, or preparation issues.

Replace-or-clean decision table

Situation	Clean only	Scan and monitor	Replace sensor or repair wiring
Light appeared immediately after mud	Yes	Yes	Not first step
Light cleared and stayed off	Yes	Optional	No
Same wheel code returns	No	Yes	Likely
Harness is torn or unclipped	No	Yes	Yes
Wheel bearing has play or noise	No	Yes	Inspect hub first

Replacement is usually straightforward on many Jeeps, but seized bolts, rust, and fragile connectors can turn a quick job into a headache. If the sensor breaks during removal, stop and reassess rather than forcing it into the hub.

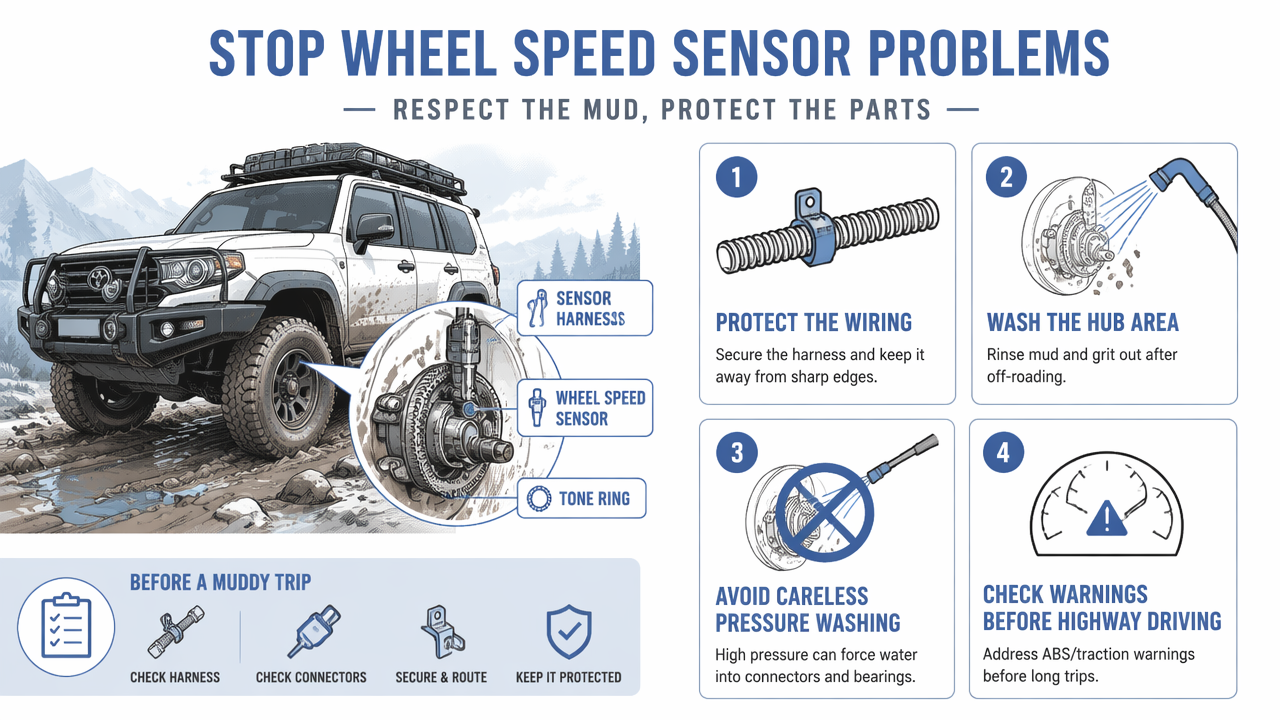

What should you do before the next mud trail?

Prevent repeat wheel speed sensor issues by protecting wiring, washing the hub area after mud, avoiding careless pressure washing, and checking warnings before highway driving. Mud is part of off-roading, but electrical connectors and moving hub parts still need respect.

Before a muddy trip, I’d check the sensor harness routing while airing down or inspecting tires. Loose wires can get tugged by sticks, packed mud, or oversized tires at full steering lock. After the ride, rinse the underbody and wheel wells before the mud dries hard.

Use this simple trail-to-driveway checklist:

• Check for ABS, traction, and 4WD warnings before leaving the trailhead.
• Listen for bearing noise after washing the wheels.
• Rinse from a reasonable distance, not directly into connectors.
• Recheck tire pressure before highway speed.
• Scan stored ABS codes if any light appeared, even briefly.
• Carry basic tools, zip ties, dielectric grease, and a code reader that supports ABS.

Tire pressure also affects how much mud and debris gets flung into wheel wells. Lower pressure can improve traction, but it should be terrain-specific and followed by safe reinflation. Use our off-road tire pressure guide for different terrain before your next mud run.

For broader beginner builds, start with recovery points, tires, skid protection, and air management before chasing cosmetic upgrades. The Offroadhandbook platform has more plain-English trail-prep guides, and you can visit offroadhandbook.com when you’re planning your next setup.

FAQs: Jeep wheel speed sensors after muddy trails

Mud-related ABS warnings are common enough that Jeep owners often ask the same few questions after every wet trail weekend. These answers focus on safe diagnosis before replacement.

Can I drive my Jeep with the ABS light on after mud?

You can usually drive slowly to a safe place, but you should avoid fast highway driving, steep descents, or slick roads until the issue is checked. ABS, traction control, and stability control may be reduced or disabled. Clean the wheel ends, scan the ABS module, and confirm normal braking before treating it as safe.

Will a bad wheel speed sensor affect 4WD?

Yes, it can. Modern Jeep 4WD and traction systems may use wheel speed data to manage stability, brake traction control, hill-start assist, and drivetrain warnings. A missing signal can trigger Service 4WD even when the transfer case is mechanically fine. That is why scanning ABS codes matters before assuming a transfer case fault.

Should I replace all four wheel speed sensors at once?

No, replacing all four is usually unnecessary unless multiple sensors test bad or the harnesses are damaged. Diagnose the specific wheel using ABS codes and live data. Replacing only the confirmed failed sensor saves money and avoids disturbing good connectors, especially on older Jeeps where plastic clips can be brittle.

Why did the light disappear after I restarted the Jeep?

A restart can clear a temporary warning if the ABS module sees a normal signal again, especially after mud falls away or water dries. Still, the stored code can remain in memory. If the same warning returns after the next mud hole or low-speed turn, inspect that wheel circuit before the sensor fails fully.

Conclusion

A jeep wheel speed sensor after mud problem should be handled in this order: clean the hub area, inspect the wiring, scan the ABS module, compare live wheel speeds, then replace only the confirmed bad part. That sequence keeps you from wasting money and, more important, keeps braking and stability systems trustworthy.

Before your next trail, add wheel-speed wiring to your normal walkaround along with tire pressure, recovery gear, and underbody checks.
