A jerky UTV takeoff after a belt change usually points to belt seating, break-in, clutch dirt, glazing, or alignment rather than a bad transmission. Inspect the install, clean the clutches, break in the belt gently, and stop riding if there is smoke, belt slap, a burning smell, or no movement.
A UTV jerks when taking off after belt change because the new CVT belt may be seated poorly, sized wrong, glazed, contaminated with old belt dust, or grabbing against dirty clutch sheaves. A short break-in can feel sharper, but harsh lurching, squealing, smoke, or burning smell means the belt cover should come off for inspection before another ride.
CVT belt: A continuously variable transmission belt transfers engine power between the primary and secondary clutches, and takeoff feel depends on belt grip, clutch face condition, alignment, and load.
Add us as a Google Preferred Source so our latest Jeep, ATV, UTV, trail, recovery, and off-road troubleshooting guides can appear more often in your Google Search experience.
Add Off-Road Handbook as a Preferred SourceWhat is normal after a new UTV belt?
A new UTV belt can feel slightly grabby during break-in, but it should not violently jerk, bang, smoke, or squeal during gentle takeoff. Normal break-in feel is mild and fades after heat cycles; abnormal chatter repeats every time the clutch engages.
Most owner complaints after belt replacement fall into two buckets: the belt has not bedded into the clutch faces yet, or the belt exposed a clutch problem that the worn belt had been masking. Bigger tires, towing, sand, mud, and low-speed crawling make the diagnosis harder because they raise belt temperature quickly.
Key insight: A belt change fixes a worn belt, not dirty sheaves, worn rollers, weak springs, or poor clutch alignment.
A safe first test is a flat-ground takeoff in low range with light throttle after the belt cover is secured. If the machine smooths out as speed rises, the issue is likely engagement-related. If it jerks under load, smells hot, or loses power, related checks from common Tracker 800 SX problems can help frame the broader drivetrain inspection.
Quick break-in checks before blaming the belt
Use this short sequence before buying another belt:
- Confirm the belt part number matches the exact model and year.
- Check belt direction if the belt has arrows or prior run marks.
- Run low range during slow starts, crawling, loading, and towing.
- Avoid hard throttle until the belt has completed gentle heat cycles.
- Reopen the cover if takeoff gets worse instead of better.

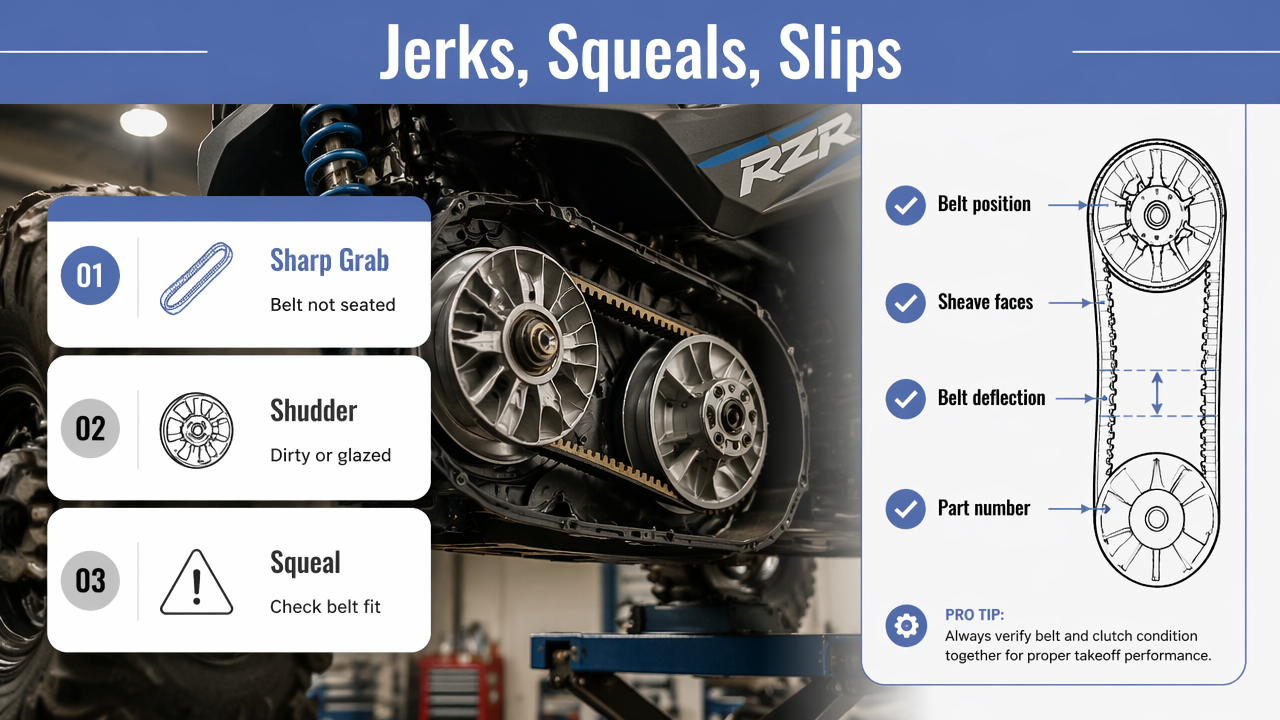

Symptom table for jerks, squeals, and slips
Different takeoff symptoms point to different failures, so the first job is naming the feel accurately. Jerking is not the same as slipping, squealing, or a drivetrain clunk.
Takeoff symptom diagnosis chart
| Symptom after belt change | Likely cause | First check | Urgency |
|---|---|---|---|
| Sharp grab, then smooth travel | Belt not seated, clutch chatter | Belt position and sheave cleanliness | Medium |
| Repeated shudder at walking speed | Glazed sheaves, dirty clutches, worn rollers | Primary and secondary clutch faces | High |
| Squeal at idle or takeoff | Belt too tight, wrong belt, misalignment | Belt deflection and part number | High |
| Burning smell after short ride | Belt slip, heat, mud, heavy load | Vents, belt surface, clutch dust | Stop and inspect |
| Loud clunk with no smooth engagement | Mount, driveline, transmission concern | Engine mounts, axles, gear selection | Stop and inspect |
| Jerks only with big tires or trailer | Load exceeds clutch calibration | Tire size, low range use, clutch kit | Medium |
A squeal usually means the belt is dragging, misaligned, too tight, or contaminated. A slip feels like rising RPM without matching movement. A jerk feels like the clutch grabs suddenly, releases, then grabs again.
Honda Talon and Pioneer owners should also compare model-specific patterns with common Honda Talon problems, especially when low-speed takeoff complaints overlap with heat, load, or shifting behavior.
Installation mistakes that cause harsh takeoff
Most post-belt-change jerking starts with a small installation issue: wrong belt, belt riding high or low, belt dust left inside the cover, or clutch faces touched with greasy hands. A CVT is sensitive because the belt is both the wear item and the friction surface.
The most common mistake is replacing the belt without cleaning the clutch system. Old belt debris can sit inside the cover, vents, and clutch faces. When the new belt heats up, that dust can polish the belt surface and create chatter.
Belt direction matters when the manufacturer marks it or when a used belt is reinstalled. Some new belts are non-directional, but once a belt has run one way, flipping it can change how the cords and sidewalls load.
“Simplify, then add lightness.”, Colin Chapman, Wikiquote
That old racing idea applies to side-by-sides in a practical way: heavy tires, mud-packed wheels, cargo, and trailers make the clutch work harder at the exact moment the belt is trying to bed in.
Post-install inspection list
- Correct OEM or high-quality aftermarket belt for the exact machine.
- Belt seated fully into the secondary before the cover goes on.
- No loose belt cover bolts or pinched gasket sections.
- Clutch faces clean, dry, and free of rubber streaks.
- Vents clear of mud, grass, sand, and belt fuzz.
- Engine braking behavior understood before calling it a belt fault.
A machine that still jerks after these checks needs clutch inspection, not another blind belt swap.

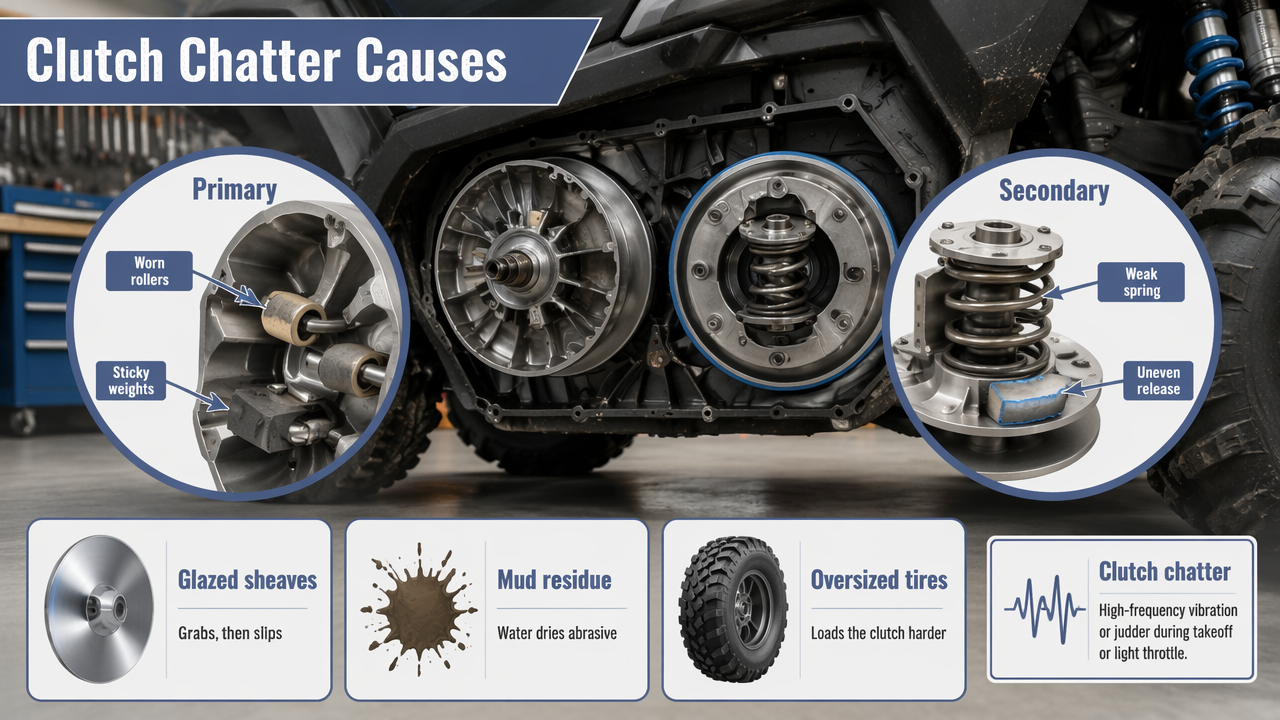

Clutch, load, and mud causes after the belt is ruled out
A UTV can keep jerking with a perfect new belt when the primary clutch sticks, the secondary reacts unevenly, or the clutch faces are glazed. Clutch chatter is the common thread in many owner-reported Polaris, Can-Am, Yamaha, Honda, Kawasaki, and CFMoto cases.
Worn rollers or weights can make the primary clutch close unevenly. Weak springs can change engagement RPM. Glazed sheaves can make the belt grab and release instead of feeding power smoothly. Mud riding adds another layer because water and grit can reach vents, then dry into abrasive residue.
Oversized tires create the same type of complaint without any broken part. A RZR XP 1000 on 32-inch tires, for example, asks more from the belt at low speed than the stock calibration expected. Low range, careful throttle, and clutch calibration matter more as tire diameter rises.
The same load logic applies to tire pressure and terrain choice. The off-road tire pressure guide for different terrain covers how sand, rocks, mud, and mixed trails change rolling resistance, which affects belt heat during slow starts.
Video: clutch kit context for heavier UTV setups
This video is useful for seeing why clutch calibration becomes more important when a UTV carries larger tires, added weight, or frequent low-speed trail load. It should not replace the service manual, but it shows the parts involved in engagement feel.
Unsafe warning signs that require stopping
- Smoke from the belt cover.
- Strong burnt-rubber smell after a short ride.
- Belt slap, knocking, or sudden no-move condition.
- Repeated overheating in low-speed use.
- Jerking that gets worse after cleaning and break-in.
A roadside belt change can get a machine back to camp, but repeated heat can damage the new belt quickly. Practical trail prep, including spares and recovery planning, is covered in how to prepare a Jeep for off-road trails, and the same safety-first thinking applies to UTV rides.
FAQs: UTV belt jerking after replacement
These short answers cover the questions that usually come up after the belt cover has already been removed once.
Can a new UTV belt cause jerking?
A new UTV belt can cause mild grabby takeoff if it is not seated, not broken in, or installed on dirty clutch faces. Severe jerking is usually not normal. The next inspection should focus on belt fit, clutch sheave condition, belt dust, deflection, and whether the machine is being started under heavy load.
How long should a UTV belt be broken in?
Most new UTV belts need a gentle break-in period with light throttle, low heat, and no hard launches. Exact procedures vary by manufacturer, so the service manual should control. A practical trail approach is to use easy starts, vary speed, avoid towing or deep mud, and let the belt cool between early heat cycles.
Why does a UTV belt squeal after replacement?
Belt squeal after replacement often points to the wrong belt, poor belt deflection, clutch misalignment, belt drag at idle, contamination, or clutch faces that were not cleaned. Squeal should be treated more seriously than a slightly firm break-in feel because it can create heat and glaze the belt quickly.
Can dirty clutches ruin a new belt?
Dirty clutches can ruin a new belt by embedding old rubber dust, grit, oil, or mud residue into the belt sides. That contamination changes friction and can create chatter, slip, heat, and glazing. Cleaning the primary and secondary sheaves is one of the highest-value steps after any belt failure.
Conclusion
The practical fix for a UTV jerks when taking off after belt change complaint is a clean, ordered inspection: confirm belt fit, seat the belt, clean the sheaves, clear the vents, break in the belt gently, then evaluate clutch wear and load. If smoke, burnt smell, no movement, or loud clunking appears, riding should stop until the cover and driveline are checked.
