UTV Overheats Only at Low Speed: Fan, Radiator, Coolant, or Load?

Quick Answer

A UTV that runs cool at 25-40 mph but gets hot while crawling usually has an airflow, fan, radiator, coolant, or load problem. Start with the fan cycle, radiator fins, coolant level, and recent mud riding before replacing expensive parts.

A UTV overheats only at low speed when the cooling system can no longer depend on natural airflow through the radiator. The usual causes are a fan that is not moving enough air, mud-packed radiator fins, low coolant, trapped air, a weak cap, thermostat trouble, water-pump wear, or heavy crawling load in low range. Stop riding if steam, boiling coolant, limp mode, or a repeated warning light appears.

Low-speed overheating: an engine-temperature rise that appears during crawling, idling, mud riding, towing, tight woods, or hill climbs, but improves when vehicle speed pushes air through the radiator.

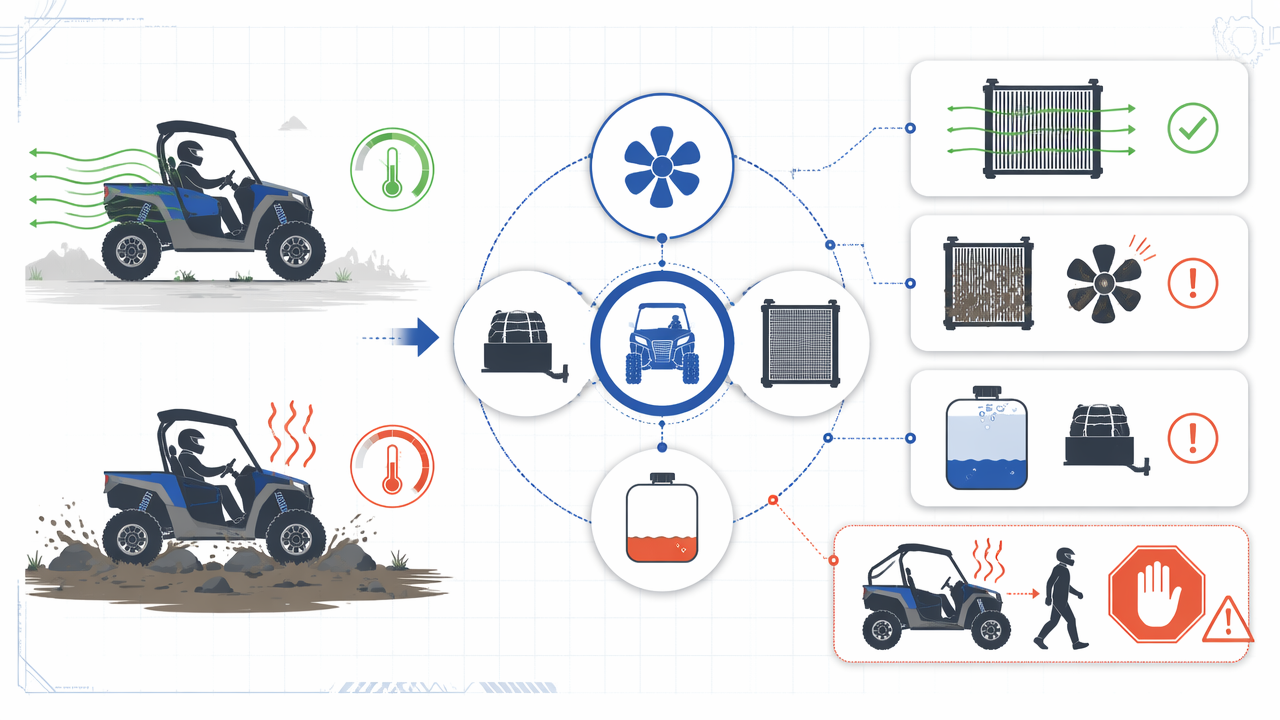

Why speed hides cooling problems

A UTV can run cool at trail speed because moving air replaces the radiator fan’s job.

At 25-40 mph, air is forced through the grille, radiator core, and side vents. At 2-8 mph, cooling depends on the electric fan, clean fins, correct coolant flow, and enough open space around the radiator. Wikipedia’s definition of aerodynamics centers on air moving around solid objects, and that principle matters on slow trails because a parked or crawling machine has almost no free airflow.

A machine that overheats only while crawling is giving a pattern clue. Constant overheating suggests a deeper coolant or engine issue. Low-speed-only overheating points first toward airflow, fan control, radiator blockage, or extra load from terrain and drivetrain drag.

Key insight: If temperature drops after the UTV reaches open trail speed, the radiator core can still reject heat when air reaches it. The fault is often air delivery, fan control, mud blockage, or low-speed load.

Low-speed heat builds faster than riders expect

Mud, tall grass, slow rock crawling, snow pushing, and farm towing all reduce airflow while increasing engine load. Low range helps the belt and clutch, but it does not remove heat. Heavy tires, roof racks, windshields, light bars, and winch bumpers can also change airflow around the front or rear-mounted radiator.

Related trail-prep thinking also applies to Jeeps. The same “check airflow, fluids, and load first” habit appears in Off-Road Handbook’s guide on how to prepare a Jeep for off-road trails in 2026.

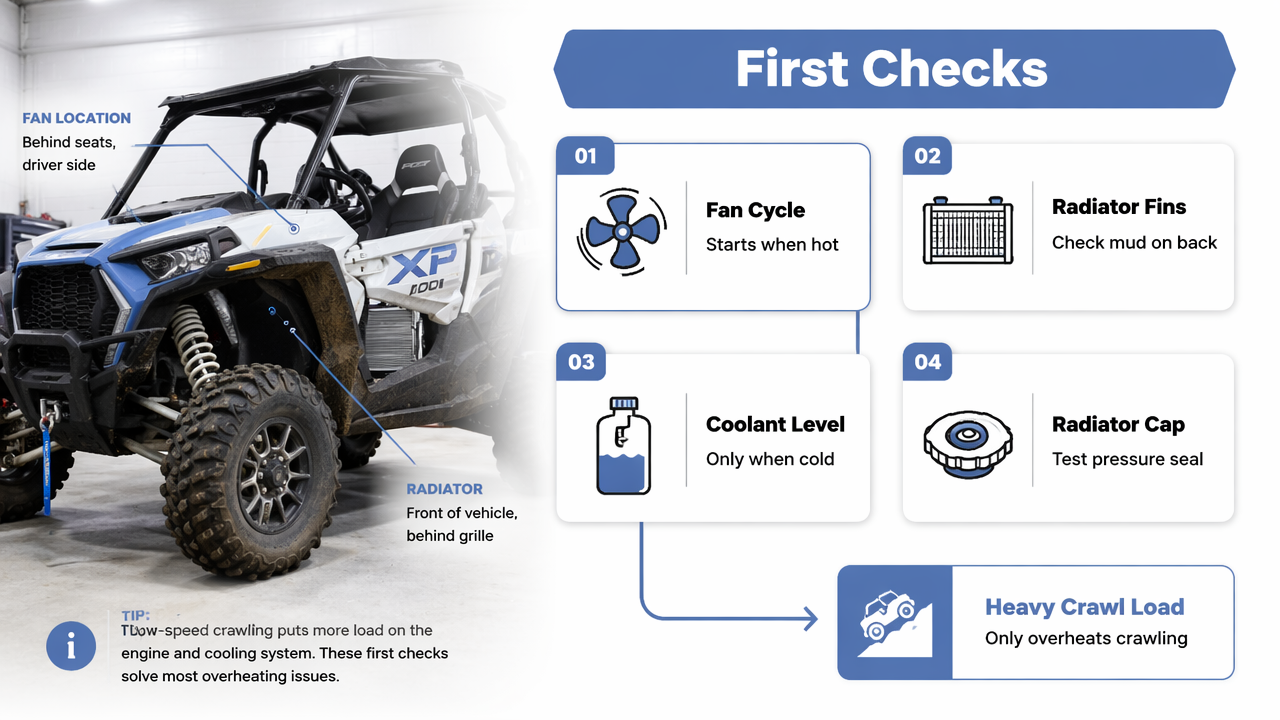

What should be checked first when a UTV overheats at low speed?

The first checks should be the fan cycle, radiator cleanliness, coolant level, coolant bleeding, radiator cap condition, and whether the overheating happens only under heavy crawling load.

A low-speed overheat diagnosis should move from simple external checks to internal cooling parts. Random parts replacement gets expensive fast, especially when the real fault is dried mud packed on the back side of the radiator or a fan relay that fails when hot.

Low-speed overheating diagnostic table

Symptom	Likely cause	First check	Urgency
Heats up while idling, cools when moving	Fan not starting, weak fan, relay, fuse, wiring, temp switch	Listen for fan, inspect fuse, test power at fan	High
Fan runs but temperature still climbs	Mud-packed radiator, bent fins, blocked grille	Wash radiator from engine side outward if accessible	High
Gets hot after coolant service	Air pocket, low coolant, wrong bleed procedure	Check radiator neck cold, reservoir level, bleed screw	High
Boils into overflow	Bad cap, overfilled system, combustion leak, severe heat	Inspect cap seal and overflow hose	Stop riding
Hot only in mud or grass	Packed fins, seed heads, debris behind radiator	Shine light through core	Medium-high
Hot while towing or climbing	Load heat, low-range crawl, belt/clutch drag	Reduce load, check belt smell and clutch heat	Medium
Random warning light, no boil-over	Sensor, wiring, gauge, fan switch	Compare with infrared thermometer	Medium

Fan and radiator faults are the common low-speed culprits

Fan and radiator problems are the most likely reasons a UTV gets hot during slow riding but cools down at speed.

The fan must pull air through the whole radiator core, not just spin. A fan can sound alive but still move weak air because of worn bearings, blade damage, poor voltage, loose connectors, or a failing relay. A fan that starts late can also let heat spike during slow technical sections.

Fan checks before replacing parts

1. Start with a cold engine and confirm coolant level before testing.
2. Warm the engine until the fan should cycle on.
3. Listen for fan speed, not just fan noise.
4. Check the fan fuse, relay, ground, and connector.
5. Test for battery voltage at the fan plug when commanded on.
6. Inspect the temperature sensor or fan switch if power never arrives.
7. Confirm the fan shroud is intact so air is pulled through the core.

A basic cooling-fan explainer can help owners understand the circuit before testing: 6 Reasons Your Cooling Fans Stopped Working

Radiator blockage often hides on the back side

Mud riding makes this problem worse because the visible front face may look clean while the rear side of the core is sealed with clay. Grass seed, cottonwood fluff, leaves, and bent fins create the same low-speed symptom. Air follows the easiest path, so small blocked areas can matter during fan-only cooling.

Avoid pressure-washer damage at close range. A garden hose, radiator-safe cleaner, soft brush, and patience are safer for thin fins. Shine a flashlight through the core after washing; light should pass evenly across most of the radiator.

The same inspection mindset applies when diagnosing model-specific UTV issues, including the common Tracker 800 SX problems and fixes.

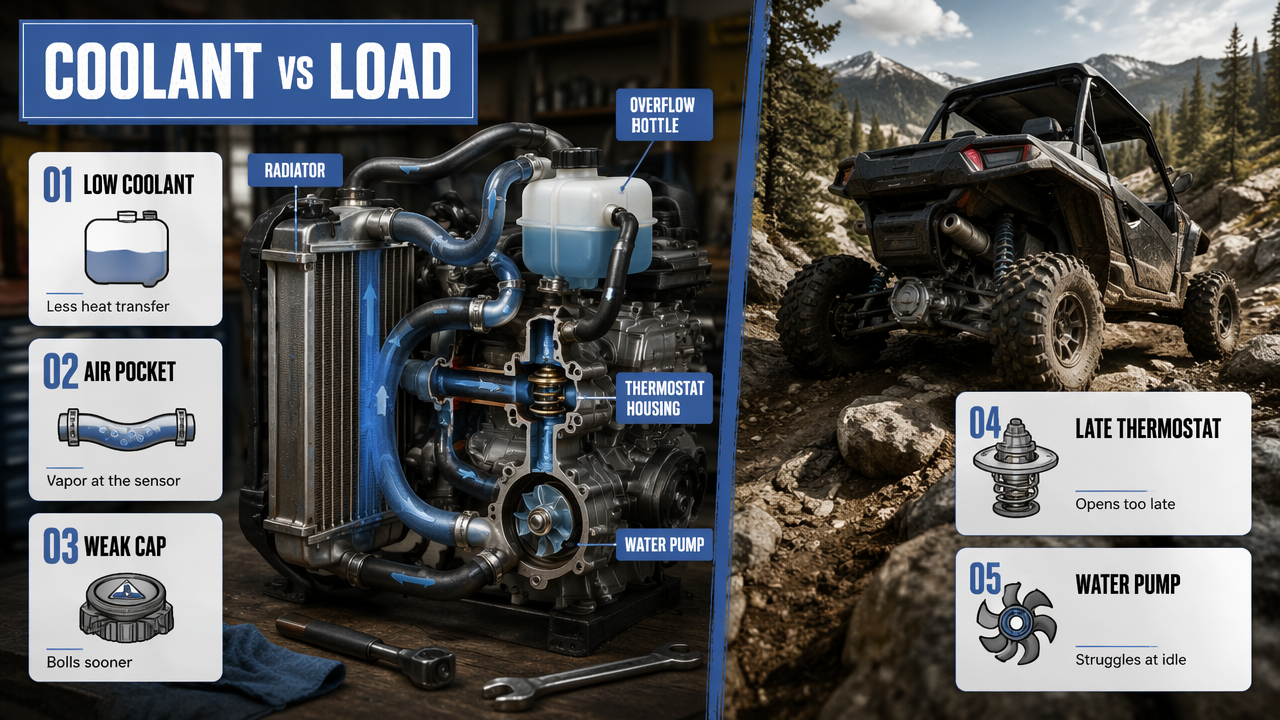

Coolant and load problems can mimic fan failure

Coolant-flow and drivetrain-load problems can create the same slow-speed temperature spike even when the fan works.

Low coolant reduces heat transfer. Trapped air after coolant service can leave the cylinder head or temperature sensor surrounded by vapor instead of liquid coolant. A weak radiator cap lowers system pressure, which can allow boil-over sooner. A sticking thermostat can open late, and a worn water pump may move enough coolant at higher rpm but struggle during long idle or crawl sessions.

Cooling-system checks that prevent false diagnosis

• Check radiator level only when the engine is fully cold.
• Confirm the overflow bottle is not empty, cracked, or overfilled.
• Inspect the cap seal and spring for damage or weak tension.
• Bleed air using the service-manual procedure after coolant work.
• Look for collapsed hoses, blocked overflow hoses, or coolant smell.
• Compare dash temperature with an infrared thermometer at the thermostat housing.
• Replace old coolant on the manufacturer’s interval rather than by color alone.

A UTV that smells hot, pushes coolant, and loses power should not be forced farther down the trail. Limp mode, steam, or repeated warning lights mean the ride should stop until the cause is found.

Low-range load adds heat beyond the cooling system

Slow climbs, deep mud, oversized tires, low tire pressure, and towing can load the belt, clutch, engine, and cooling system together. Belt slip can add heat even when the coolant system is healthy. A dragging brake or tight wheel bearing can also make the engine work harder than expected.

Tire pressure choices matter because very low PSI increases rolling resistance. For mixed trail planning, Off-Road Handbook’s off-road tire pressure guide for different terrain in 2026 gives terrain-based PSI context that pairs well with cooling checks.

When should a rider stop instead of troubleshooting trailside?

A UTV should be shut down immediately when coolant boils, steam appears, the warning returns after cooling, limp mode starts, or the engine smells hot and loses power.

Trailside checks are useful only when the machine is stable. A safe pause includes parking level, letting the engine cool, keeping hands away from the cap while hot, and checking for obvious debris or fan failure. Removing a hot radiator cap can release scalding coolant.

“An ounce of prevention is worth a pound of cure.”, Benjamin Franklin, National Archives

The quote fits cooling-system care because a dirty radiator discovered at home is a ten-minute wash. The same problem discovered on a steep trail can become a tow, a warped head, or a long walk out.

Safe trailside decision list

1. Shut down now: steam, boiling, coolant smell, flashing warning, limp mode, or knocking.
2. Cool and inspect: fan operation, radiator blockage, coolant bottle level, loose wiring, and belt smell.
3. Ride out gently only if stable: temperature falls, fan cycles normally, no coolant loss appears, and load can be reduced.
4. Do not keep testing: repeated warnings after cool-down suggest a real fault, not a one-time heat soak.

For broader off-road setup, beginner-friendly upgrades should prioritize reliability before appearance. The guide to best Jeep mods for beginners off-road in 2026 follows that same safety-first logic.

FAQs: low-speed UTV overheating

Low-speed overheating questions usually come down to whether the machine can be ridden, cleaned, or repaired before the next trail day.

Can riding continue if the fan works?

A working fan does not prove safe operation. If the fan runs but temperature climbs, air may not be passing through the radiator, coolant may be low, or engine load may be too high. Riding can continue only after the temperature drops and no coolant loss, steam, or warning repeat appears.

Why does the UTV cool down when speed increases?

Speed forces air through the radiator and can hide a weak fan, partial blockage, or low-speed coolant-flow issue. That pattern means the radiator can still shed heat when airflow is strong, so the first inspection should focus on fan output, shroud condition, grille blockage, and radiator fins.

Can mud in the radiator cause overheating only at low speed?

Mud can absolutely cause low-speed-only overheating. At speed, forced air may push through the remaining open fin area. During crawling, the fan cannot move enough air through packed clay, seed heads, or debris, especially when mud is trapped on the back side of the core.

Is a fan override switch worth installing?

A fan override can help in slow mud, rock crawling, and long idle sections, but it should not mask a clogged radiator or weak cooling system. The best setup is a clean radiator, healthy automatic fan circuit, accurate temperature gauge, and override switch as a backup.

What should be done before the next ride?

Before the next ride, the owner should clean the radiator from both sides, verify fan cycling, check coolant level cold, inspect the cap and hoses, and test the machine at idle until the fan cycles normally. For more practical off-road maintenance guides, visit offroadhandbook.com.

Conclusion

A UTV overheats only at low speed because slow riding removes natural airflow and exposes weak fan performance, radiator blockage, coolant faults, or excessive crawl load. The smartest next step is a staged diagnosis: confirm the fan, clean the radiator thoroughly, verify coolant and bleeding, then inspect cap, thermostat, water pump, belt load, and accessories that block airflow.
