Quick Fixes for Jeep Wrangler Underneath Water Leak Puzzles

A water leak underneath your Jeep Wrangler is not just an inconvenience; it’s a potential source of various problems, from electrical issues to interior damage.

The most common reasons why water leaks underneath the Jeep Wrangler include:

  • Presence of dilapidated seals
  • Issue of leakage in the heater core
  • Issue due to clogging
  • Faults in the washer system
  • Physical damage to the vehicle
  • Leakage in A/C system
  • Leakage in the coolant system

In this article, I’ll explore the causes behind these leaks and provide practical solutions to address them effectively.

Contents show

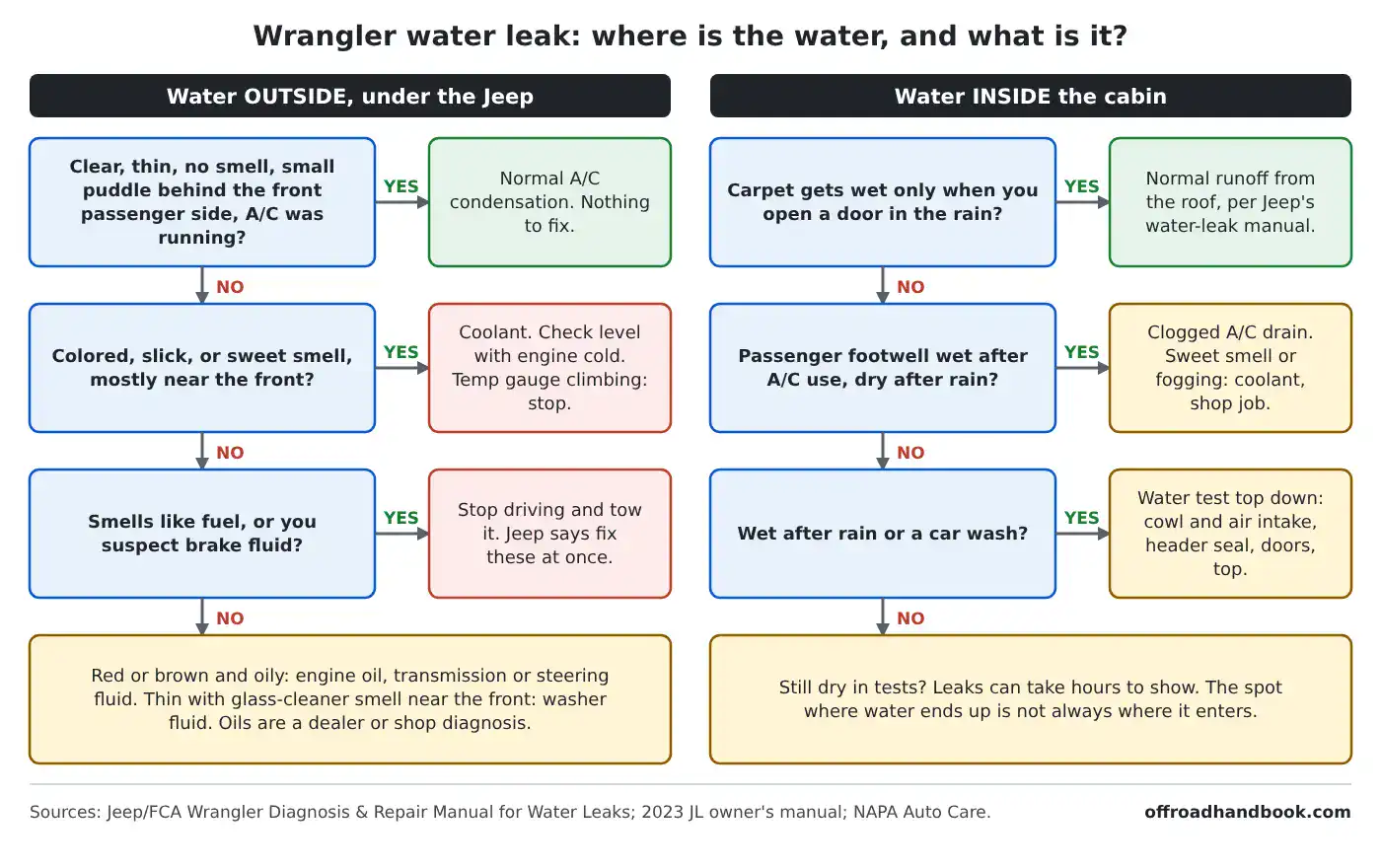

Why Does the Water Leakage Issue Occur Underneath in Jeep Wrangler?

The Jeep Wrangler is considered one of the best vehicles for off-roading. But still, owners have complained that it tends towards leakage due to the presence of removable tube doors. These removable tube doors allow water entry into the interior region of the vehicle during unfavorable weather conditions.

There are small hinges between the door through which water can seep in because the openings in Wrangler can retain moisture and are not waterproof.
  • The water leakage issue is common near the passenger side due to leakage of water from the A/C and the condensation process.
  • Often, people think that soft tops made up of Velcro or vinyl material in Jeeps are the reason behind the leakage issues, but the matter of top doesn’t matter behind the leakage issue.

The hard tops are considered convenient for preventing water from entering the vehicle. But still, there are some regions in this design, too, through which water can seep, creating wear and tear in vehicles. So, let’s discuss some major reasons why water seeps underneath the Jeep Wrangler:

Reasons for Leaking Water Underneath the Jeep Wrangler:

Jeep Wranglers, like other vehicles, can sometimes experience water leaks underneath the vehicle. This can be due to a variety of reasons and can occur in different areas of the vehicle.

Let me explain a few common reasons for water leakage underneath a Jeep Wrangler.

1. Issue Due to Clogging:

One of the most overlooked but crucial reasons for water accumulation underneath your Jeep Wrangler is clogging in various vehicle parts.

These clogs can occur in multiple areas, including drain tubes, AC condensation lines, and even the drainage pathways in the vehicle’s undercarriage.

Identifying and remedying clogs can’t be overstated, as they often act as the root cause of more serious complications such as rust, electrical issues, and mold.

1.1. Drain Tubes:

The Wrangler series comes equipped with drain tubes intended to direct water away from sensitive areas of your vehicle. These tubes can be found in areas like the sunroof, around doors, and the air conditioning system.

However, they can easily get clogged with debris, such as leaves, dirt, and even small twigs. This clog will lead to water being backed up, thus not allowing proper drainage. Over time, the water will find its way to the lowest point of resistance, leading to leaks under the Jeep.

To address this, you’ll need to inspect the tubes physically and, if necessary, use a long, flexible brush to clean out the obstructions. Running water through these tubes post-cleaning is also advisable to confirm they’re clear.

Jeep Wrangler Leaking Water underneath- Causes and Fix

1.2. AC Condensation Lines:

The air conditioning system in your Jeep Wrangler generates condensation, which usually exits the vehicle through a drain line.

When this line is clogged, water pools under your car, especially when the air conditioner is running. This is a simple issue to resolve.

Locate the condensation line—usually under the vehicle near the passenger side—and use compressed air to blow out clogs.

1.3. Undercarriage Drainage Pathways:

It may surprise you that your Jeep Wrangler’s undercarriage is designed with specific pathways to channel water away from the vehicle. Mud, dirt, and road debris can clog these pathways.

So, if you enjoy off-roading or have recently driven through muddy terrains, you should inspect these areas.

2. Presence of Dilapidated Seals:

Your Jeep Wrangler comes equipped with a series of seals that function as barriers to prevent water from entering or accumulating in unwanted areas.

These seals are designed to withstand extreme conditions; however, they can deteriorate over time due to age, wear and tear, and exposure to harsh elements.

Types of Seals:

2.1. Door Seals:

Door seals, often made of rubber, are installed around the perimeter of the doors and hardtop. These seals are designed to prevent water and wind from entering the cabin when the doors and windows are closed.

Over time, these seals can become compressed, brittle, or may even develop cracks, compromising their ability to keep water out.

Consequently, water may find its way into the cabin and eventually pool underneath the vehicle.

Jeep Wrangler Leaking Water underneath- Causes and Fix

2.2. Windshield Seals:

The windshield is secured to the frame of your Jeep using a rubber seal or adhesive. This seal ensures that water does not seep around the windshield’s edges.

However, with continuous exposure to the elements, this seal can degrade, allowing water to seep through and run down to the vehicle’s floor and onto the ground underneath.

2.3. Engine Compartment Seals:

Several seals within the engine compartment are designed to prevent water from entering and causing damage to critical components.

The degradation of any of these seals can lead to water seeping into the engine compartment and, subsequently, underneath the vehicle.

How to Inspect and Replace Dilapidated Seals:

Visual Inspection:

Regular visual inspections of the seals can help identify potential issues before they escalate.

Look for signs of wear, such as cracking, compression, or brittleness. Also, check if any sections of the seal are loose or missing.

Water Test:

Conducting a water test can also help identify leaky seals.

Spray water on the suspected areas with a hose, then check for any water seeping inside the vehicle.

It’s best to have someone inside the Jeep to observe while another person sprays water outside.

Replacement:

If you find that the seals are damaged, it is advisable to replace them as soon as possible to prevent further water damage.

Replacement seals can be purchased from authorized dealers or online retailers.

3. Issue of Leakage in Heater Core:

When the heater core develops a leak, the coolant tends to leak inside the cabin. You might think that this would cause pooling inside, not outside, your Jeep.

However, modern Wranglers are designed with drain tubes that redirect this liquid away from sensitive electronics, letting it exit beneath the vehicle.

Water can accumulate in the vehicle through the windshield, flare holes in the rear wheel, door-fittings, side and trim panels, A-pillars, hard top panels, the front region of carpets, and through the area under the vehicle seats.

Therefore, a heater core leak can be the culprit behind water—or coolant—collecting under your Jeep.

Symptoms of a Leaking Heater Core:

Fogged Windows:

If you notice persistent fogging inside your vehicle’s windows that won’t clear up, this could be a sign of a leaking heater core.

Wet Floor Mats:

Another telling sign is unusually wet floor mats or carpets on the passenger side, as the heater core is generally located behind the dashboard. This water could then seep out to the undercarriage of your Jeep.

Unusual Odor:

A sweet, syrup-like smell inside the cabin is another symptom. This is the smell of your vehicle’s coolant leaking from the heater core.

How to Fix:

Temporary Fixes:

While a stop-leak additive can provide a temporary respite, it is not a permanent solution. Use this only if you absolutely must continue to use the vehicle before proper repairs can be done.

Replacement:

The definitive solution to a leaking heater core is a replacement. Given the component's location—often behind the dashboard—the job can be labor-intensive and is best left to professionals.

Post-Repair Tests:

Once the heater core has been replaced, it’s crucial to carry out a pressure test and operational test to confirm that the issue has been resolved.

Preemptive Maintenance:

The best way to deal with heater core issues is to prevent them. Regular system flushes and using high-quality coolant can go a long way in extending the life of your heater core.

4. Faults in the Washer System:

There is a washer system in the Jeep Wrangler near the window sill. This system helps supply the water to the window pane. After activating this system, you can clean the window and its nearby region. A fault in any of these components can cause a leak.

Symptoms of a Faulty Washer System:

4.1. Ineffective Cleaning:

If you notice that the windshield washer fluid is not effectively cleaning the windshield or the fluid is not spraying out as forcefully as it should, there might be a leak in the system.

4.2. Visible Leakage:

You may notice a pool of washer fluid underneath your vehicle after using the windshield washer. This is a clear indication of a leak in the system.

Adding a tracer dye to the washer fluid can help identify the source of the leak. Once the dye is added, operate the washer system and then use a UV light to trace the path of the fluid and identify the leak point.

How to Fix:

Tightening Connections:

Loose connections can lead to leaks. Ensure all hoses are securely connected to the pump, reservoir, and nozzles.

Replacing Damaged Components:

Cracked or damaged hoses, reservoirs, or pumps must be replaced. It is not advisable to repair these components as they are relatively inexpensive to return, and a repair may not provide a long-term solution.

Cleaning Clogged Nozzles:

Clogged nozzles can increase the pressure in the system and cause a leak. Use a pin or a thin wire to clean the nozzles and remove debris.

5. Physical Damage to Vehicle:

When it comes to Jeep Wranglers, these rugged vehicles are designed to handle the most challenging terrains and most demanding conditions.

But even these automotive titans are not immune to the consequences of physical damage, which can result in water leaks underneath the vehicle.

Physical damage can encompass a range of issues, from minor dents and cracks to more significant structural deformities. Regardless of the severity, any physical damage can compromise the vehicle's integrity and become a potential source of water ingress.

Recognizing Signs of Physical Damage:

Undercarriage Inspections:

After any off-roading adventure or impact with obstacles such as rocks or debris, inspecting your vehicle’s undercarriage thoroughly is wise.

Check for any visible cracks, dents, or other signs of damage that could have punctured or compromised any part of your vehicle’s water containment or drainage systems.

Muffler and Exhaust System:

One commonly overlooked area where physical damage can cause leaks is your vehicle’s muffler and exhaust system.

These systems are especially vulnerable to corrosion and physical harm because of their location on the vehicle’s underside.

Diagnostic Techniques for Physical Damage:

Comprehensive Visual Inspection

  • The first step is always a detailed visual inspection.
  • Employ a flashlight and possibly a mirror to look into areas of the undercarriage that are not easily visible.
  • Further investigation is warranted if you see any signs of damage or hear water sloshing.

Leak Testing:

Conduct a leak test by pouring water over suspected areas and observing where it exits.

This may reveal hidden fractures or fissures that are difficult to see but can be significant sources of leaks.

Professional Assessment:

For those not comfortable assessing their vehicle independently, a trip to a qualified mechanic specialized in off-road or Jeep-specific issues can provide a detailed diagnostic.

How to Fix:

Immediate Patchwork:

For minor cracks or openings, temporary patching may work as a quick fix. Sealants are designed to temporarily close up minor damage points until you can get a more permanent repair.

Component Replacement:

In the case of significant structural damage, the affected components may need to be replaced entirely to ensure no future leaks occur.

Protective Gear:

For those who frequently go off-road, consider installing skid plates or similar protective gear to safeguard the underbelly of your Jeep Wrangler.

Routine Check-ups:

Frequent inspections and timely repairs are crucial for minimizing the risk of leaks due to physical damage. Even a minor issue can escalate into a significant problem if not promptly addressed.

6. Leakage in A/C System:

Leakage from the AC system in Wrangler is a common problem as per reported issues. It is seen that the AC system in the vehicle works at full pace when the outer environment is hot, which places an extra load on this system to work efficiently.

In such a scenario, the condenser starts leaking, and the water drops inside the vehicle and near the engine bay. However, the severity of this leakage problem can create puddles beneath the vehicle, causing the leakage issue, and it intensifies if the engine is left idle.

So, it is better never to leave your engine idle or your AC running when you are not using the vehicle.

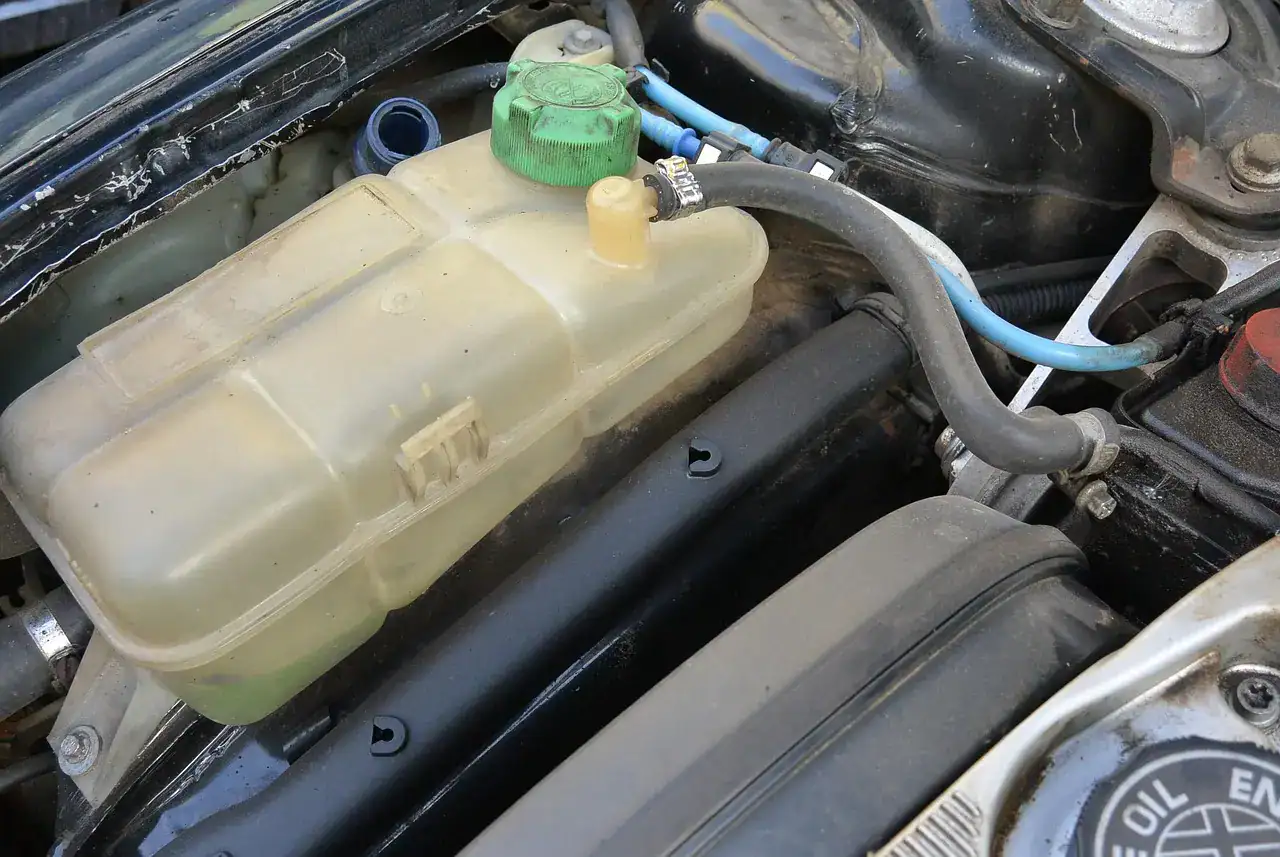

7. Leakage in Coolant System:

Leakage in the coolant system can also cause the water leakage issue in Wrangler as the coolant holds a mixture of water, which can seep inside the vehicle.

The coolant has a mixture of anti-freezing agents and water, which can leave a puddle underneath the Wrangler and cause leakage issues.

There are different sources through which this coolant can leak in the vehicle, including:

Reason for Coolant Leak

Description

Damaged head gasket

A damaged head gasket can cause the coolant to leak away from the engine underneath the Wrangler. If you observe such an issue, you can get the head gasket replaced or repaired, costing around $1500.

Issue with the radiator

The issue in the functioning of the radiator can cause coolant leakage problems in the radiator, due to which water can seep underneath, creating a water leakage issue. It costs around $900-$1000 to fix the issue with the radiator or replace it.

Issue with the radiator hose

There is a radiator hose in the Jeep, which manages the coolant flow inside the radiator. The physical damage to a vehicle can break the seal of this hose, and cracks can create water and coolant leakage issues through this hose. It requires around $300-400 to replace the cracked radiator hose in Wrangler.

Presence of a malfunctioned water pump

The presence of a malfunctioning water pump in the Wrangler can also cause leakage and coolant issues, which can be replaced with a new one within $600.

Identifying Areas for Water Leaks:

Water leaks in vehicles like Jeep Wrangler can be incredibly frustrating and potentially damaging. Identifying and addressing these leaks promptly is essential to avoid further damage to your vehicle’s interior or electrical systems.

Below, I will discuss some common areas where water leaks may occur and how to identify them.

1. Instrument Panel / Shifter:

The instrument panel, which includes the dashboard and the area around the shifter, is a common area for water leaks. These leaks often originate from the windshield, its seal, or the firewall, which separates the engine compartment from the cabin.

  • Signs of a Leak: If you notice water dripping from the dashboard or pooling around the shifter or on the front carpet, it strongly indicates a leak in this area.

2. Door Trim Panel or A-pillar:

The door trim panels, and the A-pillars (the vertical supports on either side of the windshield) are common areas for water leaks.

  • Signs of a Leak: Water accumulating on the door sills, wetness on the dashboard, or water dripping from the A-pillar are signs of a leak in this area.

3. Rear Hard Top Panel / B-pillar:

The rear hard top panel and the B-pillars (the vertical supports behind the front doors) are other areas where water leaks may occur.

  • Signs of a Leak: Water accumulating in the rear footwells or water dripping from the B-pillar or the rear hard top panel are indications of a leak in this area.

4. Front Carpet:

The front carpet area is often affected by water leaks from other regions. However, it can also indicate a leak from the heater core or the A/C system.

  • Signs of a Leak: Wetness or water pooling on the front carpet.

Reasons for Intermittent Leaks- The Role of Time and Pressure:

When diagnosing water leaks in your Jeep Wrangler, you may encounter a particularly perplexing phenomenon: Unlike consistent leaks, these are sporadic and appear to come and go, making them particularly challenging to identify and rectify.

To understand intermittent leaks, it’s crucial to delve into the 2 principal factors that influence them: time and pressure.

Factor 1- The Impact of Time:

When we speak about the role of time in intermittent leaks, we are primarily referring to the age of the vehicle and its components, as well as the timing of external factors like weather conditions.

  • Age of Components:

As a vehicle ages, so do its seals, hoses, and other components that act as barriers to water intrusion.

Over time, these materials may dry out, become brittle, or lose their elasticity, leading to intermittent leaks that may only become apparent under certain conditions, such as temperature fluctuations or heavy rain.
  • Weather Conditions:

Intermittent leaks often occur during specific weather conditions, such as heavy rains or drastic temperature changes.

A seal that holds up fine under mild conditions may start to fail when subjected to torrential downpours or freezing temperatures, only to return to its normal function when conditions improve.

Factor 2- The Influence of Pressure:

Pressure plays an equally important role in intermittent leaks. Here, pressure refers to both the physical pressure exerted on the seals and components and the pressure in systems like the cooling system, A/C, or washer system.

  • Physical Pressure:

Driving conditions can significantly impact the physical pressure on your vehicle’s seals.

For instance, off-roading or driving on bumpy roads can put additional strain on the seals, leading to intermittent leaks that may not be noticeable during smooth city driving.

  • System Pressure:

The pressure within the vehicle’s various fluid systems can fluctuate due to numerous factors, including temperature, system load, and even the speed you drive.

For example, your cooling system operates under high pressure when the vehicle is running but is under far less pressure when the vehicle is off.

A weak point in the system may hold up under low pressure but fail under high pressure, leading to an intermittent leak.

What to Do About Intermittent Leaks:

  • Comprehensive Inspection:

Given the complexity of intermittent leaks, a thorough inspection is critical. This means checking the vehicle both when it’s been sitting idle and when it’s been running under various conditions.

  • Professional Diagnosis:

Intermittent leaks can be elusive, and you might need to enlist the help of professionals who can conduct pressure tests and use specialized diagnostic equipment.

  • Timely Replacement:

As a preventive measure, consider timely replacement of any components showing signs of wear, especially if your Jeep Wrangler has racked up many miles or years of service.

How to Fix the Water Leakage Issue in Jeep Wrangler:

Here, I will discuss the top 10 methods for fixing the water leakage problem in the Jeep Wrangler:

1. Method for Wiping the Vehicle:

It is recommended to wipe the upper surfaces and secure the Wrangler with a soft towel or a rag, which is moisture-absorbent.

It is better to detect the leaks near the vehicle's dashboard, upper regions, windshields, and vehicle floor and get them fixed to avoid water leakage.

2 Cleaning the Region of Seals:

Cleaning the area near the rubber seals using moisture absorbents or rags to remove the accumulated debris from these regions is recommended.

You can also use cotton buds to clean the dust from the rubber seals as they are helpful in cleaning the accumulated filth seen in the crease region of rubber seals.

3. Using the Vacuum:

You can use a vacuum to clean and dry the carpets of your Jeep’s floor region. It is better to vacuum these carpets before placing them back inside the vehicle to lock all the moisture away.

It is a common issue in snow regions that water and ice droplets can accumulate on the carpet floor, making it wet often. You can use a bed liner and vacuum to dry them out.

4. Cleaning the Cowl and Drain Plugs:

Cowl and drain plugs can get clogged due to gunk, debris, and filth accumulation. You can clear away all this debris by unscrewing their top covers.

Flush away the clogged drainage using a pressure hose, or remove the region to eliminate the gunk.

5. Using the Glue for Sealing:

You can use the specified glue for sealing the doors and windows to avoid the seeping of water inside the Jeep. You can also clean the door of the vehicle using a silicon lube.

Check the doors and window panes thoroughly, and if you see any visible cracks in them, get them repaired to avoid water leakage issues.

6. Sealing the Top Region of Jeep:

Check the upper region of the Jeep and seal the top and side panels near the passenger side properly.

If you observe any disengagement in the latches, it is better to deal with this issue and tighten the locks in the metal latches.

You can screw them tightly using the screw bolts to compress their seals so that water cannot accumulate here.

7. Using Stripping:

You can add the stripping available for weather like extreme rain and snowfall. It can act as a liner and provides extra seals on the roof and window panes of the vehicle.

It is recommended not to use extra foaming sheets as it makes the pane and roofing thick, which can wind up the gap.

8. Injecting Fillers in Gaskets:

You can inject the fillers in head gaskets, which are seen near the front edge of doors and tail-gates in the vehicle.

These filers can improve the contact point, resolve the problems of damaged top seals, and displace the rubber gaskets.

9. Inspecting the Exhaust System:

You can check the exhaust system and its associated components like coolant level and AC system. If you observe white smoke from the exhaust pipe and leakage of excess water from it, you can seek help from a mechanic to repair the leakage issue in the exhaust.

Lower levels of coolant can also create issues. It is recommended to use an anti-freezing coolant for filling the coolant levels instead of water. It is a common issue that moisture and water seep underneath the vehicle and create puddles when the vehicle's cooling system is activated.

10. Tightening the Bolts on Hardtops:

The hardtops on Jeeps can become loose over time. This can create easiness for water to enter through these loose points and cause the water to seep inside the vehicle.

You can use a wrench to tighten these nuts and bolts on the hardtop of the vehicle, which can prevent the water leakage issue.

Average Cost for Fixing the Leaking Water Issue in Jeep Wrangler:

It is easy to fix the leakage issue in the Jeep Wrangler as it does not cost an extra amount. If there is a minor issue in which no components need to be replaced, then money is not a big deal for the owners of Jeep.

You can get the basic leakage issue fixed in the Wrangler within the $20-$90 range. If you need to repair some associated components along with leakage issues, then additional costs for labor can exceed the amount of up to $80-$400.

You can seek help from a professional or a mechanic to repair the damaged component causing leakage issues in the vehicle. The abovementioned cost can exceed or decrease and depends on factors like the mechanic’s expertise.

Issue

Average Cost (USD)

Notes

Clogging Issues

$50 - $150

Cost can vary based on the location and severity of the clog.

Dilapidated Seals

$100 - $400

Cost includes parts and labor for replacing seals.

Heater Core Leakage

$500 - $1000

Cost includes parts and labor. This is a labor-intensive task as it often requires dismantling the dashboard.

Washer System Faults

$50 - $200

Cost can vary based on the part of the washer system that needs to be repaired or replaced.

Physical Damage to Vehicle

$100 - $800

Cost can vary significantly based on the extent of the damage and the parts that need to be repaired or replaced.

Final Thought:

Water leaking underneath your Jeep Wrangler is a common issue that can arise from multiple causes, including clogging, dilapidated seals, and system leakages. It’s imperative to diagnose the root cause accurately and address it as soon as possible to prevent further damage and complications.

Also Read:

7 Reasons Jeep Wrangler Cruise Control Stops Working (Fixed)
Are Jeep Wranglers Good in Winter/Snow? (Detailed Analysis)
Jeep Wrangler Automatic Transmission Shifting Problems (Fix)
Top 8 Lift Kits for Jeep Wrangler- Detailed Analysis
What Causes a Jeep to Stall While Driving- Detailed Analysis

Frequently Asked Questions (FAQs):

How can a person avoid the leakage issue in their Jeep?

You can follow these tips to avoid the leakage issue in the vehicle including:

  • Installing the rubber seals around the window and roof pane is better.
  • It is better to tighten the bolts and screws of the hard tops to avoid allow of water.
  • Adjust the doors and window seals and tighten their screws as well.
  • Install the weather strips in the vehicle, which can hold the moisture.

What are the causes behind the leakage of water underneath the Wrangler?

There are different reasons why water can leak underneath the Wrangler, including poor coolant or excess coolant levels in the vehicle. Other than this, the other reason can be the presence of a damaged head gasket in the vehicle.

What is the reason why water droplets seep inside the vehicle?

Water droplets can seep inside the Wrangler due to the excess functioning of the AC in the vehicle. The AC system in the Wrangler can lead to a condensation process, which allows the entry of water inside the vehicle, causing water leakage issues.
