Ford Edge Off-Road Capability: What It Can and Can't Handle
Last updated on October 26th, 2026 at 08:03 pm
This post contains Amazon affiliate links. As an Amazon Associate I earn from qualifying purchases, at no extra cost to you.
The Ford Edge handles graded gravel, dirt roads, packed snow and shallow standing water, and that is where Ford's own manual draws the line. Its all-wheel drive works automatically and, in Ford's words, gives the Edge “some limited off-road capabilities” on surfaces that are “relatively level, obstruction-free and otherwise similar to normal on-road driving.”
Rock steps, deep ruts, deep sand and deep water fall outside that line, and the manual warns that damage from them may not be covered under warranty. Ford ended Edge production with the 2024 model year, so every Edge you can buy now is used.
What Ford says the Edge's AWD is for
The 2019 Ford Edge Owner's Manual describes AWD that “turns on when needed and does not require input from you.” It lists no low-range gear, no locking differential and no selectable off-road mode for the Edge, which is why rocks, steep climbs and slow crawling are not what it was built for.
Two other limits matter on a trail. Major differences in tire size between the front and rear axles “could cause the AWD system to stop functioning and default to front-wheel drive,” and a mini-spare can switch the AWD off too.
Ford Edge off-road numbers and where each one comes from
Ford's manual does not publish ground clearance or approach angles for the Edge, so those come from spec sites. The rest below is read straight from the manual.
| Item | Figure | Source |
|---|---|---|
| AWD behavior | Automatic, no driver input; “limited” off-road ability on level, obstruction-free surfaces | 2019 Ford Edge Owner's Manual, All-Wheel Drive |
| AWD availability | Listed “if equipped” in 2019; standard on every 2022 trim | 2019 Ford Edge Owner's Manual; KBB 2022 Edge |
| Minimum ground clearance | 8.0 in listed for the 2022 Edge and for 2024 ST-Line and Titanium; confirm for your wheel package | KBB, Cars.com 2024 Titanium |
| Approach and departure angles | Not published by Ford for the Edge | Not in the owner's manual |
| Towing | 3,500 lb with trailer tow package (2.0L and 2.7L); 1,500 lb without it (2.0L only) | 2019 Ford Edge Owner's Manual, Towing |
| Flat towing behind an RV | Not allowed; use a car hauler or trailer with all four wheels off the ground | 2019 Ford Edge Owner's Manual, Towing |
| Wheel spin limit when stuck | Never above 34 mph (55 km/h); tires can fail | 2019 Ford Edge Owner's Manual, All-Wheel Drive |
| Water depth | Never deeper than the bottom of the front rocker area; never flowing or deep water | 2019 Ford Edge Owner's Manual, Driving Through Water |
| Production | Ended with the 2024 model year | Ford Edge page |
One number trips people up: some sites list Edge towing as 1,500 lb and others as 3,500 lb. The manual explains it. A 2.0L Edge without the factory trailer tow package is rated 1,500 lb, and the package raises it to 3,500 lb.
Where the Edge works and where it stops
Match the surface to the row below. The verdicts follow the owner's manual wording and the listed 8.0 in of clearance.
| Terrain | Verdict | What the manual says |
|---|---|---|
| Graded gravel and dirt roads | Fine | This is the “relatively level, obstruction-free” use Ford describes. Keep speed down on washboard. |
| Snow and ice | Fine, slowly | AWD has advantages over 2WD in snow but “won't stop any faster”, because braking happens at all four wheels. |
| Hard-packed beach or sand | Careful | Keep all four wheels on the firmest ground and drive steadily. Never deep sand. |
| Deep sand | No | Ford says deep sand makes the AWD system overheat. |
| Mud | Light only | Even AWD vehicles can lose traction in slick mud; clean mud off tires and driveshafts afterward. |
| Standing water | Shallow only | Never above the bottom of the front rocker area, never flowing; go very slowly and do not stop. |
| Rock crawling, steep ruts, ledges | No | Outside the use Ford describes; the manual lists no low range or locking differentials. |
Where you are trying to clear something, measure first. The approach angle calculator and our guide to whether your ground clearance is enough show how to check a ledge against your bumper height.
Snow is where the Edge's AWD helps most, but it only helps you get going. Stopping and cornering still depend on tires and speed, so the verdict there depends on how you drive more than on the hardware.

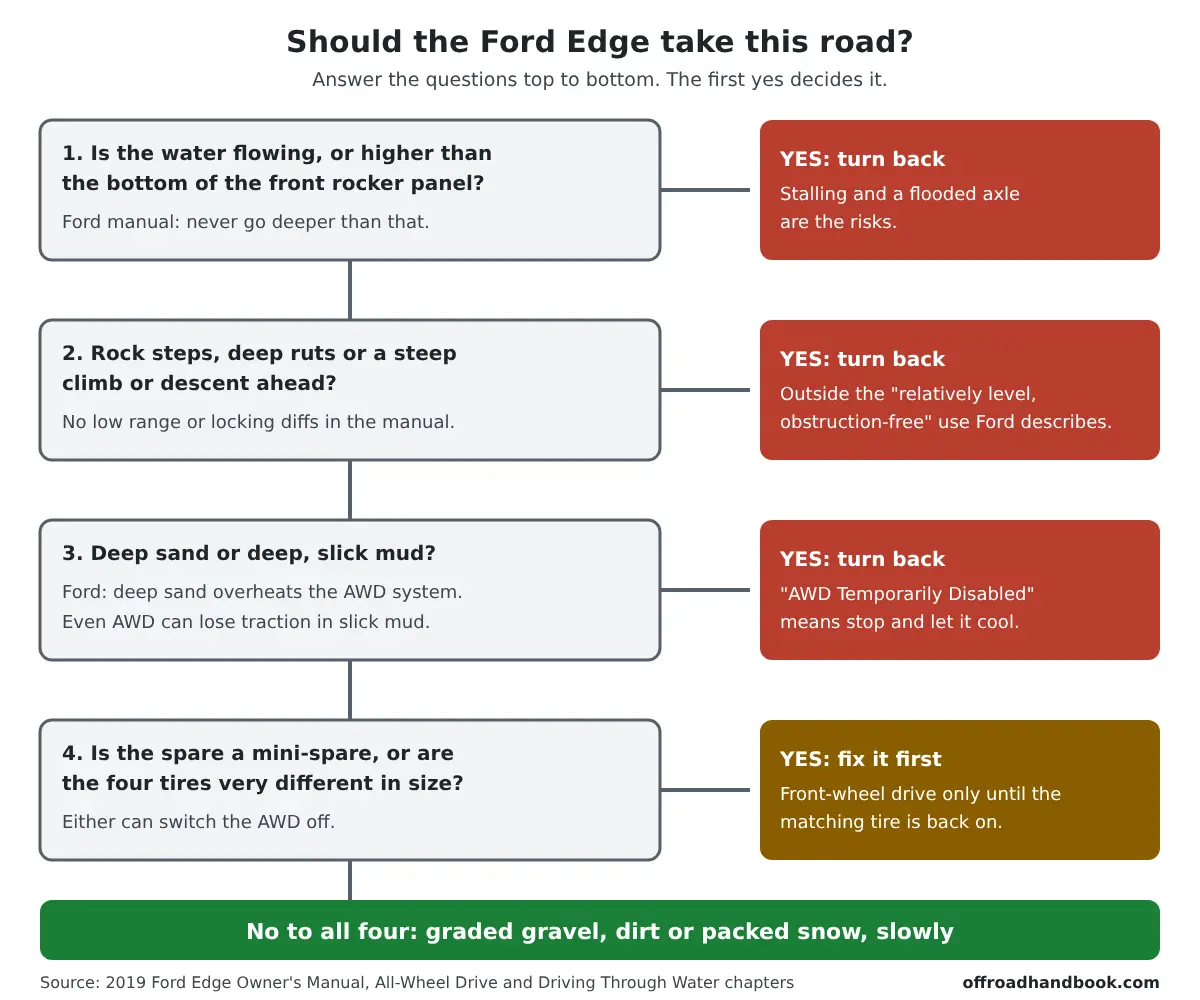

Should the Edge take this road?
The four checks above run in the order that matters most. Water and rocks can end a trip in one mistake, while a mismatched spare only costs you the AWD.
If you want a verdict for one specific surface, pick it below. The checker shows the ordered checks Ford's manual and the spec sources support, for your drivetrain.
Every line in the checker comes from the manual and spec pages linked in this post. Where the manual says nothing, such as approach angle, the checker says so instead of guessing.
Sand, mud and water: the limits in Ford's manual
Sand is where the old advice and the manual disagree. Many guides say to air down on sand. Ford's Edge chapter says to avoid reducing tire pressures there, shift to a lower gear and keep moving steadily. If you air down at all, stay within the pressure limits in your own manual and reinflate before you drive on pavement.
If the cluster shows “AWD Temporarily Disabled,” the system has overheated from wheel slip, deep sand being the manual's example. Stop in a safe place and shut the engine off for at least 10 minutes before restarting.
After any water crossing the manual tells you to press the brake pedal lightly to dry the brakes, then check the horn, exterior lights and steering assist. If the front or rear axle was submerged, Ford says to have the power transfer unit or rear axle serviced by a dealer. Our water fording depth guide covers how to read depth before you commit.
Tires, recovery gear and what to carry
Tires change an Edge more than any other part. Keep all four tires matched in size and do not run a spare of a different size, because Ford says major size differences can stop the AWD working. For loose gravel, an all-terrain or winter-rated tire in the factory size grips better than a road tire.
- A tire repair kit and a tire pressure gauge so you can fix a flat and check pressure.
- A set of recovery boards for snow or soft ground, since the Edge has no low range to crawl out with.
- A tow strap for a pull from another vehicle on flat ground.
Do not spin the wheels hard to get unstuck. Ford's manual says to rock the vehicle gently between forward and reverse, and never to spin the wheels above 34 mph. For tire pressure by surface, see our off-road tire pressure guide.
Towing a trailer or flat-towing behind an RV
The 2019 Ford Edge Owner's Manual rates the 2.0L at 3,500 lb with the trailer tow package and 1,500 lb without it, and the 2.7L at 3,500 lb with the package. It says not to tow a trailer until the vehicle has 1,000 miles, and to put 10 to 15 percent of the trailer weight on the tongue.
An AWD Edge cannot be recreationally flat-towed with the wheels on the ground. Ford says to use a car-hauling trailer so all four wheels are off the ground.
Ford Edge or a real 4x4?
If your trips include rocks, steep grades or deep sand, you need low range and locking differentials. Our guides to 4WD vs AWD vs 4A and to the Bronco Sport's AWD system show where the lines fall. For winter driving in a smaller Ford, see how the Bronco Sport does in snow.
FAQs
Not for serious off-roading. Ford's manual describes “limited off-road capabilities” on relatively level, obstruction-free surfaces, with no low range or locking differential listed. It suits gravel, dirt roads and snow.
AWD. It turns on when needed and needs no input from the driver. The manual lists no low-range gear or selectable 4WD mode.
Spec sites list a minimum of 8.0 inches for the 2022 Edge and the 2024 ST-Line and Titanium. Ford's owner's manual does not publish a figure.
The 2019 manual lists 3,500 lb with the trailer tow package for the 2.0L and 2.7L, and 1,500 lb for the 2.0L without it.
No, not an AWD Edge. Ford says to tow it with all four wheels off the ground, for example on a car hauler.
Yes. Ford ended Edge production with the 2024 model year.
