Most Suzuki Eiger 400 problems start with fuel: a diaphragm fuel valve that sticks or leaks, a varnished carburetor, or a valve left on PRIME. A weak battery, mud-packed oil-cooler fins and several Suzuki recalls on 2002–2006 models cover most of the rest.
Work through the checks in the same order Suzuki’s troubleshooting page uses: fuel first, then spark. Free checks come first and dealer-only jobs come last.
This guide uses Suzuki’s LT-F400/F owner’s manual, eight CPSC recall notices and owner reports, and it says which is which.
Suzuki Eiger 400 problems at a glance
| Symptom | Most likely cause | First fix |
|---|---|---|
| Cranks but won’t start | No fuel at the carburetor, or no spark | Fuel valve to ON, drain-screw fuel test, spark test |
| Hard to start cold, runs only on choke | Varnished carburetor, weak fuel valve | Choke by temperature, then clean the carburetor |
| Stalls at idle or when you open the throttle | Idle off spec, blocked tank vent hose, vacuum leak | Warm idle 1,400–1,600 rpm, check vent and vacuum hoses |
| Clicks but won’t crank | Weak battery, dirty ground, worn starter | Charge the battery, clean and tighten connections |
| Cuts out or misfires at random | Bad ground in the harness (2003 recall), loose flywheel magnets (owner reports) | Check connectors, then dealer |
| Fuel smell, dripping carburetor, fuel in the oil | Fuel valve or float needle leaking, 2004–2005 recalls | Valve to ON, change the oil, check your VIN |
| Red oil-temperature light, power loss | Low oil, mud on the fins, heavy load at low speed | Stop, cool down, check oil level, clean the fins |
| Hard shifting or popping out of gear (manual) | Wrong or old oil, clutch wear, 2002 clutch-nut recall | Correct 10W-40 JASO MA oil, inspect the clutch |
The table covers the usual cases. Pick your symptom in the checker below for the full order of checks, free ones first.
Your exact model changes some answers. LT-F400 is the manual-shift Eiger with an automatic clutch, and LT-A400 is the automatic with a belt-driven CVT. An F in the code (LT-F400F, LT-A400F) means 4WD, and the K number is the model year: K2 is 2002 and K6 is 2006.
The manual used here covers the manual LT-F400/F. Belt and CVT numbers for the LT-A400 are not given, because no Suzuki owner’s manual for the automatic could be opened. A paid Cyclepedia service manual covers the automatic.
What is your Eiger 400 doing?
Eiger 400 symptom checker. Pick what the quad is doing and your model year. You get the checks in order, free ones first.
The checker is based on the LT-F400/F troubleshooting, starting and maintenance pages, the CPSC notices below and the owner reports linked in the text. It does not replace the service manual.
If your symptom is not listed, start with the no-start order below. It finds most fuel and spark faults in a few minutes with a screwdriver and a spare plug.

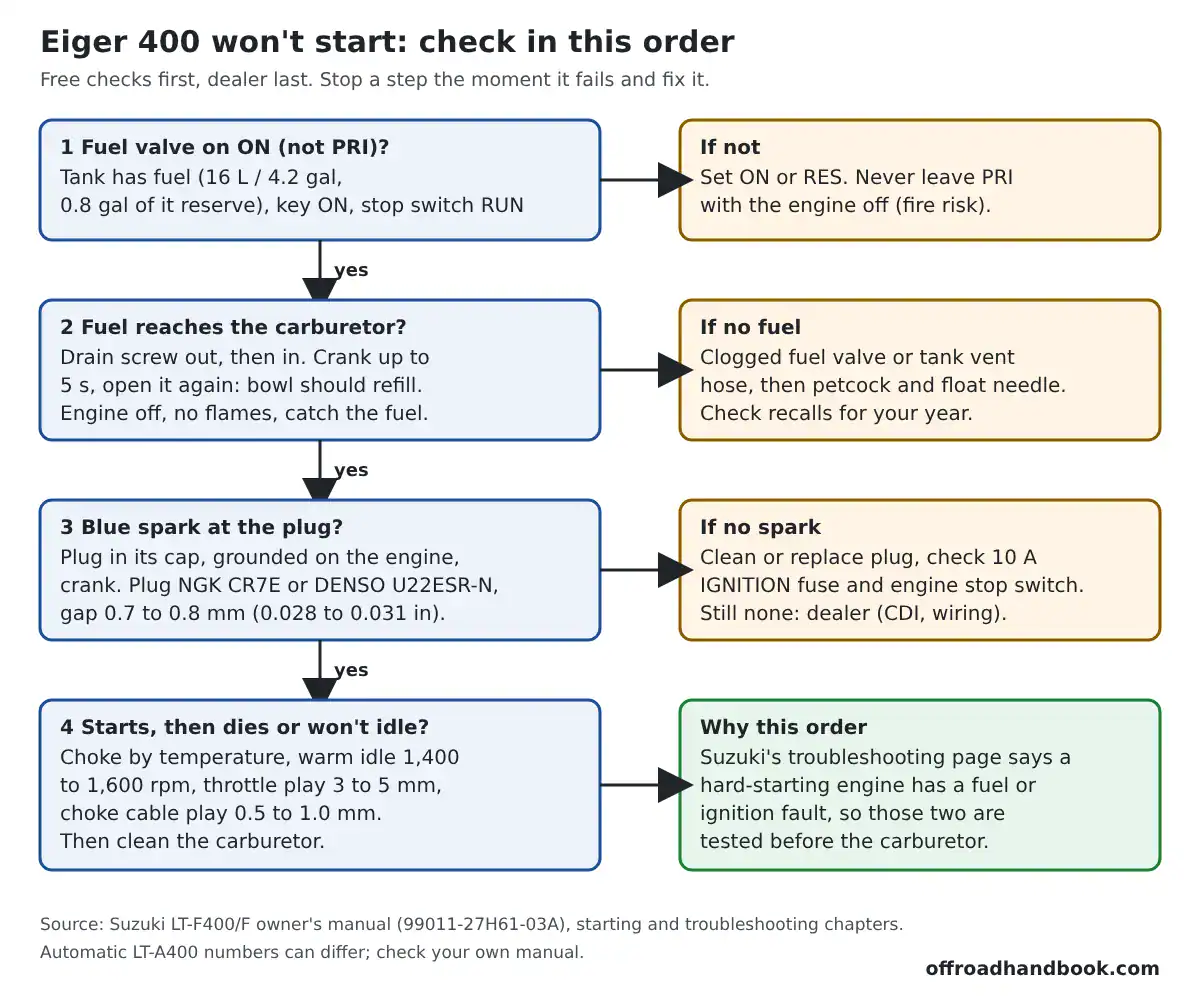

Won’t start or hard to start: check in this order
Suzuki’s manual says an engine that is hard to start or won’t start has a fuel or ignition problem. Test those two before touching the carburetor.
Fuel valve and petcock
The Eiger’s fuel valve is an automatic, diaphragm-type valve with three positions: ON, RES and PRI. In ON and RES no fuel flows until the engine is running or being started.
PRI sends fuel straight to the carburetor. Suzuki lists it for checking the fuel supply and for hard starts below freezing, and warns that leaving it there with the engine off can overflow the carburetor, put fuel into the engine and cause a fire or severe damage.
One owner test for a tired valve: fill the carburetor bowl on PRI, then switch to ON. If the engine runs a moment and dies, the valve is not passing fuel. That comes from an owner thread about a 2004 Eiger, not from Suzuki.
Three CPSC recalls involved Eiger fuel parts: a wrong-size petcock mounting bolt, bad petcock inserts and a leaky plastic fuel tank. They are in the recall table further down.
Is fuel reaching the carburetor?
- Turn the fuel valve to ON and make sure the tank has fuel. The tank holds 16.0 L (4.2 US gal), including 2.9 L (0.8 gal) of reserve.
- With the engine off and no flames or sparks nearby, put a container under the carburetor drain screw and loosen the screw to drain the bowl.
- Tighten the drain screw and push the starter button for a few seconds. Never run the starter more than five seconds at a time.
- Loosen the drain screw again. The carburetor should have refilled with fuel.
If fuel arrives, move on to spark. If it does not, Suzuki says to check that the fuel valve is not clogged and that the air vent hose from the tank is not blocked.
Spark test
- Pull the spark plug and reattach it to the plug cap.
- Set the engine stop switch to RUN and the key to ON.
- Hold the plug body firmly against the engine and pull the recoil rope or push the starter button.
- A blue spark should jump the gap.
Suzuki warns that this test can give a high-voltage shock. Skip it if you are not familiar with it, and never do it with a pacemaker or heart condition.
No spark? Clean or replace the plug first. The manual lists an NGK CR7E or DENSO U22ESR-N, gapped 0.7–0.8 mm (0.028–0.031 in). A new NGK CR7E plug is a cheap first step. Then check the 10 A IGNITION fuse, which also protects the CDI unit. Still nothing means the dealer, according to Suzuki.
Choke, idle and carburetor
Use the choke by temperature. Below 40°F, move the lever to ENGAGE, start the engine, and return it halfway right after it fires. Move it to OFF once warm.
At 40°F or above, use it halfway. Above 68°F, Suzuki says the choke is not needed, and on a warm engine it can make starting harder by running too rich.
Once running, check the warm idle with a tachometer: 1,400–1,600 rpm. Throttle lever play should be 3.0–5.0 mm (0.12–0.20 in) and choke cable free play 0.5–1.0 mm (0.02–0.04 in).
If it still idles badly or runs only with the choke on, the Keihin CVK32 carburetor is the next suspect. Varnish from old fuel in the small passages is the usual cause, and cleaning the jets and passages fixes it. The service manual has the steps.
Below 14°F, Suzuki also says to switch to SAE 5W-30 oil and use a block heater for easier starting.
Clicks but won’t crank
Start with the battery. It is a sealed 12V, 12 Ah unit under the seat. Charge it at a low rate, and Suzuki lists a standard rate of 1.4 A for 5 to 10 hours.
Clean the terminals and the ground strap, and tighten both. Check that the transmission is in neutral, the parking brake is set, the key is ON and the stop switch is on RUN, as the starting steps require.
Check the 30 A MAIN fuse as well. If the starter spins slowly or stops after a few tries, worn brushes are one owner-reported cause on a 2004 Eiger, so a starter inspection comes before any carburetor work.
Cuts out, misfires or loses spark at random
CPSC recall 03-505 covered about 300 2003 4WD Eigers (LT-A400FK3 and LT-F400FK3) built with an improperly crimped ground wire splice in the harness. A broken ground could stop the CDI unit and kill the engine.
A clue from that notice: the tail light could also fail. If the tail or brake light goes out at the moment the engine dies, suspect a ground and check connectors before parts.

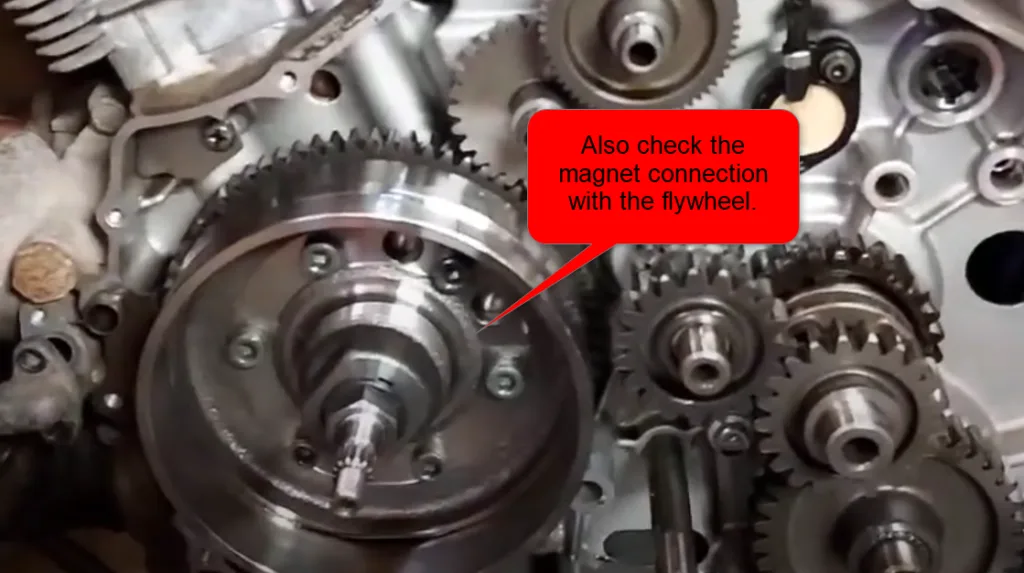

Owner threads and parts sellers also report flywheel magnets working loose and upsetting spark timing. That causes random no-starts and stalls. Suzuki and CPSC documents opened for this guide do not mention it, so treat it as an owner-reported failure, not a confirmed defect.
Checking magnets means removing the flywheel cover, so it is a dealer or service-manual job. Sellers warn that a magnet that breaks free can damage the engine, so stop riding if you suspect it.
Fuel smell, dripping carburetor or fuel in the oil
Set the fuel valve to ON and stop the engine. A carburetor that overflows, a petcock that keeps flowing or a float needle that sticks can all let fuel reach the engine.
Pull the dipstick. Suzuki wants the level between L and F, checked with the cap resting on the threads and not screwed in. A level above F or a gasoline smell means fuel is diluting the oil.
Do not keep cranking. Change the oil and filter (3.0 L, or 3.2 L with the filter, per the manual), then find the leak before the next ride. Our guide to hydrolock covers what happens when liquid fills a cylinder, which fuel can do too.
Red oil-temperature light and running hot
The Eiger is air-cooled with Suzuki’s SACS oil-cooling system, so there is no radiator or coolant. The LT-F400/F manual describes a red oil-temperature light that comes on briefly at start-up to test the bulb.
If it stays on while riding, stop the engine and let it cool. Suzuki says continued running with high oil temperature can cause engine damage or early wear.
The manual lists what raises oil temperature: high engine speed, low vehicle speed and heavy loads. Mud or debris in front of the engine or packed between the fins cuts cooling.
Slow down the revs, lighten the load, pick a suitable gear and clean the mud off. Wash with a low-pressure hose only, because Suzuki warns that high-pressure water damages the oil cooler fins.
The fuse list also shows a 10 A FAN fuse that protects the cooling fan motor. If the light comes on in slow going and the fan stays silent, check that fuse. The manual does not give a fan switch temperature.
Shifting and drive problems
The manual Eiger shares one oil between the engine, clutch and gearbox. Suzuki specifies SAE 10W-40 with an API rating of SF/SG or SH/SJ, or JASO MA, and says not to use oils marked Energy Conserving, because they can hurt clutch performance.
Hard shifting after an oil change is often the wrong oil. If the oil is right, the clutch is on Suzuki’s inspection list at every 2,000 km (1,200 mi) or six months.
One recall touched this area: CPSC 02-507 covered about 4,000 2002 manual Eigers (LT-F400K2 and FK2) where the clutch shoe nut could loosen and damage the clutch and crankshaft.
On the automatic LT-A400, slipping or no drive points to the CVT belt or crankshaft. CPSC 02-516 covered about 4,700 2002 automatics with a crankshaft flaw. For belt checks, use the Cyclepedia service manual or a dealer.
Eiger 400 recalls by model year
CPSC lists eight notices naming the Eiger 400 between 2001 and 2006. Most were repaired for free at dealers, but a used machine may have skipped it. Ask a Suzuki dealer to check the VIN against these.
| Model year | Models | Problem | Units | CPSC recall |
|---|---|---|---|---|
| 2002 (K2) | LT-F400K2, LT-F400FK2 (manual) | Clutch shoe nut can loosen; clutch and crankshaft damage | About 4,000 | 02-507 |
| 2002 (K2) | LT-A400K2, LT-A400FK2 (automatic) | Internal flaw could break the crankshaft | About 4,700 | 02-516 |
| 2003 (K3) | LT-A400FK3, LT-F400FK3 (4WD) | Harness ground splice crimped badly; CDI and tail light can fail | About 300 | 03-505 |
| 2004 (K4) | LT-A400FK4, LT-F400FK4 built May 19–25, 2004 | Mislocated welds on the upper front suspension arm brackets | About 240 | 04-579 |
| 2004–2005 | LT-A400K4, LT-A400FK4, LT-F400K4, LT-F400FK4 | Wrong-size petcock mounting bolt under the tank; fuel leak | About 27,000 (incl. Vinson 500) | 05-521 |
| 2005 (K5) | Certain LT-A400FK5 and LT-F400FK5 VINs | Petcock inserts bonded badly to the tank; fuel leak | About 1,540 (incl. LT-A500FK5) | 05-567 |
| 2005 (K5) | Certain LT-A400FK5 and LT-F400FK5 VINs | Thin plastic fuel tank can leak | About 1,900 | 06-534 |
| 2006 (K6) | Certain LT-A400K6, LT-A400FK6, LT-F400FK6 VINs | Left-front suspension arm bracket not fully welded | About 300 | 06-566 |
Whether a dealer will still complete an open campaign today is a question for the dealer, so ask before you assume a repair is free.
Four of the eight notices are fuel-leak or ground problems that look exactly like the symptoms above. That is why the checker asks for your model year.
Eiger 400 specs and service numbers
| Item | Value (LT-F400/F) |
|---|---|
| Engine | 376 cc air-cooled (SACS) single, 82.0 × 71.2 mm, 9.0:1 compression |
| Carburetor | Keihin CVK32 |
| Spark plug | NGK CR7E or DENSO U22ESR-N, gap 0.7–0.8 mm (0.028–0.031 in); replace every 4,000 mi |
| Warm idle speed | 1,400–1,600 rpm |
| Throttle lever play / choke cable play | 3.0–5.0 mm / 0.5–1.0 mm |
| Engine oil | SAE 10W-40, API SF/SG or SH/SJ or JASO MA; 3.0 L (3.2 US qt), 3.2 L (3.4 qt) with filter |
| Oil filter torque | 20 N·m (14.5 lb-ft) |
| Oil and filter change | At 200 km (100 mi), then every 2,000 km (1,200 mi) or 6 months |
| Gear oil | SAE 90 hypoid GL-5 (SAE 80 below 32°F); front differential 300 ml, final drive 350 ml |
| Fuel tank | 16.0 L (4.2 US gal), 2.9 L (0.8 gal) reserve |
| Battery and fuses | 12V 12 Ah; 30 A main, 10 A each for head-hi, head-lo, tail, ignition, fan and accessory |
| Tires and pressure | Front AT25×8-12, rear AT25×10-12; cold 4.7 psi front, 4.4 psi rear up to 380 lb load |
| Fuel hose, brake fluid | Replace fuel hose every 4 years, brake fluid every 2 years |
| Towing | Max 992 lb trailer, tongue weight not above 99 lb; rack limits 66 lb front, 132 lb rear |
Keep a spare plug and a low-pressure tire gauge in your kit, since ATV tires run at only 4–5 psi. Planning different tires? The tire size calculator shows the diameter change.
Other quads in the Suzuki lineup have their own weak spots. See the guides for the King Quad 500 and the KingQuad 400, or the general ATV and UTV troubleshooting page.
Buying a used Eiger 400
Most Eigers on the market are 15 to 20 years old, so look for neglect before engine wear. These checks take about 15 minutes.
Ask the seller not to warm it up before you arrive. A cold start with the fuel valve on ON tells you more than any listing.
| Check | What to look for | Why |
|---|---|---|
| VIN and model year | Match against the recall table; ask whether the repair was done | Fuel-leak and weld recalls matter on an old machine |
| Cold start | Starts on choke in a few cranks, no PRI needed | Needing PRI points to a weak fuel valve |
| Dipstick | Between L and F, no gasoline smell | Fuel dilution means a leaking petcock or float |
| Oil-temperature light | Comes on at key-on, then goes out | Confirms the bulb and circuit work |
| Idle and throttle | Steady at 1,400–1,600 rpm when warm, no stall on throttle | Carburetor and vacuum health |
| Fins and oil cooler | Free of caked mud, no dents | Cooling depends on airflow |
| 4WD models (F) | Drive shaft boots intact, front diff oil not milky | Suzuki lists boots on every inspection |
| Brakes and tires | Firm lever, correct pressure, no cracks | Brake hoses and fluid are age-based items |
On an automatic, ask when the belt was last replaced and listen for slipping under load. The manual LT-F400 used here does not describe it.
FAQ
No. It is air-cooled with Suzuki’s oil-cooling system (SACS), so there is no radiator or coolant. The fuse list does include a 10 A fan fuse for a cooling fan motor.
Suzuki specifies SAE 10W-40 with API SF/SG or SH/SJ or JASO MA, and not Energy Conserving oil. Capacity is 3.0 L (3.2 US qt), or 3.2 L (3.4 qt) with a filter change.
ON, or RES when you are on reserve. Suzuki warns that leaving it on PRI with the engine off can overflow the carburetor and cause a fire.
The manual lists NGK CR7E or DENSO U22ESR-N, gapped to 0.7–0.8 mm (0.028–0.031 in).
Yes. CPSC lists eight notices on 2002–2006 models covering clutch nut, crankshaft, wiring, suspension welds and fuel leaks. See the table above.
