The Polaris RZR Pro XP problems that matter most are heat (an Engine Hot lamp and a power cut), CVT belt and clutch trouble, and a run of federal recalls: clutch failure on 2020-2021 models, turbo oil leaks on 2021s, fuel pump leaks on 2021-2023 models and front brake lines on 2023s. Enter your VIN at Polaris first, because recall repairs are free.
The checks below follow Polaris’s own 2022 RZR Pro XP owner’s manual and 2025 owner’s manual, plus the Consumer Product Safety Commission recall notices. Anything that comes only from owner reports is labeled that way.
RZR Pro XP problems at a glance
Find the symptom, then run the free check before you buy parts. “Dealer” means the manual marks the job for a Polaris dealer or the symptom may be a recall repair.
| Symptom | Free check first | Likely cause | Next step |
|---|---|---|---|
| Engine Hot lamp on or flashing, power drops | Radiator fins and screens, coolant level (cold), 30A fan fuse | Packed radiators, low coolant, fan circuit | Read DIAGCODE; dealer for a cooling-system pressure test |
| Burning smell, belt slipping, weak pull | Clutch housing for water and debris, belt condition, low range | Wet or worn belt, heat from slow work in high range | Replace belt, remove all debris; dealer for clutches |
| Rattle, vibration or debris from the clutch area (2020-2021) | Stop riding, check your VIN | Clutch recall | Free dealer inspection and repair |
| Fuel smell or wet spot under the tank (2021-2023) | Stop riding, check your VIN | Fuel pump assembly leak recall | Free dealer repair |
| Oil residue near the turbo (2021) | Look at turbo oil line and casting, check your VIN | Turbo oil leak recall | Free dealer repair |
| Soft or long brake pedal | Fluid level, pad thickness, wet lines, line routing near front wheels (2023) | Low fluid, air, worn pads, routing recall | Do not ride; bleed or dealer |
| Check Battery warning, flickering gauges, no-start | Battery voltage, terminals, grounds, fuses | Weak battery or low RPM with heavy electrical load | Charge, clean, then dealer reads codes |
| EPS lamp on, heavy steering | Battery voltage, then DIAGCODE | Low voltage or EPS fault | Dealer if the lamp stays on |
| AWD will not engage, hard to shift into gear | RPM under 3,100 and speed under 15 mph for AWD; shift stopped at idle | Normal lockout, linkage out of adjustment | Dealer adjusts linkage |
| Stuck at 15 mph or loss of power | Driver seat belt buckled, pre-filter, air filter, spark arrestor | Belt interlock, clogged intake or exhaust screen | Read DIAGCODE; dealer |
Read your dash before you pull a wrench
The Pro XP cluster shows active engine and EPS fault codes for free. The manual says to hold the MODE button, scroll to DIAGCODE with either toggle, press MODE and write down the three numbers shown.
Codes are not stored. They disappear when the key goes off and return only if the fault returns, so read them while the problem is happening. The code list is in the electrical section below.
RZR Pro XP symptom checker
Built from the Polaris owner’s manuals and CPSC recall notices cited in each section. It orders free checks first and dealer-only work last, and it is not a diagnosis.
Pick the model year closest to your VIN. Polaris’s recall page checks the exact VIN, so run it even if the checker shows nothing for your year.

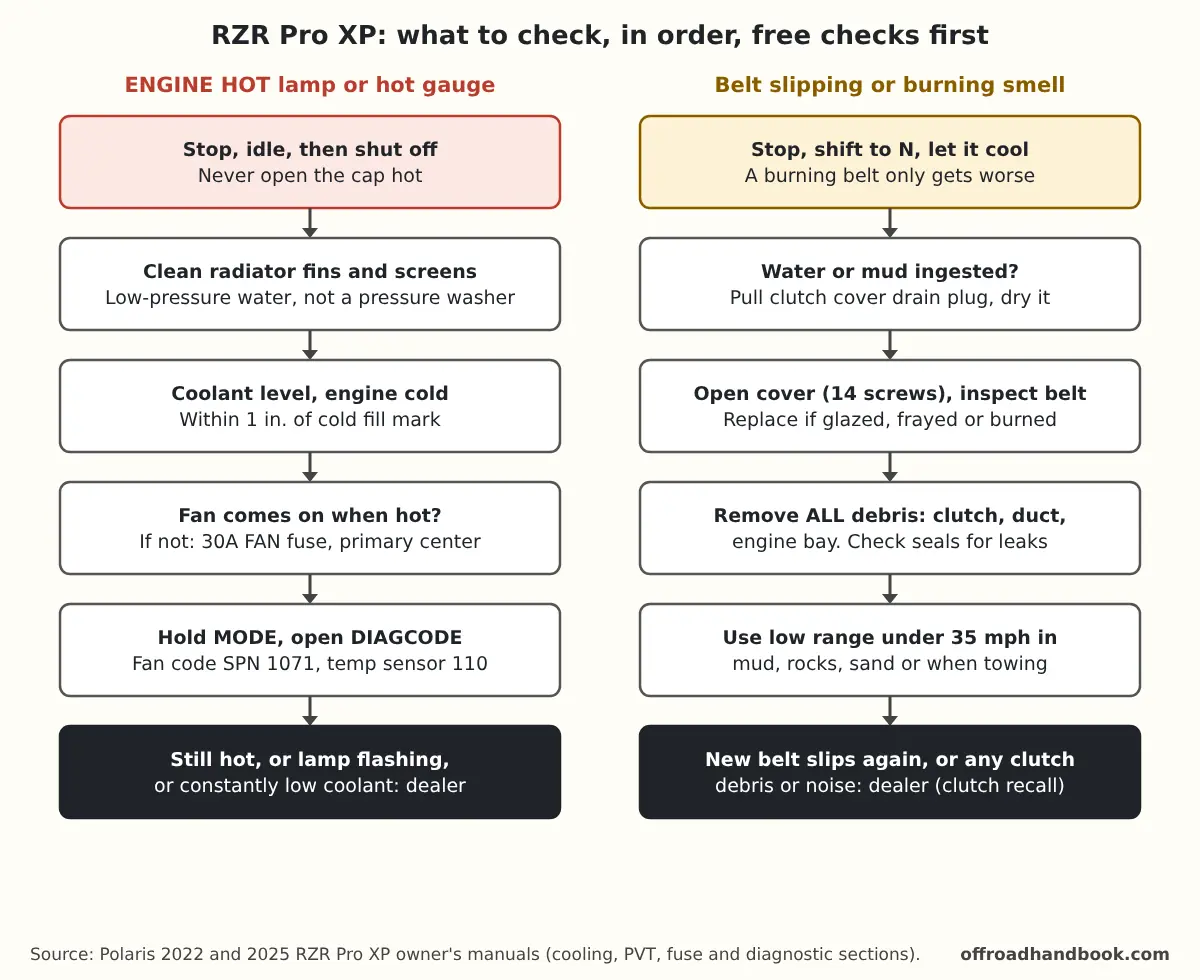

The flowchart below covers the two problems owners search for most, a hot engine and a slipping belt.
Check order for a hot engine or a slipping belt
Every box comes from the owner’s manual. The one idea behind the order is cost: look, clean and read before you replace anything.

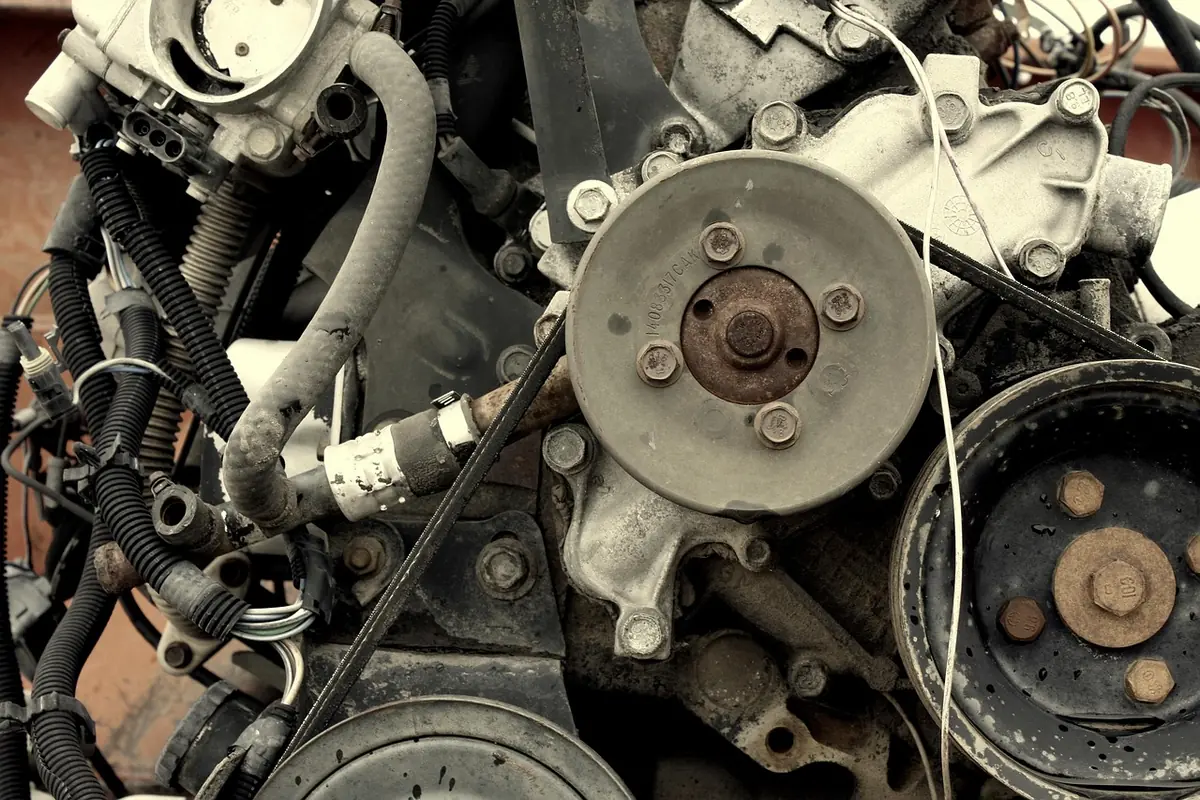

1. Engine Hot lamp and overheating
The manual says the Engine Hot lamp means an overheated engine. If it flashes, the overheating condition remains and the system automatically reduces engine power. Slowing down is the system working, not a separate fault.
Never open the pressure cap on a warm engine. Check in this order:
- Radiators and screens. The Pro XP has two radiators on one pressure tank. Clean mud and debris from the screens and fins. Polaris warns a high-pressure hose can damage fins, so use low pressure.
- Airflow. Do not mount accessories in front of the radiators or behind the fan. Polaris says blocked airflow leads to overheating and engine damage.
- Coolant level, engine cold. Look through the view on the driver’s side rear fender. Keep it within 1 in. (2.5 cm) of the cold fill mark. The system holds 11.9 qt. (11.3 L) of Polaris 50/50 premix, which should not be diluted.
- Fan fuse. The 30A FAN fuse sits in the primary fuse center under the armrest. The water pump fuse (labeled LCAC, 7.5A) is in the secondary center under the dash near the driver’s right knee.
- Dash codes. A fan relay driver fault shows as SPN 1071, and the engine temperature sensor is SPN 110.
- Dealer. The manual lists a yearly cooling-system pressure test as dealer work, and says adding coolant often or an empty tank points to a leak.
Some coolant drop on a new machine is normal while it purges air. Polaris also calls liquid flowing noises after shutdown normal. Cost class: free to low until a leak or a failed part is found.
2. CVT belt slipping or burning
Polaris says belt slip creates excessive heat that destroys belts, wears clutch components and causes outer clutch covers to fail. Its fix for the most common cause is simple: use low range.
The manual says to shift to low for rough terrain, trailer loading, hauling or towing, and when you are consistently under 35 mph in hard-pulling mud, rocks or sand.
Free checks, in order
- Water. Water in the PVT makes the belt slip. Pull the clutch cover drain plug, let it drain, then follow the manual’s drying steps: park, brakes on, run varying throttle for 10 to 15 seconds and never hold wide open longer than 10 seconds. If it still slips, repeat and see a dealer soon.
- Open the cover. Loosen the inlet duct clamp, remove the 14 clutch cover screws and mark the belt’s direction of rotation before taking it out. The clutch spreader tool is in the tool kit.
- Debris. Remove all debris from the clutch, outlet duct and engine compartment. Polaris warns that leftover debris can cause vehicle damage, loss of control and severe injury or death.
- Seals. Check the transmission and engine seals for damage while the belt is out. Damaged seals need prompt dealer service.
- Habits. Keep spraying water away from the PVT intake on the left side, and clean that intake periodically.
For a new belt, Polaris’s break-in is slow driving and light loads for the first 50 miles, or low gear for the first 5 miles in sand and dunes. The periodic chart marks belt inspection as dealer work.
Bigger tires and engine or clutch changes add load. Stock tires are 30x10 R14 and Polaris says to use approved sizes, so run your numbers in the tire size calculator first. Owners also report belt slip near 40 mph on 2021 machines, but no Polaris notice covers that.
Do not modify PVT parts. The manual warns that changes can unbalance the system and cause a failure at high speed.
3. Primary clutch failure on 2020-2021 models
This is the one drivetrain issue with an official recall. In November 2020 Polaris recalled about 18,400 model-year 2020-2021 RZR Pro XP and Pro XP 4 vehicles, plus several 2021 Turbo models, because the clutch can fail (CPSC 21709).
Polaris reported 136 clutch failures, 8 of them with debris and clutch components thrown out and damaging nearby parts. No injuries were reported. The remedy is a free inspection and repair.
Stop riding if you hear a new rattle, feel vibration, or find debris in the housing, and check the VIN even if the repair may already have been done. The manual’s PVT warning applies here too, because it says improper service can mean severe injury or death.
4. Fuel leak at the fuel pump (2021-2023)
Three federal notices cover a fuel leak where the fuel pump assembly joins the tank, close to a hot surface. A leak there is a fire hazard. Polaris tells owners to stop riding the affected vehicles, and the dealer repair is free.
- December 2022: about 600 model-year 2021-2022 Pro XP 4 Premium, Sport and Ultimate vehicles, fixed by replacing the fuel tank assembly (CPSC 23712).
- May 2023: about 20,330 model-year 2021-2023 Pro XP 4 and 2022-2023 Turbo R 4 vehicles, fixed by replacing the fuel pump assembly. Some were recalled earlier (CPSC 23760).
- August 2023: certain 2021-2022 two-seat Pro XP vehicles, listed in a recall that also covers Ranger and other models. Fix is a new fuel pump or tank (CPSC 23258).
Free check: the manual’s service chart says to turn the key on to pressurize the fuel pump, then look at lines and fittings for leaks and abrasion. Any fuel smell or wet spot means stop and call a dealer.
5. Turbo oil leak on 2021 models
Two recalls hit 2021 machines. In May 2021 about 32 vehicles were built without copper seal washers on the turbo oil supply line (CPSC 21744). In July 2021 about 1,700 were recalled for a raised edge on the machined surface of the turbocharger castings, which can leak oil (CPSC 21766).
Both are fire hazards with a free inspection and repair. Polaris listed turbo part number 3023738 on the passenger side of the turbocharger for service-part units.
The manual’s service chart calls for checking engine oil lines and fasteners for leaks and loose fittings at every interval. Oil residue or a burning-oil smell near the turbo on a 2021 is a reason to stop and call a dealer.

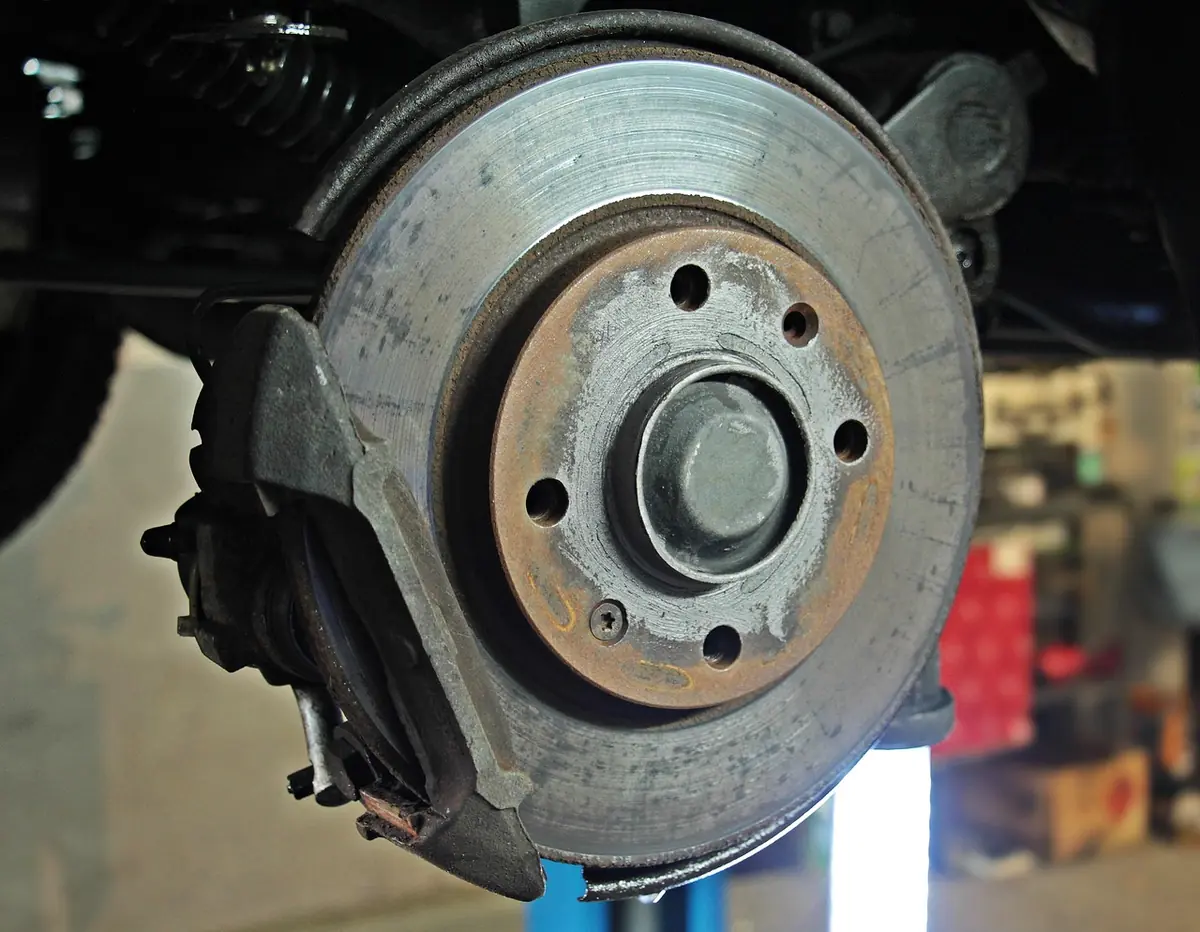

6. Brakes: soft pedal and the 2023 brake line recall
In October 2023 Polaris recalled about 2,500 model-year 2023 Pro XP and Pro XP 4 (and 2024 RZR XP and XP 4) vehicles because a front brake line can be routed so it rubs the front wheels. That can damage the line and cause brake loss (CPSC 24704). Polaris received three reports, one involving a rock hit, with no injuries.
The remedy is a free inspection and repair. Check the VIN, and look at where the front lines pass the wheels for rub marks.
For a soft pedal on any year, the manual says a spongy pedal indicates a fluid leak or low level that must be fixed before riding. Check in this order:
- Pedal feel and reservoir level, before every ride. The reservoir is in the front driver-side wheel well and takes DOT 4 only. Do not overfill it.
- Pad thickness. Replace pads when worn to 0.180 in. (4.6 mm).
- Discs and lines. Look for cracks, warping or corrosion, and wet spots at fittings. Do not spray WD-40 or any petroleum product on discs.
- Fluid age. Polaris says to change fluid every two years and to discard leftover fluid from an opened bottle.
New pads need moderate braking for the first 50 stops. A leak, a pedal near the floor or any rub on a line goes to a dealer.

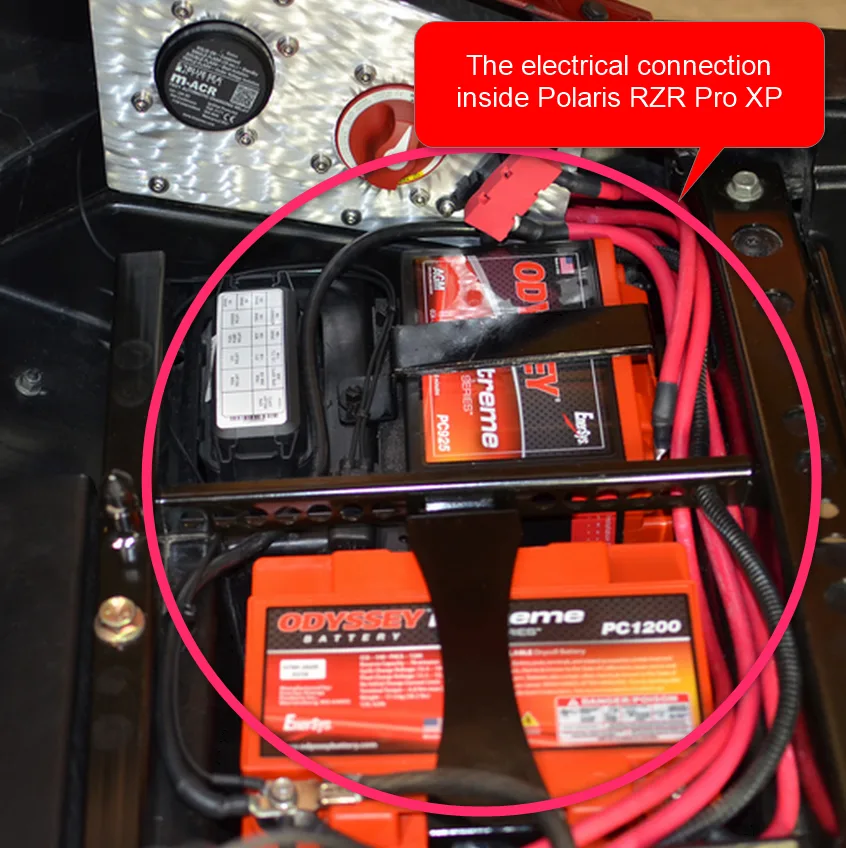

7. Electrical: Check Battery warning, no-start and codes
The “Check Battery” warning usually means the engine is running too slowly to keep the battery charged, according to the manual. It can also appear at idle with a heavy electrical load such as lights, the cooling fan and accessories. Drive at a higher RPM or recharge to clear it.

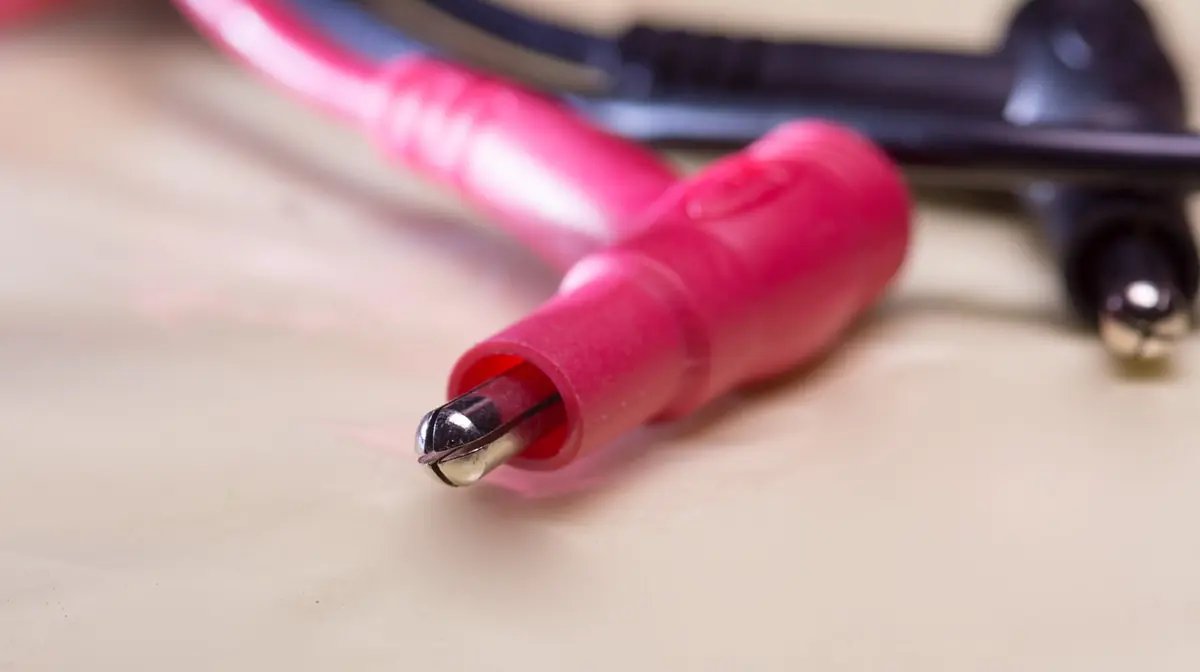

The manual says a fully charged battery reads 12.8 V or higher at rest, and under 12.5 V it should be charged right away to avoid sulfation. A charging-voltage range from older guides is not in the manual, so it is left out.
- Measure the battery at rest. Charge it through the charger connector at the dash outlet, not the one inside the armrest.
- Clean terminals with a wire brush and a baking soda and water mix, rinse, dry and coat with dielectric grease.
- Check the fuse centers. The primary center is under the armrest and the secondary is under the dash near the driver’s right knee. Replace with the same amperage only.
- Read DIAGCODE. Use the table below.
- Dealer: codes that return, or any EPS or check-engine lamp that stays on.
Audio amplifier and subwoofer fuses (30A and 40A) are installed only on vehicles with that equipment.
| SPN | Manual name | First free check |
|---|---|---|
| 110 | Engine temperature sensor | Coolant level and radiator screens |
| 1071 | Fan relay driver circuit | 30A fan fuse, fan connector |
| 520496 | Intercooler pump driver circuit | 7.5A LCAC fuse (water pump), connector |
| 1127 | Boost pressure sensor | Intake tube and clamps for leaks |
| 102 | Manifold absolute pressure sensor | Throttle body intake ducts and flange |
| 84 | Vehicle speed sensor | Connector at the sensor, wheel and speed readout |
| 523 | Gear sensor signal | Shifter fully in gear, linkage adjustment |
| 520207 | All wheel drive control circuit | Chassis fuse, AWD switch |
| 677 | Starter solenoid driver circuit | Battery voltage and terminals |
| 65591 / 65592 | Cylinder 1 / cylinder 2 misfire | Spark plugs (NGK MR9F, gap 0.7-0.8 mm) |
| 168 | EPAS battery voltage too high (FMI 3) or too low (FMI 4) | Battery voltage and charging |
8. Steering: EPS lamp and heavy steering
If the EPS lamp stays on after the key is on, the manual says the system is inoperative and you should see a dealer as soon as possible. Continued use can permanently damage the EPS unit and raise steering effort.
Start with the battery, since the EPAS reports its own low-voltage fault (SPN 168). Then read DIAGCODE, because an EPS code makes the EPS lamp blink.
- Battery voltage and terminals, as in section 7.
- Tire pressure. Polaris lists 10 psi front and 20 psi rear on the Pro XP, and, per the 2025 manual, 14 and 24 psi on the Pro XP 4. Replace tires at ⅛ in. (3 mm) of tread.
- Freeplay. With the machine level, turn the wheel lightly left and right. The manual specifies 0.8-1.0 in. (20-25 mm).
- Dealer. Excess freeplay, noises or a rough or “catchy” feel call for a dealer inspection of the steering.
Wheel nuts are 120 ft-lb. and hub retaining nuts are 180 ft-lb., so check those before blaming the steering for a shake.
9. AWD will not engage and hard shifting
AWD that does nothing is often the system doing what it was built to do. The manual says the electronics will not enable AWD until engine speed is below 3,100 rpm and vehicle speed is below 15 mph.
You can flip the switch while moving, but once it is on it stays enabled until you turn it off. The front drive then engages on its own when the rear wheels lose traction. Never switch to AWD with the rear wheels spinning, because that can damage the drive shaft, prop shaft and gearcase.
For shifting, the manual says to stop with the engine idling before moving the lever. Shifting above idle or while rolling can damage the transmission. Check in this order:
- Stop, idle, then shift. Try each range from a dead stop.
- Gearcase fluid. The main transmission holds 61 oz. (1,800 ml) of AGL fluid and the front demand drive holds 9.47 oz. (280 ml). Plug torque is 10-14 ft-lb. and 8-10 ft-lb. Check at 25 hours and every 100 hours.
- Codes. AWD control circuit is SPN 520207 and gear sensor signal is 523.
- Dealer. Polaris says shift linkage adjustment matters for the transmission, and its dealer can resolve shifting problems.
10. Power loss: 15 mph limit, dust and exhaust screen
A machine stuck at 15 mph may have nothing wrong. The driver’s seat belt has an interlock that limits speed to 15 mph when it is not secured, so buckle up and try again.
If power is down after that, work through the air and exhaust path:
- Engine pre-filter (right side). Inspect before every ride. Wash with soapy water and dry with low-pressure air.
- Air filter. Unlatch the five airbox clips, inspect the filter, and clean the intake tube before installing. Polaris says not to clean the filter, to replace it with a Polaris-approved one, and to leave no gaps at the filter ring.
- Intake ducts. The service chart says to inspect throttle body ducts and flange for sealing and air leaks.
- Spark arrestor. Clean daily when riding in mud or water. A plugged arrestor affects performance. Torque the bolt to 7-9 ft-lb.
- Spark plugs. A white insulator tip indicates overheating. Plugs are NGK MR9F with a 0.7-0.8 mm gap, torqued to 7 ft-lb.
- Dealer. Check-engine lamp with codes that return, or boost and pressure sensor codes.
Owners also report the factory intake tube collapsing under boost, mainly with extra boost. Polaris has no notice on it, so treat it as owner-reported.
For wet crossings, use the water crossing checker. The manual’s immersion steps start with moving to dry land, checking the airbox, and drying the fuse center and spark plug wells before starting.
Ride height, suspension and frame damage
Polaris lists spring preload changes per 100 lb. of added weight. On the Pro XP they are +0.50 in. at the front and +0.75 in. at the rear, up to a maximum of 1.0 in. front and 1.5 in. rear. Set both sides equally.
The shocks hold high-pressure nitrogen, so the manual says damaged shocks need qualified personnel. The 2025 chart lists inspecting bushings, ball joints and shocks for leaks or damage each interval.
Bent radius rods, flexing frames and a weak front differential show up in owner reports, but no Polaris notice covers them. If the ROPS is ever damaged, the manual says to have a dealer inspect it.
Polaris RZR Pro XP recalls by model year
These are the CPSC recall notices that name the Pro XP. Enter your VIN at Polaris or call 800-765-2747 to see which apply to your machine.
| Date | Models | Hazard | Remedy and count |
|---|---|---|---|
| Sept. 2, 2020 (CPSC 20174) | IMMI SubZero and Click6 harnesses in 2017-2020 RZR models including Pro XP | Missing stitching can fail to restrain an occupant | Free replacement harness if stitching is missing |
| Nov. 19, 2020 (CPSC 21709) | 2020-2021 Pro XP and Pro XP 4, plus 2021 Turbo S, Turbo S 4 and XP Turbo | Clutch can fail; 136 reports, 8 with debris thrown | Free inspection and repair, about 18,400 |
| May 13, 2021 (CPSC 21744) | 2021 Pro XP and Pro XP 4 | Turbo oil supply line built without copper seal washers | Free repair, about 32 |
| July 22, 2021 (CPSC 21766) | 2021 Pro XP and Pro XP 4 | Raised edge on turbo casting, oil leak | Free repair, about 1,700 |
| Dec. 1, 2022 (CPSC 23712) | 2021-2022 Pro XP 4 Premium, Sport, Ultimate | Fuel leak at fuel pump joint near hot surface | Free tank replacement, about 600 |
| May 18, 2023 (CPSC 23760) | 2021-2023 Pro XP 4 and 2022-2023 Turbo R 4 | Fuel leak at fuel pump joint | Free pump replacement, about 20,330 |
| Aug. 10, 2023 (CPSC 23258) | 2021-2022 two-seat Pro XP (and Ranger and other models) | Fuel leak at pump outlet connector | Free pump or tank replacement, about 12,300 in total |
| Oct. 19, 2023 (CPSC 24704) | 2023 Pro XP and Pro XP 4 (and 2024 RZR XP and XP 4) | Front brake line can rub the wheels | Free inspection and repair, about 2,500 |
The IMMI harness recall covers the seat belts, not the machine, so check the harness label too. Ask the dealer to confirm any recall repair was completed.
2022 vs 2025 manual: what changed for the Pro XP
Polaris revised numbers and service intervals between model years, so check which manual matches your machine.
| Item (Pro XP) | 2022 manual | 2025 manual |
|---|---|---|
| Ground clearance | 14 in. | 14.5 in. |
| Fuel capacity (Pro XP / Pro XP 4) | 12.0 / 13.0 gal. | 12.3 / 13.2 gal. |
| Dry weight, Sport | 1,755 lb. | 1,830 lb. |
| Radiator inspection | First listed at 50 hours / 500 miles | Every 25 hours / 500 miles or 6 months |
| Coolant replacement | Listed in the 500-hour / 5,000-mile service; full drain every 5 years | Every 5,000 miles or 5 years |
| Severe use | Service “more often” | Service at 50% of the interval |
| Clutch inspection | Each service chart | Every 2,000 miles or 24 months (dealer) |
| Same in both | Tires 30x10 R14, 10 / 20 psi, payload 740 lb., coolant 11.9 qt., 925 cc |
The 2024-2025 machines have no Pro XP recall in the CPSC database as of October 2026. The only 2024 mention is the 2023 brake line recall, which names the RZR XP.
For other models, see our RZR XP 1000 problems guide, the Kawasaki KRX 1000 guide or the general ATV and UTV troubleshooting page. Our free off-road calculators cover tires and gearing.
FAQs
Heat and the Engine Hot lamp, CVT belt slip, and a set of CPSC recalls: clutch failure (2020-2021), turbo oil leaks (2021), fuel pump leaks (2021-2023) and front brake lines (2023). Owners also report intake, frame and differential issues without a Polaris notice.
Yes, several times. CPSC lists recalls from November 2020 to October 2023. Check your VIN at Polaris or call 800-765-2747. Recall repairs are free.
The engine is overheating. A flashing lamp means the system is cutting power. Clean the radiators, check coolant when cold and check the 30A fan fuse, then read DIAGCODE.
Water in the PVT, a worn belt, debris in the housing or slow hard work in high range. Polaris says to use low range under 35 mph in mud, rocks or sand and when towing.
The driver seat belt interlock limits speed to 15 mph if the belt is not buckled. AWD will not enable until engine speed is under 3,100 rpm and speed is under 15 mph.
