If you’re a fan of dirt bikes, you’re likely familiar with the Honda CRF250R. But what sets this particular model apart from the rest? From its top speed to its impressive specs and features, there’s a lot to explore when it comes to the CRF250R. It’s a high-performance dirt bike that boasts impressive specs and features that make it stand out from the rest.
The Honda CRF250R, a powerful dirt bike, boasts a top speed of 70-75 mph, given under ideal conditions, combining exceptional performance with features like advanced fuel injection, five-speed transmission, lightweight chassis, and race-inspired suspension for an exhilarating off-road experience.
In this article, I’ll take a closer look at the specs and features of the Honda CRF250R and see what makes it such a great dirt bike. So, buckle up and get ready to explore the world of the Honda CRF250R!
Specifications of Honda CRF250R:
249cc liquid-cooled single-cylinder four-stroke
Programmed Fuel Injection (PGM-FI)
Bore x Stroke
79.0mm x 50.9mm
49mm inverted Showa fork with rebound and compression damping adjustability
Pro-Link® Showa single shock with adjustable spring preload, rebound, and compression damping
Single 260mm disc with twin-piston caliper
Single 240mm disc
Front Tire Size
Rear Tire Size
58.6 inches (1490mm)
12.9 inches (328mm)
37.8 inches (960mm)
1.66 gallons (6.28 liters)
237 pounds (107.5 kg)
With the above specifications, the Honda CRF250R is a popular choice among dirtbike enthusiasts and professional racers due to its power, handling, and durability on the track.
Features of Honda CRF250R:
Here are some specifications and features of the Honda CRF250R:
1. The Engine of the Honda CRF250R:
- The Honda CRF250R is equipped with a 249cc liquid-cooled single-cylinder four-stroke engine. This engine can produce up to 42 horsepower and 19 lb-ft of torque. It is mated to a five-speed transmission.
- The engine’s compression ratio is 13.9:1, which is quite high for a four-stroke engine and helps generate more power.
- The engine is equipped with a fuel injection system, which delivers precise fueling and helps to improve performance.
- The engine has a dual overhead cam (DOHC) valve train, which allows for higher RPM operation and helps to improve performance.
- The engine features an electric starter, which makes it easy to start the bike quickly and easily.
- The engine is equipped with a lightweight, high-performance exhaust system, which helps to improve power and reduce weight.
2. Transmission and Gear Ratios:
The transmission and gear ratios of the Honda CRF250R play a crucial role in effectively delivering power from the engine to the rear wheel. The transmission system transfers the engine’s rotational power to the wheels through gears.
The CRF250R features a five-speed gearbox designed to optimize performance in motocross conditions. The gears are carefully spaced to give the rider the right amount of power and control in various riding situations, including acceleration, cornering, and straight-line speed.
The gear ratios are strategically selected to balance low-end torque and top-end power, ensuring the rider can easily navigate different track sections.
The first and third gears are tuned to provide usable power across a broader range of speeds, allowing for smooth and efficient acceleration out of corners. The gear ratios maximize the engine’s power delivery, enabling riders to find the optimal balance between torque and speed.
One notable improvement in the 2022 CRF250R is the reduced friction and enhanced feel during gear shifts, particularly between the second and third gears. Honda's engineers have refined the transmission system to improve the shifting experience, making it smoother and more precise, ultimately enhancing the rider's control over the bike.
- The transmission system’s reliability and durability are also essential factors in motocross racing. The CRF250R’s transmission has been designed with improved strength and reduced weight. Using higher-quality materials and optimized engineering contributes to enhanced endurance and long-term performance.
- Riders can expect crisp and responsive gear changes, allowing them to adapt to changing track conditions and extract maximum performance from the bike.
- The well-calibrated gear ratios and smooth and precise transmission give riders the confidence to tackle challenging sections of the track and optimize their lap times.
I have created the table below to provide a concise and organized overview of the key points regarding the “Transmission and Gear Ratios” of the Honda CRF250R
Five-speed gearbox that transfers power from the engine to the wheels.
Durability and Reliability
3. Suspension of the Honda CRF250R:
The Honda CRF250R has a high-performance suspension system that provides exceptional handling and control on the motocross track. The suspension components work together to absorb bumps, maintain traction, and enhance the overall riding experience.
- The CRF250R features a 49mm fully adjustable leading-axle Showa fork at the front. This high-quality fork offers 12.2 inches of stroke, allowing it to absorb impacts effectively and maintain stability during jumps and rough sections of the track.
- The upper and lower triple clamps have been redesigned to improve rigidity and balance, enhance handling, and improve the feel through corners.
- The revised reinforcement ribs increase flex, providing better traction and bump-impact performance. Combining these features ensures that the front suspension delivers precise and responsive handling characteristics, allowing riders to navigate the track confidently.
- The rear suspension of the CRF250R utilizes a Pro-Link® system with a Showa shock absorber. This system has been updated with a revised ratio and adapted shape to harmonize with the new frame.
- The shock absorber is adjustable and offers 12.3 inches of rear wheel travel, effectively absorbing impacts and maintaining stability over rough terrain.
- The swingarm has been narrowed, providing increased clearance in ruts and improving rear traction and cornering performance.
- The rear suspension and front fork deliver excellent balance and overall stability, allowing riders to confidently tackle jumps, berms, and other obstacles on the track.
The suspension and handling characteristics of the CRF250R contribute to its excellent track performance. The well-tuned suspension system ensures optimal traction, stability, and control, allowing riders to maintain their line through corners and take on jumps confidently.
The improved handling characteristics give the bike an agile cornering approach, making it easier to navigate tight turns and change direction quickly.
With the CRF250R's suspension and handling setup, riders can expect a smooth and controlled ride, enabling them to push their limits and extract maximum performance from the bike.
12.2 inches long in length Completely adjustable having an inverted telescopic fork
12.3 inches wide Completely adjustable mono-shocks
Type of frame
Aluminum and double cradled
4. Brakes of the Honda CRF250R:
The Honda CRF250R has a single disc brake at the front and rear. The front brake is a 260mm hydraulic disc, while the rear brake is a 240mm hydraulic disc. The bike also features a lightweight rear brake caliper to help reduce un-sprung weight.
4.1. Front and Rear Brake Calipers:
The front and rear brake calipers are made by Nissin and designed to provide precise and consistent braking performance. The brake pads on the CRF250R are made by Dunlop and are designed to offer excellent stopping power and durability in off-road conditions.
4.2. Hydraulic Clutch System of Bike:
The bike’s hydraulic clutch system is also designed to provide precise and consistent control, helping riders to modulate the bike’s speed and power. The brake system on the CRF250R is designed to be as lightweight as possible, helping to reduce the bike’s overall weight and improve handling.
Features of brakes
Features of front brakes
2-piston caliper with a single disc
Features of rear brake
1-piston caliper with a single disc
5. Chassis of the Honda CRF250R:
- The Honda CRF250R features a lightweight aluminum frame that provides optimal handling and stability. The bike also features a Pro-Link rear suspension system designed to provide optimal traction and performance.
- The frame features a twin-spar design consisting of two parallel beams that run from the steering head to the swing-arm pivot. This design provides optimal rigidity and stability while minimizing weight.
- The frame design focuses on centralizing the bike’s mass, improving handling and maneuverability. This is achieved by placing the fuel tank and other heavy components as close to the bike’s center as possible.
- The engine is mounted to the frame using a series of carefully positioned mounts, which provide optimal stability and reduce vibration for a smoother ride.
- The frame also features precise mounting points for the front and rear suspension, which allow for maximum adjustability and customization to suit the rider’s preferences and riding style.
6. Unique Weight Reduction Design:
The weight reduction design of the Honda CRF250R focuses on achieving a lighter overall weight for increased agility and improved handling on the motocross track. By reducing the weight of various components, Honda has made the CRF250R a more agile and responsive machine.
Here are some key aspects of the weight reduction design:
The aluminum frame of the CRF250R has been updated to be 1.5 pounds lighter than previous models.
Honda's engineers have carefully redesigned the frame's main spars, utilizing smaller cross-sections and optimized rib placement in the pivot plates. This maintains longitudinal rigidity for stability while reducing lateral rigidity by 20% to enhance handling feel during cornering.
The subframe of the CRF250R features a simplified design that eliminates separate seat support, resulting in a weight reduction of 0.7 pounds. This contributes to the overall weight savings and improves the bike’s maneuverability.
- Exhaust System:
The CRF250R now uses a single straight exhaust port and a single muffler design, replacing the previous dual-muffler configuration.
This change not only improves low-rpm drivability and torque but also reduces the weight of the exhaust system. The single exhaust header has been routed closer to the engine, resulting in a narrower cross-section and improved rider mobility.
- Individual Components:
Honda has implemented weight-saving measures on numerous individual components throughout the CRF250R. By carefully analyzing each part, engineers have identified opportunities for weight reduction without compromising durability or performance.
For example, the bolts that secure the main bodywork components have been optimized to have smaller 8 mm heads, reducing weight while maintaining structural integrity.
The overall result of the weight reduction design is a significant reduction in the CRF250R’s weight by 8 pounds, bringing it down to 229 pounds. This reduction enhances the bike’s agility, making it easier to maneuver through corners, jump, and change direction quickly on the track.
By prioritizing weight reduction while maintaining strength and durability, Honda has created a CRF250R that offers improved handling characteristics and a more responsive riding experience for motocross enthusiasts.
7. Tires and Wheels:
The Honda CRF250R comes with Dunlop MX33 tires as standard. The front tire is 80/100-21, while the rear is 100/90-19. These tires provide excellent grip and handling on a variety of terrains. The tires feature a knobby tread pattern, which helps to dig into loose soil and provide maximum traction in challenging off-road conditions.
- The Dunlop Geomax MX33 tires feature a dual-compound construction, with a softer compound on the edges for improved cornering grip and a harder compound in the center for better durability and straight-line stability.
- The tires are designed to be lightweight, which helps to reduce un-sprung weight and improve handling and acceleration. The CRF250R features a tubeless tire design, eliminating the need for an inner tube and reducing the risk of punctures and pinch flats.
Wheels are considered the essential components of this dirt bike which help maximize its performance. These wheels, in combination with tires, offer an ideal level of stability and grip for the rider.
The front tires in this vehicle are larger than the back wheel, which is the reason for stability. On the other hand, the tires on the back wheel are made of softer material, offering an exceptional grip on roads.
The Honda CRF250R features several advanced electronics, including HRC Launch Control, designed to help riders get off the line quickly and smoothly. The bike also features a programmable ECU, allowing riders to fine-tune its performance to suit their needs.
The CRF250R features an Engine Mode Select button, which allows the rider to choose from three different engine modes - Standard, Smooth, and Aggressive. Each mode provides a different level of power delivery and throttle response to suit different riding conditions and styles.
The bike has a digital meter that displays essential information such as speed, engine rpm, gear position, and more. This allows the rider to track their performance and adjust as needed.
The CRF250R features an electric starter, which makes it easier to start the bike quickly and efficiently. The bike is equipped with a lightweight lithium-ion battery, which provides reliable and long-lasting power for electronic systems.
9. Fuel Injection System of the Honda CRF250R:
There is a computerized fuel injection system in this vehicle with in-built sensors that help monitor the engine. This system helps adjust the air and fuel mixture combination for maximum performance and output.
There are different parts of this system, including:
- An injector
- A fuel pressure regulator
- A control body
- An air filter
The fuel capacity of a vehicle refers to the volume of fuel that its fuel tank can hold. In the case of the Honda CRF250R, it has a fuel tank capacity of 6.28 liters or approximately 1.66 gallons. This capacity determines the fuel stored in the motorcycle's tank at any given time.
10. Torque and Power of the Honda CRF250R:
The 2023 Honda CRF250R showcases impressive torque and power figures, making it a formidable choice for motocross enthusiasts.
The 2023 Honda CRF250R boasts an impressive engine performance, producing 37.8 horsepower and 18.0 pound-feet of torque. It ranks sixth among its competitors, while it shares the sixth position with the Yamaha YZ250F in terms of maximum torque.
It provides an advantage to the rider to remain within the power-band limits of the vehicle. The vehicle has improved valve and ignition timings with perfect cam gear that helps the rider enjoy every ride.
11. Ergonomics and Rider Comfort:
Ergonomics and rider comfort are essential considerations in the design of the Honda CRF250R. Honda has considered the needs of riders and implemented various features and adjustments to enhance the overall comfort and ergonomics of the bike.
Here are some key aspects of the CRF250R’s ergonomics and rider comfort:
- Adjustable Handlebars:
The handlebars of the CRF250R are adjustable, allowing riders to customize the positioning based on their preferences and riding style. The adjustable handlebars ensure riders find a comfortable and natural riding position, reducing fatigue and improving control.
- Seat Design:
The seat of the CRF250R is designed to provide optimal support and comfort during long rides and intense motocross sessions. Its slim profile allows for better maneuverability and control while offering enough padding to absorb impacts and reduce rider fatigue.
- Footpegs and Controls:
The positioning of footpegs and controls on the CRF250R is optimized for rider comfort and control. The footpegs are strategically placed to provide a comfortable and secure grip, allowing riders to maintain proper body position and stability.
The controls, such as the clutch lever and brake pedal, are designed to be easily accessible and adjustable, ensuring riders can operate them comfortably and efficiently.
- Bodywork and Graphics:
The CRF250R’s bodywork is designed for aesthetics and rider comfort. The slim and sleek bodywork allows riders to easily move around on the bike, shift their weight, and maintain control during jumps and cornering. The graphics on the bike are also carefully designed to provide visual cues and aid in rider positioning.
- Airbox and Filter Access:
The CRF250R features a convenient airbox and filter access system. The air filter can be accessed quickly and easily without needing tools, allowing for efficient maintenance and optimal engine performance. This design consideration saves time and effort during regular maintenance intervals.
By prioritizing ergonomics and rider comfort, Honda aims to provide a pleasant riding experience for motocross enthusiasts.
The adjustable handlebars, comfortable seat, well-positioned footpegs and controls, optimized bodywork, and user-friendly maintenance features all contribute to a bike that is capable on the track and comfortable for riders during long rides and intense racing conditions.
12. Maintenance and Service Intervals of the Honda CRF250R:
The maintenance schedule includes various tasks such as oil changes, air filter cleaning/replacement, chain lubrication, brake inspection, coolant replacement, and valve clearance adjustment. These tasks are crucial for keeping the bike’s components functioning properly and preventing premature wear or damage.
The service intervals for the Honda CRF250R Rally are indeed quite impressive. With a recommended service interval of every 8,000 miles, it provides owners with extended periods between servicing, reducing the frequency of visits to the workshop.

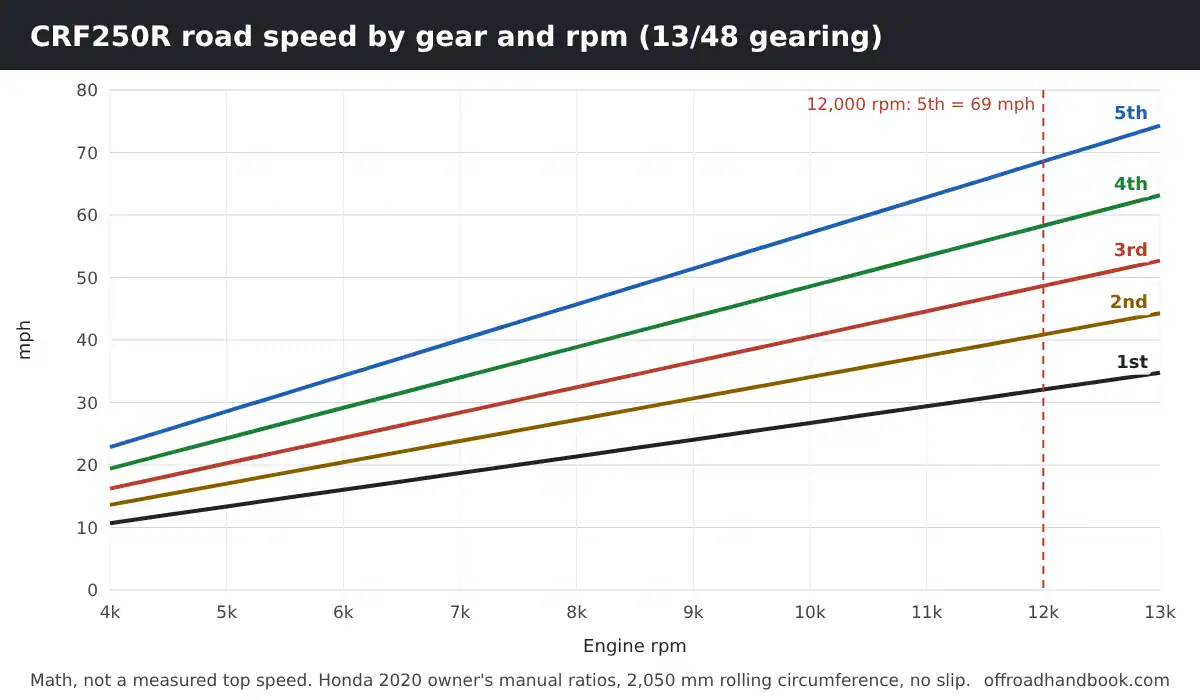

Top Speed of Honda CRF250R:
The top speed of the Honda CRF250R varies depending on various factors, such as the rider’s weight, the terrain, and weather conditions. However, the bike can achieve a top speed of around 70-75 mph (112-120 km/h) under ideal conditions.
It’s important to note that motocross bikes like the CRF250R are not designed for top-speed runs but for quick acceleration and maneuverability on off-road courses.
How to Increase the Top Speed of Honda CRF250R?
There are a few ways to increase the top speed of a Honda CRF250R. Still, it’s important to remember that motocross bikes are not designed for top-speed runs, and modifications can impact the bike’s reliability, safety, and performance.
Here let me define a few possible options:
- Changing the sprocket size can alter the bike’s gearing, leading to a higher top speed. However, this may also negatively impact the bike’s acceleration and low-end power, crucial in motocross racing.
- Upgrading the air filter and exhaust system can improve the bike’s airflow, resulting in a slight increase in power and potentially a higher top speed. However, this can also impact the bike’s fuel efficiency and reliability.
- Programming the bike’s ECU (Electronic Control Unit) can optimize the bike’s performance for maximum power and speed. However, this should only be done by a professional tuner who understands the bike’s limitations and can ensure its reliability and safety.
- It is recommended to improve the exhaust kit of the vehicle by replacing the poor parts with market offerings. You can install an excellent exhaust or adjustment kit in the vehicle with broad modification options.
- You can also install a large throttle body in the vehicle that can help increase the vehicle’s power. Focus on the air intake system, too, which will help the easier air flow and increase the vehicle’s power.
- If you want to make your vehicle responsive, lightweight suspension parts that effectively reduce the unsprung weight are recommended. Using high suspension parts in the vehicle is helpful to improve handling on the road.
Check the following video guide below illustrating the top speed of the Honda CRF250R:
Pros and Cons of Honda CRF250R:
Powerful engine for its class
Limited fuel tank capacity
Excellent handling and maneuverability
High maintenance costs
Lightweight and agile design
Higher price compared to some competitors
Advanced suspension system for improved off-road performance
Limited seat comfort for long rides
Durable and reliable build quality
Limited storage space for carrying belongings
Easy maintenance and service intervals
Lack of street-legal features (not designed for road use)
Wide availability of aftermarket parts and accessories
Limited passenger accommodations (single-seater)
Good resale value and strong market demand
Limited top speed compared to larger displacement bikes
Users’ Feedback/Review of the Honda CRF250R:
I never really liked Hondas until I had this one. It is amazing, the power is just unbeatable and overall is a great bike. I rarely ever have to adjust the valves on it and the feel of it feels great. I think this bike is a total buy.
“I have the ’08 CRF250R and it’s a great bike. It just needs better progress done to it. The CRF is the second best bike but the KX250F is a lot better. They’re both good bikes. If I had to pick one of these bikes, it would be the CRF because they last and better maintenance is done.”Source: cycleinsider.com
“It’s a good bike. The shocks are stiff but it rides good through the trails.”Source: cycleinsider.com
The Honda CRF250R showcases an impressive array of top-speed capabilities, advanced specifications, and standout features, making it a force to be reckoned with in its class.
Although the Honda CRF250R excels in many areas, it’s important to note that it’s primarily designed for off-road use and lacks certain street-legal features. Additionally, the bike’s single-seater configuration and limited storage space may not suit everyone’s needs.
In summary, the Honda CRF250R is a formidable off-road motorcycle that delivers on its power, performance, and durability promises. With its advanced features, easy maintenance, and engaging riding experience, it is an ideal choice for riders seeking a thrilling adventure on the trails.
How Fast Does a 125cc ATV Go?
How Fast Does 110cc ATV Go?
Best Bikes for Off-Roading in 2023- Top Picks for You
Dirt Bike Vs Street Bike- The Differences You Need to Know
Yamaha TTR 125 Top Speed, Specs, and Features- All You Want
Frequently Asked Questions (FAQs):
What is the average top speed of the Honda CRF250R?
The average top speed of the Honda CRF250R is confined to 60-70 mph. This vehicle weighs about 384 pounds and produces an average horsepower of 17 hp. It has a 229cc engine, delivering an average top speed of 50-70 mph.
How many gears are present in the CRF250R vehicle?
The Honda CRF250R has a 5-speed transmission and an O-ring sealed chain. It has a suspension front of a telescopic fork of 41 mm.
Which are the fastest dirt bikes in 2023?
The fastest dirt bikes in 2023 include the following ranges:
- Zero FX 2022 edition has a top speed of 85 mph.
- Kawasaki KLR 650, 2022 edition, has a top speed of 95 mph
- Honda CRF250R, 2022 edition, has a top speed of 87 mph
- Yamaha WR 250F, 2022 edition, has a top speed of 85 mph
How much is the size of the gas tank of CRF250R?
The gas tank of CRF250R holds a space of 2.4 gallons, an over-size fuel gas tank.
Is there any power band in CRF250R?
CRF250R holds a fast power band with a mid-range torque and power. This vehicle can boost midrange torque and power, providing an advantage on the terrain.
How much is the fuel capacity of the tank CRF250R?
The tank of CRF250R holds a fuel capacity of 1.7 gallons. It has a curb weight of 229 pounds, so that it can bear this weight.
