The Jeep Liberty CRD (2.8L turbodiesel, sold in the US for 2005 and 2006 only) most often fails in the fuel system: air in the lines, water in the filter, and a fuel-heater connector that can overheat and leak. Turbo boost leaks and EGR codes come next. Start with the cheap fuel checks before replacing anything.
NHTSA opened a probe on the heater connector in 2007 and closed it without a recall, so a diesel smell near the filter housing is a stop-driving problem, not a nuisance. The table below sorts every common symptom by what to check first.
Liberty CRD problems at a glance
Use this table to pick the first check. Codes are generic OBD-II, so confirm them with a scan tool before buying parts.
| Symptom or code | Check first (free) | Likely cause | Fix and who does it |
|---|---|---|---|
| Diesel smell, smoke or wet fuel at the filter housing | Look at the heater plug on the filter/water separator for moisture, melting or discoloration | Overheated fuel-heater connector leaking fuel (NHTSA PE07-041) | Do not drive. Replace the connector or filter head; shop job if the plastic is melted |
| Cranks, will not start, or starts then dies | Water-in-fuel lamp, filter seating and old seal, hand primer | Air in the fuel system or a clogged filter | Re-seat the filter, prime, bleed; shop if it keeps coming back |
| Water-in-fuel lamp | Drain the separator at the bottom sensor | Water in the fuel | Drain, change the filter, change fuel source |
| Stalls or loses power under load | Filter age, air leaks, stored codes, PCM software history | Fuel starvation, boost leak or software | Filter and leaks first; dealer for software and pump checks |
| P0299 (turbo underboost) | Boost hoses, clamps, intercooler connections, oil in the piping | Boost leak, then turbo or actuator wear | Fix leaks; turbo testing at a diesel shop |
| P0401 (EGR flow) | EGR valve and passages for carbon | Sticking or clogged EGR valve | Clean or replace; owners report repeat failures |
| Hard cold start, white smoke | Battery, glow-plug lamp wait, block heater in freezing weather | Weak battery, glow plugs or relay | Test and replace failed glow plugs |
| Oil leak, milky oil, coolant loss | Dipstick and coolant level | Crankcase vent leak; head gasket (owner-reported) | Stop driving if oil looks milky; diesel shop |
Owner reports on the Liberty CRD are anecdotal, and only the heater connector issue has an NHTSA file behind it. Treat the other rows as the most likely causes, not guarantees.
Most of these checks cost nothing and need only a flashlight and a scan tool, so work down the list rather than jumping to the turbo.

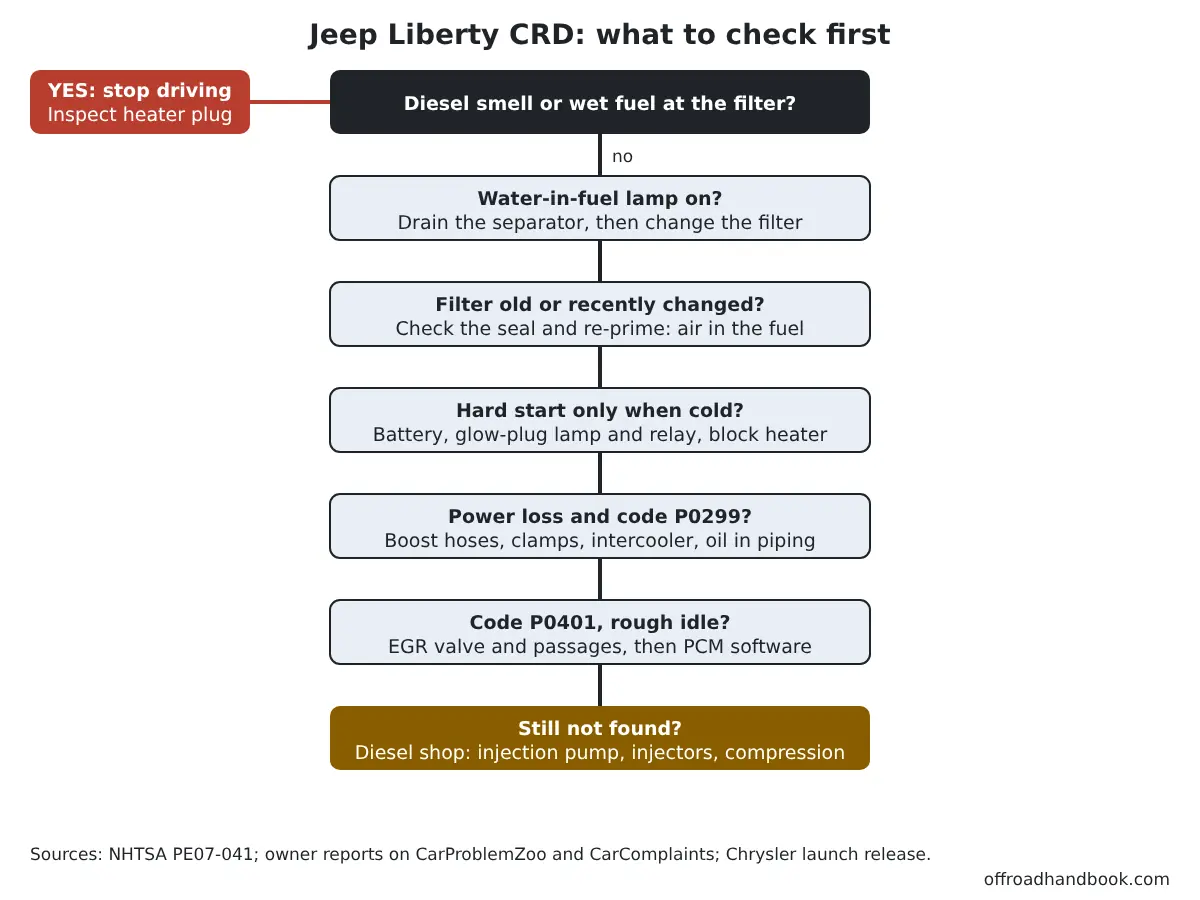

What order to check things in
Fuel problems explain most no-start and stall complaints on these engines, so they come first. Boost and EGR faults usually set a code, which makes them easy to confirm once the fuel side is ruled out.
Anything involving smoke, wet fuel or a melted plug skips the chart: park it and have it inspected.
What is your Liberty doing? Symptom checker
Based on NHTSA PE07-041, owner reports on CarProblemZoo and CarComplaints, and the Chrysler launch release. It orders checks; it does not diagnose your vehicle.

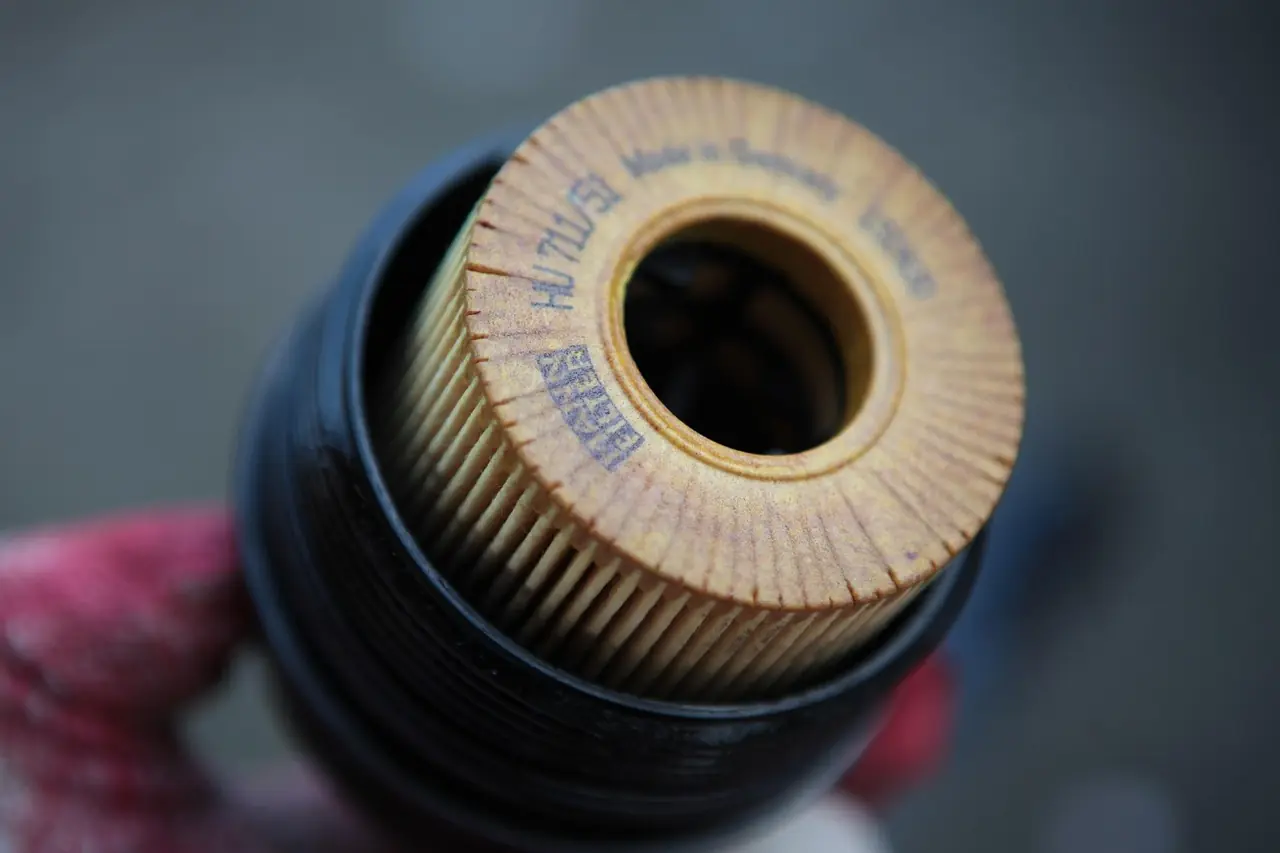

Fuel heater connector and filter housing
The fuel filter and water separator sit in the engine bay and include an electric heater that warms the diesel. NHTSA opened PE07-041 on August 8, 2007 after 12 reports of fuel leaking at the heater connector on 2005–2006 Liberty diesels, an estimated 20,000 vehicles (NHTSA opening resume).
One report described an under-hood fire. Other owners saw moist, burned or discolored plugs. NHTSA closed the file on December 7, 2007 saying no defect trend had been identified, adding that closing is not a finding that no defect exists (closing summary).
There is no recall for it. Owners also report that the heater was later redesigned, and some replace the filter head; those are owner accounts, not a Chrysler notice.
How to drain the water separator
The owner’s manual locates the filter but owners say it does not walk through draining. This sequence is quoted from a service-manual-style procedure shared on a Jeep forum, so confirm it against a Liberty service manual first:
- Wear eye protection and disconnect the negative battery cable.
- Unplug the water-in-fuel sensor connector under the filter.
- Attach a drain hose to the sensor and run it into a labeled container.
- Open the bleed screw on top of the housing, then loosen the sensor at the bottom.
- Drain until fuel shows, then tighten the sensor and bleed screw and clean up spills.
Replace the filter at the interval in your owner’s manual; one owner cites 25,000 miles, but that is not an official figure. A tagged search for a Liberty CRD fuel filter will turn up options, so match the part to your VIN.
Air in the fuel: no-starts and stalling
Hard starts, long cranking and stalls after a filter change usually mean air in the fuel. Owners in a long Jeep forum thread list the same order of checks: filter fully seated, old seal not left on the head, then re-prime and bleed.
The same thread reports a plastic filter head that should be upgraded and a crankshaft position sensor that fixed one stall-after-warm-up (an aftermarket sensor cost $52 for that owner).
Extended cranking with no fuel can damage the high-pressure pump, so crank in short bursts and stop if it will not catch after priming.

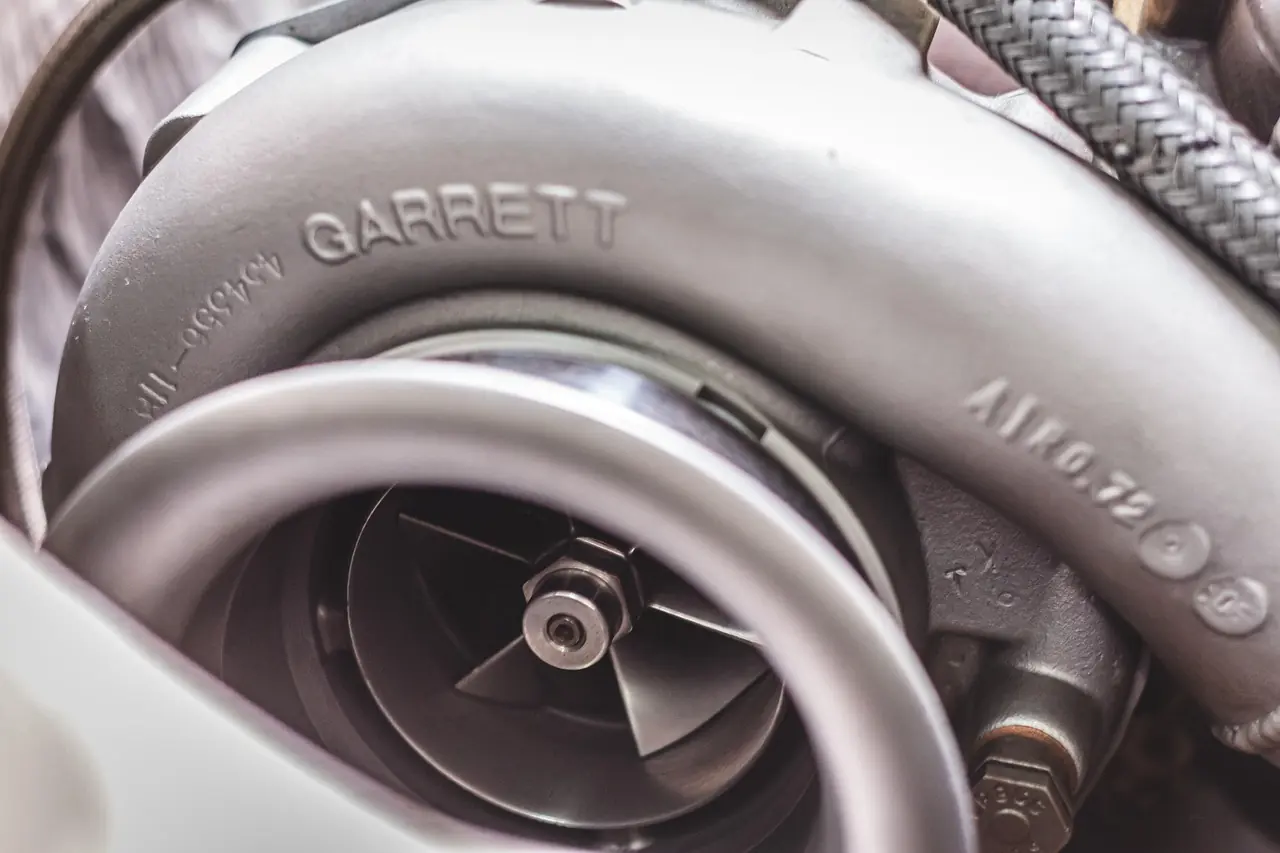

Turbo, boost and intercooler

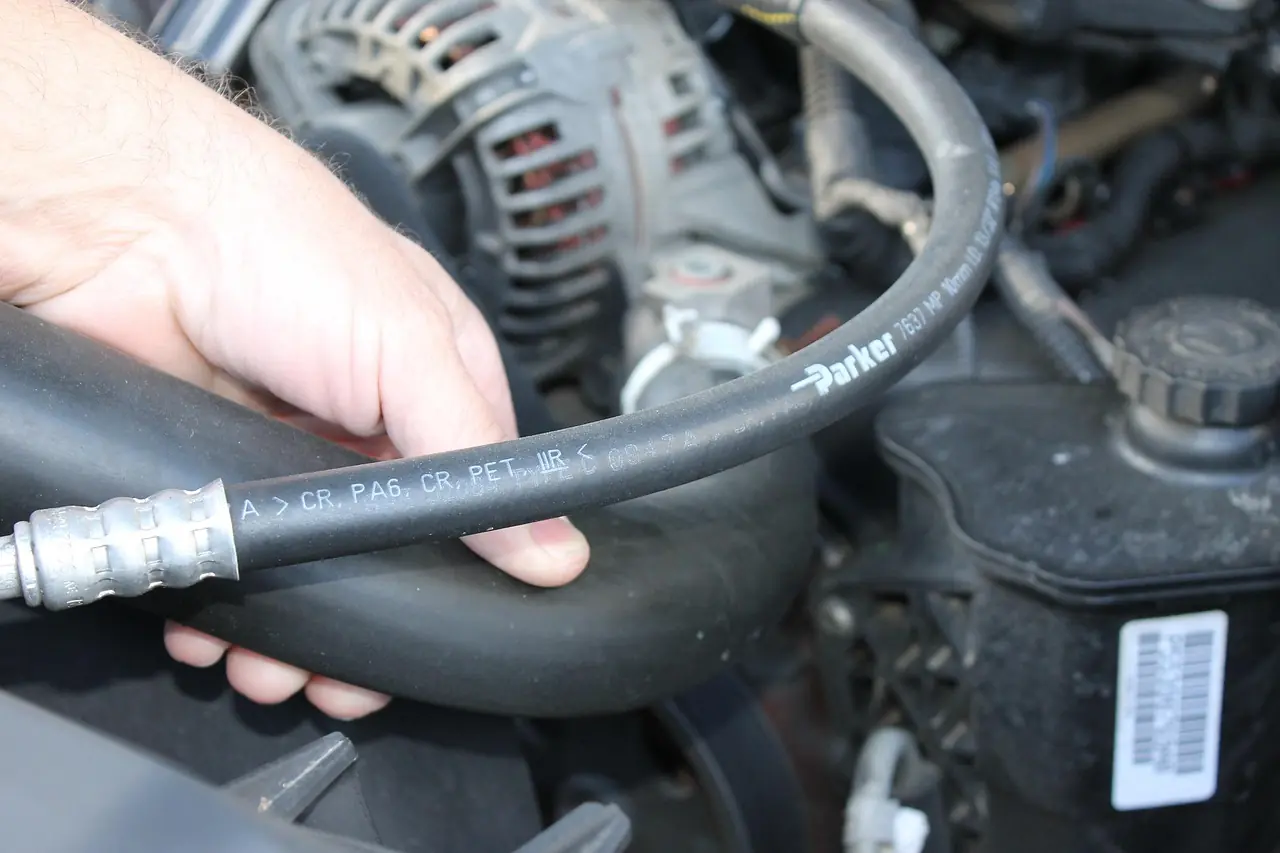

A P0299 underboost code has several causes, and the cheapest is a boost leak. Check every clamp and hose between the turbo, intercooler and intake, and look for oil residue that shows where air escapes.
CarProblemZoo owner reports include a turbo wastegate hose leak that caused low boost. Owners also report turbo failures; a quick check is oil pooled in the intake piping.
If hoses are tight and boost is still low, a diesel shop can test the turbo and its actuator. Do not guess here: turbos are the costly part.
EGR valve and crankcase vent
P0401 means insufficient EGR flow. On a diesel the valve and passages collect carbon, so cleaning is the first step and replacement the second.
Two 2006 owners in NHTSA data report the EGR valve being replaced more than once, with sputtering and the check engine light returning (CarComplaints). Repeat failures suggest the valve may not be the root cause.
Do not delete or block the EGR on a road vehicle; that can violate federal and state emissions law.
Glow plugs and cold starts
Turn the key to ON and wait for the glow-plug lamp to go out before cranking. A weak battery makes cold starts worse, so test it before blaming the plugs.
CarComplaints lists a July 14, 2006 service bulletin on glow-plug operation and torque converter behavior (TSB list). A dealer can say whether it applies to a given VIN.
Test plugs one at a time. A seized plug can snap off, so soak it with penetrating oil and loosen it gradually or leave it to a shop.

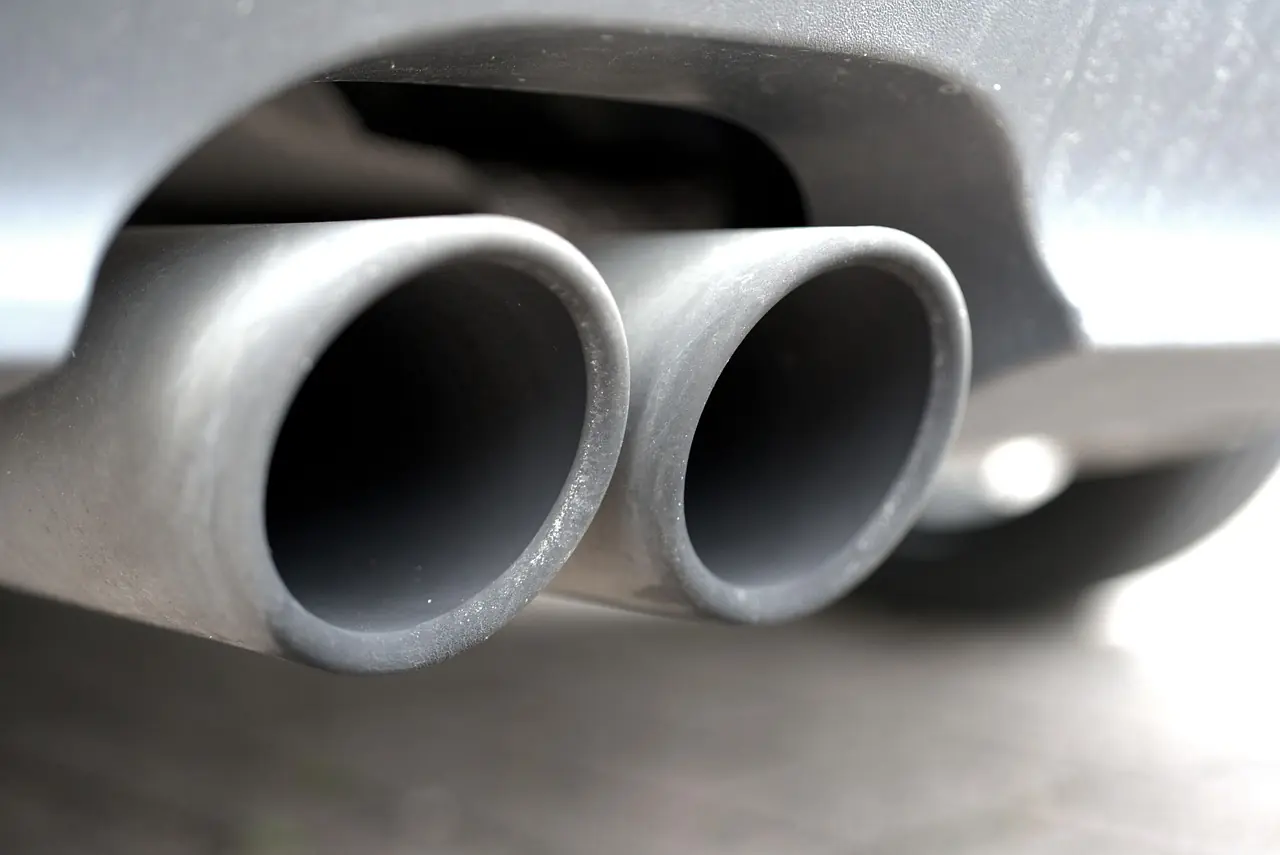

Smoke, oil leaks and coolant in the oil
Blue smoke at idle points to oil burning, often turbo seals or worn rings. Black smoke under load points to too much fuel or too little air, which brings you back to boost leaks and EGR.
Owners report crankcase-vent oil leaks and head gasket failures on these engines. Those reports are anecdotal, so treat them as things to rule out, not as typical failures.
Milky oil or steady coolant loss means stop driving. Another look at the cooling system helps; see our guide on why a Jeep overheats.
Recalls, investigations and bulletins
| Item | Date | Applies to | What it covers |
|---|---|---|---|
| NHTSA PE07-041 | Aug 8 – Dec 7, 2007 | 2005–2006 Liberty diesel | Fuel leak at heater connector; closed, no recall |
| Recalls 12V-085 and 18V-278 | 2012 and 2018 | Certain 2004–2007 Liberty | Rear lower control arm corrosion; free replacement. Check your VIN |
| Bulletin, extreme cold start | Feb 16, 2005 | Listed for 2005 Liberty | Cold-start improvement and erroneous code |
| Bulletin, glow plug and torque converter | Jul 14, 2006 | Listed for 2005–2006 | Glow-plug operation, torque converter behavior, code P0504 |
| Bulletins, torque converter | Apr 12 and Dec 1, 2006 | Listed for 2005–2006 | Rattle, lock-up behavior, possible converter failure |
The two recalls apply to many Libertys, diesel or gas, so run the VIN lookup before buying one.
Bulletins are not recalls: they tell a dealer how to fix a known symptom, and repairs may not be free. Ask the dealer to check the VIN for software updates.
Liberty CRD specs by model year
| Item | 2005 | 2006 |
|---|---|---|
| Engine | 2.8L common-rail turbodiesel | Same |
| Output | 160 hp at 3,800 rpm, 295 lb-ft at 1,800 rpm | Same |
| Drivetrain | 4x4, 5-speed automatic (Sport, Limited) | Same |
| Tow rating | 5,000 lb (Chrysler launch figure) | Same |
| EPA mpg city/hwy/combined | 19 / 24 / 21 | 19 / 23 / 21 |
| Factory fuel | B5 biodiesel blend from the Toledo plant (stated in 2006) | B5 |
Chrysler’s launch estimates were higher at 22 mpg city and 27 mpg highway (Rockcrawler); the EPA figures above are the later adjusted ratings.
Buying a used Liberty CRD
- Ask for service records: fuel filter changes, glow plugs, EGR and any turbo or injector work.
- Look at the filter housing plug for melting or old leaks.
- Pull codes with a scan tool and check for P0299 and P0401.
- Look for oil in the intercooler piping and for smoke on cold start.
- Run the VIN at nhtsa.gov/recalls for the control arm campaign.
- Find a diesel-capable shop first; only two model years were sold here.
Changing tire size? Run it through the tire size calculator to see speedometer error, and see our Jeep stall and no-start guide if any engine dies while driving.
Frequently asked questions
Which Jeep Liberty years had a diesel?
2005 and 2006 only in the US, in Sport and Limited trims. Per Wikipedia, it could not be sold in California, New York, Massachusetts, Maine or Vermont.
Is the Liberty CRD reliable?
No published reliability statistic exists. Owner reports repeat fuel heater, EGR, turbo and torque converter complaints, so a pre-purchase diesel inspection is worth the money.
Can I fix a Liberty CRD myself?
Filters, hoses, glow plugs and EGR cleaning are within reach of a careful home mechanic. High-pressure fuel work and turbo diagnosis belong at a diesel shop.
Is the fuel heater connector recalled?
No. NHTSA closed PE07-041 without a recall, but a wet or scorched plug is still worth fixing at once.
