3.6 Jeep JK Upgrades: Gear Ratios, Tunes and Bolt-Ons
Last updated on October 19th, 2026 at 09:46 am
The 2012 to 2018 Jeep Wrangler JK with the 3.6L Pentastar V6 makes 285 hp at 6,400 rpm and 260 lb-ft at 4,800 rpm, according to Jeep. The upgrade that changes how it drives most is regearing both axles once you run tires of about 33 inches or taller. Bolt-on parts come with vendor claims, but no independent dyno data turned up for this engine.
Below are Jeep’s factory axle ratios, the ratio that restores stock engine rpm for your tires, a calculator, and what a tune, intake, exhaust or supercharger is documented to do. The 3.8L it replaced has its own 3.8 JK upgrade guide.
Factory gearing on a 3.6 JK
Jeep lists three axle ratios for these years: 3.21, 3.73 and 4.10. Sport and Sahara came with 3.21 and offered 3.73. The Rubicon came with 4.10 on the manual and 3.73 on the automatic, with 4.10 optional (see the Jeep 2013 Wrangler specifications and the Jeep 2018 Wrangler JK specifications).
The automatic is the five-speed W5A580 with a 0.83 fifth gear. The manual is the six-speed NSG 370 with a 0.797 sixth gear. Multiply the top gear by the axle ratio and by Jeep’s revs per mile for the stock tire, and you get cruise rpm.
| Model | Transmission | Axle ratio | Stock tire (revs per mile) | rpm at 70 mph |
|---|---|---|---|---|
| Sport | 6-speed manual | 3.21 or 3.73 | P225/75R16 (712) | 2,125 or 2,469 |
| Sport | 5-speed automatic | 3.21 or 3.73 | P225/75R16 (712) | 2,213 or 2,572 |
| Sahara | 6-speed manual | 3.21 or 3.73 | P255/70R18 (653) | 1,949 or 2,265 |
| Sahara | 5-speed automatic | 3.21 or 3.73 | P255/70R18 (653) | 2,030 or 2,359 |
| Rubicon | 6-speed manual | 4.10 | LT255/75R17 (650) | 2,478 |
| Rubicon | 5-speed automatic | 3.73 or 4.10 | LT255/75R17 (650) | 2,348 or 2,581 |
Trim and wheel packages vary by year, so match the tire to the size on your door placard. Jeep’s sheet also shows a 3.06:1 “final drive” and a 2.54 overall top gear for the automatic. Neither matches an axle option times 0.83, so the table multiplies the listed gear by the axle ratio instead. Check your own axle tag, because a previous owner may have changed gears.
3.6 JK cruise rpm and ratio calculator
3.6 JK cruise rpm and gear ratio calculator
Enter your setup and press Calculate.
Built on Jeep’s published gear ratios and tire revs per mile, plus arithmetic: rpm = mph ÷ 60 × revs per mile × axle ratio × top gear. Peak torque and power figures are from the Jeep specification sheets. It is not a recommendation engine, so weigh weight, towing and driving against the tables on this page.
For other trucks or a different gear list, use the general regear calculator. The full list of off-road calculators covers tire, angle and winch math.
What bigger tires do to a 3.6 JK
A taller tire turns the axle more slowly at the same road speed, so it acts like a numerically lower gear ratio. A Sport with 3.73 gears and stock tires that rolls like a 28.3 inch tire drives like a 3.02 once 35s go on.
A Rubicon with 4.10 lands near 3.64 on the same tires. At 70 mph the Sport automatic drops from 2,572 rpm to about 2,081, well below the 4,800 rpm where Jeep puts peak torque.
Jeep’s manual also warns that replacing tires with a different size “may result in false speedometer and odometer readings” (2012 Wrangler owner’s manual). Use the tire size calculator to see your error before you buy.
Which axle ratio restores factory rpm?

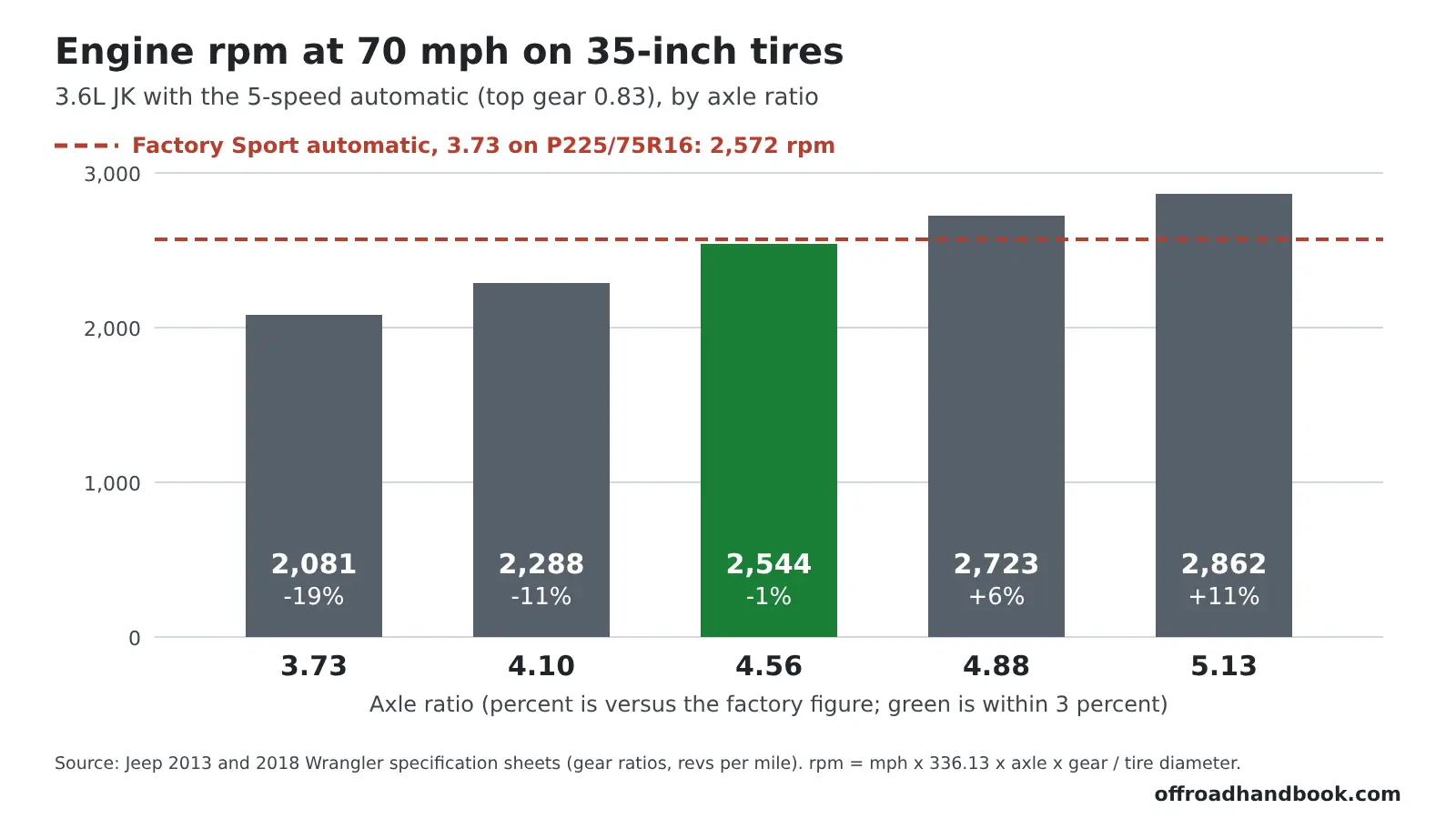

The chart shows a Sport automatic on 35-inch tires. Stock 3.73 gears leave it 19 percent under factory rpm, and 4.56 brings it back within 1 percent. Going to 4.88 pushes rpm 6 percent above factory.
Your starting point changes the answer, so the table below works from each factory setup. The ratio is the factory ratio times the new tire diameter divided by the factory tire diameter.
| Factory setup (tire diameter) | 33 in tires | 35 in tires | 37 in tires |
|---|---|---|---|
| Sport 3.21 (28.3 in) | 3.74 | 3.97 | 4.19 |
| Sport 3.73 (28.3 in) | 4.35 | 4.61 | 4.87 |
| Sahara 3.21 (30.9 in) | 3.43 | 3.64 | 3.85 |
| Sahara 3.73 (30.9 in) | 3.99 | 4.23 | 4.47 |
| Rubicon automatic 3.73 (31.0 in) | 3.97 | 4.21 | 4.45 |
| Rubicon 4.10 (31.0 in) | 4.36 | 4.62 | 4.89 |
Shops sell a short list of ratios: Exodus 4x4 calls 4.10, 4.56, 4.88, 5.13 and 5.38 the typical ones. For 35s on a 3.6, Core Transmission Parts suggests 4.56 or 4.88 on the automatic and 4.88 on the manual, and Jeep JK Guide names 4.88 as best, with 4.56 as the pavement compromise.
Those picks come from regear shops and parts sellers, not Jeep. Exodus also advises moving up one ratio for each 300 pounds of added gear, which is why a heavy build lands above the factory-rpm number.
How to regear a JK without surprises
- Confirm your current ratio from the axle tag or build sheet, then pick a target from the tables.
- Order the same ratio for both axles. The spec sheets list a Dana 30 front and Dana 44 rear on Sport and Sahara, and Dana 44s front and rear on the Rubicon, so match the gear set to your axles.
- Ask what the quote includes. One shop’s published list covers both ring-and-pinion sets, install kits, new front seals, tire-size reprogramming, fluids and a 500-mile inspection.
- Follow the shop’s break-in. Exodus describes a first drive of 15 to 20 minutes of normal stop-and-go driving, with no hard starts, towing, off-roading or highway speeds.
- Use the right gear oil. Jeep’s manual lists SAE 80W-90 API GL-5, synthetic 75W-140 in the rear for trailer towing, and an additive for Trac-Lok limited-slip axles (2012 Wrangler owner’s manual).
- Have the tire size corrected so the speedometer and odometer read true again.
Price is the weak spot. Exodus 4x4 publishes $2,050 to $2,350 for both axles on a 2007 to 2018 JK, while Jeep JK Guide cites $900 to $1,600 reported by owners. No neutral source settles it, so get itemized written quotes.
Four-wheel drive also depends on matched tires. Jeep’s manual says it needs tires of equal size, type and circumference on each wheel, and mismatches can damage the transfer case. After a lift or tire change, see problems after a lift kit.
Do a tune, intake or exhaust help a 3.6 JK?
| Upgrade | What is documented | Evidence |
|---|---|---|
| Regear | Restores factory rpm by arithmetic from Jeep gear data | Strong, calculated |
| Tune or power module | Jeep lists 87 octane as the fuel and says premium is “not recommended” for these engines | No independent dyno found |

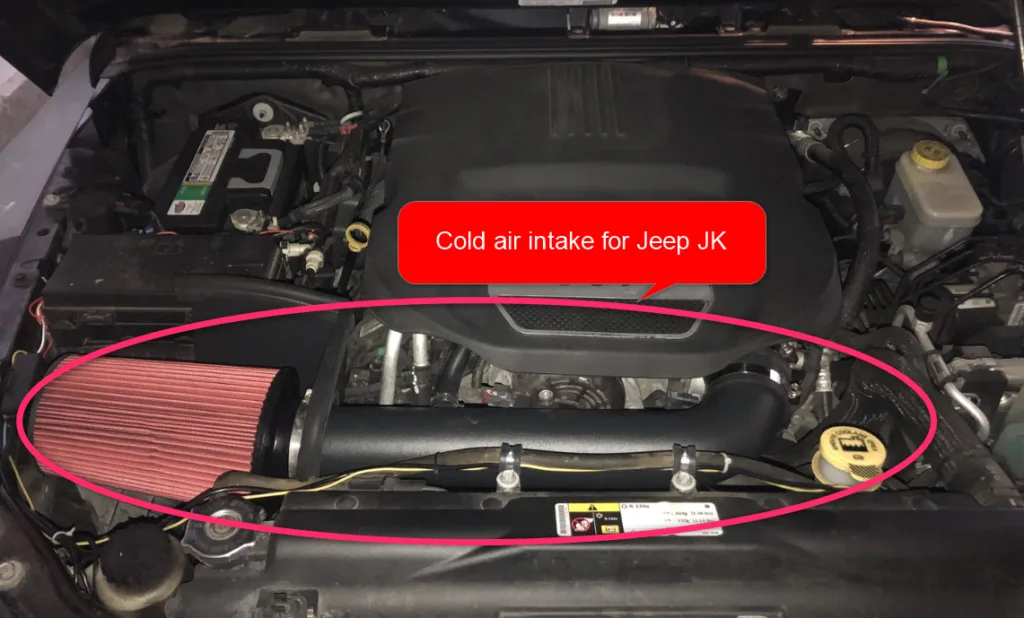

| Cold air intake | In California the part needs a CARB exemption that lists your vehicle | No independent dyno found |
| Cat-back exhaust | Jeep JK Guide’s exhaust article calls gains “modest” and says skepticism about power claims is justified | Owner reports only |
| Supercharger kit | Magnuson’s TVS1900 kit page lists 404 hp in the description, 440 hp in the headline, $7,895 and a CARB order | Vendor claim, internally inconsistent |
The manual says 87 octane is the right fuel for this engine, so check what octane any tune requires before buying one. The Magnuson page also warns that calibration changes may affect warranty and emissions status.
Every aftermarket power figure here came from a seller or an owner. Ask for a dyno sheet from a JK with your engine and transmission before paying for horsepower.
Warranty, emissions and recalls
FTC staff guidance on warranties says a company cannot deny coverage solely because you used another maker’s part. It can still disclaim damage caused by that part. Keep receipts and stock parts.
In California, parts that change emissions need an exemption. CARB Executive Order D-590-14 for one intake lists specific vehicles and is valid only if the instructions do not recommend tuning away from Jeep’s specifications. It also says it gives no opinion on warranty.
Jeep’s manual warns that any modification “could seriously affect its roadworthiness and safety,” and that intentional tampering with emissions controls can bring civil penalties. Run your VIN through the NHTSA recall lookup before spending money.
Questions about the 3.6 JK
Do I need to regear for 33-inch tires?
It depends on where you start. A Rubicon with 4.10 needs about 4.36 to match factory rpm on 33s, so 4.10 runs about 6 percent under. A Sport with 3.73 needs 4.35, and a Sahara with 3.73 needs 3.99.
Why does my automatic hunt for gears on bigger tires?
The engine sees less rpm and leverage at the same speed, so the transmission shifts more often. Jeep’s manual lists an O/D OFF button on the center console that keeps the automatic out of overdrive. A regear fixes the cause.
Does regearing improve gas mileage?
Jeep lists 17 city and 21 highway mpg for the 3.6 in the 2013 sheet. A higher ratio raises rpm at cruise, as the chart shows, and no source opened for this guide measured the fuel change.
Does the axle ratio change towing capacity?
In the 2018 four-door table, 3.21 gears list 2,000 pounds and 3.73 or 4.10 list 3,500 pounds. The 2013 table lists 2,000 pounds for every ratio. Jeep lists ratings by factory ratio, so confirm with Jeep before towing near the limit after a regear.
