Jeep Wrangler ABS Light On? Causes, Fixes and Why It Won't Reset
Last updated on October 26th, 2026 at 07:54 pm
A Jeep Wrangler ABS light stays on because the anti-lock controller has found a fault and switched the anti-lock function off. Both the 2017 Wrangler JK owner's manual and the 2021 Wrangler JL owner's manual say the normal brakes keep working, but only if the red BRAKE light is not also on.
Work through it in order: brake fluid, fuses, each wheel's sensor and wiring, then a scan tool that can read the ABS module. If the red BRAKE light comes on with the ABS light, or the pedal feels soft, stop driving and have the Jeep towed.
Wrangler ABS light: symptom, likely cause and fix
The table below matches what you see on the dash to the likely cause. Where a Jeep source exists it is named. Steps that only come from shop practice are marked as that.
| What you see | Likely cause | Check or fix |
|---|---|---|
| Yellow ABS light only, stays on | The anti-lock part of the brake system is not working (both manuals) | Brakes work normally. Service it as soon as possible. Scan the ABS module for codes. |
| ABS light and red BRAKE light together | Electronic Brake Force Distribution (EBD) failure, low fluid or a hydraulic fault (both manuals) | Stop driving. Both manuals call for immediate repair. Tow it. |
| ABS light after mud, water or a trail hit | Damaged sensor wire or connector, or debris at a wheel speed sensor (shop practice) | Inspect each wheel. Chrysler's JK tech tip says to check the wiring and connector before replacing a sensor. |
| ABS light after new tires or wheels | Mixed tire sizes. The JL manual says ABS is designed for original-equipment tires | Return to a matched set. Check the sizes with a tire size calculator. |
| ABS light and ESC light both stay on | A fault in the stability control system, which shares the pump and valves (JL manual, fuse chart) | JL manual: if the ESC light stays on after several ignition cycles and several miles above 30 mph, see a dealer. |
| ABS light after fitting a trailer brake controller (2020 JL) | Stop lamp circuit code B1783-01 (TSB 08-019-21) | Dealer reflash of the ABS module, listed at 0.2 hours. |
| ABS light never comes on at start-up | The warning light itself may be faulty | Both manuals: have the light inspected. A dead warning light hides a real fault. |
A blown fuse or a failed ABS module can cause the same light, so a fault code is the only way to know which wheel or part is at fault.
If the Jeep also had a recent brake job, check that nobody disturbed a sensor wire. Brake work moves the same parts the sensors sit next to.

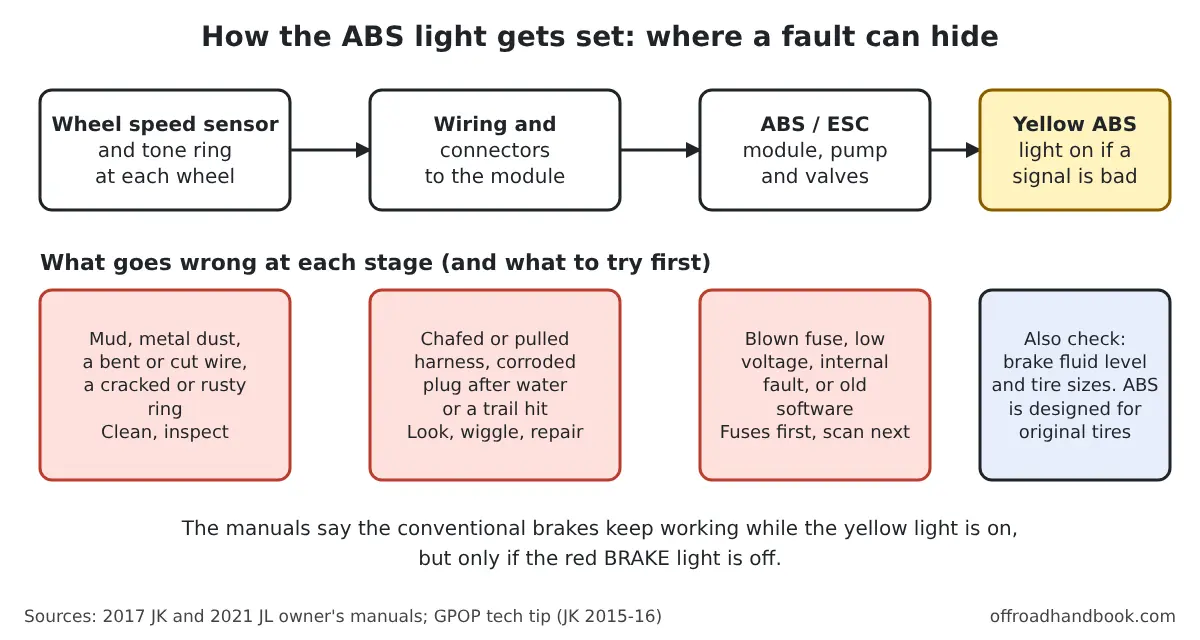

How an ABS fault sets the light
Each wheel has a speed sensor that reads a toothed ring turning with the hub. The module compares the four signals. If one is missing or does not make sense, it turns the anti-lock function off and lights the yellow lamp.
That is why the fault can sit in three places: at the wheel, in the wiring on the way to the module, or in the module and its power. The manuals only cover the lamp behavior; the sensor steps below are shop practice.
What the warning lights mean on JK and JL Wranglers
The yellow ABS light comes on when the ignition is turned to ON/RUN and can stay on for up to four seconds as a bulb check. After that it should go out. If it stays on or lights while driving, the anti-lock portion is not working and service is needed.
The red BRAKE light is different. It means the parking brake is on, fluid is low or there is a hydraulic fault. Both manuals warn that driving with it on is dangerous, and that an EBD failure turns the BRAKE light on along with the ABS light.
The 2021 JL manual adds that its brake light can also mean the ABS/ESC system found a brake booster problem. In that case the ABS pump runs when you press the pedal and you may feel pulsation.

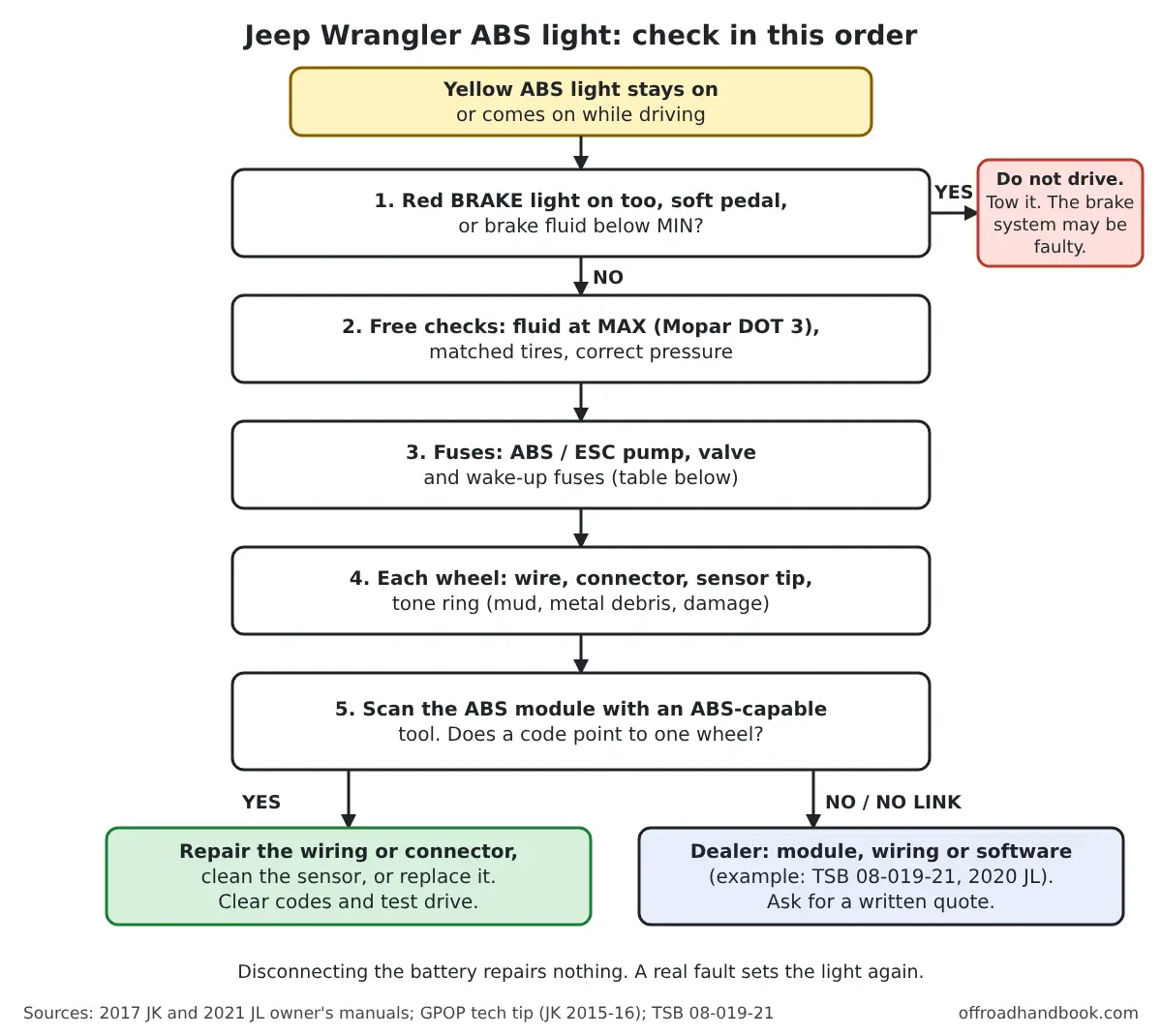

ABS light diagnosis order
Start at the top. Free checks come first, then a look at each wheel, then the scan tool. Anything that needs the module replaced or reflashed goes to a dealer.
The steps below explain each box in the chart, with the manual values.
Step 1: brake fluid and tires (free)
Check the reservoir under the hood with the Jeep level. Both manuals call for Mopar DOT 3 brake fluid (SAE J1709 in the JL manual, SAE J1703 in the 2017 JK manual). Never top off with a different type. The JL manual says abnormally low fluid means you should check the system for leaks, and not to overfill.
Then look at the tires. The JL manual says ABS is designed for the original-equipment tires and that modifications may degrade ABS performance. It also says to replace tires in pairs. A big difference in rolling diameter between wheels is worth ruling out.
If you changed tire size, run the numbers in the tire size calculator to see the diameter and speedometer change.
Step 2: ABS and ESC fuses
Fuses are free to check. The charts below come from the owner's manuals. Both generations keep them in the engine compartment near the battery. Layouts differ by year and options, so confirm against the label inside your own cover.
| Wrangler | Fuse | Rating | Circuit (manual wording) |
|---|---|---|---|
| 2021 JL (power distribution center) | F34 | 10 A | ESC / electric power steering / smart bar control module wake-up |
| 2021 JL | F100 | 30 A | ESC-ECU and valves |
| 2021 JL | F106 | 50 A | ESC pump motor |
| 2017 JK (Totally Integrated Power Module) | J6 | 40 A | ABS pump / stability control |
| 2017 JK | J7 | 30 A | ABS valve / stability control |
| 2017 JK | M37 | 10 A | ABS, ESC, stop lamp switch, fuel pump relay |
Replace a blown fuse with the same rating. A fuse that blows again points to a short in the wiring or a failing pump motor, which needs diagnosis, not a bigger fuse.
The large 40 A, 50 A and 30 A cartridge fuses are easy to miss. Pull and look at each one with the key off.

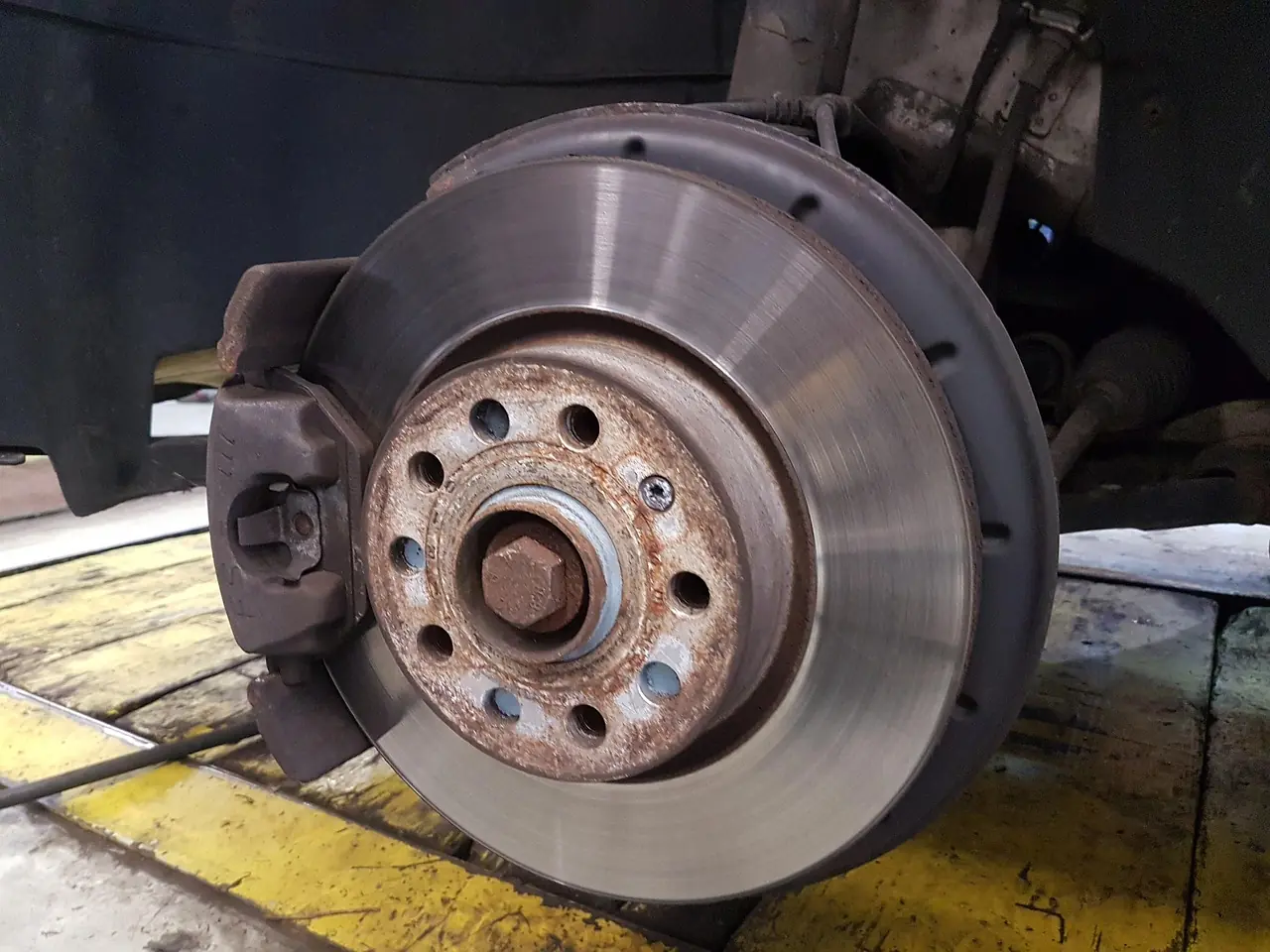

Step 3: wheel speed sensors, wiring and tone rings
This is the step where life off-road matters most. Chrysler's tech tip for 2015-2016 JK wheel speed sensors tells technicians to check the wiring and connector before replacing a sensor. It also says to record the fault codes and note any damage to the sensor if one is replaced.
With the Jeep safely on stands, look at each wheel for the following. None of these steps comes from the owner's manuals, and torque or air-gap numbers are in the Jeep service manual, so none are listed here.
- The sensor wire: cuts, chafing or a loop dragging near the axle, control arm or brake line.
- The connector: loose, packed with mud or green with corrosion.
- The sensor tip: metal dust or mud stuck to it.
- The toothed ring on the hub or axle: cracks, rust or missing teeth.
- The brake work: a sensor knocked loose or a wire pinched after pads or rotors were changed.
Clean what is dirty, repair what is damaged and clear the codes. A code that comes back for the same wheel means the sensor or its wire is bad.
Step 4: read the ABS codes
A cheap engine-only reader often cannot talk to the ABS module. Use a scan tool that lists ABS or chassis modules. Dealers use Stellantis's wiTECH tool, which is how the TSB procedures are written.
The code points to a wheel, a circuit or the module. If the tool cannot talk to the ABS module at all, check the fuses again, then book a shop.
ABS light checker for JK and JL Wranglers
Pick your Jeep and what it is doing. The tool lists your checks in order: free first, then tools, then the dealer.
It is built only on the manuals, the fuse charts and the bulletins linked in this post. Shop-practice steps are labeled.
The checker cannot read your codes. It orders the checks so you do not spend money on a sensor before the free causes are ruled out.
If it tells you to stop, stop. A red BRAKE light is not a diagnostic step; it is a reason to tow.
ABS light after mud, water or a trail hit
Trails are hard on sensor wiring. Mud packs the connector, branches catch the harness and a rock hit can bend a bracket. The light may come and go while the connector is wet or loose.
Our guide to Jeep problems after mud or water covers the brake, ABS and smell checks to run after a wet trail. Wash the wheel wells and sensor areas gently, and avoid blasting a connector with a pressure washer.
A light that returns only after wet or muddy runs points to a connector or wire. A light that stays on all the time points to a failed part or a blown fuse.
Trailer brake controllers and the 2020 JL
Stellantis TSB 08-019-21 covers 2020 JL Wranglers. It says a stop lamp control code, B1783-01, can set after a Mopar or aftermarket trailer brake controller is installed. The cause is 12 volt back-feed into the redundant stop lamp connection between the body control module and the ABS module.
The fix is a software update to the ABS module, followed by an ABS initialization and a brake pedal calibration. The bulletin lists 0.2 hours of labor and says it needs wiTECH. Ask a dealer about it if the light appeared after a tow package install.
Can you reset the ABS light with the battery?
No, it does not fix anything. The manuals describe the ABS light as a monitor: it checks at ignition and stays on while the system finds the anti-lock portion not functioning. A real fault is found again and the light returns.
Disconnecting the battery also clears radio presets and other learned settings. The reliable way to turn the light off is to repair the fault and clear the stored codes with a scan tool. Do not pull the ABS fuse to hide the light, since that cuts power to the pump or valves and disables anti-lock braking.
Can a Wrangler be driven with the ABS light on?
Usually yes for a short, careful trip to a shop, if the red BRAKE light is off and the pedal feels normal. Both manuals say the conventional brake system keeps working. You lose anti-lock, so leave extra space and brake early on wet, loose or icy surfaces.
If the ESC light is also on, stability and traction control may be limited as well. If the BRAKE light is on, do not drive.
What does it cost to fix?
YourMechanic lists an average of $95 for a Jeep Wrangler JK "ABS light is on" inspection, all labor. That is the cost of finding the fault, not fixing it.
A repair price depends on the part: a wiring repair, a sensor or an ABS module. No manufacturer lists these costs, and the price sites checked for this update would not load or gave wide ranges, so none are quoted here. Get the codes read first and ask for a written quote.
Other Jeeps: when the traction control light comes on too
Steering angle sensor and a crooked steering wheel
Stability control needs to know where the wheels are pointed. If the steering angle sensor loses calibration, the ESC or traction light can come on without the ABS light, and the steering wheel may sit off center when you drive straight.
Stellantis case S2219000003 gives the shop tips for calibrating the sensor with wiTECH: use a drive-on alignment rack if the floor is not flat, hold the steering wheel straight with a lock tool while setting toe and calibrating, and adjust the tie rods equally. If toe cannot be set with even thread count and a straight wheel, inspect the steering parts for damage or wrong assembly.
The case is written for a power steering replacement, but the same steps apply to any job that disturbs the steering geometry. Ask the alignment shop whether they can run the calibration routine before you pay for the alignment.
Recalls and service bulletins that match
Check your VIN on NHTSA before paying for any ABS repair. These campaigns on Jeep models cover ABS and ESC faults, and the repairs are free.
| Recall | Vehicles | Problem | Remedy |
|---|---|---|---|
| NHTSA 13V483 | 2014 Grand Cherokee built Jan 8–Aug 20, 2013 | Disrupted module communication and loose alternator ground wires: random cluster warning lights and loss of ABS and ESC | Update ABS and cluster software, tighten the alternator ground |
| NHTSA 14V636 | 2014 Grand Cherokee built Oct 3, 2013–Apr 11, 2014 | Steering Column Control Module software may disable ESC | Update the module software |
| NHTSA 24V838 (replaces 22V426) | 2018–2019 Grand Cherokee (and Durango) | ABS module malfunction may light the brake lights, disable ABS and ESC, and allow starting and shifting out of Park without the brake pedal | Replace the integrated pressure transducer and update the ABS module software |
| NHTSA 26V223 | 2026 Cherokee | Brake system control module may fail, losing ABS and ESC | Update the module software |
Bulletins are not recalls, but they show what Stellantis technicians find. Use them as a checklist, not a guarantee.
- TSB 08-019-21 (2020 Wrangler JL): code B1783-01 after a trailer brake controller is installed; fix is an ABS module reflash.
- Stellantis case S2523000091: intermittent or implausible wheel speed signals; clean the encoder and sensor head, replace the bearing if the encoder is damaged.
- Stellantis case S2219000003: steering angle sensor calibration tips.
FAQ
Why won't my Jeep Wrangler ABS light turn off?
A fault is still stored or still present. Check the brake fluid, the ABS fuses and each wheel's sensor and wiring, then read the codes with an ABS-capable tool.
No. The JL manual describes the ESC OFF indicator as a separate light that shows you chose a reduced stability control mode. A lit yellow ABS light means a fault.
Is the ABS light the same as the traction control light?
No. The JL manual lists a separate ESC indicator that flashes when stability or traction control is working and stays on if a malfunction is found.
