The Kubota RTV X1140 is a powerful UTV with a sturdy build and a reliable Kubota diesel engine. It boasts impressive specs and features, making it a popular driver choice. However, like any vehicle, it is not immune to problems.
The Kubota RTV X1140 presents a range of challenges, such as fuel pump issues, windshield problems, transmission and drive shaft problems, carburetor and fuel injector malfunctions, overheating, and brake problems, requiring thorough troubleshooting and effective solutions for optimal performance.
In this article, I will explore some of the most common issues drivers may encounter with the Kubota RTV X1140 and provide helpful tips on how to fix them. Whether you’re a seasoned driver or a novice, this guide will surely come in handy. So, let’s dive in and learn more about the common problems with the Kubota RTV X1140 and how to fix them.
Introduction of the Kubota RTV X1140:[wptb id="12779" not found ]
As you get to know the essential specification of the Kubota RTV X1140, let me move to the next section to discuss the associated problems and corresponding troubleshooting.
1. Problem with Fuel Pump:
The fuel pump is crucial in adequately functioning your Kubota RTV X1140. If you encounter any issues with the fuel pump, it can lead to various problems, including engine performance issues and difficulties starting or running the vehicle.
Symptoms of Fuel Pump Issues:
- Difficulty starting the engine:
If you experience difficulty starting your Kubota RTV X1140, it could be a sign of a faulty fuel pump. The engine may crank for an extended period before starting or not start at all.
- Engine misfires or hesitation:
A failing fuel pump can result in inconsistent fuel delivery to the engine, leading to misfires or hesitation during acceleration.
- Sudden loss of power:
If you notice a sudden loss of power while driving, especially at higher speeds or when climbing inclines, it could be due to an inadequate fuel supply caused by a malfunctioning fuel pump.
- Engine stalling:
A fuel pump that is not working correctly may cause the engine to stall unexpectedly, even while driving.
How to Fix:
Follow the steps I explained below:
- STEP 1: Start by inspecting the fuel lines and connections for any signs of leaks, cracks, or damage. Ensure that all connections are secure.
- STEP 2: Check the fuel filter for clogs or debris. If it appears dirty or clogged, replacing it with a new filter is advisable.
- STEP 3: If you suspect a problem with the fuel pump, using a vacuum pump to blow air through the fuel system is recommended. This can help ensure the fuel can flow smoothly and identify any potential blockages or restrictions.
- STEP 4: Clean the fuel lines using a suitable fuel system cleaner. Follow the instructions provided by the cleaner manufacturer for the best results.
- STEP 5: Inspect the fuel pump for any cracks or signs of wear. Pay close attention to the hoses and internal components. If you notice any damage, it may be necessary to replace the fuel pump.
Tips for Maintaining the Fuel Pump:
- Regularly inspect and clean the fuel filter. Depending on the usage and operating conditions, it’s generally recommended to replace the fuel filter every 100 to 200 hours of operation or as specified in the owner’s manual.
- Use high-quality fuel from reputable sources. Contaminated or poor-quality fuel can cause damage to the fuel pump and other engine components.
- Avoid running the fuel tank low or empty frequently. This can cause the fuel pump to work harder and potentially overheat.
- Follow the recommended maintenance schedule outlined in the Kubota RTV X1140’s owner’s manual. This includes periodic inspections of the fuel system and scheduled fuel filter replacements.
2. Windshield Problems in Kubota RTV X1140:
The windshield of your Kubota RTV X1140 is essential for protection against wind, debris, and weather conditions.
However, improper installation or alignment can lead to challenges and issues that may compromise the functionality and durability of the windshield.
Challenges Related to Windshield Installation:
- Poor fitment:
One of the common challenges faced during windshield installation is achieving a proper fit. Improperly sized or misaligned windshields can result in gaps or uneven sealing, allowing dust, water, or air to enter the cabin.
- Insufficient sealing:
Inadequate sealing between the windshield and the frame can lead to water leaks, increased noise levels, and reduced protection against external elements.
- Vibrations and Rattling:
If the windshield is not securely mounted, it may experience vibrations and rattling while driving, causing discomfort and potentially compromising its structural integrity.
How to Fix:
- STEP 1: Start by thoroughly cleaning the windshield frame and the mounting area to ensure a clean and smooth surface for installation. Remove any dirt, debris, or adhesive residues from previous installations.
- STEP 2: Carefully position the windshield in the frame, ensuring it aligns properly with the mounting holes and edges. Take note of any rubber gaskets or seals that need to be installed to provide a proper seal.
- STEP 3: Use appropriate mounting hardware, such as screws or bolts, recommended by the manufacturer. Follow the specified torque values to achieve the optimal level of tightness without damaging the windshield or the frame.
- STEP 4: Apply a high-quality sealant or adhesive approved for automotive use along the windshield’s edges. This will help create a watertight seal and prevent any potential leaks.
- STEP 5: Double-check the alignment and fitment of the windshield before finalizing the installation. Make any necessary adjustments to ensure a snug and secure fit.
Recommendations for Plastic and Metal Roofs:
- Plastic Roofs:
When installing a windshield on a Kubota RTV X1140 with a plastic roof, ensure that the roof material is sturdy enough to support the weight and pressure of the windshield. Reinforce the mounting points if necessary to prevent sagging or flexing.
- Metal Roofs:
For Kubota RTV X1140 models equipped with metal roofs, ensure the roof structure is solid and rigid. Use appropriate mounting brackets or hardware for metal roofs to attach the windshield securely.
3. Transmission Problems in the Kubota RTV X1140:
The transmission in your Kubota RTV X1140 is a critical component that transfers power from the engine to the wheels. However, transmission-related issues can arise, affecting the vehicle’s performance and reliability.
Recognizing Transmission-Related Issues:
- Shifting Difficulties:
If you experience challenges while shifting gears, such as grinding, slipping, or hesitation, it may indicate a transmission problem. Difficulty engaging gears or erratic shifting behavior should be addressed promptly.
- Gear Slippage:
If the vehicle unexpectedly slips out of gear while driving, it can signal transmission issues. This can result in losing power and control, potentially leading to unsafe driving conditions.
- Fluid leaks:
Transmission fluid leaks can occur due to damaged seals or gaskets. If you notice red fluid stains under the vehicle or a low fluid level in the transmission, it is essential to investigate and rectify the issue.
How to Fix:
- Consult the Kubota RTV X1140 owner’s manual to determine the recommended transmission fluid type and viscosity. Using the specified fluid to ensure optimal performance and protect the transmission components is crucial.
- Regularly check the transmission fluid level using the dipstick or the designated inspection port. If the fluid level is low, add the recommended fluid to the appropriate level as indicated in the owner’s manual.
- When changing the transmission fluid, drain it entirely and replace it with the correct type and quantity as specified. Follow the recommended intervals for the fluid replacement to maintain the transmission’s longevity.
You can also refer to the video guide below to fix the transmission in your Kubota RTV:
Examining Clutches and Belts for Proper Operation:
- Inspect the clutch operation for signs of slipping or grabbing during gear engagement. If you notice abnormal behavior, such as a slipping clutch that fails to transfer power effectively, it may indicate a worn or damaged clutch assembly.
- Inspect the drive belts for signs of wear, cracking, or fraying. Loose or damaged belts can result in power transmission issues and reduced performance. Replace any worn or damaged belts promptly.
- Ensure proper belt tension by referring to the manufacturer’s specifications. Adjust the tension if necessary to maintain optimal operation.
- Regularly clean and lubricate the clutch mechanisms, following the recommended maintenance schedule in the owner’s manual. This helps prevent debris buildup and ensures smooth operation.
4. Loose Drive Shaft in the Kubota RTV X1140:
The drive shaft in your Kubota RTV X1140 plays a vital role in transferring power from the engine to the wheels. However, a loose or malfunctioning drive shaft can lead to various issues, compromising the vehicle’s performance and safety.
Indications of a Loose Drive Shaft:
- Vibrations and Abnormal Noises:
A noticeable increase in vibrations, especially during acceleration or at specific speeds, may indicate a loose drive shaft. You may also hear clunking, rattling, or squeaking noises from the vehicle’s underside.
- Difficulty in Power Transfer:
If you experience a loss of power or notice a decrease in acceleration, it could be a sign of a loose or failing drive shaft. Inconsistent power delivery to the wheels may affect the vehicle’s ability to perform optimally.
- Uneven Tire Wear:
A loose drive shaft can cause uneven wear on the tires. Inspect the tires regularly and look for uneven tread wear patterns, which may indicate problems with the drive shaft.
How to Fix:
Let me share the steps to fix the loose driveshaft below:
- If you suspect a loose drive shaft, the first step is to inspect the U-joint, a common point of failure. Look for signs of excessive play or movement in the U-joint assembly.
- If you have experience and the necessary tools, you may attempt to replace the U-joint yourself. Refer to the Kubota RTV X1140’s service manual for instructions on U-joint removal and installation.
- If you are uncertain about your technical abilities or if the drive shaft problem persists after U-joint replacement, it is advisable to seek professional help. A qualified technician or an authorized Kubota service center will have the expertise to diagnose the issue accurately and provide appropriate solutions.
Importance of Addressing Drive Shaft Problems Promptly:
A loose drive shaft can compromise vehicle control and stability, leading to potentially hazardous situations, particularly during high-speed driving or rough terrain conditions. Promptly addressing drive shaft issues helps ensure the driver’s and passengers’ safety.
- Preventing Further Damage:
Ignoring a loose drive shaft can result in additional wear and damage to other drivetrain components, such as the differential or transmission. You can prevent more extensive and costly repairs by addressing the issue promptly.
- Maintaining Vehicle Performance:
A properly functioning drive shaft contributes to efficient power transfer and optimal performance of the Kubota RTV X1140.
Timely resolution of drive shaft problems helps maintain the vehicle’s capabilities and overall driving experience.
5. Carburetor Problems in the Kubota RTV X1140:
The carburetor in your Kubota RTV X1140 is responsible for mixing air and fuel to create a combustible mixture for the engine. However, carburetor problems can arise over time, affecting engine performance and overall vehicle operation.
Troubles Associated with Carburetors:
- Hard Starting or Difficulty in Starting the Engine:
If you experience problems starting the engine or take multiple attempts to get it running smoothly, the carburetor may be the culprit.
Fuel not properly mixing with air due to a clogged or malfunctioning carburetor can make starting the engine challenging.
- Poor Engine Performance:
A faulty carburetor can lead to erratic engine operation, including idling issues, rough running, or stalling. The engine may lack power, hesitate during acceleration, or exhibit inconsistent performance across different RPM ranges.
- Fuel Leaks:
Carburetor problems can result in fuel leaks, identified by the gasoline smell or visible fuel seepage around the carburetor area. Fuel leaks not only waste fuel but also pose a safety hazard.
How to Fix:
You can follow the steps I explained below to fix the carburetor problem:
- STEP 1: Start by disconnecting the fuel line from the carburetor and inspect it for any signs of damage or blockages. Ensure fuel flows freely through the line, indicating a healthy fuel supply.
- STEP 2: Remove the carburetor from the engine following the manufacturer’s instructions in the Kubota RTV X1140’s service manual. Carefully disassemble the carburetor, taking note of the location of various components.
- STEP 3: Clean all the carburetor components using a carburetor cleaner, removing any dirt, debris, or residue clogging the passages. Pay special attention to the small orifices and jets, as these are prone to blockages.
- STEP 4: Inspect the gaskets, O-rings, and seals for any signs of wear or damage. Replace faulty or deteriorated parts to ensure proper sealing and prevent future issues.
- STEP 5: Reassemble the carburetor, ensuring all components are correctly aligned and tightened according to the manufacturer’s specifications.
Addressing Compression Issues if Necessary:
If you continue to experience carburetor problems after cleaning and checking fuel flow, addressing any underlying compression issues may be necessary. Low engine compression can affect fuel combustion and result in poor carburetor performance.
Perform a compression test using a compression gauge to measure the cylinder compression levels. Compare the readings with the manufacturer's specified values to determine if there are any compression issues.
If low compression is detected, inspecting and potentially repairing components such as the piston rings, valves, or cylinder head gasket may be necessary.
Seek professional assistance or consult the Kubota RTV X1140’s service manual for specific instructions on diagnosing and resolving compression-related problems.

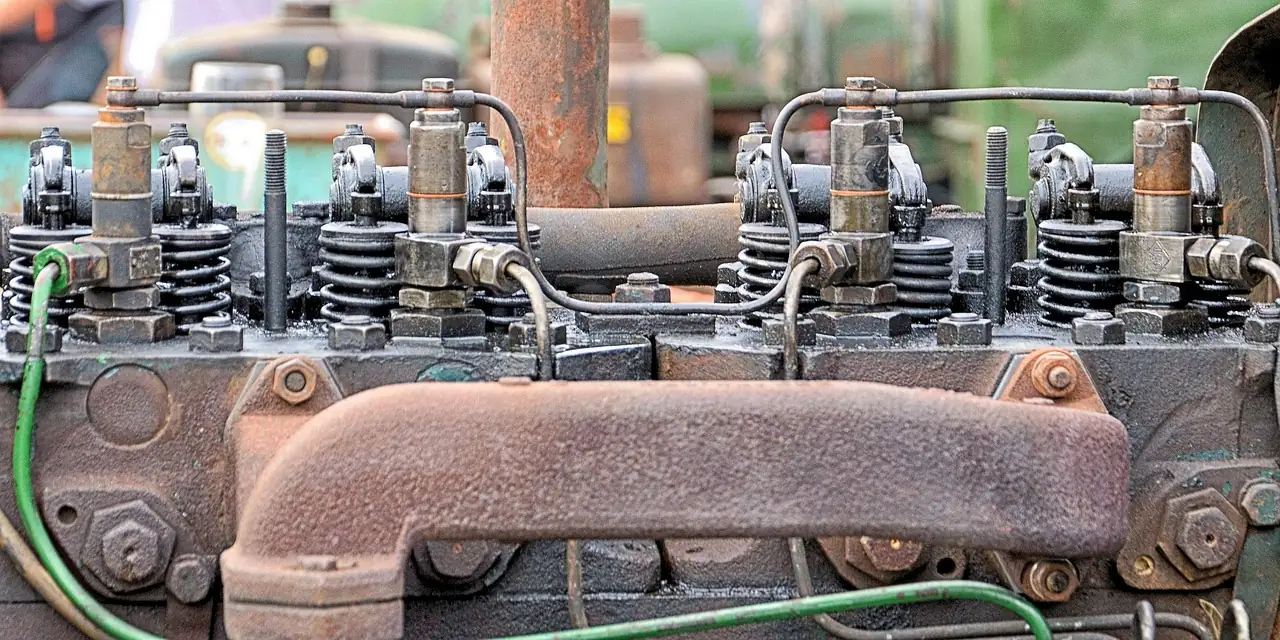

6. Fuel Injector Problem in the Kubota RTV X1140:
The fuel injector in your Kubota RTV X1140 plays a crucial role in delivering the precise amount of fuel to the engine for efficient combustion. However, fuel injector problems can occur over time, leading to reduced engine performance and potential issues with fuel delivery.
Signs of Fuel Injector Malfunction:
- Poor Engine Performance:
A malfunctioning fuel injector can disrupt the fuel spray pattern, resulting in uneven fuel distribution to the engine cylinders.
This can lead to symptoms such as rough idling, hesitation during acceleration, decreased power, or a noticeable decrease in fuel efficiency.
- Engine Misfires:
If one or more fuel injectors are not delivering fuel properly, it can cause engine misfires. Misfires are characterized by a noticeable loss of power, vibrations, or a popping sound from the engine. Persistent misfires can lead to further engine damage if not addressed promptly.
- Fuel Odor or Leaks:
A faulty fuel injector can cause fuel to leak or spray inappropriately, leading to the smell of fuel inside or around the engine compartment. Fuel leaks not only waste fuel but also present a fire hazard, requiring immediate attention.
How to Fix:
You can fix the fuel injector issue by trying out the steps I mention below:
- STEP 1: Start by inspecting the fuel injectors for any visible signs of damage, such as cracks or leaks. Ensure that the injectors’ electrical connections are secure and corrosion-free.
- STEP 2: Perform a fuel injector cleaning using a reputable fuel injector cleaner specifically designed for gasoline engines. Follow the instructions on the cleaner product carefully and ensure compatibility with the Kubota RTV X1140.
- STEP 3: It is recommended to use a fuel injector cleaning kit that attaches to the fuel system and flushes cleaning solution through the injectors. This process helps remove deposits, varnish, and carbon buildup that can hinder proper fuel atomization.
Regular maintenance practices, such as using high-quality fuel and additives that promote fuel system cleanliness, can aid in preventing injector issues. Follow the manufacturer’s recommendations for fuel quality and consider using fuel system cleaners periodically.
If cleaning the fuel injectors does not resolve the issue, or if the injectors are damaged beyond repair, replacement may be necessary. Consult the Kubota RTV X1140's service manual for specific instructions on removing and replacing fuel injectors.
When replacing fuel injectors, ensure you use genuine Kubota parts or high-quality aftermarket injectors compatible with your vehicle model. Proper fitment and compatibility are crucial for optimal performance and longevity.
Seek professional assistance or consult a qualified technician if you are unsure about the replacement process or require guidance in diagnosing fuel injector problems accurately.
Watch the helpful video instruction below to replace the fuel injector:
7. Overheating Problems in the Kubota RTV X1140:
Overheating issues in the Kubota RTV X1140 can lead to engine shutdown and hinder performance. One common cause of overheating is a dirty exhaust system, which restricts the flow of exhaust gases and traps heat in the engine.
If your Kubota RTV X1140 frequently shuts down due to overheating, it may indicate a problem with the cooling system. A dirty exhaust system, a malfunctioning temperature switch, or a faulty cooling fan can cause overheating.
How to Fix:
- STEP 1- Allow the Kubota RTV to cool down: After using the vehicle, let it sit and cool down before attempting maintenance. The exhaust system and muffler will be extremely hot immediately after use.
- STEP 2- Cool down the exhaust system: Spray water from a garden hose onto the muffler and the exhaust pipes at the back of the tractor to further cool them down.
- STEP 3- Remove the muffler: Use a wrench to loosen and remove the two bolts securing the muffler to the exhaust pipe. Carefully slide the muffler away from the mounting bracket at the bottom of the RTV.
- STEP 4- Clean the muffler: Spray the muffler with a rust cleaner and use a rag to clean the unit’s interior. Accumulated dirt and debris can increase pressure and temperature in the engine, contributing to overheating.
- STEP 5- Soak the muffler overnight: Prepare a container with water and add a few drops of soap and bleach. Allow the muffler to soak in this solution overnight. The mixture will help break down and remove any remaining dirt or deposits. Rinse the muffler with water in the morning.
- STEP 6- Reattach the muffler: Once the muffler is clean and dry, reattach it to your Kubota RTV, aligning it with the mounting bracket. Securely tighten the two bolts to ensure proper installation.
If you are experiencing overheating issues with your Kubota RTV-X1140 and the fan does not activate consistently when the temperature rises, there may be a problem with the temperature switch. The temperature switch is responsible for closing the relay and activating the fan to cool the radiator.

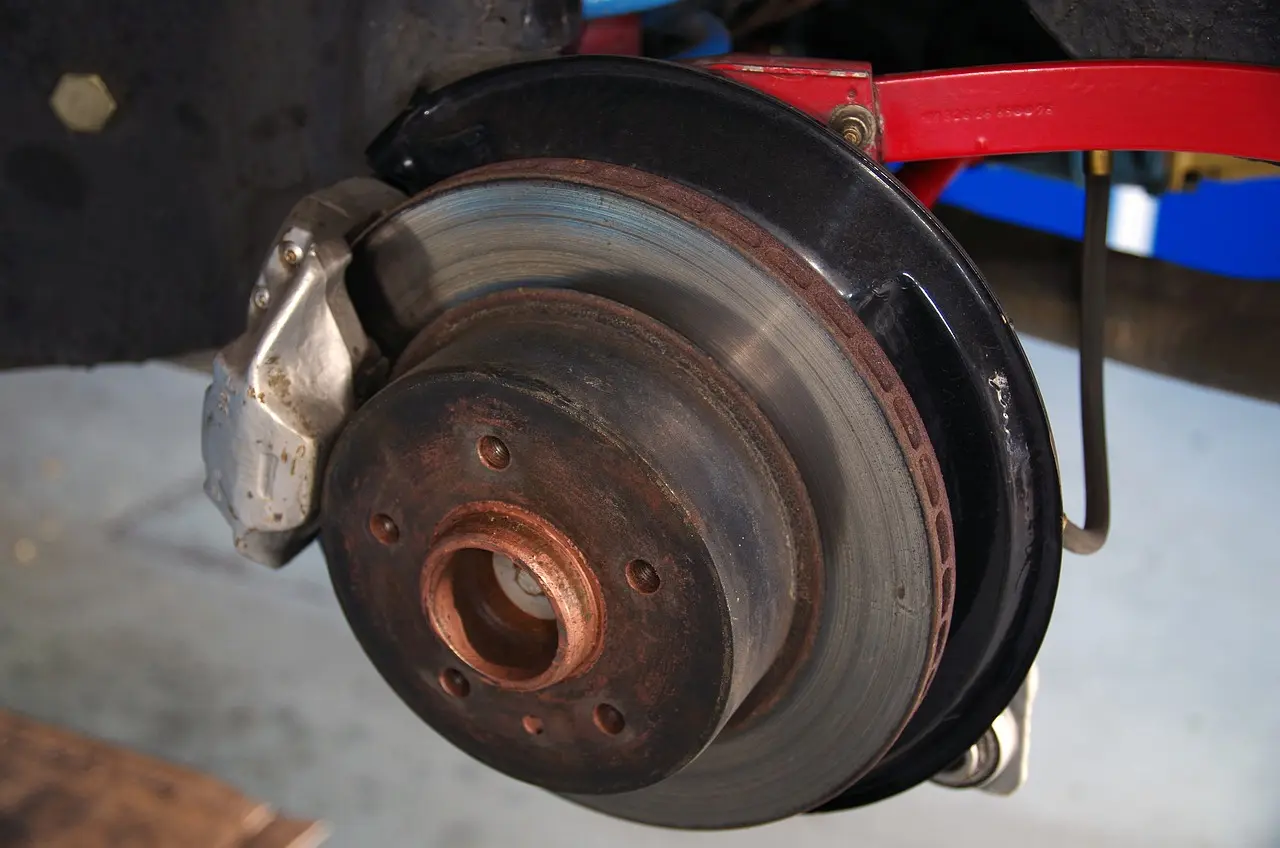

8. Brake Problems in the Kubota RTV X1140:
Brake problems in your Kubota RTV X1140 can compromise your vehicle’s safety and performance. Faulty brakes can reduce stopping power, compromised control, and potential accidents.
Identifying Common Brake Issues:
- Soft or Spongy Brake Pedal:
If the brake pedal feels soft or spongy when applying pressure, it generally indicates air in the brake lines or a brake fluid leak. This can result in reduced braking effectiveness and require immediate attention.
- Brake Fluid Leaks:
Leaking brake fluid can be identified by fluid under the vehicle or near the wheels.
Brake fluid leaks can happen due to damaged caliper seals, brake lines, or wheel cylinders. Loss of brake fluid can result in the loss of hydraulic pressure and compromised braking performance.
To change the brake fluid, refer to the video steps below:
If your Kubota RTV X1140 pulls to one side when applying the brakes or if you notice uneven braking performance between the front and rear wheels, it may indicate issues with brake calipers, brake pads, or brake hardware. Uneven braking can affect vehicle control and safety.
How to Fix:
- STEP 1: Start by visually inspecting the brake lines for any signs of damage, such as cracks, corrosion, or leaks. Pay close attention to areas where the brake lines connect to the brake calipers and master cylinder.
- STEP 2: Check the brake fluid level in the master cylinder reservoir. The reservoir is typically located under the hood near the firewall. Ensure the brake fluid level is between the minimum and maximum marks indicated on the reservoir. If the fluid level is low, it may indicate a leak or excessive brake pad wear.
- STEP 3: Inspect the brake hoses for any signs of bulging, cracking, or leaks. Damaged brake hoses can compromise the flow of brake fluid and lead to brake failure. Replace damaged brake hoses with new ones that meet the manufacturer’s specifications.
Steps for Troubleshooting Brake Problems:
If you experience a soft or spongy brake pedal, bleeding the brake system may be necessary to remove air pockets.
Follow the proper bleeding procedure outlined in the Kubota RTV X1140’s service manual. Bleeding the brakes ensures that any air trapped in the system is expelled, restoring proper brake pedal feel and performance.
If you suspect a brake fluid leak, carefully inspect all brake components, including the brake lines, calipers, and wheel cylinders. Replace any damaged components and repair the leaks promptly. Refill the brake fluid reservoir with the recommended brake fluid type as specified in the vehicle's manual.
Inspect the brake calipers, brake pads, and hardware for wear, damage, or unevenness in cases of uneven braking or pulling to one side. Ensure that the brake pads have even wear and that the calipers function correctly. Replace worn brake pads and hardware as necessary to restore proper braking performance.
Pros and Cons of the Kubota RTV X1140:[wptb id="12776" not found ]
Users’ Feedback/Review of the Kubota RTV X1140:
“I’ve been using the Kubota RTV X1140 for over a year now, and I’m extremely satisfied with its performance. The vehicle has excellent hauling capacity, and the four-wheel drive system provides exceptional traction in various terrains. It has been reliable and durable, handling heavy loads and rough conditions without any issues. The spacious cabin and comfortable seating make long rides more enjoyable. Overall, I highly recommend the Kubota RTV X1140 for anyone in need of a versatile utility vehicle.”Source: tractorforum.com
“As an avid off-road enthusiast, I wanted a utility vehicle that could handle challenging trails and rough terrains. The Kubota RTV X1140 has been a reliable companion on my adventures. The four-wheel drive system provides excellent traction, allowing me to tackle steep inclines and muddy paths with confidence.”Source: tractorforum.com
The Kubota RTV X1140 is a reliable utility vehicle that may encounter certain common problems over time. However, these issues can be effectively addressed with proper maintenance and timely troubleshooting.
By following the recommended solutions outlined in this article, such as checking and cleaning the fuel system, inspecting the brake lines, using the correct transmission fluid, and addressing drive shaft problems promptly, owners can ensure the longevity and optimal performance of their Kubota RTV X1140.
How Fast Does a 125cc ATV Go?
How Fast Does 110cc ATV Go?
Yamaha TTR 125 Top Speed, Specs, and Features- All You Want
Honda CRF250R Top Speed, Specs, and Features- All You Want
Kawasaki KX 250 Top Speed, Specs and Features- All You Want
Honda Fourtrax 300 4×4 Top Speed, Specs, and Review (Detail)
Frequently Asked Questions (FAQs):
How long can a well-maintained Kubota RTV last in terms of gauged hours?
A well-maintained Kubota RTV can last between 4500-5500 gauged hours.
Why is my Kubota RTV overheating?
Overheating in your Kubota RTV can be caused by a dirty exhaust system. When the exhaust is unable to escape, it builds pressure and heat on the engine, leading to overheating. Cleaning the exhaust system can help prevent this issue.
How much does a Kubota RTV-X1140 cost?
The cost of a 2022 Kubota RTV-X1140 is approximately $17,799.
Are there any specific maintenance tips to extend the lifespan of a Kubota RTV?
Regular maintenance, such as cleaning the exhaust system, inspecting fuel pumps, checking transmission fluid, and ensuring proper brake function, can help prolong the lifespan of a Kubota RTV. Following the manufacturer’s recommended maintenance schedule is crucial for optimal performance and longevity.
