Jeep Wrangler Red Security Light Flashing Above Temp Gauge
Last updated on October 26th, 2026 at 07:54 pm
The red light that flashes above the temperature gauge on a Wrangler is the Vehicle Security Light, not an overheating warning. With the Jeep parked and locked, a slow flash means the alarm is armed, which is normal on models that have the alarm. A flash with the ignition on means something is wrong.
With the ignition on, Jeep’s owner’s manual says the light stays on for about 3 seconds as a bulb check. If it then flashes, the Sentry Key immobilizer read the key as invalid and the engine shuts off after 2 seconds. If it stays on, or comes on after the engine has run more than 10 seconds, the manual points to a fault in the electronics and sends you to a dealer. The details below come from the 2013 JK and 2021 JL manuals.
Wrangler security light: symptom, cause and fix
Match what you see to the first column, then work down the fix column from left to right: free checks first, dealer last.
| What you see | What it means | Try first | Dealer needed? |
|---|---|---|---|
| Slow flash, Jeep off and locked | Alarm armed (models with the alarm) | Nothing. Unlock with the fob or turn the ignition on to disarm | No |
| Fast flash for about 15 to 16 seconds after locking | Alarm arming | Nothing. It slows down by itself | No |
| On about 3 seconds at ignition ON, then off | Bulb check | Nothing | No |
| Flashes after the bulb check, engine stops in 2 seconds | Invalid key: unprogrammed, wrong, or a chip that no longer reads | Spare key, then a new key programmed | Only if no two valid keys, or every key fails |
| Stays on after the bulb check | Problem with the electronics (manual) | Battery, fuses, remove add-on remote starters | Yes, if checks are clean |
| Comes on after running more than 10 seconds | Fault in the electronics (manual) | Battery and fuse checks while you arrange service | Yes, as soon as possible |
The Sentry Key and alarm sections list no reset button, key-cycling trick or battery-disconnect procedure for this light. If a page gives you one, it does not come from the owner’s manual.
A no-start where the light is behaving normally is a different problem. Start with the free Jeep no-start checklist or see why a Jeep shuts off and won’t restart.
What the Vehicle Security Light actually does
Two separate systems share this one light. The Sentry Key Immobilizer checks the transponder chip in your key or fob and disables the engine if it does not match. The manual says it needs no arming and works whether the Jeep is locked or not.
The Vehicle Security Alarm, where fitted, watches the doors, swing gate and ignition. It is the one that arms when you lock the Jeep, and it is why you see the light blinking while parked.
An unprogrammed key counts as an invalid key even if it is cut to fit the ignition. That is the line most guides miss, and it explains why a freshly cut key turns the key without starting the engine.
JK and JL compared, from the manuals
The two generations behave almost the same, with small differences that matter when you are trying to disarm the alarm.
| Behavior | 2013 JK manual | 2021 JL manual |
|---|---|---|
| Fast flash after locking | About 16 seconds, then a slower flash | About 15 seconds, then slow until disarmed |
| How to disarm | UNLOCK on the RKE transmitter, or ignition to ON/RUN | Unlock on the fob, grab the Passive Entry handle, or turn the ignition out of OFF |
| Driver key cylinder | Unlocking with the key can accidentally disarm without the alarm re-arming | Cannot arm or disarm the system |
| Alarm after a trigger | Horn off after 3 minutes, lights off after 15 minutes, then it re-arms | Horn off after 29 seconds, then it re-arms |
| Bulb check at ignition ON | About 3 seconds | About 3 seconds |
| Invalid key | Light flashes, engine off after 2 seconds | Light flashes, engine off after 2 seconds |
| Programming a new key or fob | Dealer, or customer programming with two valid keys | Dealer programs the fob |
So “unlock the driver’s door with the key” is not a reliable disarm on a JL, where the manual says the key cylinder cannot disarm. Use the fob, the door handle or the ignition instead.
Read the light at ignition
Turn the key to ON and watch the light for about 3 seconds. What it does next sorts almost every case.
Flashing means the Jeep did not accept the key. Steady means the Jeep itself has a problem. Out means the key was fine.
Wrangler security light checker
Pick what the light and engine are doing and what you know about your keys. The checker lists the checks in order, free ones first and dealer-only ones last.
Based on the 2013 JK and 2021 JL owner’s manuals (Sentry Key, Vehicle Security Alarm/System, RKE battery, Fuses). Tags: Free, Low cost, Dealer.
The checker only uses the Jeep owner’s manual text cited above and the fuse chart. It cannot read codes or test the Jeep, so treat it as an ordered to-do list.
When your answers do not match anything the manual describes, the checker says so instead of guessing.
Free and cheap checks, in order
1. Try the spare key
Use a key that has started the Jeep before. If it starts and runs, the first key’s chip or fob is the problem and the Jeep is fine.
Bring every key to the dealer when the immobilizer is serviced. The manual asks for all of them.
2. Check the fob battery
On the JK, the manual lists the RKE transmitter battery as a CR2032. Pry the two halves apart with a flat screwdriver, avoid touching the new cell with bare fingers, and snap the case shut (2013 manual).
On a push-button JL, a weak fob battery is why the manual gives a backup start: hold the nose of the fob, the side with the mechanical key, against the START/STOP button and push it (2021 manual). Our key fob not detected guide has the full steps.
On a JK with a separate key and remote, the manual does not say the remote’s battery affects the immobilizer chip. A fresh cell is a cheap try, but do not expect it to fix a flashing light by itself.

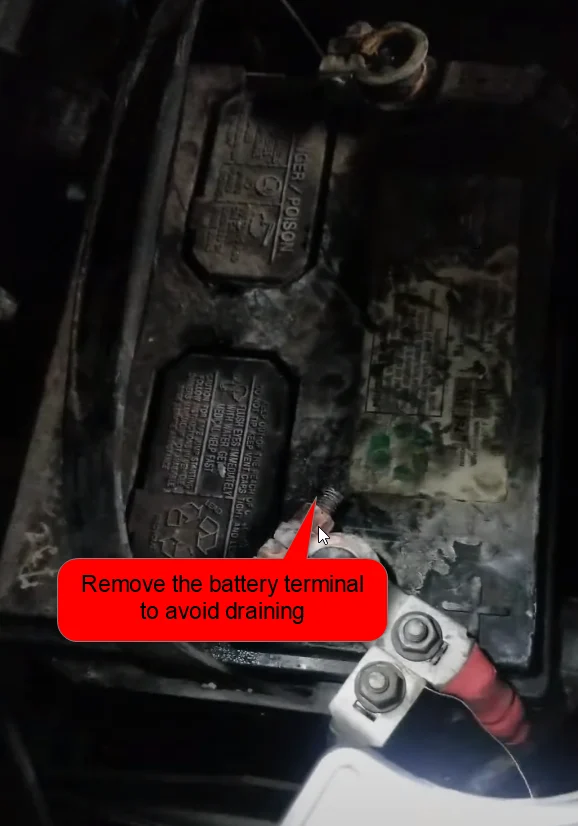

3. Main battery and TIPM fuses
A weak main battery can upset the modules, so have it load-tested. The manual gives no voltage spec for this light, so the number to trust is the test result, not a rule of thumb.
On a JK, the fuses sit in the TIPM under the hood, close to the battery, and a label inside the cover names each one. In the 2013 fuse chart J13 is a 60 amp cartridge listed as Ignition Off Draw, main, and one 20 amp mini fuse is listed as Ignition Off Draw for the cabin compartment node, wireless control module, siren and multifunction switch.
Fuse diagram sites put that mini fuse at M13, but the manual text does not label the slot, so confirm against the cover label. Pull each fuse, look at the element, and replace any blown one with the same rating.
4. Alarm, add-on remote starters and wiring
The JL manual warns that aftermarket remote starters may not be compatible with the Sentry Key system and can cause starting problems and loss of security protection. If trouble started after an install, disconnect it and retest.
The alarm watches the doors, swing gate and ignition. The manual lists no switch test, so an alarm that keeps triggering for no reason is a job for a shop with a scan tool.
When the Jeep needs a dealer
Go to the dealer if the light stays on after the bulb check, if it comes on after the engine has run more than 10 seconds, or if every programmed key fails. The manual says to have the electronics serviced as soon as possible and to bring all keys.
Replacement keys also lean on the dealer. The manual says the PIN is required for authorized dealer key replacement, so keep it somewhere safe. A lost key means a dealer erases all remaining keys from memory so the lost one can never start the Jeep, then reprograms the rest.
The manuals give no prices, so ask the dealer to quote the key, programming and diagnosis separately before you agree.
How to program a spare Sentry Key yourself
The 2013 JK manual lets an owner with two valid Sentry Keys program a new one. Cut the blank to match the ignition code first. This is how the manual describes it, so confirm your year before you try it, and time each step.
- Put the first valid key in, turn to ON/RUN for at least 3 seconds but no longer than 15 seconds, then turn to LOCK and remove it.
- Insert the second valid key within 15 seconds and turn to ON/RUN. After 10 seconds a chime sounds and the Vehicle Security Light starts to flash. Turn to LOCK and remove it.
- Insert the blank key and turn to ON/RUN within 60 seconds. After 10 seconds a single chime sounds and the light stops flashing, then it comes on for 3 seconds and goes off. That means the key is programmed.
The manual says the remote transmitter is programmed during the same procedure and that you can repeat it for up to eight keys. If you do not have two valid keys, or you have a JL, the manual says to see a dealer.
If your Jeep is stuck in anti-theft mode
Disarm the alarm
Press UNLOCK on the fob. That disarms the alarm on both the JL and the JK. A JL also disarms when you grab the Passive Entry door handle (if equipped) or cycle the ignition out of OFF; a JK disarms when the ignition goes to ON/RUN.
The driver’s door key cylinder does not disarm the alarm on either generation, and with the alarm armed the interior power lock switches will not unlock the doors. If the fob is dead, use the push-button backup start below, then check the fob.
- If the alarm goes off after a battery disconnect, that is by design: the JL manual says an armed system stays armed when the battery is reconnected, and the lights flash and the horn sounds until you disarm it.
- If it triggers on its own, check that the hood, doors and swing gate or liftgate are fully latched, since the system watches the doors for unauthorized entry.
If the START/STOP button does nothing, the fob battery may be low or dead. The JL manual says the cluster may show a message, or the LED on the fob will stop lighting when you press its buttons.
The backup method: put the nose of the fob (the side with the mechanical key) against the START/STOP button and push. Do not use the mechanical key against the button, and do not pry the button out; it is an assembly and prying can damage the silicone shield.
The JL fob takes a CR2450 battery according to the manual, and the manual recommends one from Mopar. If you want a spare, search CR2450 batteries on Amazon and check the current price there.
What does not work
Several popular reset tricks show up in online guides. None of them appears in the Sentry Key or alarm sections of the manuals checked here.
| Popular advice | What the manuals say |
|---|---|
| Turn the ignition ON and wait 10 to 15 minutes | No timer appears in either manual. The immobilizer is described as an engine shutoff after 2 seconds with a flashing light. |
| Press LOCK five times, then turn the ignition ON | Not in either manual. |
| Hold the fob to the brake pedal and START button, then lock and unlock five times | Not in the manual. The only fob backup is the nose of the fob against START/STOP. |
| Pull the PCM fuse for ten minutes | Not in either manual, and it does not register a key that was never programmed. |
| Touch the battery cables together to drain power | Unsafe: shorting battery cables can throw sparks and damage electronics. Do not do it. |
| Disconnect the battery to reset the system | On a JL, an armed alarm stays armed when the battery is reconnected and the horn and lights go off. It does not fix a rejected key. |
| Turn the driver’s door key right, left, right | Both manuals say the key cylinder cannot disarm the alarm. |
Bypass modules and tampering defeat the theft protection and may affect your insurance. Fix the key or the module instead.
FAQs
It is the Vehicle Security Light. Flashing with the Jeep off and locked means the alarm is armed. Flashing after the 3-second bulb check with the ignition on means the Jeep read the key as invalid and the engine will shut off after 2 seconds.
The immobilizer did not accept the key, so it stops the engine after about 2 seconds. Try the spare key. A key that was never programmed counts as invalid, even if it turns in the ignition.
Unlock with the fob or turn the ignition on to disarm the alarm. On a JL, the driver’s key cylinder cannot disarm it. The manuals describe no other reset.
On the 2013 JK, yes, if you already have two valid Sentry Keys. The procedure takes three steps and allows up to eight keys. On the 2021 JL the manual says a dealer programs the fob.
The manuals do not give a current figure. If your battery keeps dying, test it and look for another source of drain instead of blaming the blink.
