Off-Road Tire Pressure Guide for Different Terrain in 2026

A few PSI can decide whether you float over sand or dig yourself deeper. This off-road tire pressure guide for different terrain gives you practical starting ranges, explains why they work, and shows how to adjust safely using The Off-Road Handbook ebook as a deeper resource for trail prep and recovery planning.

Off-road tires, as defined by Wikipedia, use deep tread to improve traction on loose dirt, mud, sand, and gravel, and pressure is one of the fastest ways to tune how that tread meets the ground. Always compare your trail pressure to the vehicle maker’s recommended cold inflation pressure, which Wikipedia defines as tire pressure measured before driving warms the tires.

Why tire pressure matters more off-road than on pavement

Lowering pressure changes the tire’s contact patch, which can improve grip, ride comfort, and control on loose or uneven ground. The tradeoff is that every PSI you remove also reduces sidewall support, so the best setting is always terrain-specific, not universal.

What changes when you air down

• More traction: a larger footprint helps the tire conform to rocks, roots, and washboard.
• Better flotation: on sand and snow, a wider footprint helps the vehicle stay on top rather than sink.
• Smoother ride: the tire absorbs more small impacts, which reduces driver fatigue on corrugated tracks.
• Higher risk if you go too low: sidewalls flex more, heat can build, and the bead is easier to unseat.

Key insight: Airing down is a traction tool, not a badge of honor. The goal is the lowest pressure that works safely for your tire, wheel, load, and speed.

Why “cold” pressure is the baseline

Manufacturers publish recommended pressures as cold inflation pressure, not hot pressure after miles of driving. That matters because trail adjustments should be made from a known baseline, then checked again when conditions change.

Scholarly research on sensor systems shows how closely modern vehicles depend on accurate pressure measurement and condition monitoring, even if the paper is not off-road specific. See the review in Sensors for broader context on sensor technologies and structural monitoring.

If you’re building a full trail setup, pair this topic with a checklist like off-road recovery gear basics before longer trips.

Recommended tire pressure ranges by terrain

The safest way to set trail pressure is to start with conservative ranges, drive a short distance, then fine-tune for traction and sidewall stability.

The ranges below reflect the current guidance surfaced in top-ranking off-road resources, including JACO’s 2023 guide and a 2025 trail-pressure article summarized in the research data.

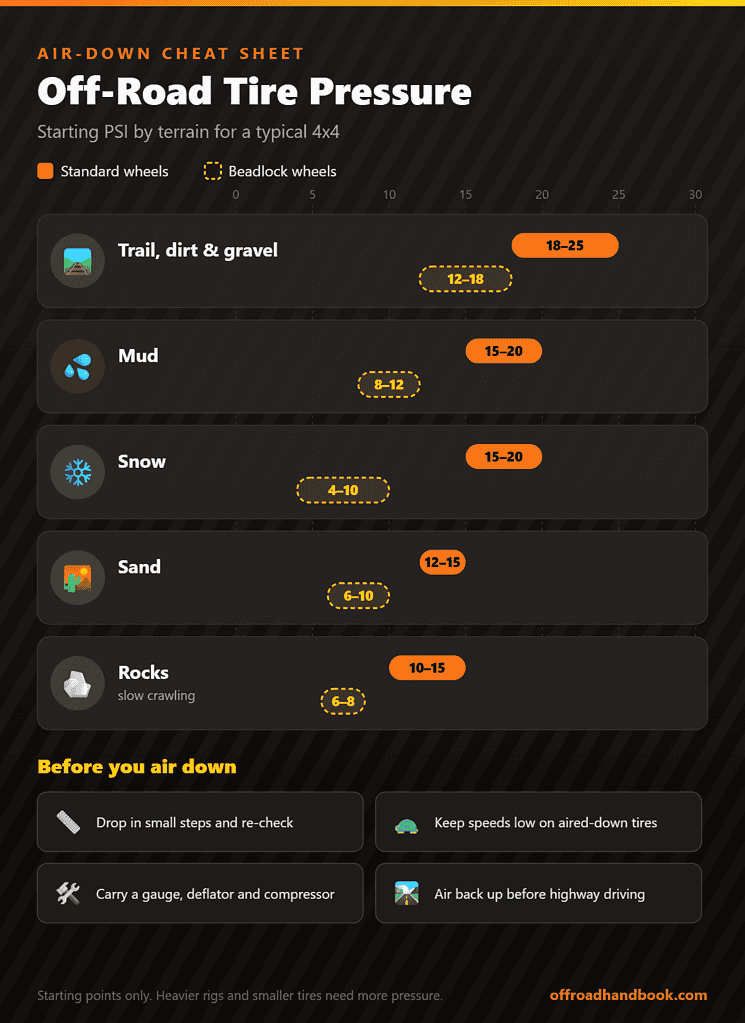

Terrain-by-terrain PSI starting points

Those numbers are starting points, not promises. Tire construction, load range, sidewall strength, wheel width, vehicle weight, and beadlock use all change the safe floor.

Quick reading of the terrain

1. Sharp rocks and ledges call for more pressure than rounded trail rubble.
2. Heavy vehicles usually need more support than lightweight rigs.
3. Higher speeds require more pressure than slow crawling.
4. Longer sidewalls often tolerate airing down better than low-profile setups.

For route planning, camp logistics, and terrain notes, many drivers use The Off-Road Handbook Journal alongside local trail maps so they can estimate where they’ll want to air down and where they’ll need to air back up.

How to adjust for sand, rocks, mud, and snow without guessing

Each surface asks the tire to do a different job, so your pressure choice should match the terrain’s failure mode. Sand punishes narrow contact patches, while rocks punish weak sidewall support.

Sand and snow need flotation first

On soft surfaces, lower pressure helps the vehicle ride on top instead of trenching downward. The research data shows commonly cited sand guidance around 12-15 PSI, with some references going lower in special cases, but beginners should stay conservative and avoid abrupt turns.

• Keep throttle smooth.
• Avoid hard braking.
• Turn gradually to protect the bead.
• Recheck pressure if ambient temperature changes sharply.

Rocks and mixed trails need support first

Rocky terrain usually rewards a moderate drop, not the lowest possible number. The research summary includes 22-26 PSI for rocky terrain in one source and 25-30 PSI near sharp objects in JACO’s guide, which makes sense because cuts and pinch damage rise when the sidewall is under-supported.

Key insight: On rocks, traction comes from tire compliance, but survivability comes from sidewall support. Split the difference instead of chasing extremes.

Mud needs footprint and tread clearing

Mud usually works best in the 15-20 PSI range from the research data because you want a broader footprint without turning the tire into a floppy paddle. If the mud is shallow over a firm base, you may want slightly more pressure than you would in deep, soup-like ruts.

For a practical walk-through, this video explains why pressure changes matter in real trail situations:

Video, real-world tire pressure basics

You can also bookmark seasonal trail planning guides on offroadhandbook.com if you run mixed conditions where morning frost turns to afternoon mud.

Common mistakes that cause punctures, bead loss, or poor handling

Most tire-pressure problems off-road come from using one PSI number everywhere or forgetting that speed changes the equation. A pressure that feels great at crawling pace can become risky on a fast fire road.

The mistakes to avoid

• Airing down too far, too soon: beginners often copy extreme setups meant for beadlocks or very specific tires.
• Ignoring load: extra passengers, camping gear, water, and tools all increase the pressure you may need.
• Skipping a gauge: guessing by sidewall bulge is unreliable.
• Driving too fast while aired down: heat and instability rise quickly.
• Forgetting to air back up: pavement driving at low trail pressure wears tires and hurts braking.

A simple field process that works

1. Start from your normal cold street pressure.
2. Drop to a conservative terrain range.
3. Drive 5 to 10 minutes at trail speed.
4. Check steering feel, wheelspin, and sidewall deflection.
5. Adjust in small steps, usually 2 PSI at a time.
6. Reinflate before returning to pavement.

Research outside off-roading also supports the general point that ground conditions vary widely and require adaptation rather than fixed assumptions. A 2023 review of land degradation and terrain monitoring in Rendiconti Lincei shows how surface conditions can shift substantially across environments, which is exactly why one pressure target rarely fits an entire route.

If you want more driving and prep guides, The Off-Road Handbook Journal platform is a useful home base because it connects practical trail topics instead of treating tires in isolation.

What to pack, how to recover pressure, and when to stop experimenting

The best off-road tire setup includes a way to lower pressure accurately and restore it before highway speeds. Tire pressure management is only half the system, air-up gear completes it.

Essential pressure-management kit

When to stop lowering pressure

Stop dropping PSI when one of these appears:

• Steering feels vague or delayed.
• The tire folds excessively over obstacles.
• You hear or feel the rim contacting terrain.
• The bead looks vulnerable during turns.
• Speed requirements increase beyond slow trail pace.

A second video from outside the 4×4 world is still useful here because it explains the logic of contact patch and pressure clearly:

Video, pressure principles explained simply

Drivers who keep notes after each trip usually improve fastest. Record terrain, tire model, vehicle load, and PSI, then compare results over time with The Off-Road Handbook Journal as your running reference.

Conclusion

The right setup starts with a conservative range, a real gauge, and the discipline to match PSI to terrain, speed, and load. For most drivers, that means roughly 18-25 PSI on mixed trails, 22-30 PSI on rocks, 15-20 PSI in mud, and 12-15 PSI in sand, then adjusting carefully from there.
