Jeep Wrangler Ground Clearance: Sport vs Rubicon vs 4xe

A Jeep Wrangler has between 9.7 and 12.9 inches of ground clearance, depending on its tires. Jeep's spec sheets list 9.7 inches for the Sport, 10 for the Sahara, 10.8 for the Rubicon on its LT285/70R17 tires and 12.9 for a four-door Rubicon with the factory 35-inch tire package. The 2027 spec sheet, published October 22, 2026, keeps every one of those numbers.

Clearance alone doesn't tell you what a Wrangler will clear, though. Door count changes the breakover angle by about 5 degrees, the V8 Moab 392 sits lower than a Rubicon on the same tires, and a suspension lift doesn't add a fraction of an inch under the axles. The table below has the whole picture from Jeep's spec sheets.

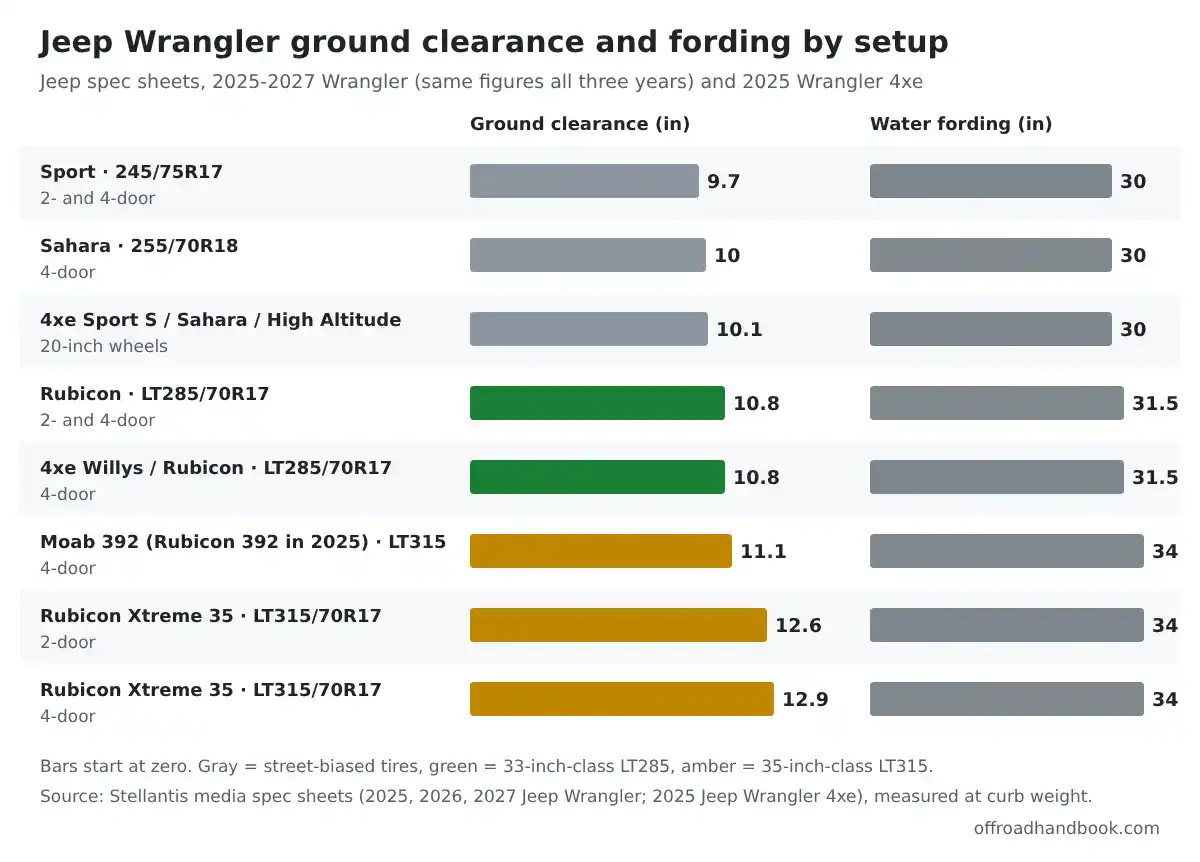

Wrangler ground clearance by trim and tire package

Jeep groups its clearance figures by factory tire size, not by trim name, and measures them at curb weight on the standard tires. These are the 2025, 2026 and 2027 numbers, which are identical across all three years.

Setup (factory tire)	Doors	Ground clearance	Approach	Breakover	Departure	Water fording
Sport (245/75R17)	2-door	9.7 in	41.4°	25.0°	35.9°	30 in
Sport (245/75R17)	4-door	9.7 in	41.4°	20.3°	36.1°	30 in
Sahara (255/70R18)	4-door	10.0 in	41.8°	21.0°	36.1°	30 in
Rubicon (LT285/70R17)	2-door	10.8 in	44.0°	27.8°	37.0°	31.5 in
Rubicon (LT285/70R17)	4-door	10.8 in	43.9°	22.6°	37.0°	31.5 in
Rubicon, Xtreme 35 package (LT315/70R17)	2-door	12.6 in	47.2°	32.4°	40.4°	34 in
Rubicon, Xtreme 35 package (LT315/70R17)	4-door	12.9 in	47.4°	26.7°	40.4°	34 in
Moab 392 (Rubicon 392 for 2025), LT315/70R17	4-door	11.1 in	46.7°	24.5°	39.8°	34 in

Willys, Sport S and Rubicon X don't get their own column. The sheet's tire list shows the Willys on the same LT285/70R17C BFGoodrich KO2 as the Rubicon, but Jeep only prints clearance for the Rubicon, so check the window sticker or measure if you own one of those trims.

I compiled the table from those three spec sheets instead of press releases because the releases round differently: Jeep's 2026 US release says "up to 35 inches" of fording, while its own 2026 and 2027 spec sheets list 34.0, so the table follows the spec sheets.

The spread looks small on paper: 3.2 inches from a Sport to a 35-inch Rubicon. On a rocky two-track, that's the difference between rolling over a football-size rock and dragging the rear differential across it.

Want to check your exact Wrangler, or see what new tires would do? The lookup tool below uses the same spec-sheet numbers.

Wrangler clearance lookup and tire-change estimator

Pick your factory setup and door count to see Jeep's published numbers. Add a new tire size to estimate how much more room you'd get under the axles.

How the estimate works: nominal tire diameter is rim size plus twice the sidewall height (section width × aspect ratio), and the axle centerline sits one tire radius off the ground. So the axle housing rises by half of any diameter increase. Real tires run a little shorter than nominal, and airing down lowers them further, so treat the result as an estimate.

For the full effect of new tires on gearing and speedometer error, run the size through our tire size and speedometer error calculator. Going all the way to 37s? Here's the gear ratio a Wrangler needs for 37s.

What the spec sheet tells you that a single number doesn't

Read across the rows instead of down the clearance column and a few things stand out.

1. Four doors cost you breakover, not clearance. A two-door and four-door Rubicon both sit at 10.8 inches, but breakover drops from 27.8° to 22.6° on the 118.4-inch wheelbase (the two-door's is 96.8 inches). On sharp crests, the four-door high-centers first.
2. The V8 sits lower on the same 35s. The Moab 392 rides on the same LT315/70R17 tires as a 35-inch Rubicon, yet Jeep lists 11.1 inches against 12.9, plus a 24.5° breakover against 26.7°.
3. The Sahara gets 0.3 inch more than the Sport, but its breakover (21°) is still in four-door Sport territory. It's a street-tire package.
4. Fording depth follows the package, not the trim name. It's 30 inches on Sport and Sahara, 31.5 on the Rubicon and 34 with the 35-inch tires.

That fording figure is Jeep's rating, and it assumes slow, steady speed. Before you test it, check your real intake and electrical heights with our water crossing depth checker.

The 35-inch package jumps 2.1 inches over a regular Rubicon (10.8 to 12.9), more than tire math alone explains. Going from LT285/70R17 to LT315/70R17 adds only about 0.83 inch under the axles, so other package hardware is doing the rest. Jeep's sheet doesn't break that down.

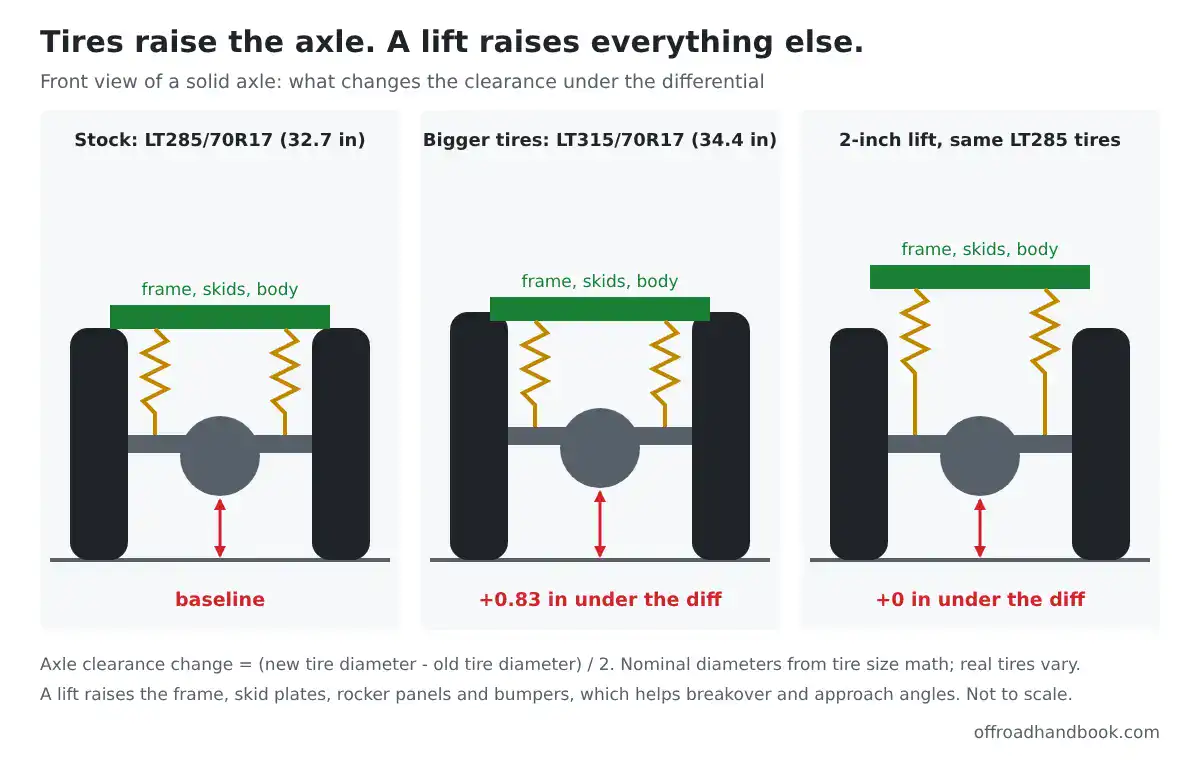

Does a lift increase ground clearance on a Wrangler?

Not under the axles. Every Wrangler rides on solid front and rear axles, and the axle housing hangs from the tires, not from the frame. A 2-inch lift raises the frame, skid plates, rock rails and bumpers by about 2 inches, while the differential stays exactly where the tires put it.

That's why the cheapest lift on a Sport still drags its rear diff on the same rocks. The lift still earns its keep: higher rocker panels and skids improve breakover, and room for bigger tires is where the real axle clearance comes from.

Our approach, departure and breakover angle calculator shows what a lift and tires do to those angles. If you've already lifted yours and it wanders or shakes, start with these post-lift checks. Going up to 35s also changes gearing, and the regear calculator shows the ratio that restores stock cruising rpm.

Wrangler 4xe ground clearance vs the gas Wrangler

The plug-in hybrid gets its own spec sheet, and the 4xe is four-door only. Here are the 2025 numbers, the most recent 4xe spec sheet Jeep has posted on its media site.

4xe trim (4-door)	Factory tire	Ground clearance	Approach	Breakover	Departure	Water fording
Sport S 4xe	255/60R20	10.1 in	42.2°	22.0°	35.2°	30 in
Sahara 4xe	255/55R20	10.1 in	42.2°	22.0°	35.2°	30 in
High Altitude 4xe	275/55R20	10.1 in	42.2°	22.0°	35.2°	30 in
Willys 4xe	LT285/70R17	10.8 in	43.8°	22.5°	35.6°	31.5 in
Rubicon 4xe	LT285/70R17	10.8 in	43.8°	22.5°	35.6°	31.5 in

A Rubicon 4xe matches the gas Rubicon four-door on clearance (10.8 inches) and fording (31.5 inches) and is within 0.1 degree on approach and breakover. The real difference is departure: 35.6° against 37°.

One oddity worth knowing: Jeep gives the same 10.1 inches to three 4xe trims whose tires differ by about an inch in nominal diameter. Treat that figure as Jeep's spec for the trim group, not a tire-by-tire measurement.

Has Wrangler clearance changed by model year?

Not for the core packages. Jeep's 2021 Wrangler spec sheet lists the same 9.7, 10 and 10.8 inches for the Sport, Sahara and Rubicon tire packages, and 12.9 inches for the 35-inch option on the four-door Rubicon. The 2025, 2026 and 2027 sheets repeat them.

What changed is the lineup around them. The 2-door 35-inch figure (12.6 inches) and the V8's 11.1 inches aren't in the 2021 sheet but appear in the 2025 and later ones, and the V8 model is called Moab 392 from 2026.

I didn't check the 2018–2020 or 2022–2024 sheets, so for those years confirm against your window sticker. This table covers the JL generation only, not the older JK.

Press material doesn't always match the tables: Jeep's 2021 fact sheet quotes 10.9 inches with the Rubicon two-door's angles, while the 2021 spec table says 10.8.

How to measure your own Wrangler's clearance

Any build with aftermarket tires, lift, skids or bumpers no longer matches the spec sheet. Ten minutes with a tape measure gives you the real number.

1. Park on flat, level concrete with tires at your normal street pressure and a typical load (full tank, usual gear).
2. Measure from the ground to the bottom of the rear differential housing, then the front one.
3. Measure the lowest point between the axles: transmission or transfer case skid, exhaust, rock rails.
4. Measure the front and rear bumpers or hitch at their lowest edge. These set your real approach and departure angles.
5. Write all four numbers down and keep them in the glovebox. The smallest one is your real ground clearance.

Air down for the trail and the tires squat, so the axles drop too. Our air-down PSI calculator gives pressures by terrain. For how much clearance each kind of trail calls for, see our guide to checking whether your clearance is enough.

Frequently asked questions

Which Jeep Wrangler has the most ground clearance?

The four-door Rubicon with the factory Xtreme 35 tire package: 12.9 inches on Jeep's 2025, 2026 and 2027 spec sheets. The two-door with the same package is listed at 12.6 inches.

How much ground clearance does a Jeep Rubicon have?

10.8 inches on the standard LT285/70R17 tires, two-door or four-door, gas or 4xe. With the 35-inch package it's 12.6 inches (two-door) or 12.9 inches (four-door).

How much clearance does a 2-inch lift add?

Under the axles, none. It raises the frame, skids, rocker panels and bumpers by about 2 inches. Only taller tires raise the differentials, by half the increase in tire diameter.

Where does Jeep measure Wrangler ground clearance?

The spec sheet only says dimensions are measured at curb weight with standard tires and wheels. It doesn't name the component that sets the number, which is one more reason to measure your own Jeep.

Is the Moab 392 lower than a regular Rubicon?

On the spec sheet, yes. It's listed at 11.1 inches on LT315/70R17 tires, versus 10.8 inches for a Rubicon on LT285s and 12.9 inches for a four-door Rubicon on the same LT315s.
