5 Best Shocks for Jeep Wrangler JL: Picks for Trail and Road Use
Last updated on October 18th, 2026 at 12:29 pm
This post contains Amazon affiliate links. As an Amazon Associate I earn from qualifying purchases, at no extra cost to you.
The right shocks for a Wrangler JL depend on your lift first and how hard you drive second. From stock height to 1.5 in of lift, a FOX 2.0 Performance Series or TeraFlex Falcon SP2 2.1 monotube is plenty. At 2 to 3 in, add the Bilstein 5100 or TeraFlex 9550 VSS to that list.
For 3.5 in or more, or for hot, fast, rough desert and rock running, step up to a piggyback or bypass shock such as the TeraFlex Falcon SP2 3.3 or the ARB Old Man Emu BP-51. JL shocks are vehicle-specific, so a 4xe, EcoDiesel or 392 needs a shock listed for it.
The picker below narrows the list, and the table after it shows lengths and fitment taken from the makers' own pages.
Shock picker for a Wrangler JL
Based on the fitment ranges in the table below, taken from FOX, TeraFlex and ARB product pages and a Bilstein announcement. It lists where to start, not a ranking, and does not replace each maker's fit checker.
Pick the closest match, then confirm it on the maker's page. If your lift sits between ranges, such as 1.75 in, ask the maker which part it recommends.
Best Wrangler JL shocks by lift height
Shocks are built to a collapsed and extended length. Lift the Jeep and the shock has to stretch further at full droop, so a shock made for stock height runs out of travel on a lifted JL. Choose the part for your actual lift, not the closest.
JL shocks are vehicle-specific. They will not bolt onto a JK or TJ, and TeraFlex describes its JL shocks as corner-specific with JL-specific mounting. Check year, door count and powertrain before you order.
| Shock | Construction | Lift range (maker) | Extended / compressed | Fitment and install notes |
|---|---|---|---|---|
| FOX 2.0 Performance Series IFP | Monotube with internal floating piston, 2.0 in aluminum body, ⅝ in shaft | Rear 985-24-172: 0 to 1.5 in. Rear 985-24-178: 2.5 to 3.5 in | Rear 26.92 / 16.80 in (0 to 1.5 in). Rear 29.62 / 18.50 in (2.5 to 3.5 in) | Sold as separate front and rear parts by lift; limited lifetime warranty |
| Bilstein 5100 | Monotube, 46 mm (retailer listing) | Front 33-292625: 2 to 3 in, JL Unlimited | Front 26.88 / 17.07 in | Bilstein's 1.5 in JL Unlimited kit uses B8 5100 shocks and excludes the 4xe |
| TeraFlex 9550 VSS | Twin-tube | Kits for 2.5 to 3 in and 3.5 to 4.5 in | Not listed | Bump stop pad extensions may be needed; TeraFlex estimates 1 hour for all four |
| TeraFlex Falcon SP2 3.3 | Piggyback reservoir; 3-position knob plus 8-position dial | Kits for 0 to 1.5 in and 2 to 4.5 in | Not listed | Separate EcoDiesel/4xe/392 kits; TeraFlex estimates 1.5 hours |
| ARB Old Man Emu BP-51 | 51 mm bypass with remote reservoir; rebound and compression adjustable on the vehicle | Not stated on the front shock page | Front BP5160033: 25.55 / 16.38 in (649 / 416 mm) | Listed for 2018 to 2023 JL, 4xe 2021 to 2023, 392 2021 to 2022; 3-year warranty |
The lift range is the most common place retailer listings disagree, so match it to the maker's page. FOX, for example, sells the same shock family as separate parts for each end and each lift.
The five picks compared
FOX 2.0 Performance Series IFP
FOX builds this as a monotube with an internal floating piston that separates the oil from nitrogen gas, which keeps the oil from aerating. FOX describes the series as giving a comfortable on-road ride and predictable off-road handling. Find it with this Amazon search.
TeraFlex's Falcon SP2 2.1 monotube kit is the main rival at 0 to 1.5 in. It lets you choose a Soft or Performance mode at install, and TeraFlex recommends Soft for rough terrain and cold weather. Search for the SP2 2.1 on Amazon.
Bilstein 5100
The 5100 is a monotube, and Bilstein built its own 1.5 in JL Unlimited lift kit around B8 5100 shocks. A retailer listing shows a front 5100 for 2 to 3 in of lift on the JL Unlimited. Search for Bilstein 5100 JL shocks and match the part number to your lift.
TeraFlex 9550 VSS twin-tube
TeraFlex tunes this twin-tube shock for off-road use while keeping a smooth highway ride, and builds in a travel limiter to soften over-compression. It covers 2.5 to 4.5 in of lift and is the least expensive TeraFlex JL shock kit covered here. See TeraFlex 9550 shocks on Amazon.
TeraFlex Falcon SP2 3.3 piggyback
The reservoir adds oil and gas capacity to reduce heat, and the knob gives Soft, Custom and Firm settings. It is the pick for lifted JLs that see sustained rough running. TeraFlex also lists a separate kit for EcoDiesel, 4xe and 392 JLs with a modified front reservoir body. Search for the SP2 3.3.
ARB Old Man Emu BP-51
ARB's BP-51 is a 51 mm bypass shock with a remote reservoir. ARB says rebound and compression can be adjusted on the vehicle and lists JL fitment including the 4xe and 392. It makes sense for hard, fast use where adjustability and heat capacity matter. Search for the BP-51.

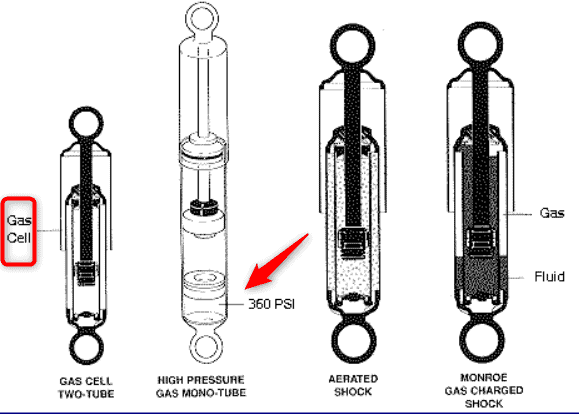

Twin-tube, monotube and piggyback shocks
A twin-tube shock has an inner working tube inside an outer tube. TeraFlex notes a dent in the outer tube will not stop the inner shock from working, and says the twin-tube design gives longer stroke than a monotube.
A monotube has one tube with a floating piston separating oil from gas. FOX says that design stops the oil from aerating. A piggyback or remote reservoir adds gas and oil volume outside the body, which TeraFlex says reduces heat, and it needs room to mount.
Check these before you order
Run through this order before spending money. The first three steps cost nothing.
- Measure your actual lift, with the tires you run, rather than trusting the kit name.
- Confirm door count, model year and whether the Jeep is a 4xe, EcoDiesel or 392.
- Check the maker's collapsed and extended lengths and the shock's listed lift range.
- Check the bump stops. TeraFlex says setup varies with shock collapsed length, tire size and fenders.
- Replace shocks in pairs, or as a full set, so damping stays even side to side.
Tire size changes the load the shocks see and how much room you have at full travel, so work it out with our tire size calculator first. For wider wheels, see wheel offset and backspacing for 35s.
TeraFlex recommends installation by a certified mechanic and says it is not responsible for damage from improper installation. Use jack stands, never just a jack, when working under the Jeep.
TeraFlex's own labor estimates differ a lot by kit: about 1 hour for the 9550 twin-tubes, 1.5 hours for the SP2 3.3 and 3.5 hours for the SP2 2.1. Budget time for bump stops as well.
Signs your Wrangler needs new shocks
| Symptom | Check first | Likely cause |
|---|---|---|
| Bouncing more than once after a bump | Press down hard on each corner and release; the body should settle in one cycle | Worn shock valving |
| Oil on the shock body | Wipe the shock and look for wetness after a drive | Failed seal; replace the shock |
| Nose dive when braking or body lean in corners | Inspect shocks, sway bar links and bushings | Worn shocks or links |
| Clunk over bumps | Check shock mounts, bushings and the track bar | Worn bushings or loose hardware |
| Rapid front-end shake after a bump | Inspect track bar, steering parts and tire balance | Often not the shocks; see our lift kit problems guide |
If you are choosing a whole suspension rather than only shocks, our off-road suspension upgrade guide covers springs, arms and shock types together.
Frequently asked questions
Do I need new shocks if I lift my Wrangler?
Usually yes. Stock shocks are sized for stock travel. FOX, TeraFlex and others sell separate JL parts for each lift range because the lengths are different.
Will JK or TJ shocks fit a JL?
No. The makers list JL shocks by vehicle, with JL-specific mounting, so buy parts listed for the JL.
Are stiffer shocks better?
Not always. Shocks that are too stiff ride harshly and can reduce traction on rough ground, while too soft allows wallow and bottoming. Adjustable shocks such as the SP2 3.3 and BP-51 let you tune it.
Can I put aftermarket shocks on a 4xe?
Only on shocks listed for it. TeraFlex lists separate EcoDiesel/4xe/392 kits, ARB lists 4xe fitment for 2021 to 2023, and Bilstein says its 1.5 in kit does not fit the 4xe.
How long do Wrangler shocks last?
There is no fixed mileage. Rough roads, heavy loads and off-road use wear them faster, so inspect for leaks and bounce rather than going only by the odometer.
