Any 1999 or newer Jeep Grand Cherokee (WJ, WK, WK2 or WL) uses a 5x5 inch (5x127 mm) bolt pattern, so wheels from another 5x5 Jeep, such as a Wrangler JK or JL, a Gladiator or a Commander, can bolt on. The 1993-1998 ZJ is the odd one out at 5x4.5 inches, shared with the Wrangler TJ and Cherokee XJ.
A matching bolt pattern is only the first test. The lug stud thread differs between generations, so a Wrangler JK wheel on a 2011 or newer Grand Cherokee needs the right nuts. Offset, brake clearance and tire pressure sensors decide the rest.
Check a wheel before you buy
Offset difference
The checker follows the vehicle table and torque table below. It cannot see offset, wheel width or brake size, so the offset box only does the subtraction: a higher offset number pulls the wheel inboard, a lower one pushes it outboard.
For the full backspacing math on big tires, see the wheel offset and backspacing guide. For overall tire diameter and speedometer error, use the tire size calculator.
Bolt pattern and stud thread by Jeep

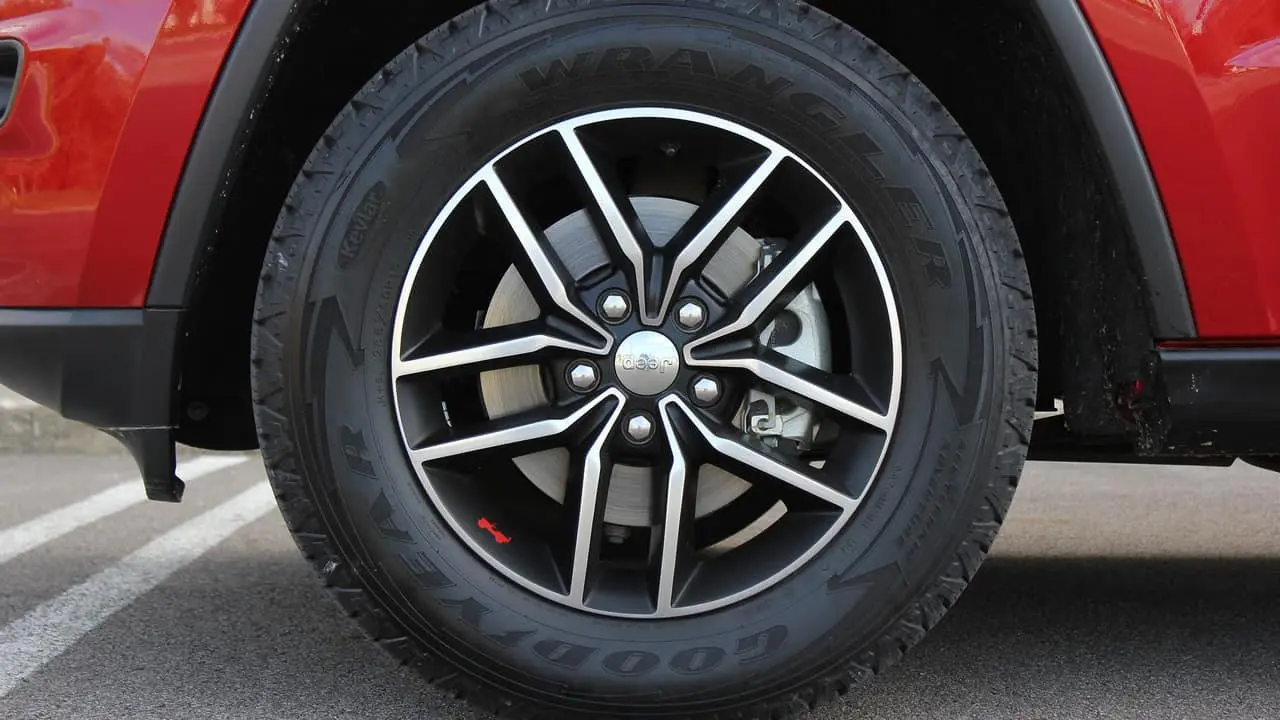

Every Grand Cherokee since 1999 is five-lug, 5x5 inches. So are the Wrangler JK and JL, the Gladiator and the Commander. Most other Jeeps use 5x4.5 inches, and the Cherokee KL uses a metric 5x110 mm pattern.
The stud thread is where owners get caught. The Wrangler JK uses ½-20 studs. The 2011 and newer Grand Cherokee, the JL and the Gladiator use M14 x 1.5. The two do not interchange, so a JK wheel on a WK2 still needs the correct lug nuts.
| Vehicle | Years | Bolt pattern | Stud thread | Fits a 1999+ Grand Cherokee? |
|---|---|---|---|---|
| Grand Cherokee ZJ | 1993-1998 | 5x4.5 in | ½-20 * | No (the answer reverses for a ZJ owner) |
| Grand Cherokee WJ | 1999-2004 | 5x5 in | ½-20 * | Yes |
| Grand Cherokee WK | 2005-2010 | 5x5 in | ½-20 * | Yes |
| Grand Cherokee WK2 | 2011-2021 | 5x5 in | M14 x 1.5 | Yes |
| Grand Cherokee WL | 2022 and newer | 5x5 in | M14 x 1.5 | Yes |
| Wrangler JK | 2007-2018 | 5x5 in | ½-20 | Pattern yes; thread differs from WK2 and WL |
| Wrangler JL | 2018 and newer | 5x5 in | M14 x 1.5 * | Pattern yes; thread differs from WJ and WK |
| Gladiator JT | 2020 and newer | 5x5 in | M14 x 1.5 | Pattern yes; thread differs from WJ and WK |
| Commander XK | 2006-2010 | 5x5 in | Sources disagree | Pattern yes; confirm nuts |
| Wrangler TJ, YJ | 1987-2006 | 5x4.5 in | ½-20 * | No |
| Cherokee XJ | 1984-2001 | 5x4.5 in | Not confirmed | No |
| Liberty KJ, KK | 2002-2012 | 5x4.5 in | M12 x 1.5 (KK) * | No |
| Cherokee KL | 2014 and newer | 5x110 mm | M12 x 1.25 * | No |
| Compass, Patriot | 2007-2016 | 5x4.5 in | M12 x 1.5 * | No |
One correction to older versions of this guide: the Liberty KK (2008-2012) is 5x4.5 inches, not 5x5. Wheels from any Liberty do not fit a 1999 or newer Grand Cherokee.
Lug nut torque from Jeep manuals
Jeep says to tighten lug nuts with a calibrated torque wrench and a six-sided deep socket, in a star pattern, making two passes. Recheck the torque after 25 miles. Clean off dirt and oil first, and never fully tighten while the Jeep is on the jack.
A new wheel is the time to buy a torque wrench if you do not own one. A ½ inch click-type torque wrench and a 22 mm deep socket cover the M14 nuts; the JK uses a 19 mm socket. Check the current price on Amazon.
| Vehicle (manual year) | Torque | Thread | Socket |
|---|---|---|---|
| Grand Cherokee (2018, base) | 130 ft-lb (176 N·m) | M14 x 1.50 | 22 mm |
| Grand Cherokee SRT (2018) | 110 ft-lb (149 N·m) | M14 x 1.50 | 22 mm |
| Grand Cherokee and Grand Cherokee L (2023) | 130 ft-lb (176 N·m) | M14 x 1.50 | 22 mm |
| Wrangler JK (2018) | 100 ft-lb (135 N·m) | ½ x 20 | 19 mm |
| Gladiator (2020) | 130 ft-lb (176 N·m) | M14 x 1.50 | 22 mm |
What else has to match
- Center bore. Wheel databases list 71.5 mm for the Grand Cherokee WK and 67.1 mm for the Liberty KK. A donor wheel with a larger bore needs hub-centric rings; a smaller bore will not fit over the hub. These figures are not from a Jeep manual, so measure the hub if in doubt.
- Offset and brake clearance. Offset moves the wheel toward the suspension or the fender. Larger-brake trims, such as the SRT, need caliper clearance inside the barrel. Test-fit one bare wheel before mounting a tire.
- Tire pressure sensors. Jeep’s 2023 manual lists “using wheels/tires not equipped with TPMS sensors” as a reason the system shows SERVICE TPM SYSTEM. A donor wheel needs a compatible sensor.
- Overall tire diameter and load. Keep diameter near stock so the speedometer and ABS read correctly, and make sure the wheel and tire are rated for the axle load. The tire load index chart explains the numbers.
Do larger wheels fit, and what about sizes?
Factory Grand Cherokee WK tire sizes on wheel-sizes.com run from 245/70R17 to 305/35R22, so 17 to 22 inch wheels exist from Jeep. A bigger wheel still has to clear the caliper and keep overall tire diameter close to stock. Low-profile tires ride harder and bend wheels more easily on a trail.
Fitment checklist
- Match the bolt pattern: 5x5 inches for 1999 and newer, 5x4.5 inches for the 1993-1998 ZJ.
- Match the stud thread and wheel seat, and buy nuts for that combination.
- Compare center bore, offset and width with the factory wheel, using the numbers cast on the back.
- Test-fit one bare wheel to check the caliper and suspension clearance.
- Mount the tire and turn the steering fully each way, then drive slowly over bumps and listen for rubbing.
- Torque the nuts to the manual value in a star pattern, twice, and recheck after 25 miles.
Wheel fitment questions
The 1993-1998 ZJ is 5x4.5 inches (5x114.3 mm). The 1999 and newer WJ, WK, WK2 and WL are all 5x5 inches (5x127 mm).
JK and JL wheels share the 5x5 inch pattern with a 1999 or newer Grand Cherokee. The JK uses ½-20 studs and the 2011 and newer Grand Cherokee uses M14 x 1.5, so check the nuts, offset and brake clearance. TJ and YJ wheels are 5x4.5 and do not fit.
Commander XK wheels are 5x5 inches and can fit a 1999 or newer Grand Cherokee. Liberty KJ and KK wheels are 5x4.5 inches and do not fit a 1999 or newer one, but they do match a 1993-1998 ZJ.
No. A 2002 WJ is 5x5 inches and a 2007 Liberty KJ is 5x4.5 inches.
Yes, if the wheel is 5x5 inches with the right center bore, offset and load rating, uses M14 x 1.5 compatible nuts and carries a TPMS sensor. Jeep lists wheels without TPMS sensors as a cause of the service message.
