2005 Jeep Grand Cherokee Transfer Case Problems: Symptoms, Checks, and Easy Fixes

Quick Answer

Most 2005 Jeep Grand Cherokee transfer case issues show up as binding, clunking, Service 4WD lights, low-range failure, leaks, or grinding. The safest path is to verify tires, fluid condition, scan codes, and actuator operation before replacing the transfer case.

2005 Jeep Grand Cherokee transfer case problems are usually linked to neglected fluid, actuator or shift motor faults, encoder sensor issues, clutch wear, chain stretch, leaks, or mismatched tires that stress the 4WD system. Binding, grinding, harsh clunks, and a Service 4WD warning need diagnosis before trail use. A WK that will not shift, leaks heavily, or bangs under load should be parked until inspected.

Transfer case: A gearbox behind the transmission that sends power to the front and rear driveshafts in a four-wheel-drive or all-wheel-drive vehicle.

What are the common symptoms?

The most common symptoms are driveline binding, clunking, grinding, fluid leakage, warning lights, and failure to engage low range. These signs overlap with axle, driveshaft, tire, and transmission problems, so diagnosis should start with symptom matching rather than parts swapping. Forum pages often hide useful reports among sidebar labels like “Top Contributors this Month” and “Recommended Communities,” so a clean checklist helps more than thread scrolling.

Symptom-to-cause checklist

Symptom	Likely transfer case area	Immediate risk
Binding or hopping in tight turns	Clutch pack, tire mismatch, wrong fluid	High driveline stress
Clunk shifting Drive to Reverse	Mounts, chain slack, internal wear	Moderate to high
Service 4WD light	Actuator, encoder sensor, control module input	Depends on stored codes
Grinding or whine with speed	Bearings, chain, low fluid	High if worsening
Fluid leak at case or output	Seal, case half, vent issue	High if fluid level drops
Low range will not engage	Shift motor, actuator, linkage logic	Unsafe for steep trail use

Key insight: A transfer case complaint on a WK Grand Cherokee should not be judged from sound alone. Tire size, fluid condition, scan data, and driveshaft play all change the diagnosis.

When the Jeep is not safe to drive

A 2005 WK should be stopped and towed if it has a loud bang under throttle, visible fluid loss, grinding that changes with vehicle speed, smoke or burnt odor near the case, or a 4WD system that slips in and out of engagement. Trail use should also be avoided when low range will not engage on demand.

Owners dealing with a Grand Cherokee that refuses to move at all should compare symptoms with Jeep Grand Cherokee won’t move in gear diagnosis, since transmission, transfer case, and axle failures can feel similar from the driver’s seat.

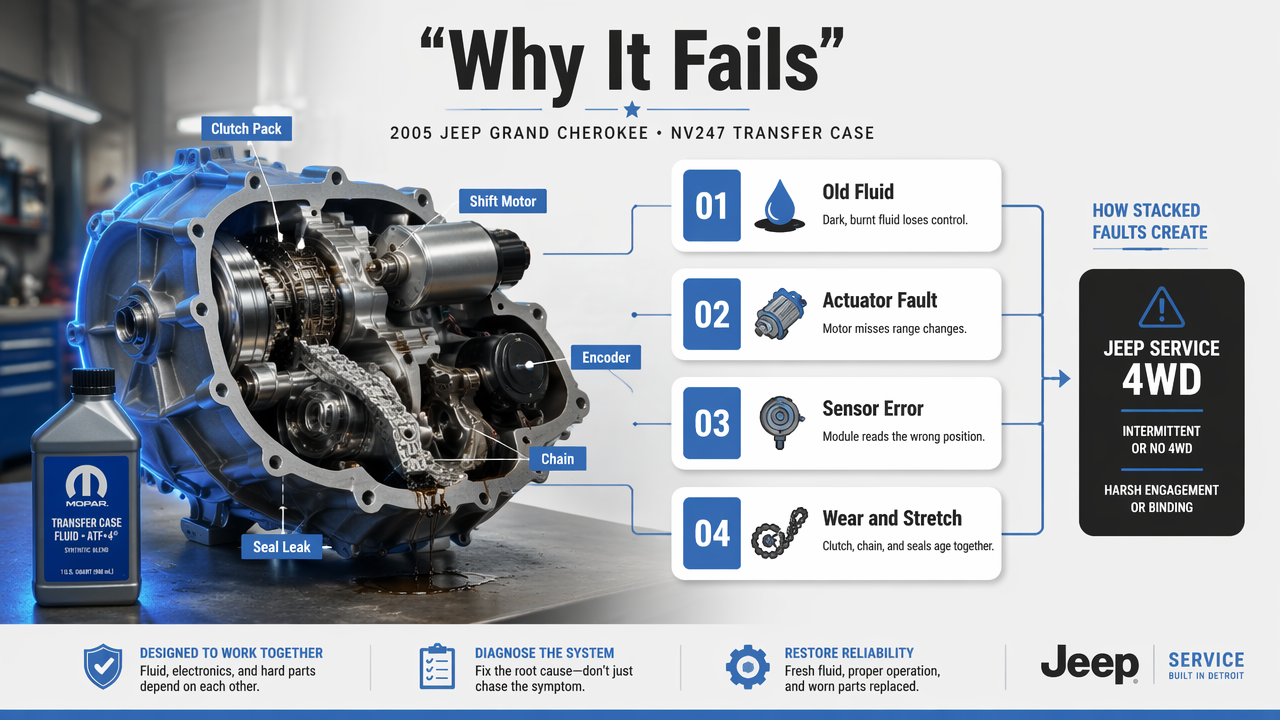

What causes 2005 Jeep Grand Cherokee transfer case problems?

The main causes are old fluid, incorrect fluid, actuator failure, encoder sensor errors, internal clutch wear, chain stretch, seal leaks, and tire mismatch. On high-mileage WKs, several faults can stack together, which makes a single online answer unreliable without a scan tool and basic mechanical inspection.

Most likely failure points on a WK

• Fluid breakdown: Dark, burnt, or contaminated transfer case fluid can reduce clutch control and increase wear.
• Shift motor or actuator fault: A weak motor may fail to complete range changes or trigger a warning.
• Encoder sensor issue: The module may not know the true transfer case position.
• Chain stretch: A stretched chain can slap, clunk, or skip under load.
• Clutch pack wear: Binding, shudder, or chatter may appear during tight turns.
• Seal leakage: Low fluid can damage bearings and gears quickly.
• Tire mismatch: Different tire sizes or uneven wear can force the transfer case to absorb constant speed differences.

Differential confusion is common

Front differential, rear differential, CV axle, driveshaft U-joint, and wheel bearing faults can imitate a failing transfer case. A tight-turn hop on pavement points toward driveline wind-up or clutch behavior, while a speed-related howl may come from a bearing outside the transfer case.

Modern diagnostic practice increasingly blends mechanical checks with electronic fault data. Research on automotive software updates by Ayres, Deka, and Paluszczyszyn in Electronics shows how software has become central to vehicle function, but the 2005 WK still needs hands-on inspection because mechanical wear drives many complaints.

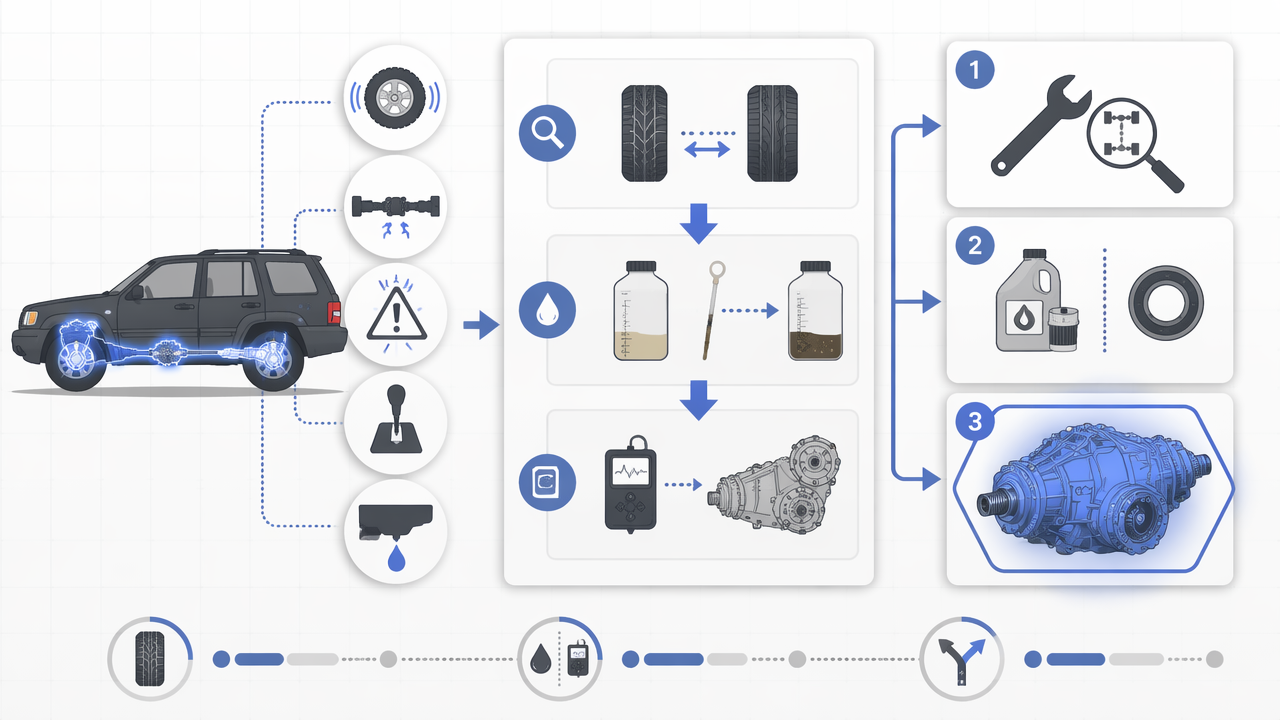

How should a driveway diagnosis be done?

A safe driveway diagnosis starts with tires, leaks, fluid condition, code scanning, and controlled engagement checks. The goal is not to rebuild the case at home; it is to decide whether the Jeep can be driven to a shop, needs towing, or has a simple external fault.

First checks before parts replacement

1. Park on level ground and inspect for wetness around the transfer case, output seals, and skid area.
2. Confirm all four tires are the same size, brand pattern if possible, and similar wear.
3. Check for recent tire replacement, spare-tire use, or mixed tread depths.
4. Scan the 4WD control system, not just the engine computer.
5. Listen for chain slap or grinding during light throttle, coast, and reverse.
6. Test 4WD Low only in a safe open area, following the factory shift procedure.
7. Stop testing if the case bangs, locks, leaks, or produces a burning smell.

The same disciplined electrical-first thinking applies to other Jeep faults, including Jeep Patriot ABS and traction control lights, where guessing at parts often costs more than proper diagnosis.

Helpful repair video for visual reference

The video is not WK-specific repair authority, but it helps identify transfer case location, driveshaft connections, mounts, and the general labor involved. A service manual and vehicle-specific procedure should guide any actual removal.

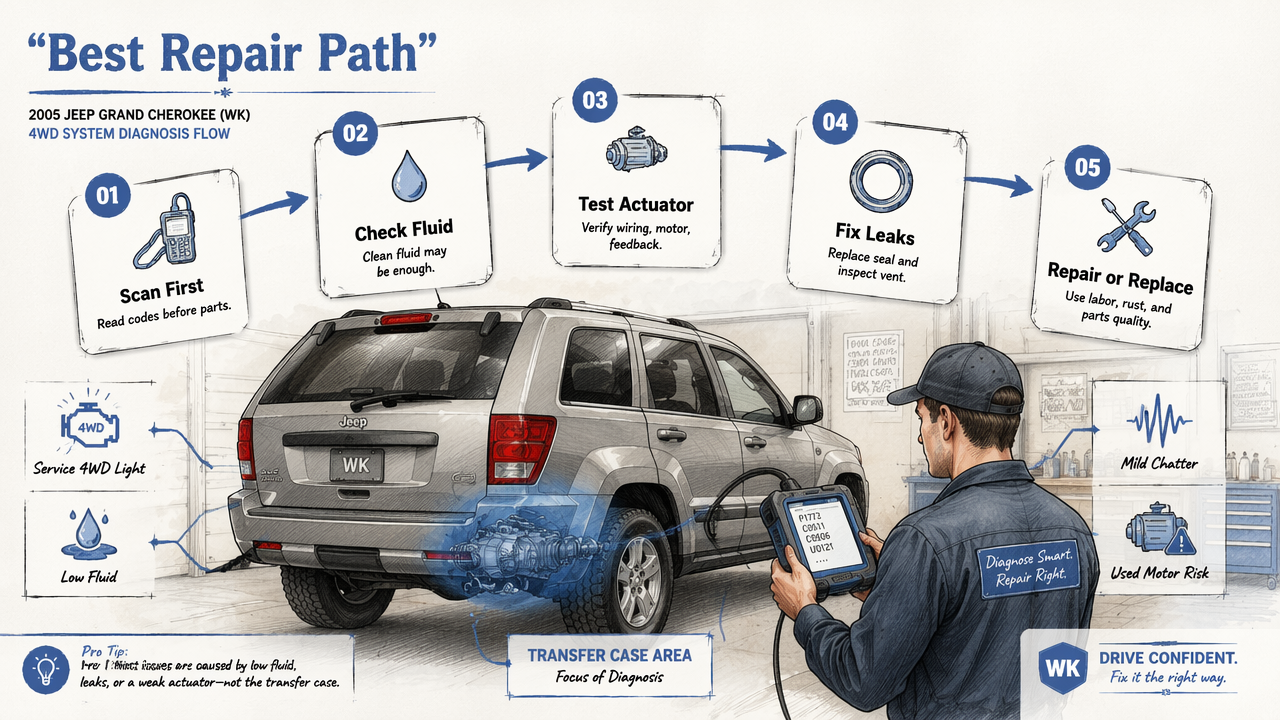

What repair path makes sense in 2026?

The best repair path in 2026 is to diagnose electronically and mechanically before choosing fluid service, actuator replacement, seal repair, used replacement, or rebuild. Many 2005 WKs are now old enough that labor, rust, and parts quality matter as much as the original fault.

Decision table for repair choices

Finding	Sensible next step	Buyer warning
Clean case, old fluid, mild chatter	Correct fluid service and retest	Avoid assuming instant rebuild
Service 4WD light with actuator codes	Test wiring, motor, encoder feedback	Used motors may also be weak
Leak with no noise	Replace seal, refill, inspect vent	Low fluid history still matters
Loud chain slap or skip	Internal inspection or replacement	Walk away if seller says “normal Jeep noise”
Burnt fluid plus binding	Clutch or internal wear diagnosis	Budget for major driveline work

Used buyers should test cold starts, reverse engagement, tight parking-lot turns, highway coast noise, and low-range engagement before purchase. A seller who refuses a 4WD test or scan should be treated as a red flag.

Cost and parts caution

Exact repair cost depends on region, rust, drivetrain version, labor rate, and whether the shop installs new, rebuilt, or used parts. The major warning is sequence: replacing a complete transfer case before checking tires, fluid, wiring, and actuator feedback can waste money.

The Offroadhandbook platform favors inspection-based decisions for older 4WDs because trail reliability depends on the whole driveline, not one shiny replacement part. For broader Jeep ownership context, related electrical and body issues such as Grand Cherokee power liftgate problems can also shape a used-WK budget.

Vehicle malfunction research remains relevant beyond driveline repair. A 2025 review on vehicle malfunctions, testing, and controls by Smit, Ayala, and Kadijk in Sustainability reinforces a broader point: faults should be tested, not guessed at from symptoms alone.

FAQs about WK transfer case issues

These short answers cover the questions most likely to affect safety, diagnosis, and buying decisions.

Can a 2005 Grand Cherokee be driven with a bad transfer case?

A 2005 Grand Cherokee should not be driven far if the transfer case is grinding, leaking, banging, slipping, or producing a burning smell. Mild chatter still needs inspection, but harsh engagement or fluid loss can damage the transmission, driveshafts, differentials, or the transfer case itself.

Can wrong tires damage the transfer case?

Wrong or mismatched tires can stress the transfer case because the front and rear axles may rotate at slightly different speeds. On a full-time or automatic 4WD system, that difference can create heat, clutch wear, binding, or shudder, especially during tight turns on dry pavement.

Is a Service 4WD light always a bad transfer case?

A Service 4WD light does not automatically mean the transfer case is internally failed. The warning can come from the shift motor, encoder sensor, wiring, module inputs, low voltage, or range-position disagreement. A proper scan of the 4WD system should happen before mechanical replacement.

What should a used buyer check first?

A used buyer should check tire matching, transfer case leaks, 4WD Low engagement, tight-turn binding, reverse clunk, highway whine, and stored 4WD codes. The strongest walk-away signs are burnt fluid, loud grinding, missing low range, seller resistance to testing, or claims that heavy driveline banging is normal.

Conclusion

2005 Jeep Grand Cherokee transfer case problems need a safety-first diagnosis, not a guess based on one noise. The practical next step is simple: inspect tires and leaks, scan the 4WD system, verify fluid condition, test engagement carefully, then decide between service, actuator repair, seal work, rebuild, or replacement.
