Jeep Articulation Explained for Beginners: Why Flex Matters Off Road

Last updated on May 25th, 2026 at 09:51 am

Quick Answer

Jeep articulation is the suspension’s ability to keep the tires on uneven ground. Better articulation helps a Jeep crawl slowly over rocks, ruts, and washouts with more traction, less wheelspin, and better control. A lift kit alone does not guarantee better flex; sway bar disconnects, shock travel, springs, control arms, tire pressure, and axle design matter more. Beginners should upgrade only when their Jeep regularly lifts tires or needs too much momentum on technical trails.

A Jeep can have lockers, aggressive tires, and low range, but poor articulation will still leave a tire hanging in the air. Jeep articulation explained for beginners starts with one simple idea: the more your suspension lets the wheels follow uneven ground, the more traction you usually keep.

Articulation: the amount of suspension and axle movement that allows one wheel to droop while another compresses over obstacles. For new drivers, that matters because traction is what gets you over ruts, ledges, and washouts without bouncing, spinning, or scraping.

What is Jeep articulation?

Jeep articulation is the suspension’s ability to keep the tires in contact with uneven terrain by allowing vertical wheel travel. On the trail, one wheel may stuff into the fender while the opposite wheel drops into a hole. That twisting movement is what people call flex.

A lot of beginner confusion comes from mixing articulation with ride height. A taller Jeep does not automatically articulate better. Lift height, shock length, spring rates, sway bars, control arm geometry, and axle design all affect how much usable wheel travel you actually have.

Wikipedia defines a beam axle as a rigid or solid axle where the wheels are connected laterally by a single beam or shaft, a design long associated with durability and articulation in off-road vehicles like many Jeep models, especially older Wranglers with solid axles front and rear, Wikipedia: Beam axle.

“As much as possible, keep your machine in contact with the ground.”, Land Rover Experience, Land Rover Experience

Quick terms beginners should know

• Compression: when a wheel moves upward into the body.
• Droop: when a wheel extends downward into a hole.
• Sway bar: a bar that resists body roll, but also limits suspension flex when connected.
• Solid axle: both wheels on an axle are linked, which often helps articulation.
• IFS: independent front suspension, often smoother on road, but usually with less front flex than a solid axle.

Why does articulation matter for traction and stability?

Articulation matters because tires only pull, brake, and steer when they stay loaded against the ground. If a wheel lifts, open differentials can send power to the tire with the least resistance, which is often the one in the air. Even with traction control, lost contact usually means less control and more wheelspin.

Good articulation also helps stability, but with a limit. New drivers sometimes assume more flex always means safer. In reality, articulation helps a Jeep stay planted on uneven terrain, yet side-hill safety still depends on center of gravity, line choice, tire pressure, speed, and driver input.

If you’re still building core trail habits, pair suspension knowledge with beginner off-roading safety tips for 2026. Safety skills matter more than bolt-on parts.

How articulation changes what you feel from the driver seat

1. More contact: the Jeep crawls instead of hopping.
2. More traction: tires stay loaded over holes and rocks.
3. Less drama: smoother body motion can reduce sudden lurches.
4. Better obstacle control: you can go slower and place tires more accurately.

Articulation versus other off-road factors

Factor	What it affects	Why beginners confuse it with articulation
Tire size	Ground clearance, footprint	Bigger tires look more capable, but don’t create flex
Lift height	Clearance under body, approach to larger tires	A lift can reduce ride quality without adding useful travel
Lockers	Power delivery to both wheels on an axle	Lockers can overcome some lost traction, but don’t keep tires on ground
Tire pressure	Grip and ride compliance	Lower pressure helps tires conform, but suspension still needs travel
Sway bar disconnect	Suspension movement	This directly improves front axle flex on many Jeeps

Mud, rocks, and ruts each reward articulation differently

Rocks and deep cross-axle ruts show articulation most clearly because one corner compresses while another droops. Mud is different. In slick mud, tire design and momentum matter too, which is why many Jeep owners also ask whether mud tires ride rough on pavement before changing setups.

How can beginners tell if a Jeep has good or limited flex?

A Jeep shows good articulation when it keeps all four tires close to the ground without violent body movement or constant wheel lift. You do not need a ramp score to notice the basics. Trail observation works fine for most new owners.

Watch what happens when one front tire climbs a rock or berm. A flexible setup lets the opposite tire droop and maintain contact. A limited setup picks up a tire early, unloads traction, and often needs more throttle than the obstacle should require.

Simple signs of healthy articulation

• The Jeep crawls obstacles with light throttle.
• Opposite-side tires stay planted longer.
• Suspension cycles smoothly, not with sharp jolts.
• Bump stops, brake lines, and shocks don’t look overextended.
• The body stays composed instead of rocking hard side to side.

Common signs flex is limited

• A front tire lifts on mild cross-axle terrain.
• Electronic traction control works overtime.
• The Jeep feels tippy because one corner unloads quickly.
• You hear suspension top-out or see shocks run out of travel.
• The vehicle needs momentum where slow crawling should work.

A good beginner check is a safe, low-speed ramp or ditch crossing with a spotter. Photos from outside the vehicle tell the story better than what you feel in the seat.

Video: Visual example of off-road geometry and drivetrain thinking

That video is about portal axles, not just flex, but it helps beginners see how clearance, axle design, and suspension behavior work together.

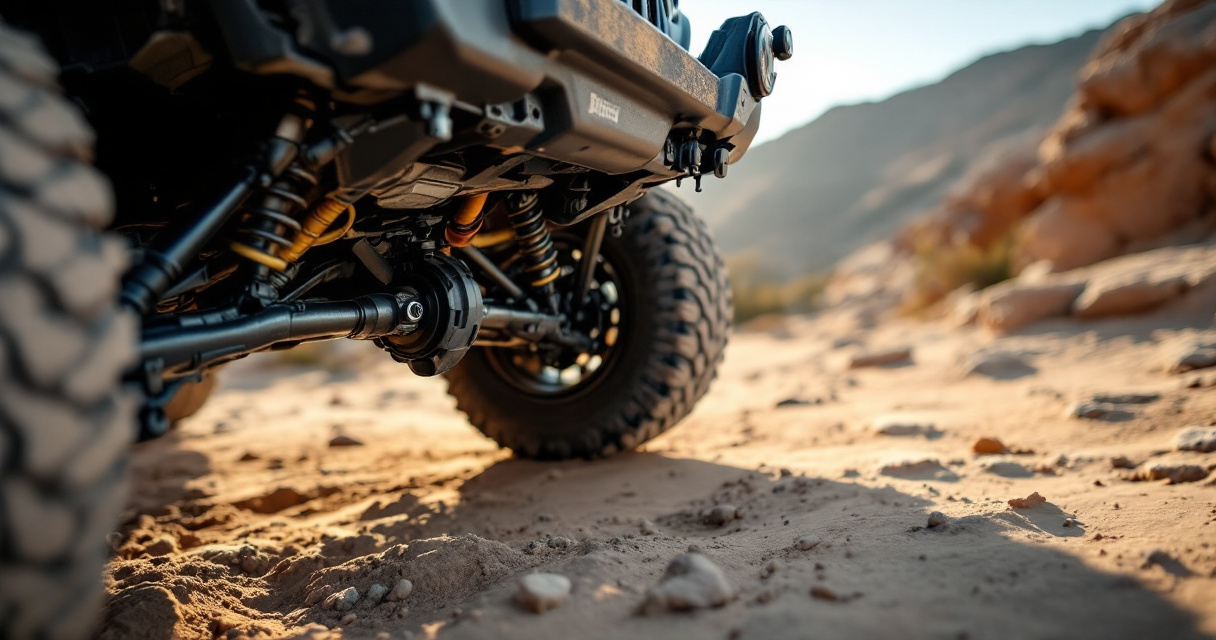

What do sway bar disconnects and suspension changes actually do?

Sway bar disconnects increase front suspension movement, while suspension upgrades aim to add usable travel, control, and durability.

For many Wrangler owners, disconnecting the front sway bar is the most noticeable articulation change because the bar normally resists opposite wheel movement.

That said, not every mod helps. Cheap lifts can raise the body while hurting geometry. Longer shocks without matching springs, brake lines, bump stops, and control arms can create a setup that looks impressive in photos but works worse on the trail.

“The suspension’s job is to maximize the friction of the tires with the road surface.”, Carroll Smith, Tune to Win

What each common mod changes

1. Sway bar disconnects: more front axle flex at low speed off road.
2. Longer shocks: more travel if the rest of the system supports it.
3. Control arms: improve axle path and geometry on lifted Jeeps.
4. Coil springs: affect ride height and spring rate, not just flex.
5. Bump stops: prevent damage at full compression.
6. Brake line extensions: keep lines safe at full droop.

Electronic systems matter too. Modern Jeeps can mask weak articulation with brake-based traction control, but they can’t replace mechanical contact. If warning lights are already affecting your confidence, review Jeep Patriot ABS and traction control light fixes before assuming the suspension is the issue.

Do beginners actually need articulation upgrades?

Most beginners do not need articulation upgrades right away; they need seat time, tire pressure knowledge, and better line choice first. Stock Jeeps, especially Wrangler trims intended for trail use, are more capable than many first-time owners expect.

Upgrade when your trails consistently expose a real limit. If you are lifting tires on obstacles you should otherwise clear, dragging because you need excess momentum, or planning technical rock crawling, then articulation improvements start making sense. For forest roads, beach driving, mild ruts, and occasional camping trails, stock travel is often enough.

A smart beginner decision guide

• Stay stock for now if you mostly drive easy to moderate trails.
• Add disconnects first if you own a Wrangler and want more usable flex without rebuilding everything.
• Upgrade suspension carefully if your driving has shifted toward rocky, cross-axle terrain.
• Skip cosmetic lifts if your goal is traction rather than looks.

Offroadhandbook covers the kind of ownership questions that come up before and after trail mods, from drivetrain behavior to common Jeep issues. You can also visit offroadhandbook.com when you’re comparing practical fixes versus upgrades.

FAQ for new Jeep owners:

Does articulation make a Jeep better on road?

Articulation itself is mainly an off-road benefit. A setup designed for maximum flex can add body roll or reduce crisp road handling if it is not balanced well. Daily-driven Jeeps need compromise.

Can lockers replace articulation?

Lockers help when a tire unloads, but they do not replace suspension travel. The best result is usually a Jeep that keeps tires planted and can still send power where needed.

Is a lift kit the same as an articulation upgrade?

No. A lift kit mainly raises ride height. Some lifts improve wheel travel, but others only create clearance for larger tires and can even hurt suspension performance.

Are solid axles always better for flex?

Solid axles usually articulate well and stay popular for crawling. Still, total capability depends on shocks, springs, sway bars, tires, and the terrain you actually drive.

Conclusion

Jeep articulation explained for beginners comes down to one practical test: can your Jeep keep its tires on the ground and move slowly with control? If yes, your setup is doing its job. Start with safe practice, learn how your suspension behaves, and only upgrade when your trails prove you need more travel.
