10 Most Common Kawasaki Bayou 300 Problems- How to Fix

The Kawasaki Bayou 300 is a beloved all-terrain vehicle that has gained popularity for its ability to tackle even the most challenging terrain. However, like any other machine, it is not immune to problems. As a Kawasaki Bayou 300 owner, it is essential to be aware of the common issues that may arise and how to fix them.

The most common Kawasaki Bayou 300 problems include:

  • Fault in the ignition key switch
  • Misfiring in engine
  • Stalling issues
  • Compromised transmission
  • Wear and tear of tires
  • Oil leakage
  • Low-quality material in the exhaust
  • Low-power engine
  • Presence of squeaking noise
  • Inaccurate timing of valve

In this article, I will discuss the top ten common Kawasaki Bayou 300 problems and provide solutions to help you keep your ATV running smoothly.

Basic Features of Kawasaki Bayou 300:

Feature

Type/ Value

Displacement (cc)

290

Cylinders

1

Top Speed

50 mph

Engine Stroke

4

Engine Type

4-Stroke SOHC

Lubrication

Forced lubrication

Bore x Stroke Ratio

2.99 x 2.52 in

Maximum Power

14.9 kW @ 6,500 RPM

Now with this basic feature of KLF300B3 Bayou 300, let me move to the associated problems and the corresponding fixes.

1. Fault in the Ignition Key Switch:

If you own a Kawasaki Bayou 300 and are experiencing problems with its ignition key switch, you are not alone. Unfortunately, the ignition key switch is one of the most common problems Bayou 300 owners face.

It is often seen that when the ATV is driven on harsh terrains, moisture gets trapped in the ignition key switch. This moisture can cause damage to the internal contacts and produce rust in the springs that hold the contacts.
10 Most Common Kawasaki Bayou 300 Problems- How to Fix

The voltage fluctuation caused by the rusted springs can burn the electrical system and other components. This can lead to a faulty ignition key switch, which can cause issues for the rider.

Some Kawasaki Bayou 300 owners have reported that they have encountered problems with their ignition key switch due to the buildup of water or dirt in the switch. This can pressure the contact points, causing the switch to fail.

How to Fix:

You can clean the initial stages of rust composition using a contact cleaner. Graphite grease is one of the best ways to clean the key switches. You can dip your ignition switches in the grease and put them back in the ignition. This will prevent corrosion and rust formation.

Other than this, replacing the old switch with a new ignition key switch is recommended if rust has accumulated in the whole area. Of course, you can also purchase an original piece or an aftermarket option.

2. Misfiring in Engine:

Kawasaki Bayou 300 has shown the issue of engine misfiring, which is a common one.

Let me mention the most common causes of misfiring below:

2.1. Improper Timed Fuel Pump:

An improperly timed fuel pump in a Kawasaki Bayou 300 can lead to engine misfiring, causing a reduction in the vehicle’s overall performance.

The fuel pump’s primary function is to deliver a precise amount of fuel to the engine at the correct time, which is crucial to the combustion process.

When the timing of the fuel pump is off, it can result in insufficient fuel delivery to the engine, leading to a lean fuel-air mixture.

A lean fuel-air mixture can cause engine misfiring, which is the uneven fuel burning in the combustion chamber, resulting in a loss of power and a rough-running engine. This issue can also lead to increased emissions, decreased fuel efficiency, and potential damage to the engine components.

How to Fix:

It is advised to check the user manual to reach optimal pressure which is required for your fuel pump. There is a vacuum valve which is responsible for controlling the pressure of fuel pump. Make sure that the valve is not tightly screwed.

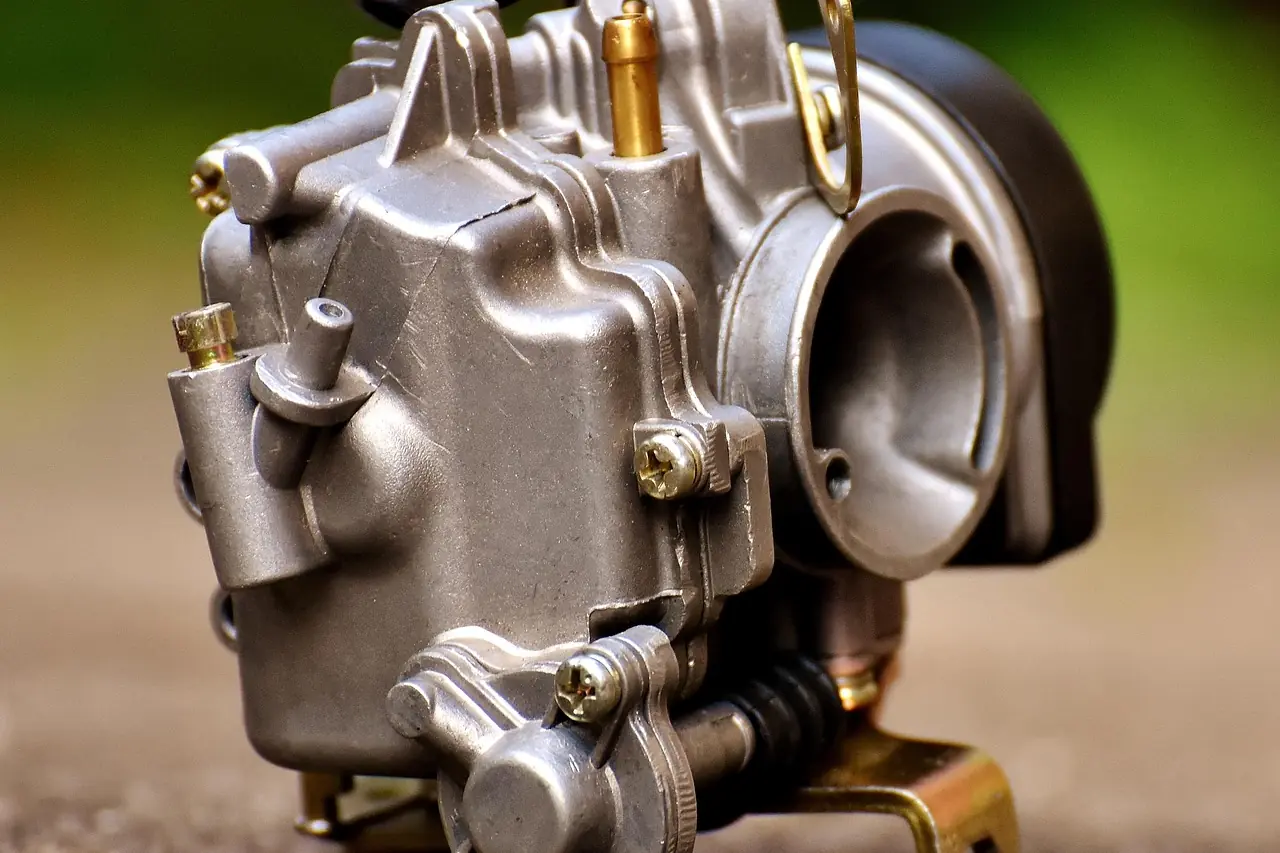

2.2. Poor Tuning of Carburetor:

The carburetor’s primary function is to mix air and fuel in the correct ratio to ensure optimal combustion in the engine. When the carburetor is poorly tuned, it can lead to an incorrect fuel-air mixture, which can cause engine misfiring.

Engine misfiring is characterized by uneven combustion of fuel in the engine, resulting in power loss and a rough running engine.

In addition to causing engine misfiring, a poorly tuned carburetor can also lead to decreased fuel efficiency, increased emissions, and potential damage to engine components.

Furthermore, a poorly timed valve in the engine can also cause damage to the carburetor boot, leading to air leaks and subsequent engine misfiring.

How to Fix:

To check if your valve timing is off or not, you can look out for some popping sound like entering of vehicle in the fifth gear, release of throttle body and sound production at speed less than 20 mph.

These signs will indicate that carburetor is rich with thick black soot that can malfunction the carburetor.

The best way to avoid this problem is to change the carburetors with an alternative available in market like KLF300 (Amazon). They are considered reliable aftermarket solution.

2.3. Low Idle Screw Setting:

If there is low idle screw setting in your quad, it can cause your carburetor to run rich and will trigger the backfire or misfiring of engine.

How to Fix:

You can switch the air filter of your Kawasaki Bayou 300 to fix the engine misfiring, Other than this, you can also upgrade the snorkel to fix this issue.

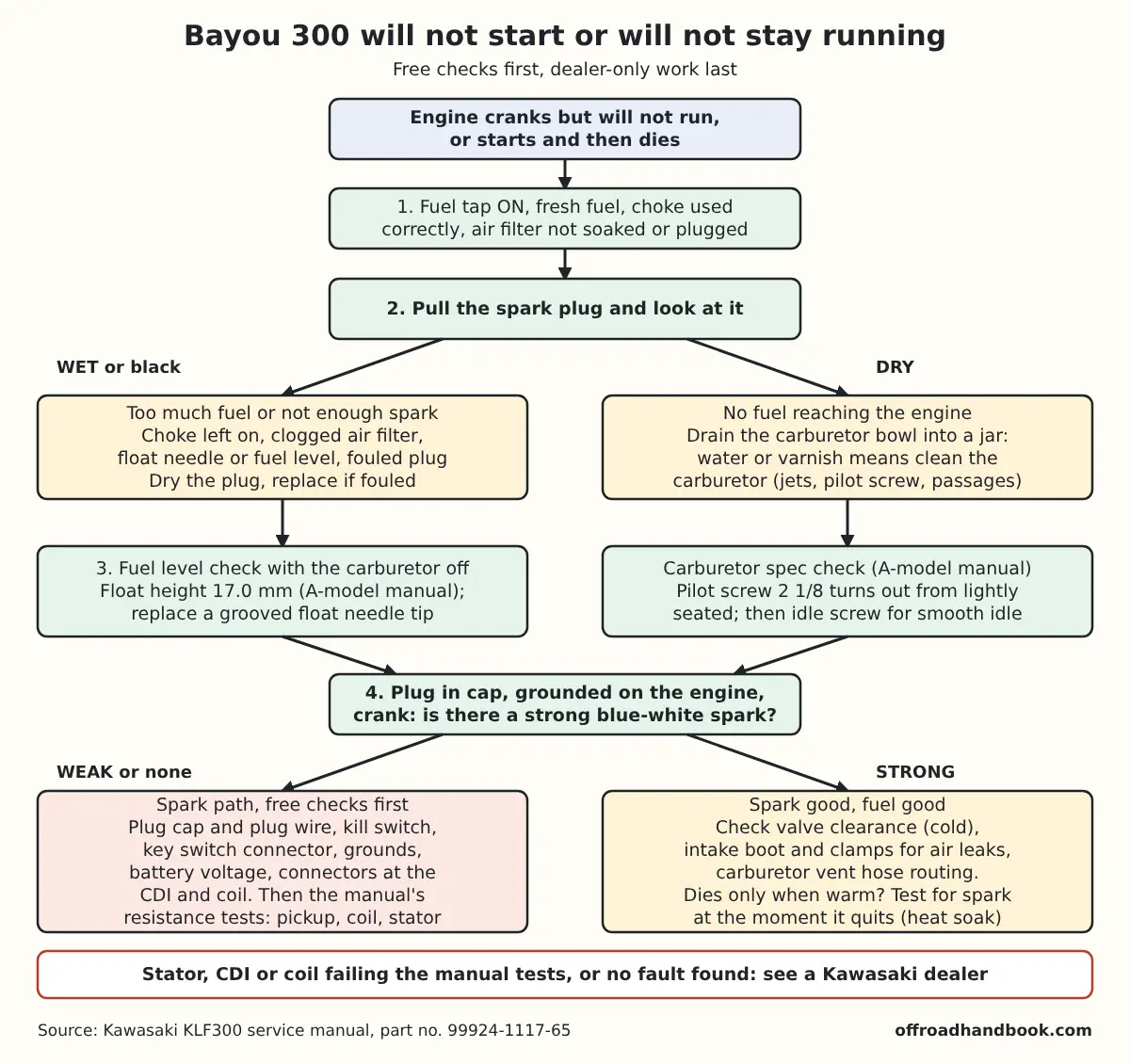

3. Stalling Issues in the Kawasaki Bayou 300:

If your engine loses its fire and dies after a few minutes of starting, it will lead to stalling issues. There are various reasons why the engine stalls in the Kawasaki Bayou 300.

The most common reason is improper fuel flow due to intense vehicle riding. Other than this, Bayou 300 is more prone to stalling when not driven for a long time.

The other significant causes which create stalling issues in Kawasaki Bayou 300 are:

  • Fault fuel lines
  • Damaged or bad filters
  • Improper tightening of vacuum
  • Malfunctioning in the ignition CDI box

How to Fix:

Inspecting the plugs to resolve this primary issue of stalling is recommended. The electrical plugs of your Kawasaki Bayou 30 are near the fuel tank, which is under the handlebars. Remove the plastic coverings from them to get access.

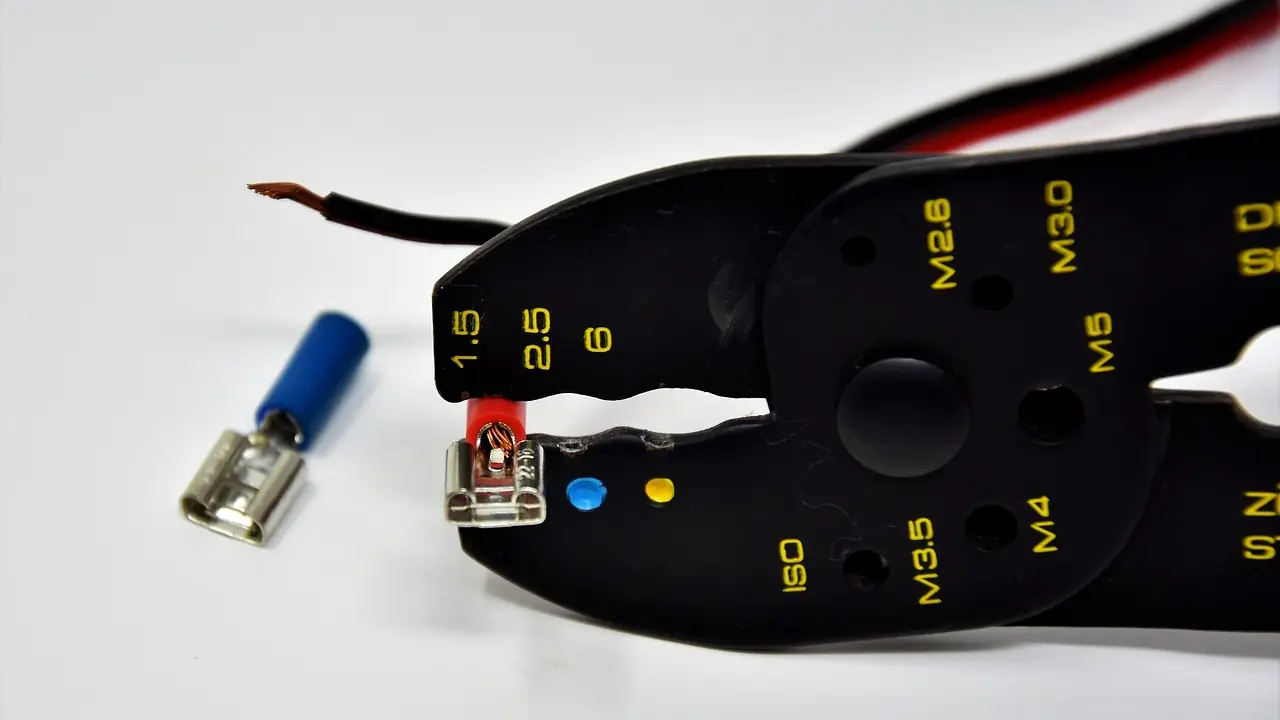

If there is a loose wire connection between the plug cables, you can secure them using electrical tape or a cable tie. This will prevent the issue in the future.

It is also advisable to stay within the fording depth of your Kawasaki Bayou 300, which is 20cm. This will prevent the components from getting wet and having low moisture exposure.

4. Faulty Transmission:

A compromised transmission is another frequently reported issue with the Kawasaki Bayou 300.

Many owners have complained about the difficulty in switching the transmission when they require the removal of the fork and switching the gears between multiple transmission modes of the vehicle.

This is a serious concern as it can affect the overall performance of the ATV, making it difficult and unsafe to ride.

The main reason behind the rough transmission shift is a fault in the reverse cable. The reverse cable connects the lever to the engine's case.

A fault in the reverse cable can cause it to get stuck in the area, leading to difficulty in shifting gears. Moreover, wearing springs and cams can also cause problems in shifting gears.

Low or contaminated transmission fluid generally triggers the transmission issue in the quad. The transmission fluid is responsible for lubricating the transmission and keeping it cool.

How to Fix:

You can deal with the compromised transmission of your Kawasaki Bayou 300 by removing the reverse cable to detect the major area of the problem. Relying or rerouting the reverse cable is recommended if it creates a nuisance.

Check the working of components, too, and replace them if needed. For example, if the reverse cable is the cause behind the compromised transmission, remove it and try to run your 4-wheeler to reveal the damage.

Reroute the cable and replace it if it is fully damaged. If the problem with transmission is not due to cable, it is recommended to check the associated components such as cams and springs. These components wear out more often than usual, making shifting difficult.

5. Wear and Tear of Tires:

It is important to note that worn-out tires can cause significant problems for your Kawasaki Bayou 300 models with full-time 4WD.

These models are prone to tire wear and tear due to all four wheels’ constant search for grip and traction.

If the tires on your Kawasaki Bayou 300 exhibit shallow tread depth, cracks, and blisters, it indicates wear and tear.

In addition, such tires are highly sensitive to punctures and blowouts, posing a significant safety hazard, especially when navigating challenging and rough off-road terrains.

How to Fix:

The solution for the worn-out tires is to replace them with a new pair.

Here, let me list down the steps for you to follow while replacing the tire:

  • STEP 1: Look out for the brand of tires which are compatible with your Kawasaki Bayou 300 and can make it work longer on terrains.
  • STEP 2: Replace the worn-out tires with a compatible pair of new tires. You can replace them on your own or seek help from a mechanic.
  • STEP 3: Use a manual car jack for lifting your ATV and remove its screws.
  • STEP 4: Change the old tire with a new one after removing the screws. Make sure that there is adequate pressure in tires that can provide smoothness on off-road terrains. You can also reduce your vehicle’s pace to increase its lifespan and shorten the traction of tires.

My Recommendation:

I use the Wanda tire (Amazon) for my Kawasaki Bayou 300 and highly recommend it to fellow riders.

The directional "V" angled tread structure with vast gaps between tread blocks ensures maximum cleaning action for better traction on even the roughest terrain, whether dirt, mud, woods, rocks, or desert.

With added shoulder lugs to safeguard the rim and sidewall and heavy 6-ply rated construction, this tire resists punctures and abrasions, making it the perfect year-round choice for any rider.

6. Oil Leakage in Vehicle:

Oil leakage is a problem that many Bayou 300 owners have reported. This issue usually arises after a specific period of usage. The cause of the problem is often a blown head gasket.

When you ride your vehicle unusually or aggressively, the head gasket can blow out due to the quad’s excess heat.

Few reported that unexpected oil leaking arises when they operate the vehicle aggressively or abnormally.

This means that if you are someone who loves to ride their quad bike in an aggressive or abnormal style, you may face the same problem with your Bayou 300.

How to Fix:

It is recommended to check the head gasket if oil is leaking from the vehicle. Then, you can replace it with a new piece if blown out.

Changing the head gasket in your vehicle is easy, or you can seek help from your mechanic.

10 Most Common Kawasaki Bayou 300 Problems- How to Fix

7. Low-Quality Material in Exhaust:

The exhaust is an essential part of the ATV, and its primary function is to remove the gases produced by the engine.

However, the low-quality material used in the Bayou 300’s exhaust system makes it more prone to rusting, eventually leading to extreme noise and vibrations.

Many users have reported that the exhaust of their Bayou 300 started producing a lot of noise after just a few months of use. This can be frustrating, especially if you love riding in a quiet, peaceful environment.

How to Fix:

It is not easy to fix low-quality exhaust materials in one go. You need to seek help from a mechanic or can maintain the existing exhaust system to avoid problems.

You can maintain it through the following steps:

  • STEP 1: Try to keep the ATV in a clean situation to reduce the occurrence of rust in the exhaust.
  • STEP 2: Cover the metal surfaces of your vehicle and use a rust inhibitor to keep them dry.
  • STEP 3: Scrap away the rusted area from the vehicle. You can also apply some paint on the scraped region to resist the occurrence of rust on it.
  • STEP 4: If your exhaust is worn out and full of rust, you can replace it with a new piece.

8. Lag in Power:

The next problem that Kawasaki Bayou 300 owners face is a lag in power. This is when the machine is expected to perform optimally but fails.

This can be frustrating, mainly if you use the machine to haul heavy loads. Several factors, including a worn-out spark plug, clogged air, fuel filters, or a faulty carburetor, can cause a lag in power.

How to Fix:

You can boost the performance of your Kawasaki Bayou 300 by installing air flow filters. It can suck greater air volume.

It is recommended to replace the carburetor needles to allow more gas to pass through it. The last suggestion is to replace the stock exhaust, which allows more air to leave the engine.

9. Presence of Squeaking Noise:

Many Kawasaki Bayou 300 owners have reported about presence of strange sounds when the piston hits the cylinder wall of the vehicle. It is a mechanical problem that makes riding the quad quite arduous.

This squeaking noise can irritate you and limit your hearing ability. The main culprit behind this issue is the worn-out regulator or rectifier. The fluctuation with these components can build up moisture in the vehicle and prevent the regulator from working.

How to Fix:

It is recommended to check the condition of the rectifier or regulator. A regulator helps regulate the current generated by the stator and converts the AC to DC for charging the battery.

It is better to inspect this area if you observe strange noises from the vehicle, or it is better to remove and replace the old regulator with a new one.

10. Inaccurate Timing of Valve:

When the valve timing is off, it can lead to various issues with the Bayou 300’s performance. For example, the engine may misfire or backfire, causing a significant loss of power.

Some users have reported hearing a noise during specific circumstances, like when releasing the throttle, shifting into fifth gear, or traveling below 20mph when the valve timing is incorrect.

How to Fix:

You can follow these steps to fix the issue:

  • STEP 1: Remove the plastic covering from the gas tank and manually adjust your Kawasaki Bayou 300.
  • STEP 2: Remove the covers of the valve and gas tank along with the exhaust. Remove these parts before removing the spark plug, as it prevents accessing the top from the dead center.
  • STEP 3: Recoil the pull start to detect the T timing mark on the compression stroke.

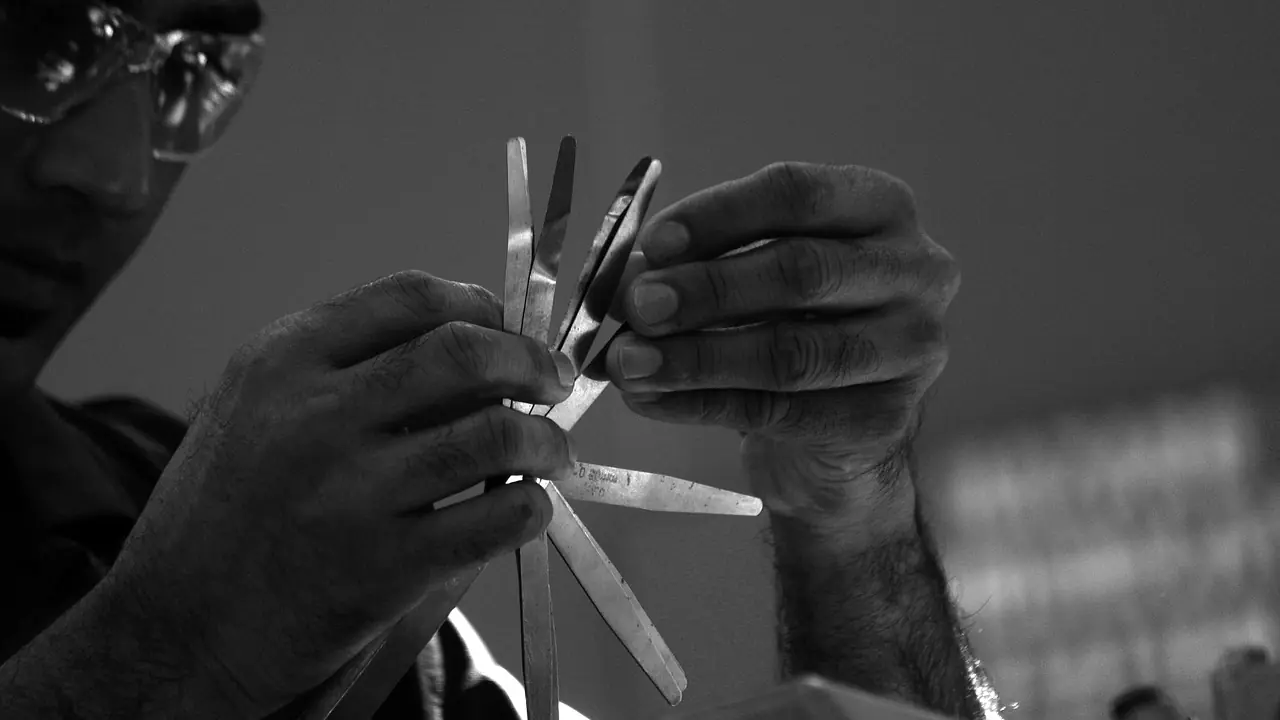

  • STEP 4: Mark the adjustments of about 0.10 mm Ensure and 0.25 mm using a feeler tool. Try to start the engine when you are satisfied with the adjustments. Ensure that there is enough fuel in the carburetor float to keep your engine running for a few minutes until you recouple the quad.

Pros and Cons of Kawasaki Bayou 300:

Pros

Cons

The Kawasaki Bayou 300 is known for its robust build and sturdy frame, making it an excellent choice for rugged terrains.

With a relatively small rear rack, the Bayou 300 has limited cargo capacity, making it challenging to carry bulky or heavy items.

The Bayou 300 features a 290cc air-cooled four-stroke engine that delivers reliable power and performance, making it ideal for off-road adventures.

The Bayou 300's engine can be quite noisy, which may be a nuisance for some riders looking for a more serene ride.

The Bayou 300's engine is highly fuel-efficient (9 L/2.4 US gal), making it a cost-effective option for long trips.

The quad suffers from the issue of overheating.

The Bayou 300's simple design and user-friendly features make it easy to maintain, even for novice riders.

Kawasaki Bayou Recall:

The recall pertains to a specific type of all-terrain vehicle: the Kawasaki “Bayou 200, 300, 300 (4×4).”

These four-wheel ATVs come equipped with a manual transmission, providing riders with the thrill of control and maneuverability.

Model Numbers Affected- KLF220A-15, KLF300-B15, KLF300-C14:

This recall applies to you if you own an ATV with model numbers KLF220A-15, KLF300-B15, or KLF300-C14.

It’s crucial to check your vehicle against these model numbers to confirm if your ATV is within the recall scope.

Identifying the Recalled ATVs- Look for the Markings:

To help you identify if your ATV is among the recalled ones, check for the “Kawasaki” and “Bayou” labels. These markings are prominently displayed on both sides of the ATV’s bodywork, usually located inboard the operator’s knee area.

Kawasaki Bayou 300 Users’ Feedback/Review:

“I have owned a Kawasaki Bayou 300 for over two years now, and it has been an absolute joy to ride. The suspension is excellent, and it handles rough terrain with ease. The engine is reliable, and the fuel efficiency is fantastic. However, I wish it had more cargo capacity. Overall, I am delighted with my purchase.”

Source: ATV Trader Review

“The Kawasaki Bayou 300 is a great entry-level ATV for beginners. It is easy to maintain and has excellent handling. However, the lack of electric start can be a bit frustrating at times, especially when the engine is cold.”

Source: ATV.com Review

“I recently purchased a Kawasaki Bayou 300, and I must say I am impressed with its performance. The engine is powerful, and the suspension offers excellent handling. The only drawback is that it is not suitable for high-speed adventures.”

Source: ATV Rider Review

Overall, the Kawasaki Bayou 300 has received positive feedback from real-time users, with its reliable engine, excellent suspension, and ease of maintenance being its standout features.

However, some users have noted its limitations, such as limited cargo capacity and seating capacity, as well as its lack of electric start and limited speed.

Final Thought:

The Kawasaki Bayou 300 is a reliable and versatile ATV with endless possibilities. While it may experience some common problems such as electrical system issues, engine stalling, and carburetor problems, these issues can be easily fixed either on your own or with the help of a dealer. The Kawasaki Bayou 300 can provide a long-lasting and enjoyable riding experience with proper care and maintenance.

Also Read:

10 Most Common Polaris Sportsman 450 Problems- How to Fix
8 Most Common Tracker 800 SX Problems- How to Fix
8 Most Common Odes Dominator 800 Problems- How to Fix
Kawasaki Mule Pro FXT: How to Fix the Most Common Problems
8 Most Common Kawasaki Mule 4010 Problems- Here’s How to Fix

Frequently Asked Questions (FAQs):

What is the top speed offered by Kawasaki Bayou 300?

The top speed offered by Kawasaki Bayou is 55 mph. This is not the fastest ATV, but such speed is provided in good stock condition.

Which kind of oil is used in Kawasaki Bayou 300?

Kawasaki Bayou 300 uses mineral engine oil of 10W-40. This mineral engine oil makes the engine of the vehicle work faster.

What is the worth of the Kawasaki Bayou 300?

The average base price of Kawasaki Bayou 300 is $4000, while its average retail is $900. Therefore, the total price of this vehicle is $4000.

Which bike holds the capacity to beat Kawasaki Bayou 300?

The model of KTM Duke 390 holds power to beat Kawasaki Bayou 300.

Which model of Kawasaki is considered a faster one? 300 or 400?

Kawasaki 300 model holds 39PS and a torque of 26Nm. On the other hand, Ninja 400 vehicle holds an extra displacement with 45PS and a torque of 37Nm. In addition, Ninja 400 has a RAM air effect making it the most powerful bike on the market.

How can a person determine that the clutch of a vehicle needs adjustment?

There are some signs which indicate that the clutch in the vehicle needs adjustment, such as:

  • Problems in acceleration
  • Hard shifting of gears
  • Slipping of clutch or gears
  • Squeaking sound from the vehicle
  • Stickiness of gears

Is it necessary to adjust the clutch in a vehicle?

There are hydraulic clutches in new vehicles and a slave cylinder. They help in self-adjustment and do not require specific adjustments. However, there was clutch cable and lever in old vehicles, which needed special adjustment to keep the clutch working in a good position.
