Suzuki King Quad 400 Problems: 6 Common Issues and Fixes

Last updated on October 17th, 2026 at 09:36 pm

This post contains Amazon affiliate links. As an Amazon Associate I earn from qualifying purchases, at no extra cost to you.

Most Suzuki King Quad 400 trouble comes down to a weak battery, fuel delivery, a dirty throttle body, heat, a wet CVT belt or a fault the ECM flags. A steady FI light means limp-home mode, and a blinking one means the engine will not run.

The checks below run free first, with numbers from Suzuki’s own service data.

The figures come from Suzuki’s supplementary service manual for the 2010 LT-A400/F and LT-F400/F and the 2024 KingQuad 400ASi spec sheet. Fuel injection arrived with the 2010 model year, and the 2008 machines were carbureted (atv.com’s 2008 test), so skip the injection and FI-light steps if yours has a carburetor.

Symptom, cause and fix at a glance

What you see	Check first (free)	Likely cause	Next step
Clicks or cranks slowly	Battery charge, terminals, ground	Weak battery or poor connection	Charge and clean; a shop checks the starter and relay
Cranks but will not start	Fuel pump hum with the key on, 15 A fuel fuse	Pump relay, tip-over sensor, fouled plug, bad fuel	Check plug and pump circuit; pressure test is a shop job
FI light blinking	Engine stop switch, battery	ECM lost a crank, tip-over, ignition, injector or pump signal	Dealer reads the code
FI light steady, still runs	Air filter, intake joint	Sensor fault, ECM in fail-safe mode	Get the code read
Rough idle, stalls, weak power	Foam air filter, throttle body	Dirt, intake air leak, TP sensor out of adjustment	Clean; check idle is 1,500 rpm
Runs hot or oil temp light on	Oil level, mud on cooler and fins	Low or wrong oil, fan not running	Check fan relay (code 60)
Slips or loses drive (ASi)	Water in the belt cover	Wet or worn drive belt	Drain the cover; dealer for belt and clutch

Start at the top row that matches. If two rows fit, do the battery first, because low voltage upsets a fuel-injected engine and lights warnings that are not real faults.

Suzuki’s symptom tables list dozens of possible causes for each complaint. The order here puts the cheap, no-tool checks ahead of anything that needs a meter or a dealer.

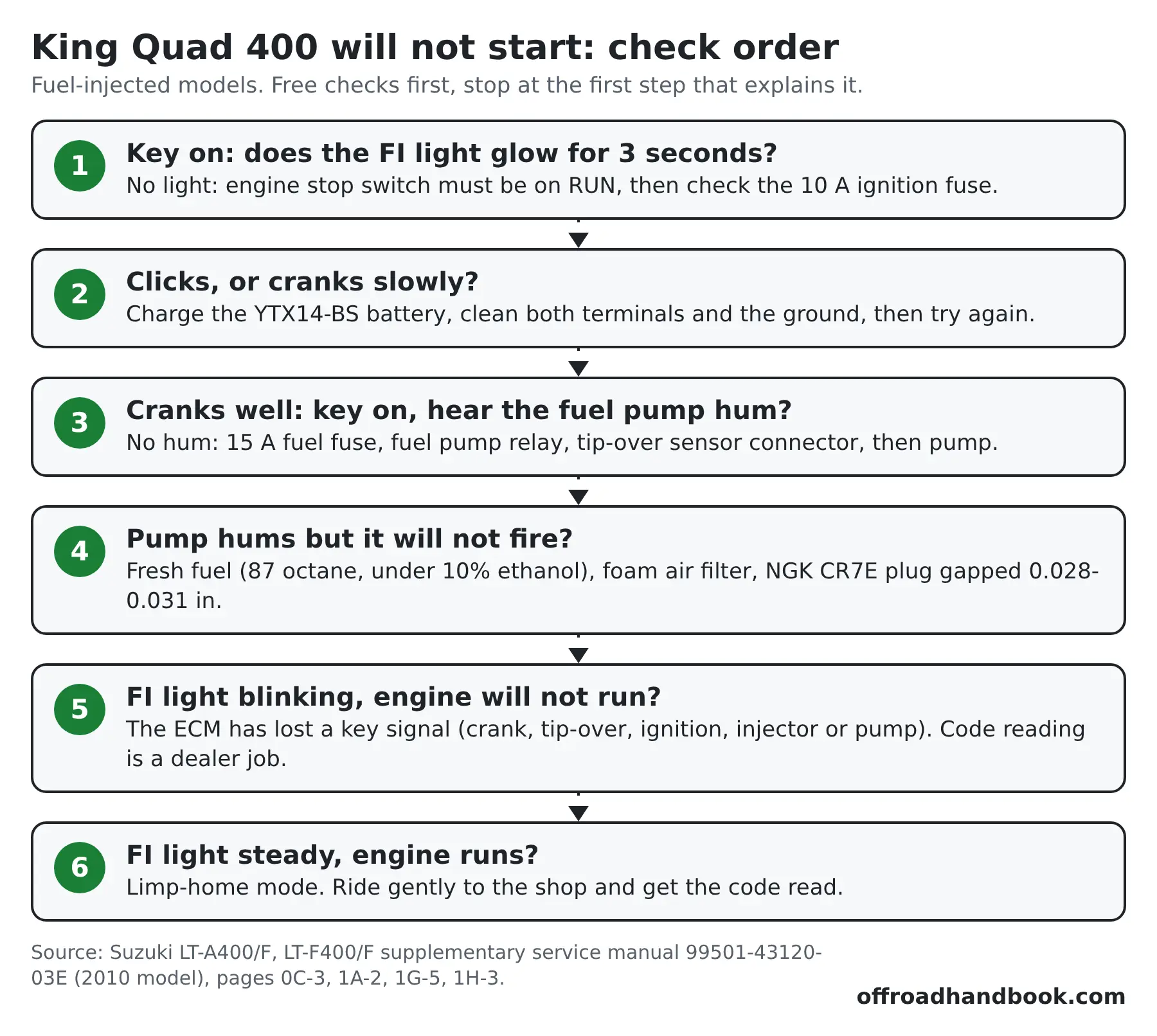

Check in this order

Work from the top and stop at the first step that explains the problem. Steps 1 to 4 need nothing but a fresh battery charge, a plug wrench and your ears.

Steps 5 and 6 are about the FI light. A blinking light means the ECM has stopped injection because a key signal is missing, and Suzuki says the vehicle cannot run.

King Quad 400 FI light and fault code checker

The checker only repeats Suzuki’s service data and the steps on this page. It cannot read codes from your ATV, and pulling a code needs a dealer-mode tool.

Use it to decide what to try before you call the shop. If the light is blinking or the oil temperature light is on, stop riding first.

1. Will not start, or starts and dies

A fuel-injected engine needs good voltage and a working pump circuit before it will run. Suzuki lists a clogged fuel filter, a weak pump or regulator, a bad injector and low battery voltage among the causes of frequent stalling.

1. Turn the key on. The FI light should glow for 3 seconds. No light means the engine stop switch is off or the 10 A ignition fuse is blown.
2. Charge the battery and clean both terminals. Suzuki specifies the YTX14-BS, 12 volts and 12 amp-hours, and warns against anything else.
3. Check the 15 A fuel fuse. A fuse that blows again points to a short, so find it instead of fitting a bigger fuse.
4. With the key on, listen for the fuel pump to run for a few seconds. If it is silent, check its connections, the fuel pump relay and the tip-over sensor.
5. Pull the spark plug. Suzuki specifies an NGK CR7E or DENSO U22ESR-N with a gap of 0.028 to 0.031 in, torqued to 8 lbf-ft. Clean and dry a wet plug or replace it.
6. Still nothing? Suzuki’s fuel pressure spec is about 42 psi and pump flow is 84 ml or more in 10 seconds. Both tests need special tools, so that is shop work.

A new plug is cheap, for example an NGK CR7E spark plug, and a 12-volt battery maintainer keeps the battery healthy between rides. Match the plug and battery to the numbers above.

2. FI light on or blinking

When you turn the key on, the FI light glows for 3 seconds and goes out. Suzuki says a steady light means the ECM has switched to fail-safe and the machine can still run, while a blinking light means injection has stopped and it cannot.

Codes are read in dealer mode with Suzuki’s mode select switch (tool 09930-82720) or the SDS tool, and they are stored in the ECM. Do not unplug the ECM coupler before the code is read, because that erases them.

Code	P-code	Part	What Suzuki tests
12	P0335	Crankshaft position sensor	130 to 250 ohms; 4.0 V or more peak while cranking
13	P0105	Intake air pressure sensor	About 2.0 V at idle; check the vacuum passage
14	P0120	Throttle position sensor	About 0.6 V closed, 3.8 V open
15	P0115	Engine oil temperature sensor	About 13 kilohms at 68 F
21	P0110	Intake air temperature sensor	About 2.45 kilohms at 68 F
23	P1651	Tip-over sensor	15 to 25 kilohms
24	P0351	Ignition coil circuit	Primary 3.1 to 4.14 ohms; secondary 25.6 to 34.6 kilohms
32	P0201	Fuel injector circuit	10 to 11 ohms at 72.5 F
41	P0230	Fuel pump circuit	Fuel pump relay and wiring
60	P0480	Cooling fan control	Cooling fan relay and wiring

Four sensors have a fail-safe value: intake air pressure is fixed at 101 kPa, the throttle is treated as wide open, oil temperature as 176 F and intake air temperature as 104 F. That is why a bad sensor can leave the engine running but poorly.

Searching for “P0230” on a King Quad 400? It is code 41, the fuel pump circuit. Suzuki’s steps start with the fuel pump relay and its coupler.

3. Rough idle, stalling or weak power

Suzuki’s maintenance chart has the foam air cleaner element cleaned every 600 miles or 3 months, and the throttle body inspected for dirt or mud on the same interval. Both are free to check.

1. Clean the foam air filter and look at the intake boots and throttle body joint. Suzuki lists air drawn in at that joint as a cause of overheating and weak power.
2. Inspect the throttle body for dirt or mud and clean it.
3. Check idle with a tachometer. Spec is 1,500 rpm, plus or minus 100, set with the idle air screw, which sits ½ to 3 turns back. Throttle cable play is 0.12 to 0.20 in.
4. Use fresh fuel: unleaded, at least 87 octane, with less than 10% ethanol. Suzuki has the fuel line inspected every 600 miles and replaced every 4 years.
5. If it still hesitates, the fuel filters in the fuel cock can be blown clean with compressed air, and Suzuki lists a throttle position sensor out of adjustment as a cause. Both involve pulling the tank or special tools.

The injectors, pump and sensors are shop work. Suzuki’s symptom table for frequent stalling lists a faulty IAP sensor, a clogged pump filter, the pump, the pressure regulator and the temperature sensors.

4. Running hot or oil temperature light on

The King Quad 400 is air and oil cooled. Suzuki’s system, SACS, uses an oil cooler and a thermostat-controlled cooling fan, so there is no radiator or coolant to check.

Suzuki’s overheating list includes not enough oil, the wrong oil, heavy carbon build-up and air leaks that lean out the mixture. Check the oil level first. Suzuki specifies SAE 10W-40 with JASO MA, and 3.0 quarts for a change or 3.3 with the filter.

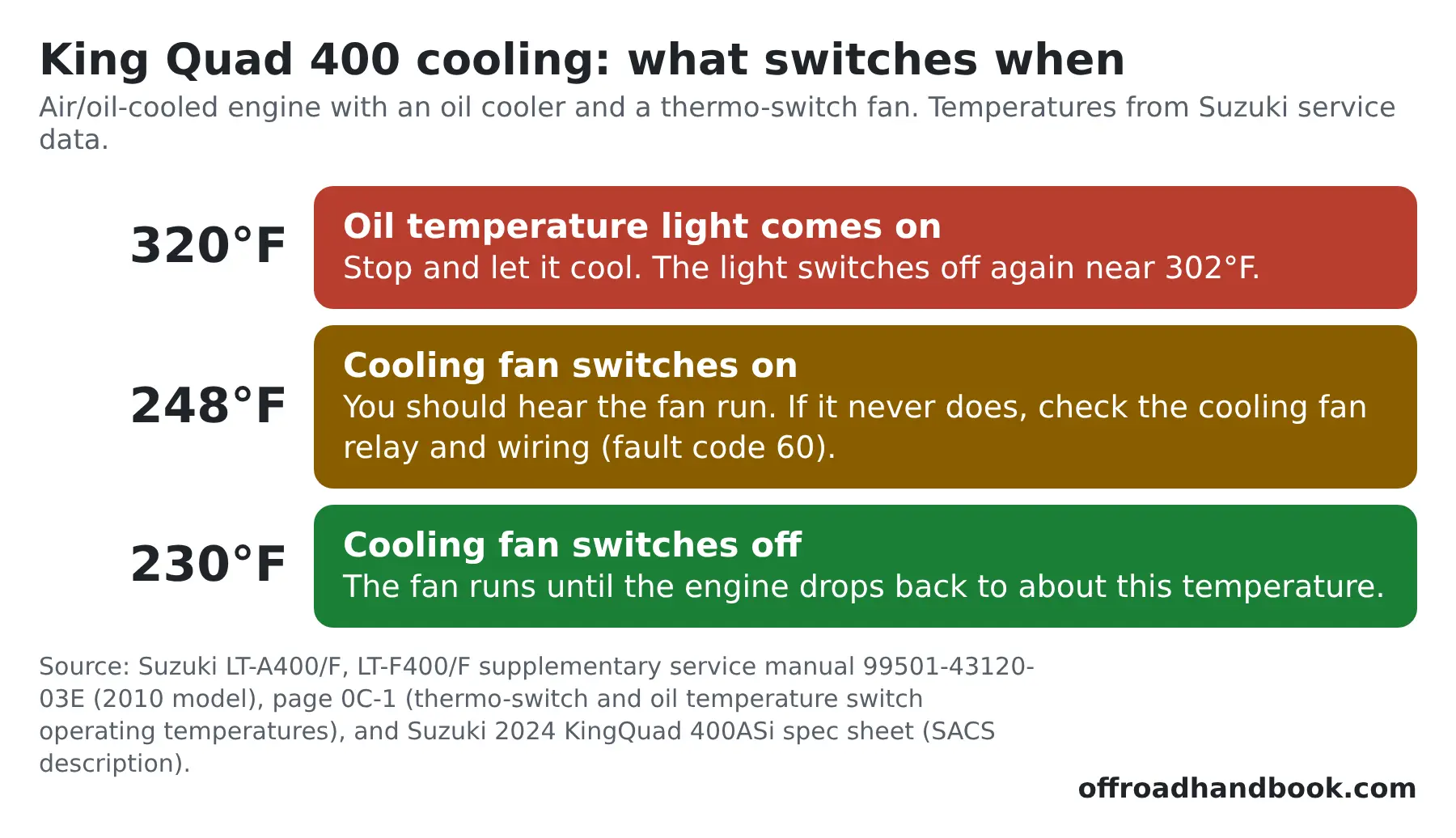

1. Stop and let the engine cool when the oil temperature light comes on. The light switches on at about 320 F.
2. Check the oil level and look at the cooler and fins. Packed mud blocks the airflow they rely on.
3. Listen for the fan as the engine gets hot. It switches on near 248 F and off near 230 F.
4. No fan means the cooling fan relay or its wiring. Code 60 points there, and the relay is tested the same way as the fuel pump relay.

Long, slow work in mud or heat is hardest on any air-cooled engine. Give it breaks, and wash the cooler once the engine is cold.

5. Slipping or wet drive belt

The automatic ASi uses a V-belt CVT. Dirt Wheels notes that most Suzuki 400 belts never fail, but any CVT can overheat if the machine gets stuck in a deep mud hole (Dirt Wheels test).

Suzuki’s chart inspects the drive belt every 600 miles or 3 months on the ASi, and the clutch every 1,200 miles on the manual FSi. The owner’s manual also has a section on draining the V-belt cover (contents listed here).

1. After water crossings, drain the V-belt cover using the steps in your owner’s manual.
2. Use low range for slow, heavy work. Suzuki builds the high and low sub-transmission for traction and fuel efficiency.
3. If the belt slips after it is dry, get it inspected. Belt and clutch work is beyond the Suzuki pages used here, so it is a dealer or service-manual job.

The FSi has a five-speed manual gearbox with a centrifugal clutch, so it has no drive belt to burn up. Dirt Wheels says that is one reason it prefers the manual version.

6. Weak battery, slow crank or dead after sitting

Suzuki’s charging specs give you real numbers to test. You need a multimeter, for example a basic digital multimeter.

1. Charge the battery fully. It is a YTX14-BS, 12 volts and 12 amp-hours.
2. Check for a drain: with the key off, put a meter in series on the negative lead. Suzuki’s limit is under 1.0 mA.
3. Check charging: run the engine at about 5,000 rpm with the lights on high beam. Battery voltage should be 13.5 to 15.0 V.
4. Low charging voltage sends you to the generator and regulator. Generator coil resistance is 0.7 to 1.6 ohms, and no-load output is 125 V AC or more at 5,000 rpm when cold.
5. A slow crank on a good battery points to the starter. Brushes are 12.0 mm new and 6.5 mm is the wear limit.

Everything past the first two steps is for someone comfortable with a meter. Disconnect the negative lead first when you work on the battery.

Recalls and safety notices

The CPSC recall database lists several Suzuki KingQuad recalls, but none names the 400. Searching by product name on October 17, 2026 found these, which owners often mix up with the 400.

Recall	Date	Models	Problem	400 included?
05555	Mar 2005	2005 LT-A700X KingQuad, Vinson 500	Throttle lever case can freeze	No
06566	Jul 2006	2006 Eiger LT-A400K6, LT-A400FK6, LT-F400FK6	Missing welds on suspension arm brackets	Eiger only
11727	Mar 2011	2008-2010 LT-A450X, 2009-2010 LT-A500X, 2008-2010 LT-A750X, some 2011	Plastic fuel tank leak	No
17721	Dec 2016	2016-2017 LT-A750X, LT-A750XP	Battery can fail and stall the engine	No

The 2006 Eiger recall matters only if you have a pre-2008 Eiger, which our Suzuki Eiger 400 problems guide covers. A dealer can still check your VIN against open campaigns.

For the larger sibling, see our King Quad 500 problems guide. For the general ATV checks, our ATV and UTV troubleshooting guide covers bogging, no-start, heat and belts.

King Quad 400 service numbers

Item	Spec
Engine oil	SAE 10W-40, API SF/SG or SH/SJ with JASO MA; 3.0 qt change, 3.3 qt with filter; drain plug 16.5 lbf-ft
Spark plug	NGK CR7E or DENSO U22ESR-N; gap 0.028 to 0.031 in; replace every 4,000 miles
Idle speed	1,500 rpm, plus or minus 100
Fuel	Unleaded, 87 octane minimum, under 10% ethanol; 4.2 gal tank
Front differential oil	Hypoid gear oil SAE 90, API GL-5; 300 ml (10.1 oz); replace every 2 years
Final gear oil	Hypoid gear oil SAE 90, API GL-5; 350 ml (11.8 oz); replace every 2 years
Fuses	Main 30 A; fuel 15 A; five 10 A
Brakes	Fluid replaced every 2 years, hoses every 4 years
Wheel nuts	43.5 lbf-ft front and rear
Tires	AT25x8-12 front, AT25x10-12 rear

These come from the 2010 supplement and the 2024 sheet. Your owner’s manual wins if a number differs for your model year.
