Honda Pioneer 500 Problems: Causes, Checks and Fixes

Last updated on October 19th, 2026 at 12:36 pm

Most Honda Pioneer 500 problems come down to a short list: a machine that will not crank because of a loose battery lead, a blown fuse or a missed start step, a shift system that blinks its gear indicator, overheating from a mud-packed radiator, and a worn spark plug.

Work through the checks below in order, free ones first. Honda's owner's manual says to stop and see a dealer for a blinking gear indicator or shift paddles that stop working.

The 2020 steering recall covers only the Pioneer 700 and 1000, not the 500. The 500 has a 475cc single-cylinder engine and an automatic five-speed with an electric shift system and no CVT belt, so advice written for belt-driven side-by-sides does not apply (see Honda’s 2021 specifications).

Numbers here come from the 2025 Honda owner’s manual for the Pioneer 500/520 platform and from Honda’s own spec sheets. Where only owner reports exist, the text says so. Your own manual and the stickers on your machine win if they differ.

Honda Pioneer 500 problems: symptom, cause and fix

Symptom	Check first (free)	Likely cause	Fix or next step
Clicks or will not crank	Brake pedal pressed, neutral lamp on, battery leads tight	Missed start step, loose lead or weak battery	Recharge the battery. Honda says jump starting should be avoided (p. 225)
Cranks but will not start	Fuel level, fuses, spark plug	Blown fuse or fouled, worn plug	Same-rating fuse only. Plug NGK BKR5E-11 or Denso K16PR-U11, gap 0.039-0.043 in
Gear indicator blinks or shows "-"	Stop, ignition off	Transmission fault	Dealer: "see your dealer to check and restore the transmission" (p. 211)
Shift paddles do nothing	Stop, ignition off	Shift system fault	Dealer if not restored (p. 210). A gear change tool can move it for loading (p. 212)
Will not go into reverse	Stopped completely? In neutral?	Machine still rolling or not in neutral	Stop, neutral, then reverse (p. 47)
High coolant temperature lamp, overheating	Mud on the radiator, coolant reservoir, oil level	Blocked airflow, long idling, leak, low coolant or oil	Clean the core, top up to MAX, dealer if the lamp stays on (pp. 217-218)
4WD does not seem to engage	Was the lever moved while stopped with the engine idling?	Mode changed while moving, or an indicator fault	Reselect while stopped, drive a short way and turn both directions (p. 46)
Loses power or bogs when warm	Heat lamp, radiator, spark plug	Heat or a worn plug	Fix heat first. Misfire or erratic running may damage the catalytic converter (p. 209)
Knocking or sudden power loss	Oil level	Low oil or internal wear	Stop riding. Dealer diagnosis before any repair

Start at the top of the table and stop when the problem goes away. Everything in the "check first" column costs nothing.

The rows with a page number come straight from Honda. Rows that say dealer are ones where the manual gives no owner repair.

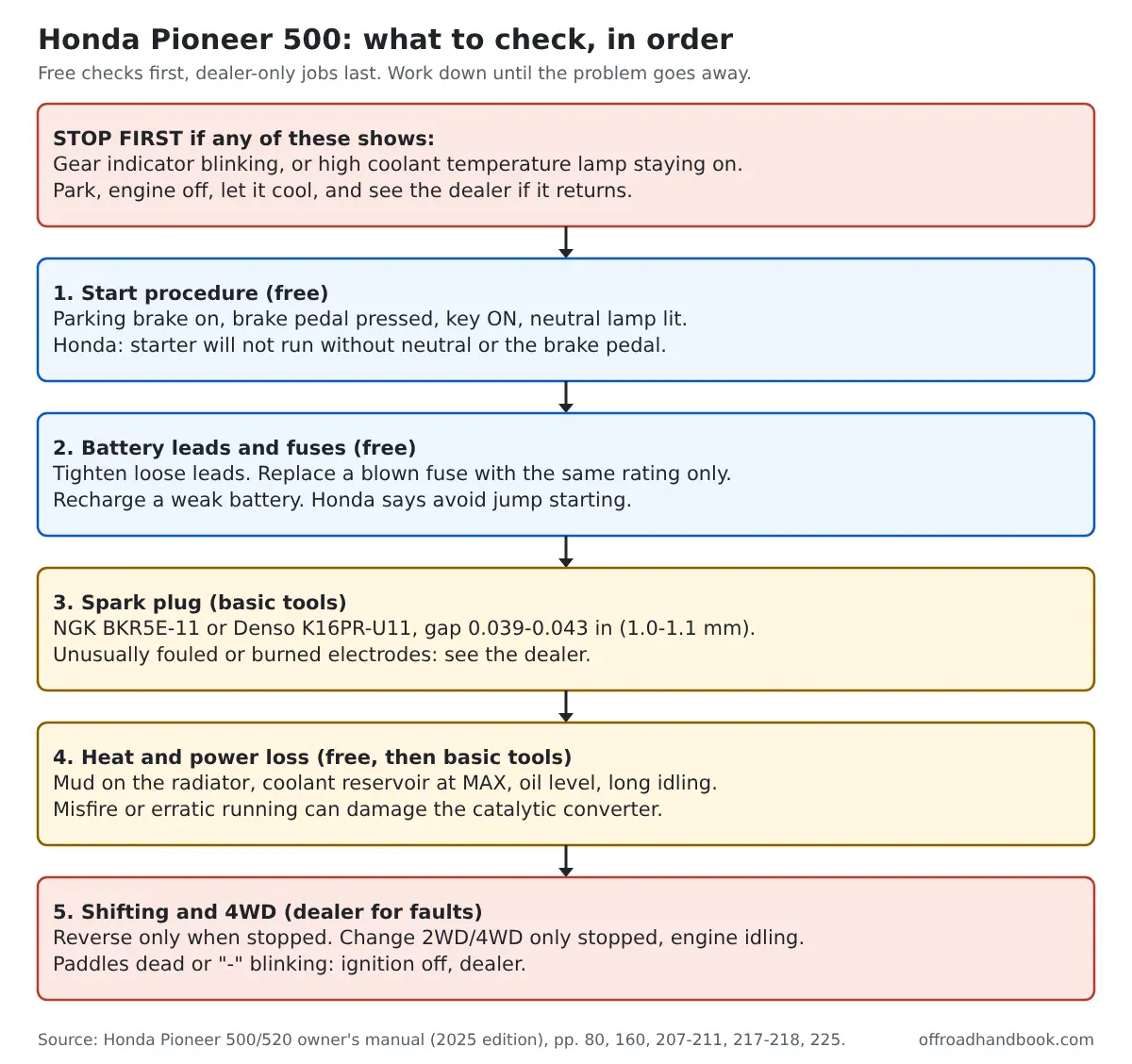

Check order for a Pioneer 500 that will not start or runs poorly

The chart follows the same order as the manual: warning signals first, then the start procedure, battery and fuses, spark plug, heat and finally shifting.

It is also the order of cost. Only the spark plug needs a tool. For a general no-start and bogging checklist across ATVs and UTVs, see the ATV and UTV troubleshooting guide.

Honda Pioneer 500 symptom checker

Pick what the machine is doing and whether a signal is showing. The tool lists your checks in order: free first, then basic tools, then the dealer.

Every line comes from the manual text and tables on this page. Anything that is shop practice rather than a Honda statement is labeled that way.

The tool does not replace diagnosis. It cannot see a worn plug or a low battery, so work the steps in the sections below as well.

If a step says dealer, take the whole list with you so the shop does not repeat the free checks.

Pioneer 500 will not start or cranks slowly

Run these in order. The first two are the most common reasons a healthy machine will not crank.

1. Follow Honda’s start procedure: apply the parking brake, press the brake pedal, turn the key ON and confirm the transmission is in neutral with the neutral indicator lit (p. 80). The manual also lists neutral or the brake pedal as the first thing to check when the starter does not operate (p. 207).
2. Tighten any loose battery lead (p. 207).
3. Check fuses with the ignition OFF. Honda lists a 40 A main fuse and circuit fuses of 30 A, 15 A (four) and 10 A (two). Replace a blown fuse with the same rating only (pp. 219-222, 269).
4. Recharge a weak battery rather than jump starting it. Honda says jump starting should be avoided (p. 225).
5. Pull the spark plug. Honda specifies NGK BKR5E-11 or Denso K16PR-U11 with a gap of 0.039 to 0.043 in (1.00 to 1.10 mm). The center electrode should have a flat tip and sharp edges. Unusually fouled or burned electrodes mean a dealer visit (pp. 160-161).

Honda says a battery in storage should be charged about every 30 days (p. 186). A machine that sits all winter and then clicks is often just flat.

If the plug is good, fuses are intact and the engine still shows no spark, the problem is in the ignition or sensors. That is a dealer diagnosis, not a parts-swap job.

Shifting problems: blinking gear indicator, dead paddles and reverse

Shifting is one of the most searched problems on this machine. The Pioneer 500 has an automatic five-speed with five forward gears and reverse, selected by an electric shift system with steering-column paddles (Honda, 2020 features). That is why a hard shift here is usually a signal or an electrical fault, not a belt.

Honda gives owners two instructions and one emergency tool.

• Gear indicator showing "-" and blinking, or the gear number blinking: "See your dealer to check and restore the transmission" (p. 211).
• Shift paddles not working: stop, turn the ignition OFF, and see your dealer if it cannot be restored (p. 210).
• Emergency gear selection: with the machine unoccupied, a gear change tool fits the secondary spindle on the front crankcase. Turn it counterclockwise to downshift and clockwise to upshift, only to load the machine for transport (pp. 212-213).

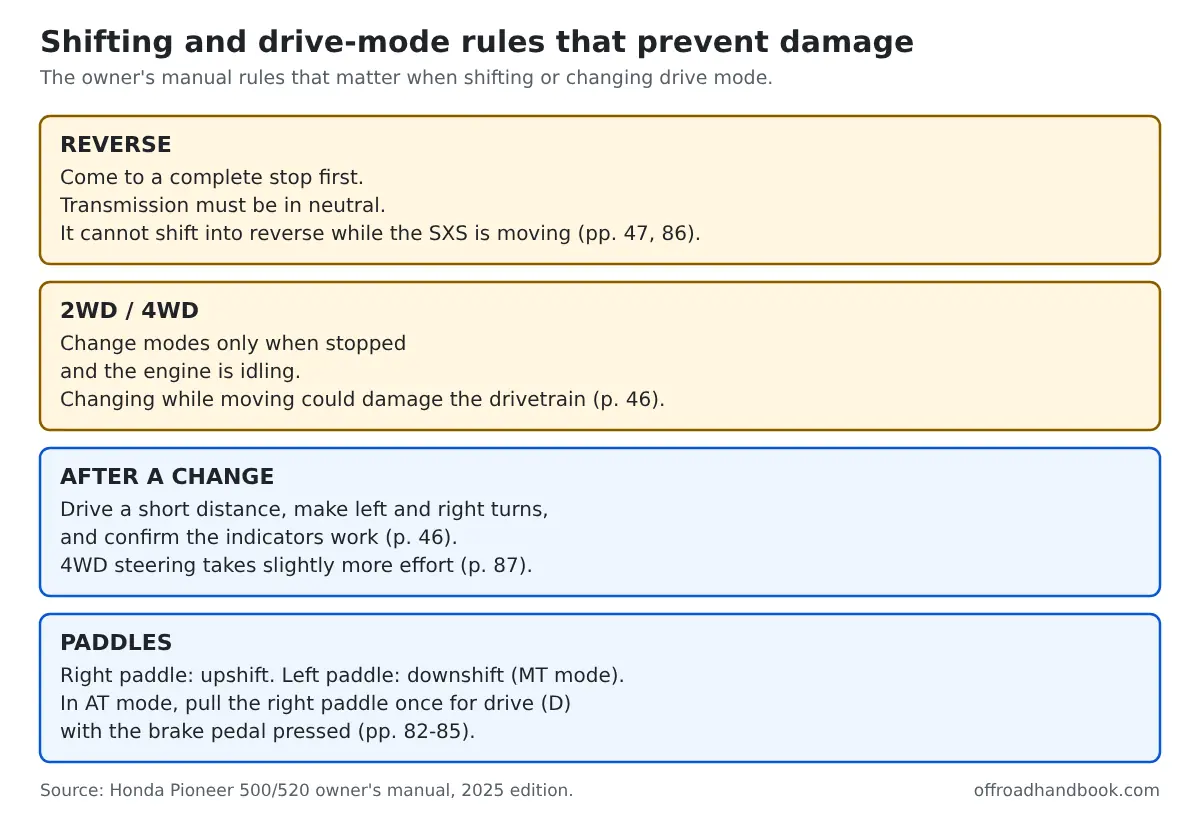

Reverse has its own rule. Honda says to come to a complete stop with the transmission in neutral and then shift to reverse, and that it cannot be shifted into reverse while the machine is moving (pp. 47, 86).

Cold-weather stiffness is an owner report, not a Honda statement, and the manual read for this guide has no cold-shift procedure. Letting the engine warm up before a hard run is ordinary practice, not a fix.

Searches such as "how to replace the transmission" and "gear shift motor" have no owner procedure in the manual. Honda sends transmission faults to the dealer, and rebuilding one needs the service manual.

Overheating, high coolant temperature lamp and power loss

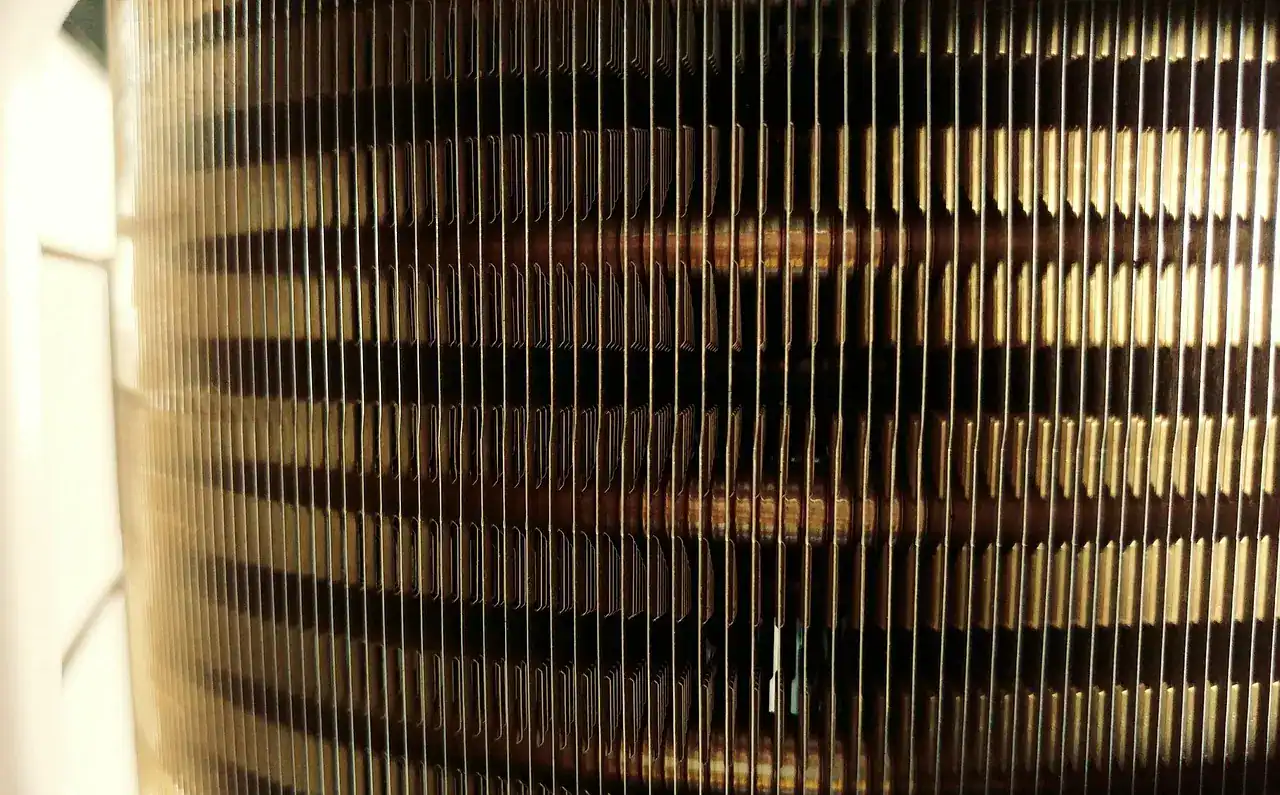

The photo shows how tightly cooling fins are packed. Mud and leaves in that space are the cause Honda lists first.

Honda says the high coolant temperature lamp normally lights only briefly when you turn the key ON, and it can flicker near idle. If it stays on, the manual lists these causes: restricted radiator airflow such as mud, extended idling, oil or coolant leaks, low oil or coolant, or prolonged hard operation (p. 217).

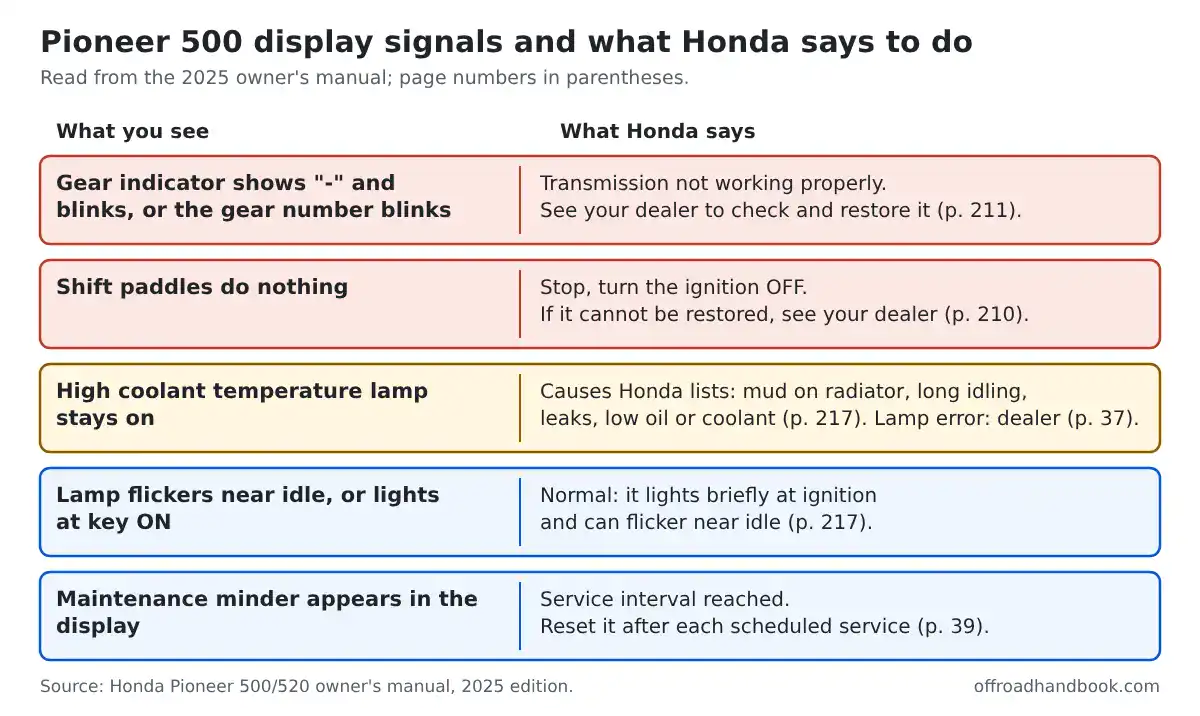

The chart collects the display signals so you can tell a normal flicker from a stop-now warning.

1. Park, shut the engine off and let it cool. Do not remove the radiator cap while the engine is hot, because coolant can spray and scald (p. 144).
2. Check the oil level and look for leaks. Add the recommended oil up to the upper level mark if it is low (p. 218).
3. Check the coolant reservoir and top up to the MAX mark with a 50/50 mix of silicate-free coolant and distilled water. Tap water may cause engine damage (pp. 71-73, 141-143).
4. Clean mud and debris off the radiator core. Honda says to clean it after mud exposure (p. 145).

If the lamp returns with a clean radiator and full coolant, have the cooling system tested. The manual has no thermostat or water pump procedure for owners, and Honda says to see your dealer as soon as possible if the lamp may be reporting a temperature system error (p. 37).

Searches for a Pioneer 500 that bogs after 20 or 30 minutes usually point to heat building up. Do the cooling checks above before replacing parts, and avoid long idling in deep mud.

4WD will not engage

Honda describes a drive mode select lever with 2WD and 4WD positions and a 4WD indicator. Change modes only when the machine is stopped and the engine is idling, because changing while moving could damage the drivetrain (p. 46).

After a change, drive a short distance, make left and right turns and confirm the indicators work. Steering takes slightly more effort in 4WD (pp. 46, 87).

Older write-ups mention a faulty differential-lock cable. The Honda sections read for this guide describe no differential-lock cable, so treat that as an owner report. If the indicator will not light after you follow the steps above, have the dealer inspect the drive system.

Battery drain and charging

Rule out anything wired directly to the battery first, such as a winch, lights or a stereo. That is shop practice, not a Honda step.

The 2025 manual lists a YTX14-BS 12 V, 12 Ah battery for one version and a GYZ16H 12 V, 16 Ah battery for another (p. 239), so match yours to your VIN.

If a jump start is unavoidable, the manual says to turn the ignition OFF and remove the battery cover first (p. 226). If the battery keeps going flat, have the charging system tested.

Tires, wheels and vibration

Stock tires are 24 x 8-12 front and 24 x 10-12 rear (Honda). The 2025 manual lists 10 psi front and rear, measured cold, and a minimum center tread depth of 3/16 in (4 mm) (pp. 178-180).

Earlier years can differ, so read the pressure on your tire sticker. If you feel a wobble, check lug nuts, tread and bearings. To understand the numbers on a replacement tire, see how to read ATV tire size, and to check diameter and speedometer error use the tire size calculator.

Knocking, stalling or backfire

A knock, stalling or a big drop in power needs prompt attention. Check oil level first (Honda says to check it daily, p. 130), then the spark plug and the heat signals above. Stop riding if the oil is low or a knock continues.

Some owners and dealers blame a worn camshaft for power loss. No Honda bulletin or recall confirming that was found, so it is an unconfirmed owner report. Misfire or erratic running can damage the catalytic converter (p. 209), which is one more reason not to keep riding on a misfire.

Honda Pioneer 500 service specs

Item	Value	Source
Engine	475cc liquid-cooled single, PGM-FI fuel injection	Honda 2021 specs
Transmission	Automatic five-speed plus reverse, automatic clutch	Honda 2021 specs
Fuel tank	4.1 gal, including 1.1 gal reserve	Honda 2021 specs
Spark plug and gap	NGK BKR5E-11 or Denso K16PR-U11; 0.039-0.043 in (1.00-1.10 mm)	Manual pp. 160-161
Engine oil capacity	About 3.2 US qt after drain and refill; JASO T 903 MA; no graphite or molybdenum additives	Manual pp. 128-136
Oil drain plug torque	18 lbf-ft (25 N-m)	Manual p. 135
Coolant	50/50 ethylene glycol mix, 2.5 US qt (2.4 L), silicate-free	Manual p. 235
Fuses	Main 40 A; circuit 30 A, 15 A x4, 10 A x2	Manual p. 269
Final gear oil check	Every 1,800 miles (3,000 km) or 300 hours	Manual pp. 137-139
Trailer weight	Maximum total 1,000 lb (454 kg), including the trailer and its load	Manual p. 76

Recalls and product updates

The CPSC recall 21-711 (December 2020) covers about 118,600 Pioneer 700 and 1000 side-by-sides for steering play or loss of control. The Pioneer 500 (SXS500) is not included.

Check your VIN with a Honda powersports dealer for anything else. For the larger Pioneers, see our guides to the Pioneer 700 and Pioneer 1000.

Older versions of this guide mentioned a 2015 label update. Honda’s pages could not be opened to confirm it, so it was removed.
